BRC-82

< PREPARATION >

[ABS]

PREPARATION

PREPARATION

PREPARATION

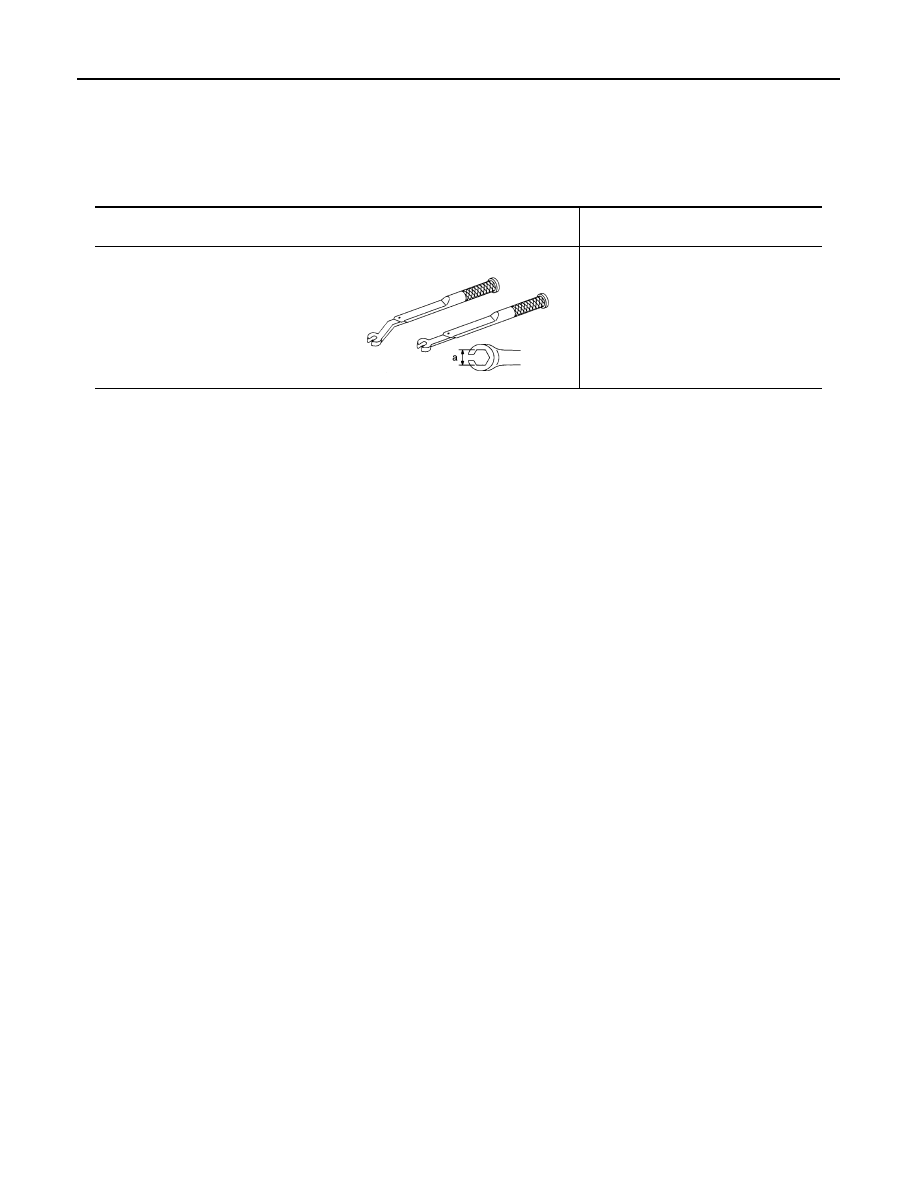

Special Service Tool

INFOID:0000000001691372

Tool number
Tool name

Description

GG94310000
 Flare nut torque wrench

a: 10 mm (0.39 in)

Removing and installing each brake
piping

NT406

WHEEL SENSORS

BRC-83

< REMOVAL AND INSTALLATION >

[ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

REMOVAL AND INSTALLATION

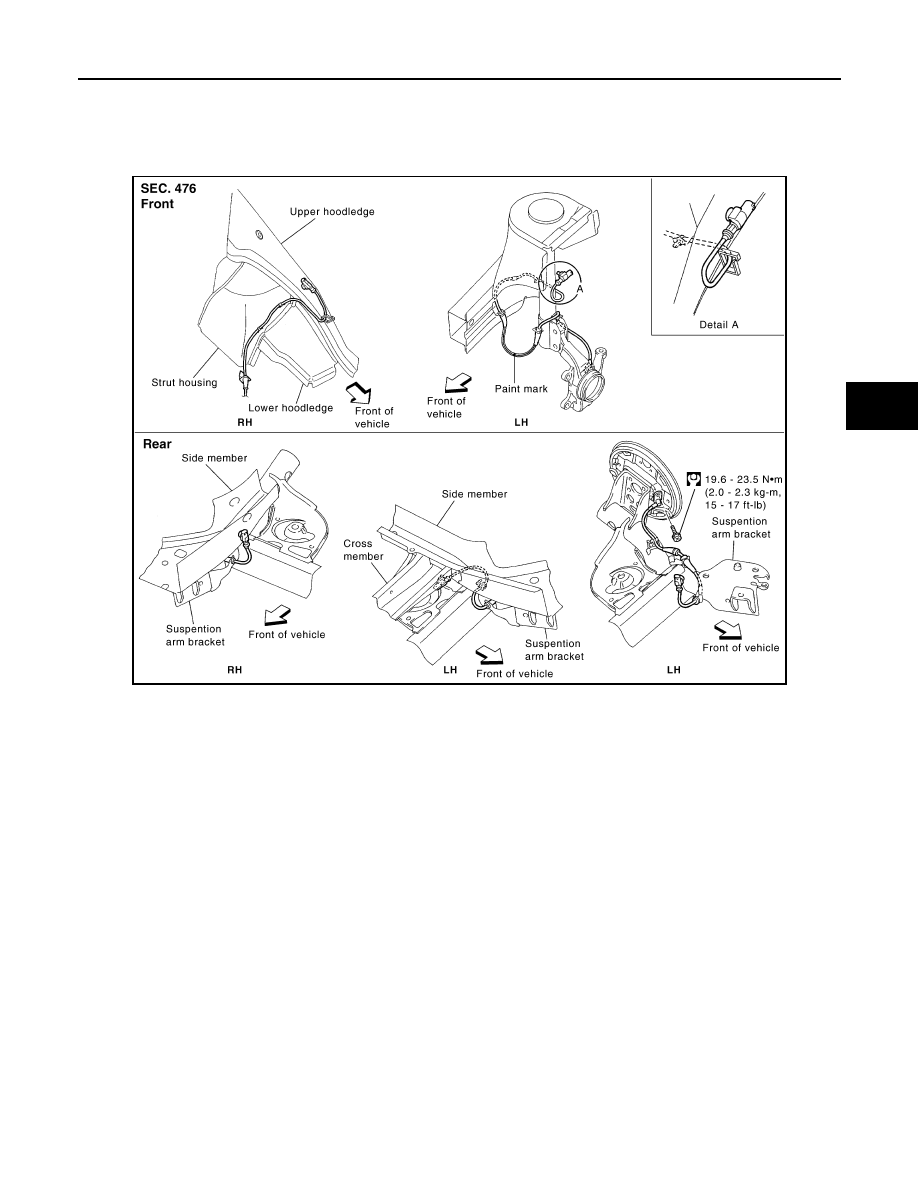

WHEEL SENSORS

Removal and Installation

INFOID:0000000001691408

REMOVAL

Be careful of the following.

CAUTION:

• When removing the sensor, do not rotate it if possible, and not forcibly pull the sensor harness.
• Before removing front or rear wheel hub, remove wheel sensor to avoid sensor wiring damage.

INSTALLATION

Be certain to tighten bolts to the specified torque. Be careful of the following:

• Check the inside of the sensor mounting hole for foreign material, the rotor surface for iron chips and other

foreign material, and if anything is non-standard, clean it before installation, or replace it.

• When installing the front sensor, completely push in the strut bracket and body bracket rubber grommets

until they lock so that the sensor harness does not become twisted. In addition, there should be no twists in
the harness when installed. Install the harness so that the painted part faces the outside of the vehicle.

• When installing the rear sensor, completely push in the rubber bracket of the suspension arm bracket and

lock the marking area of the side member harness mount so that the sensor harness will not be twisted. In
addition, there should be no twists in the harness when installed.

MFIB9029E

BRC-84

< REMOVAL AND INSTALLATION >

[ABS]

SENSOR ROTOR

SENSOR ROTOR

Removal and Installation

INFOID:0000000001691409

FRONT

• Because the sensor rotor is integrated with the wheel bearing, replace it together with the wheel bearing

assembly. Refer to

FAX-7, "Removal and Installation"

.

REAR

• During removal and installation, remove the wheel hub (brake drum). Refer to

RAX-6, "Removal and Instal-

lation"

.

CAUTION:

The sensor rotor is a non-reusable part, it must be replaced by an new part when removing it.

ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)

BRC-85

< REMOVAL AND INSTALLATION >

[ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

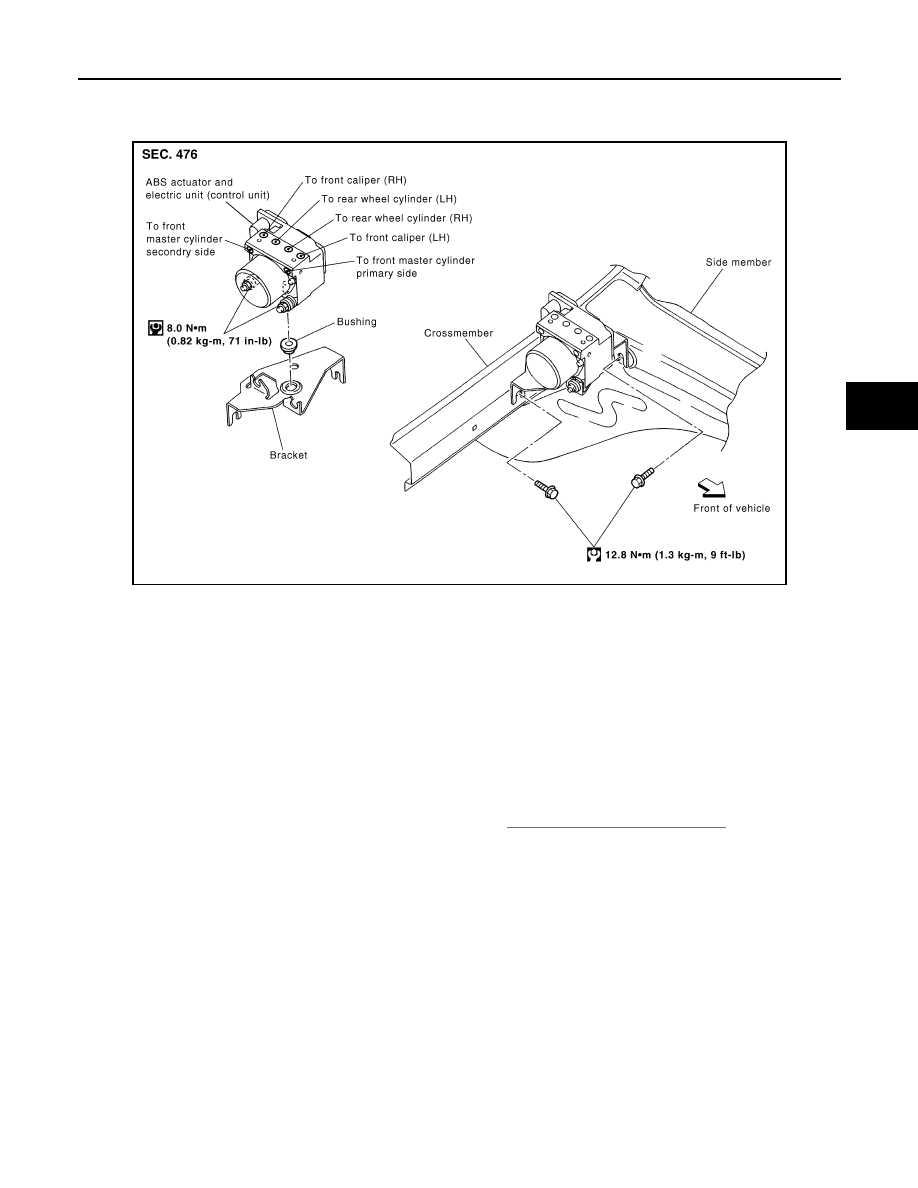

ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)

Removal and Installation

INFOID:0000000001691410

REMOVAL

Be careful of the following.

CAUTION:

• Before servicing, disconnect the battery cables.
• To remove brake tube, use a flare nut wrench to prevent flare nuts and brake tube from being dam-

aged. To install, use a flare nut torque wrench and tighten to the specified torque.

• Do not apply excessive impact to the actuator, such as dropping it.

INSTALLATION

Be careful of the following.
• When setting the actuator in the bracket, push it in until it locks.
• Tighten the mounting bolts and nuts to the specified torque.
• After the work, breed the air from the brake piping. Refer to

BR-8, "Bleeding Brake System"

.

• After installing the vehicle harness connector in the actuator, make sure the connector is securely locked.

SFIA1183E
