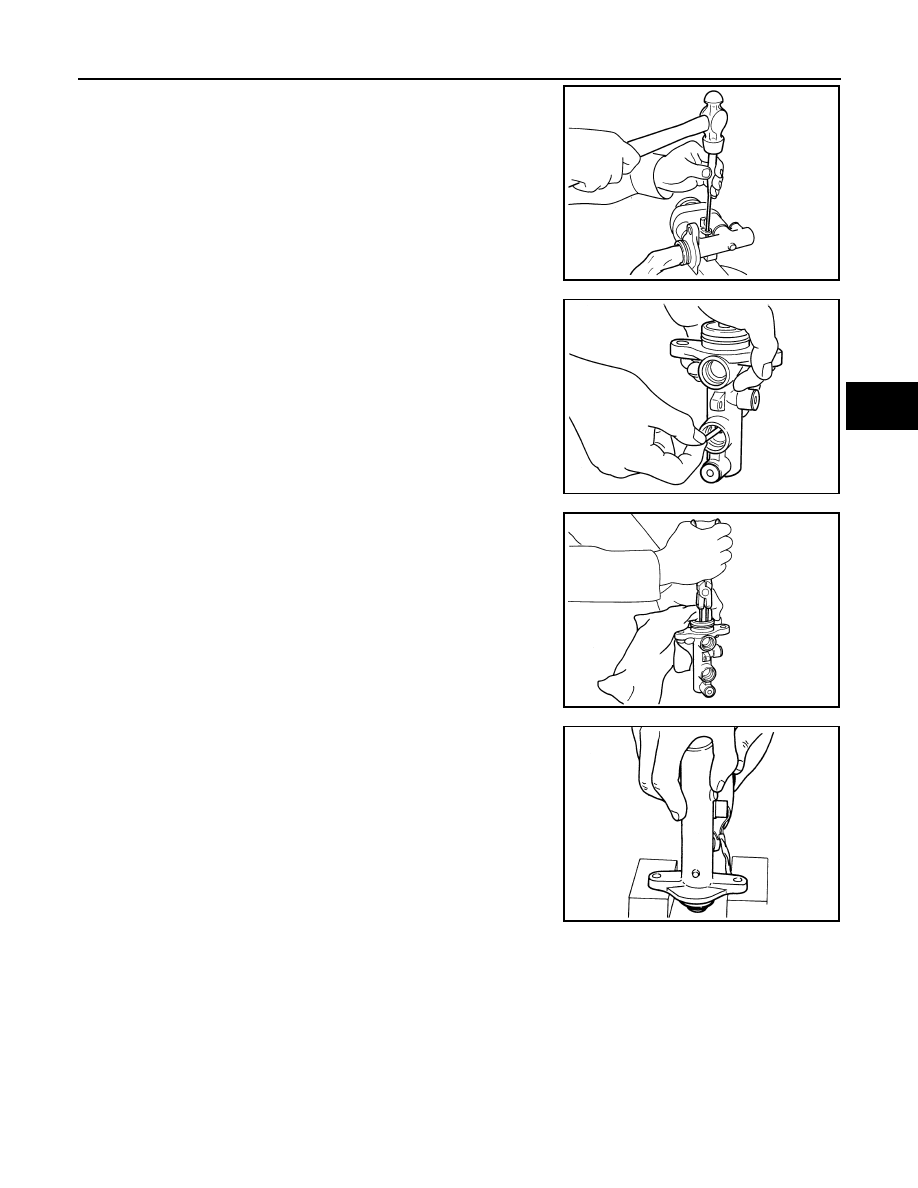

2.

Using a pin-punch [commercial service tool: diameter approx. 4
mm (0.16 in)], remove pin from reservoir tank.

3.

Remove master cylinder assembly from vise.

4.

Remove reservoir tank and grommet from cylinder body.

5.

While pushing primary piston, remove piston stopper through
secondary tank boss hole in the cylinder body.

6.

Remove snap ring with pushing primary piston.

CAUTION:

Be careful not to pop out piston.

7.

Holding rod of primary piston, remove primary piston assembly,
plate and guide assembly by pulling straight to prevent piston
cup from being caught by the inner wall of cylinder.

8.

Remove plate and guide assembly from primary piston.

CAUTION:

Be careful not to damage rod from the inner wall of plate.

9.

Tap flange using a soft block such as wood, and carefully pull
secondary piston assembly straight out to prevent cylinder inner
wall from being damaged.

INSPECTION AFTER DISASSEMBLY

Cylinder Body

• Check the inner wall of cylinder for damage, wear, corrosion, and pin holes. Replace cylinder body if neces-

sary.

ASSEMBLY

CAUTION:

• Never use mineral oils such as kerosene or gasoline during the cleaning and assembly processes.
• Make sure that there is no foreign material such as dirt and dust on the inner wall of cylinder, piston,

and piston cup. Be careful not to damage parts with a service tool when assembling.

• Do not drop parts. If a part is dropped, do not use it.

WFIA0515E

WFIA0516E

BRA0561D

WFIA0517E

WFIA0518E

BR-32

< DISASSEMBLY AND ASSEMBLY >

BRAKE MASTER CYLINDER

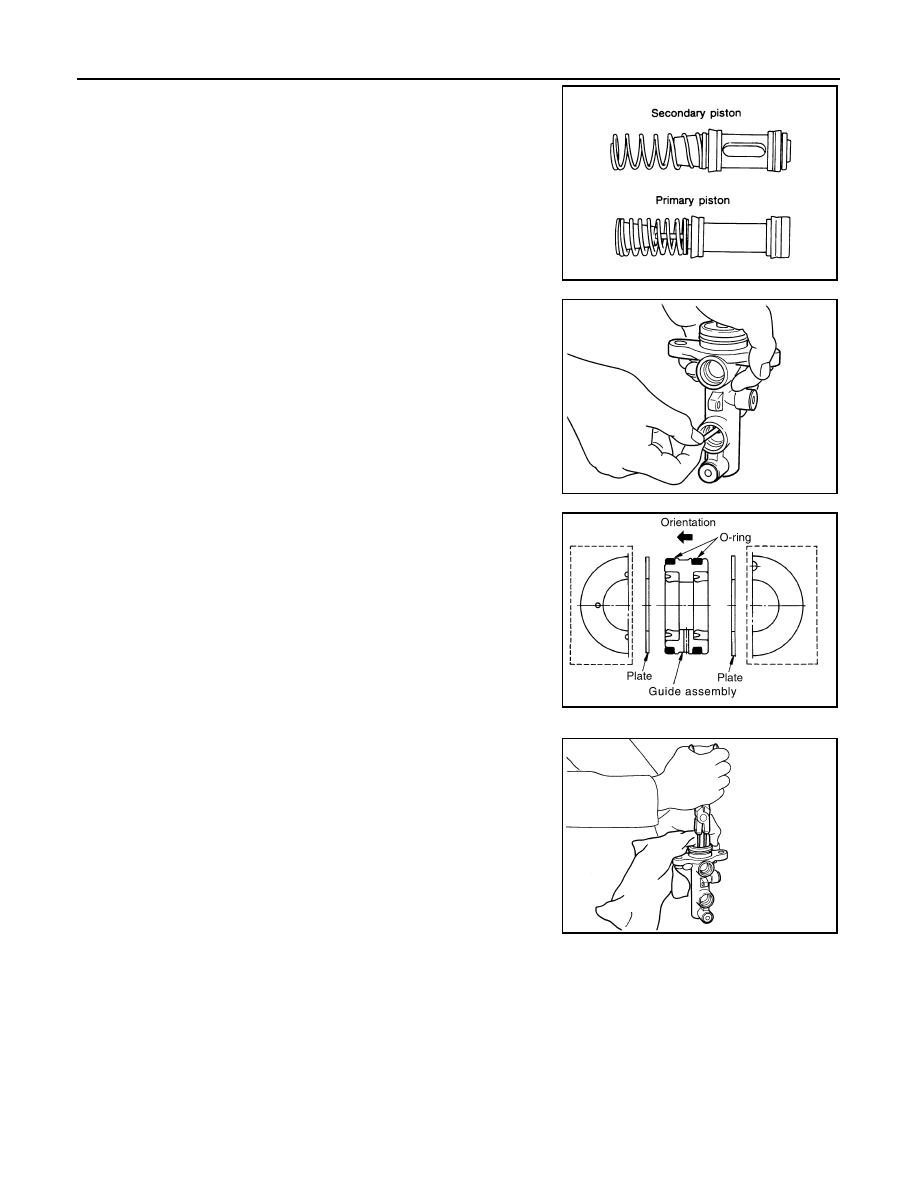

1.

Apply brake fluid to the inner wall of cylinder body, primary pis-
ton assembly and secondary piston assembly.

2.

Insert secondary piston and primary piston assembly into cylin-
der body in this order.

CAUTION:

• Pay attention to the orientation of piston cup, and insert

straight to prevent cup from being caught by the inner
wall of cylinder.

• Always replace inner kit as a set.

3.

Set the slit of secondary piston towards the piston stopper
mounting hole of cylinder body while pushing in the primary pis-
ton. Then install the piston stopper through the slit of secondary
piston.

4.

Insert plate and guide assembly into cylinder body.

CAUTION:

• Be careful not to damage rod of primary piston.
• Pay attention to the orientation of guide assembly.
• Do not drop O-ring.
• Be careful the guide and/or plate are not inserted at an

angle to cylinder inner wall.

5.

Be careful not to damage rod of primary piston with the cloth.
Then insert snap ring to cylinder body while pushing primary pis-
ton.

CAUTION:

Make sure that snap ring is securely engaged in cylinder
body inner diameter groove.

6.

Apply brake fluid to a grommet, and press it into reservoir tank to install.

SBR089C

WFIA0516E

SFIA1469E

WFIA0517E

BRAKE MASTER CYLINDER

BR-33

< DISASSEMBLY AND ASSEMBLY >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

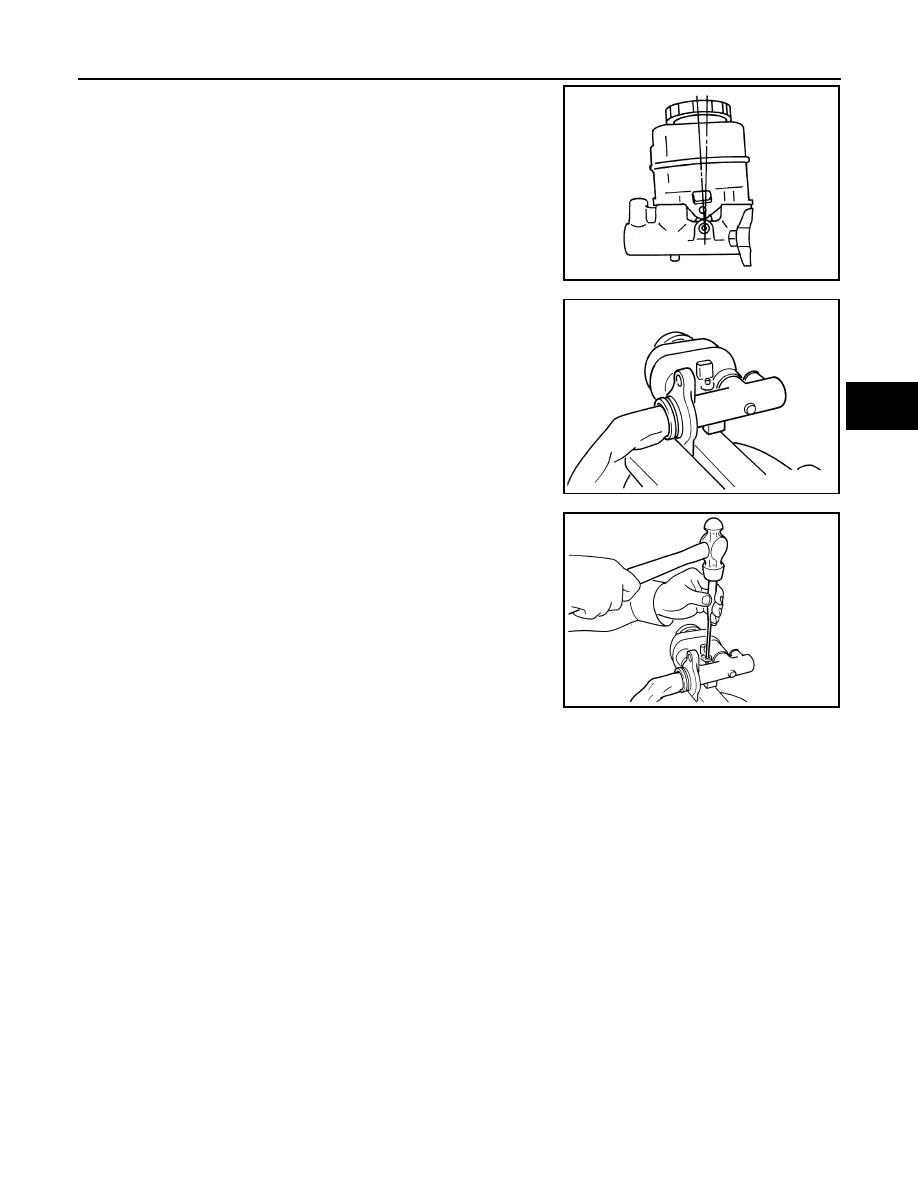

7.

Install reservoir tank to cylinder body.

CAUTION:

Pay attention to the orientation of reservoir tank. Make sure
reservoir tank is fully seated on master cylinder.

8.

Secure flange of cylinder body in vise as shown.

CAUTION:

• Use copper plate or cloth to cover flange for securing in

the vise.

• When securing master cylinder assembly in a vise, be

sure not to over-tighten.

• Be sure to secure the flange part with the brake tube

installation side of cylinder body facing up (chamfered pin
insert hole of cylinder body facing up).

9.

Using a pin punch [commercial service tool: diameter approx. 4
mm (0.16 in)], insert the reservoir tank pin into the pin hole.

WFIA0519E

WFIA0514E

WFIA0515E

BR-34

< DISASSEMBLY AND ASSEMBLY >

FRONT DISC BRAKE

FRONT DISC BRAKE

Disassembly and Assembly of Brake Caliper Assembly

INFOID:0000000001717023

NOTE:
Do not remove torque member, brake pads, shims and pad retainers, when disassembling or assembling cyl-
inder body.

DISASSEMBLY

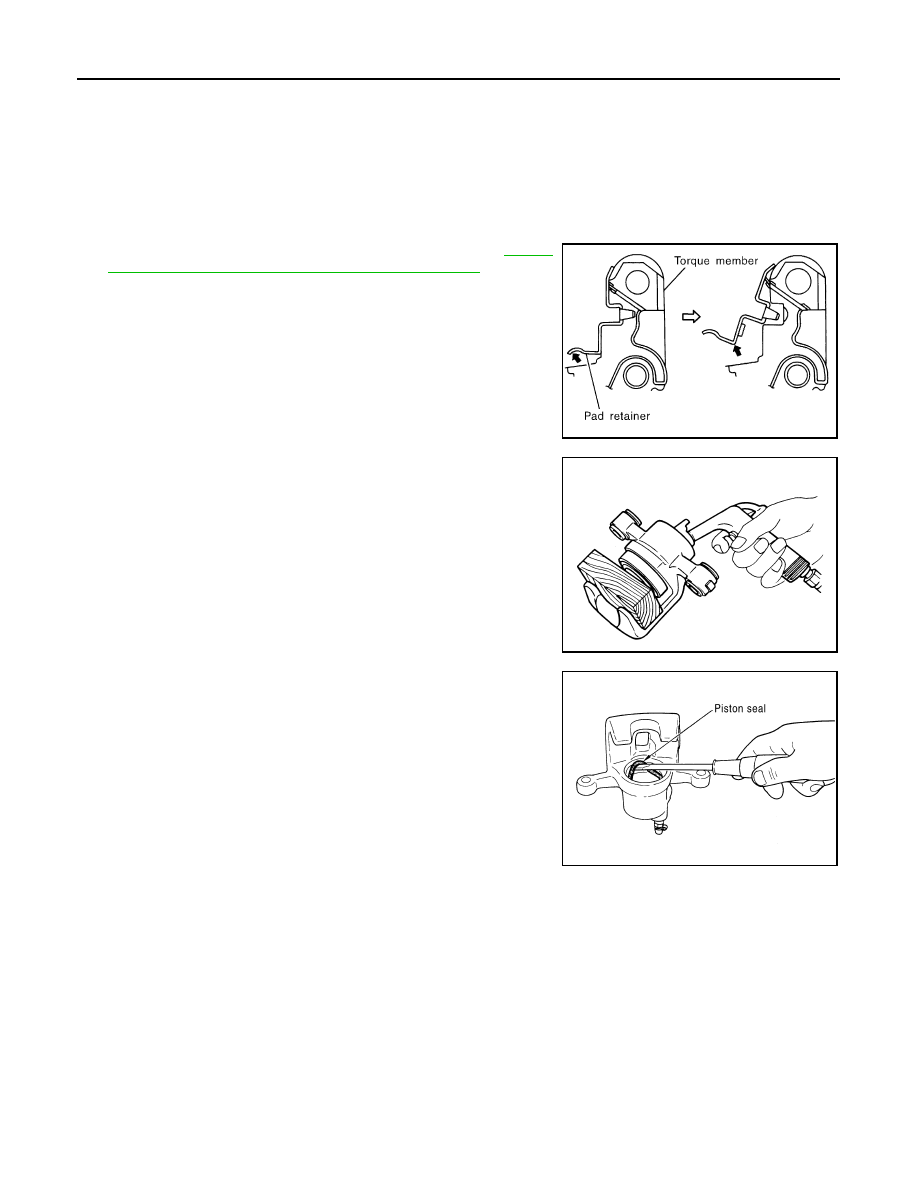

1.

Remove caliper assembly from vehicle. Refer to

BR-25,

"Removal and Installation of Brake Caliper Assembly"

  .

2.

Remove sliding pin bolts from cylinder body, and remove pads,
shims and pad retainers from torque member, if necessary.

CAUTION:

When removing pad retainer from torque member, lift the
pad retainer in the direction shown by arrow, so as not to
deform it.

3.

Remove sliding pins and sliding pin boots from torque member.

4.

Place a wooden block as shown, and blow air from union bolt
mounting hole to remove piston and piston boot.

CAUTION:

Do not get fingers caught in the piston.

5.

Remove piston seal with a flat-bladed screwdriver.

CAUTION:

Be careful not to damage the inner wall of cylinder.

INSPECTION AFTER DISASSEMBLY

Cylinder Body

Check the inner wall of cylinder for corrosion, wear, and damage. Replace cylinder body as necessary.

CAUTION:

Clean cylinder body using new brake fluid. Never use mineral oils such as gasoline or kerosene.

Torque Member

Check for wear, cracks, and damage. Replace torque member as necessary..

Piston

Check piston surface for corrosion, wear, and damage. Replace piston as necessary.

CAUTION:

The piston sliding surface is plated. Do not polish with sandpaper.

Sliding Pin, Sliding Pin Bolt, and Sliding Pin Boot

SBR556E

WFIA0525E

SFIA2277E
