Nissan Tiida C11. Manual - part 34

AV-130

< ON-VEHICLE REPAIR >

[AUDIO WITH NAVIGATION]

NAVI CONTROL UNIT

NAVI CONTROL UNIT

Removal and Installation

INFOID:0000000001724711

NAVI CONTROL UNIT

Removal

CAUTION:

To avoid damage, eject map DVD-ROM before removing the NAVI control unit.

1.

Disconnect the negative battery terminal.

2.

Remove the front seat RH. Refer to

SE-14, "Removal and Installation"

.

3.

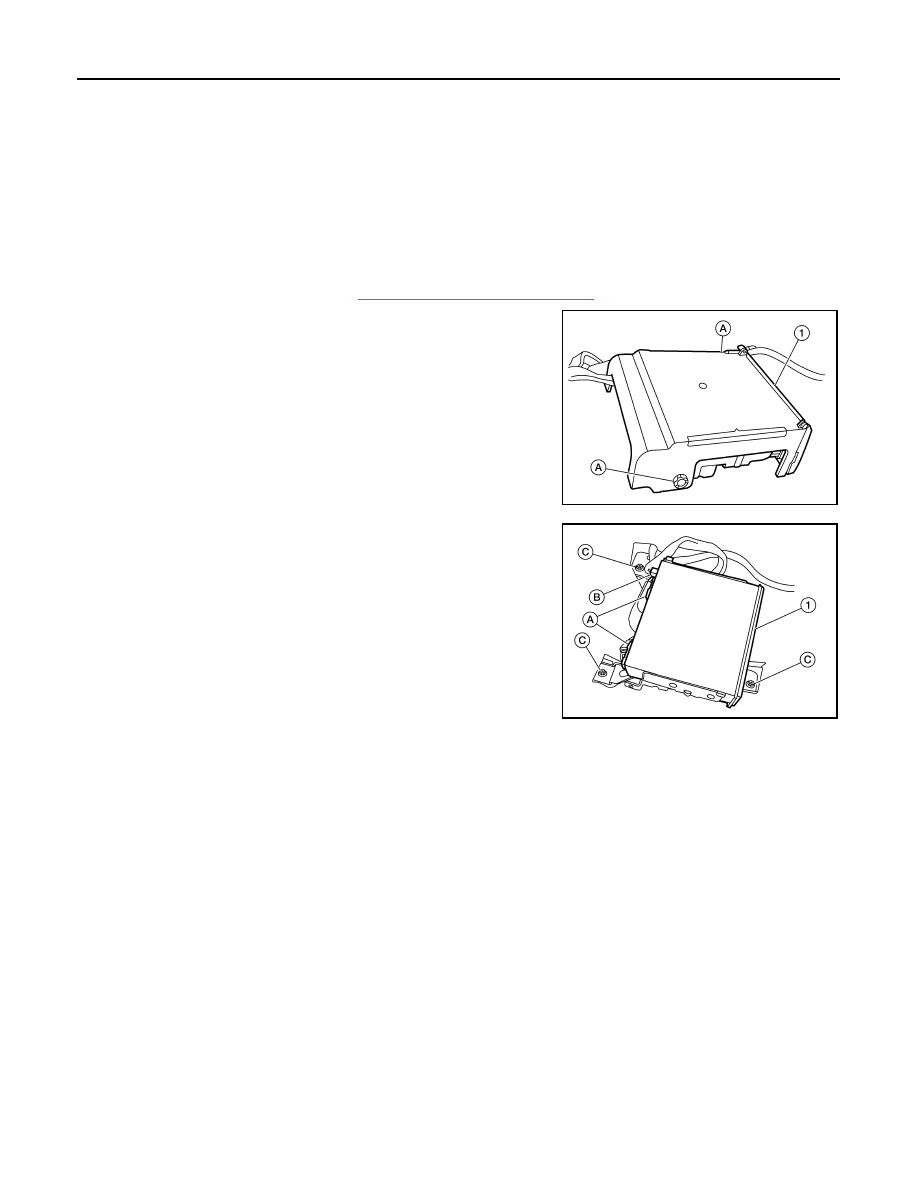

Remove the NAVI control unit kick shield clips (A), then remove
the NAVI control unit kick shield (1).

4.

Disconnect the NAVI control unit connectors (A) and the Blue-
tooth connector (B).

5.

Remove the NAVI control unit bolts (C), then remove the NAVI
control unit (1).

6.

Remove the NAVI control unit bracket screws and remove the
NAVI control unit brackets.

Installation

Installation is in the reverse order of removal.

ALNIA0873ZZ

ALNIA0874ZZ

BCS

BCS-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

BCS

A

O

P

N

CONTENTS

BODY CONTROL SYSTEM

BASIC INSPECTION  ....................................

3

INSPECTION AND ADJUSTMENT .....................

3

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT  ..........................................................

3

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Description  ..................................

3

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Special Repair Requirement  .......

3

CONFIGURATION .......................................................

3

CONFIGURATION : Description  ...............................

3

CONFIGURATION : Special Repair Requirement

......

4

FUNCTION DIAGNOSIS ...............................

7

BODY CONTROL SYSTEM ................................

7

System Description  ...................................................

7

Component Parts Location ........................................

8

COMBINATION SWITCH READING SYSTEM

.....

9

System Diagram ........................................................

9

System Description  ...................................................

9

Component Parts Location ......................................

12

SIGNAL BUFFER SYSTEM  ...............................

13

System Diagram ......................................................

13

System Description  .................................................

13

POWER CONSUMPTION CONTROL SYS-
TEM ....................................................................

14

System Diagram ......................................................

14

System Description  .................................................

14

Component Parts Location ......................................

15

DIAGNOSIS SYSTEM (BCM)  ............................

16

COMMON ITEM  .........................................................

16

COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM) .....................................................

16

BCM ...........................................................................

16

BCM : CONSULT-III Function (BCM - BCM) ...........

17

DOOR LOCK ..............................................................

17

DOOR LOCK : CONSULT-III Function (BCM -
DOOR LOCK) ..........................................................

17

REAR WINDOW DEFOGGER  ...................................

18

REAR WINDOW DEFOGGER : CONSULT-III
Function (BCM - REAR DEFOGGER) .....................

18

BUZZER .....................................................................

18

BUZZER : CONSULT-III Function (BCM - BUZZ-
ER) ..........................................................................

18

INT LAMP ...................................................................

19

INT LAMP : CONSULT-III Function (BCM - INT
LAMP) ......................................................................

19

MULTIREMOTE ENT  .................................................

19

MULTIREMOTE ENT : CONSULT-III Function
(BCM - MULTIREMOTE ENT) .................................

19

HEADLAMP ...............................................................

20

HEADLAMP : CONSULT-III Function (BCM -
HEAD LAMP) ...........................................................

20

WIPER ........................................................................

21

WIPER : CONSULT-III Function (BCM - WIPER) ....

21

FLASHER ...................................................................

22

FLASHER : CONSULT-III Function (BCM -
FLASHER) ...............................................................

22

AIR CONDITIONER  ...................................................

23

AIR CONDITIONER : CONSULT-III Function
(BCM - AUTO AIR CONDITIONER) ........................

23

INTELLIGENT KEY ....................................................

23

INTELLIGENT KEY : CONSULT-III Function
(BCM - INTELLIGENT KEY) ....................................

23

COMB SW ..................................................................

24

BCS-2

COMB SW : CONSULT-III Function (BCM -
COMB SW)  .............................................................

24

IMMU .........................................................................

24

IMMU : CONSULT-III Function (BCM - IMMU) .......

24

BATTERY SAVER  ....................................................

25

BATTERY SAVER : CONSULT-III Function (BCM
- BATTERY SAVER)  ..............................................

25

THEFT ALM  ..............................................................

26

THEFT ALM : CONSULT-III Function (BCM -
THEFT ALM)  ..........................................................

26

SIGNAL BUFFER ......................................................

26

SIGNAL BUFFER : CONSULT-III Function (BCM
- SIGNAL BUFFER) ................................................

26

PTC HEATER ............................................................

26

PTC HEATER : CONSULT-III Function (BCM -
PTC HEATER) ........................................................

26

COMPONENT DIAGNOSIS  ........................

28

U1000 CAN COMM CIRCUIT  ............................

28

Description ..............................................................

28

DTC Logic ...............................................................

28

Diagnosis Procedure  ..............................................

28

U1010 CONTROL UNIT (CAN)  .........................

29

DTC Logic ...............................................................

29

Diagnosis Procedure  ..............................................

29

Special Repair Requirement ...................................

29

POWER SUPPLY AND GROUND CIRCUIT  .....

30

Diagnosis Procedure  ..............................................

30

COMBINATION SWITCH INPUT CIRCUIT  .......

31

Diagnosis Procedure  ..............................................

31

Special Repair Requirement  ...................................

32

COMBINATION SWITCH OUTPUT CIRCUIT ...

33

Diagnosis Procedure ...............................................

33

Special Repair Requirement  ...................................

33

COMBINATION SWITCH  ..................................

34

Description ..............................................................

34

Diagnosis Procedure ...............................................

34

ECU DIAGNOSIS  .......................................

35

BCM (BODY CONTROL MODULE)  ..................

35

Reference Value  .....................................................

35

Terminal Layout  ......................................................

38

Physical Values .......................................................

39

Wiring Diagram  .......................................................

50

DTC Inspection Priority Chart ...............................

53

DTC Index ..............................................................

54

SYMPTOM DIAGNOSIS  ............................

55

COMBINATION SWITCH SYSTEM SYMP-
TOMS .................................................................

55

Symptom Table .......................................................

55

PRECAUTION ............................................

56

PRECAUTIONS  .................................................

56

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

56

ON-VEHICLE REPAIR  ...............................

57

BCM (BODY CONTROL MODULE)  ..................

57

Removal and Installation of BCM ............................

57

BCS

INSPECTION AND ADJUSTMENT

BCS-3

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

BASIC INSPECTION

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description

INFOID:0000000001451449

When replacing BCM, save or print current vehicle specification with CONSULT-III configuration before
replacement.
Configuration has three functions as follows
• READ CONFIGURATION is the function to read (extract) vehicle configuration of current BCM.
• WRITE CONFIGURATION - Manual selection is the function to select and write vehicle configuration on

BCM manually.

• WRITE CONFIGURATION - Config file is the function to write vehicle configuration with the data extracted

from current BCM.

CAUTION:

• When replacing BCM, you must perform WRITE CONFIGURATION with CONSULT-III.
• Complete the procedure of WRITE CONFIGURATION in order.
• If you set incorrect WRITE CONFIGURATION, incidents will occur.
• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000001451450

1.

 SAVING VEHICLE SPECIFICATION

Perform “READ CONFIGURATION” with CONSULT-III to save or print current vehicle specification.

>> GO TO 2

2.

 REPLACE BCM

Replace BCM. Refer to

BCS-57, "Removal and Installation of BCM"

.

>> GO TO 3

3.

 WRITING VEHICLE SPECIFICATION

Perform “WRITE CONFIGURATION - Config file” or “WRITE CONFIGURATION - Manual selection” with
CONSULT-III to write vehicle specification. Refer to

BCS-4, "CONFIGURATION : Special Repair Require-

ment"

.

>> GO TO 4

4.

 INITIALIZE BCM (NATS)

Perform BCM initialization. (NATS)

>> WORK END

CONFIGURATION

CONFIGURATION : Description

INFOID:0000000001451451

Vehicle specification needs to be written with CONSULT-III because it is not written after replacing BCM.
Configuration has three functions as follows
• READ CONFIGURATION is the function to read (extract) vehicle configuration of current BCM.
• WRITE CONFIGURATION - Manual selection is the function to select and write vehicle configuration on

BCM manually.

• WRITE CONFIGURATION - Config file is the function to write vehicle configuration with the data extracted

from current BCM.

CAUTION:
