ON-VEHICLE REPAIR

AUDIO UNIT

Removal and Installation

INFOID:0000000001724676

AUDIO UNIT

Removal

1.

Remove cluster lid C. Refer to

IP-11, "Removal and Installation"

.

2.

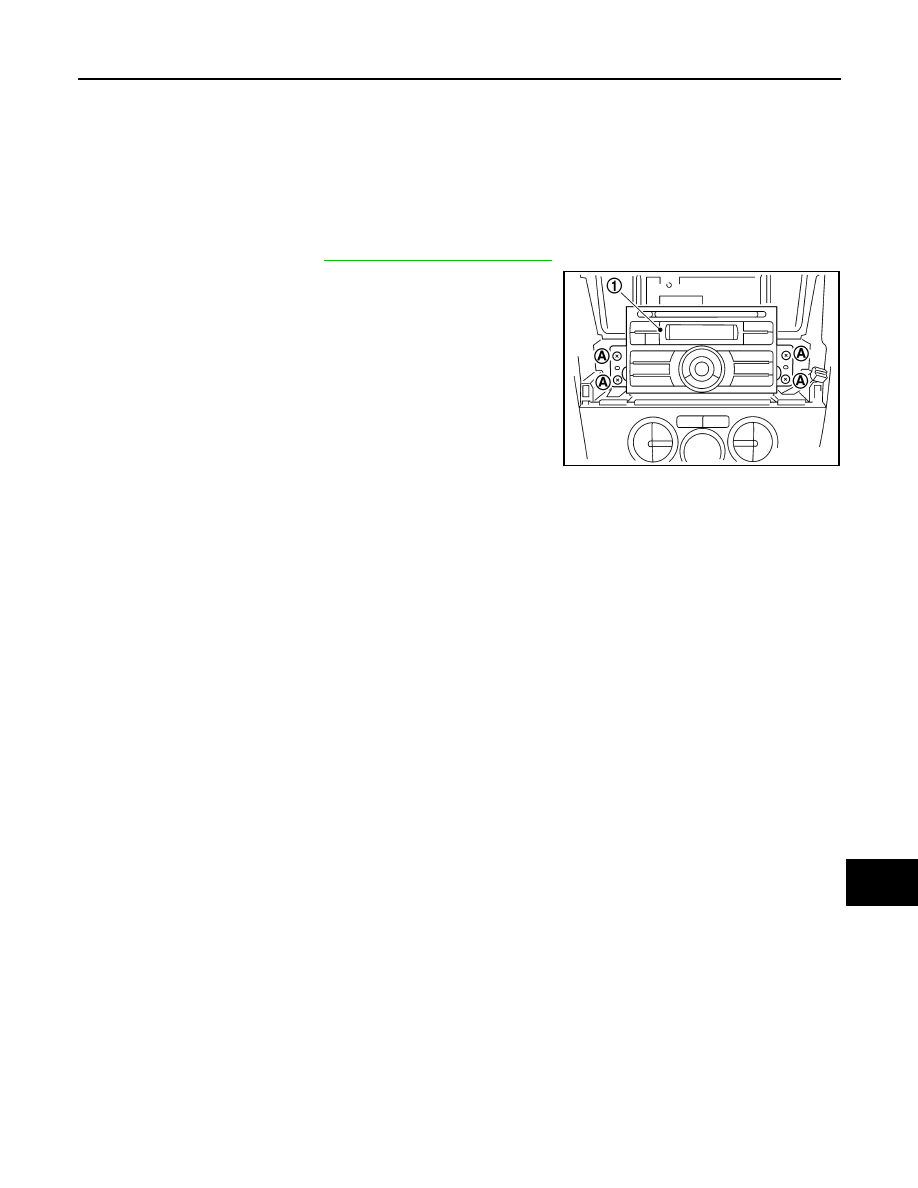

Remove the audio unit screws (A), disconnect the connectors
and remove the audio unit (1).

3.

Remove the audio unit bracket.

Installation

Installation is in the reverse order of removal.

SKIB4726E

AV-24

< ON-VEHICLE REPAIR >

[AUDIO WITHOUT NAVIGATION]

TWEETER

TWEETER

Removal and Installation

INFOID:0000000001724677

TWEETER

Removal

1.

Remove the front pillar garnish. Refer to

IP-11, "Removal and Installation"

.

2.

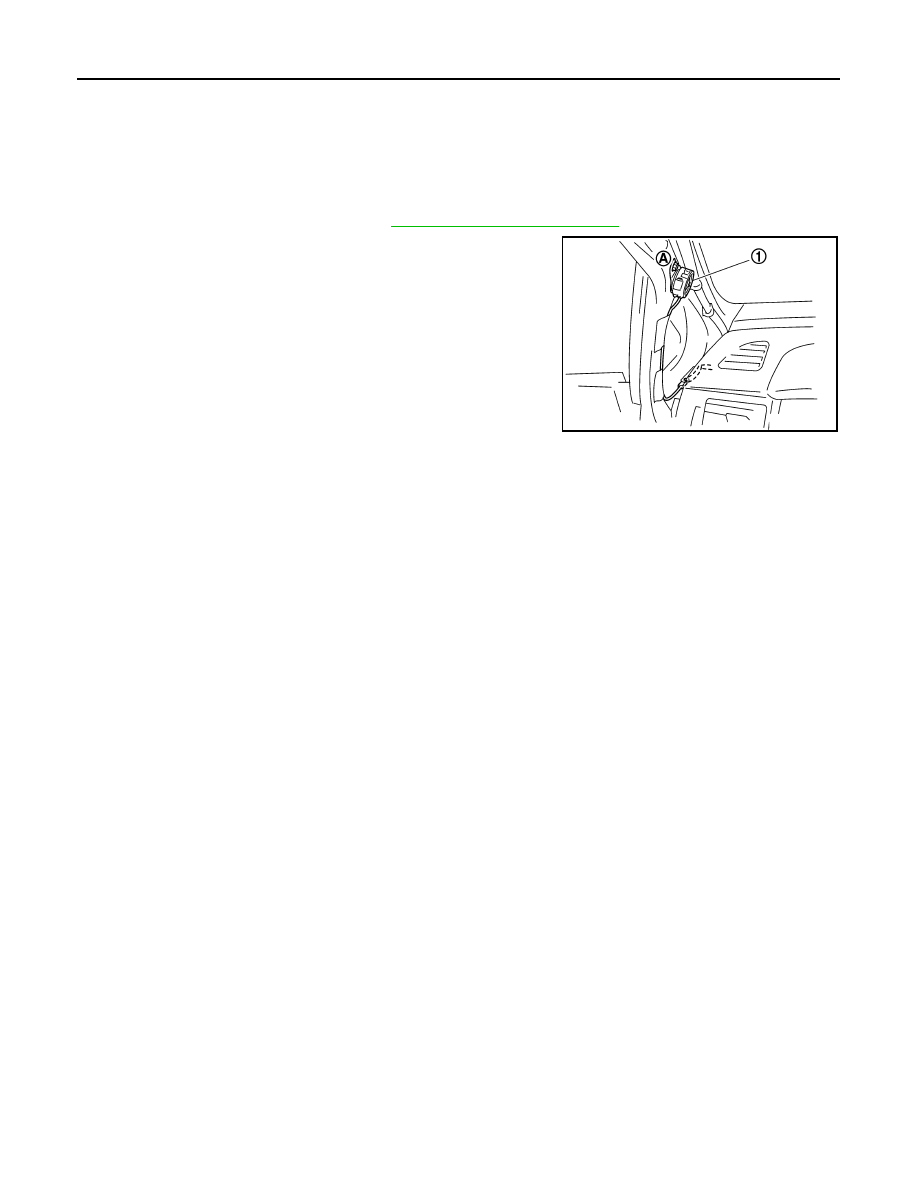

Remove the tweeter screw (A), disconnect the connector and
remove the tweeter (1).

Installation

Installation is in the reverse order of removal.

SKIB4730E

AV

FRONT DOOR SPEAKER

AV-25

< ON-VEHICLE REPAIR >

[AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000001724678

FRONT DOOR SPEAKER

Removal

1.

Remove the front door finisher. Refer to

INT-13, "Removal and Installation"

.

2.

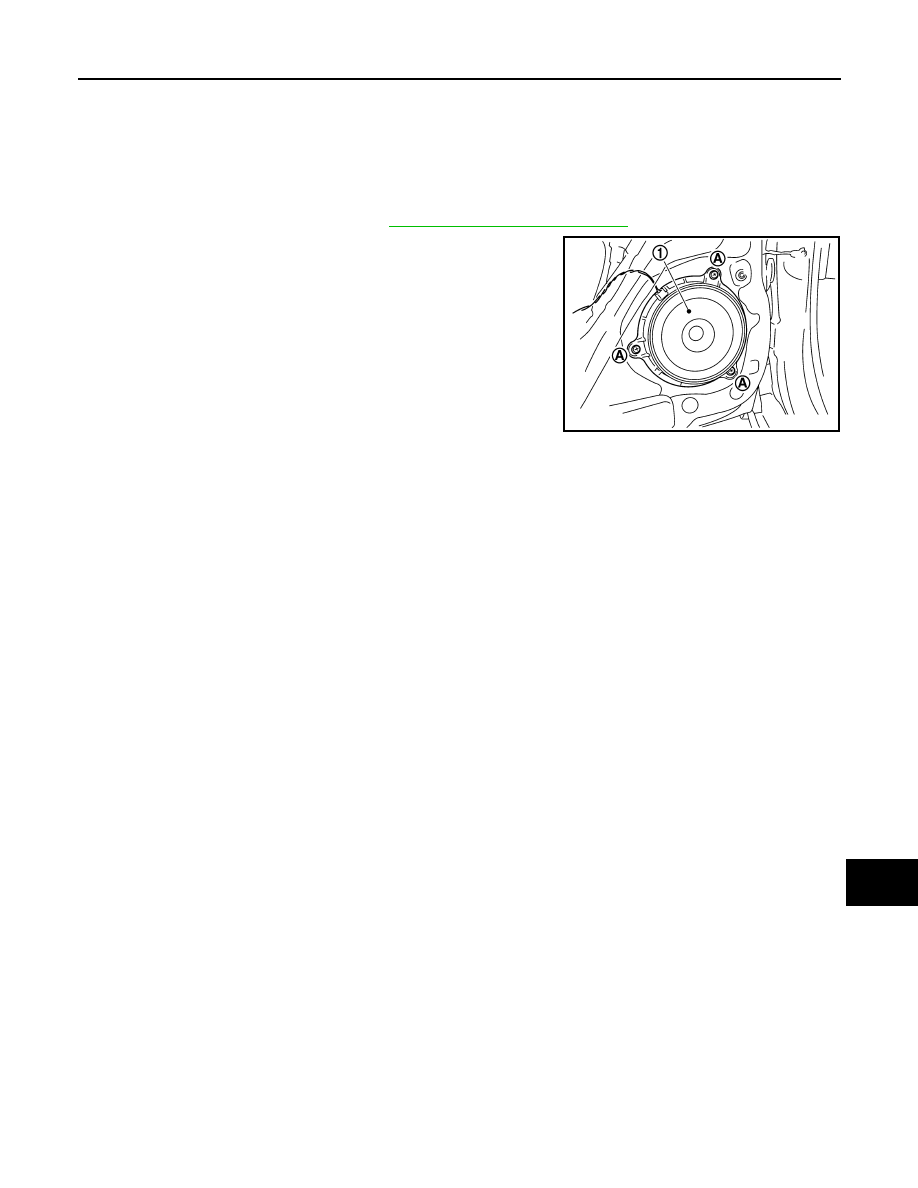

Remove the front door speaker screws (A), disconnect the con-
nector and remove the front door speaker (1).

Installation

Installation is in the reverse order of removal.

SKIB4728E
