Operation & Maintenance Manual──LG936L Wheel Loader

 88

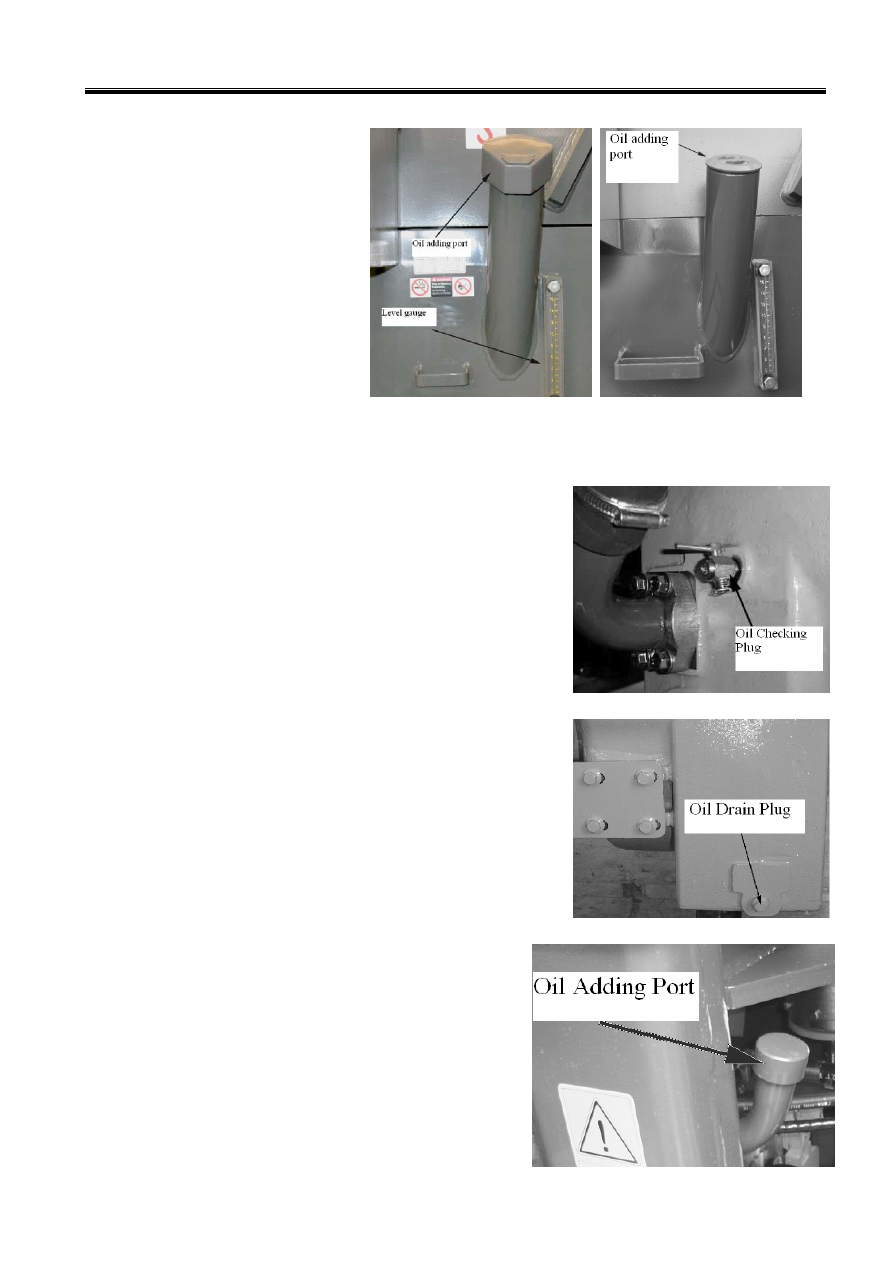

3.6.2 Adding Fuel to Fuel

Tank

Fuel Level Check

z  Park the machine on level

ground, and check the fuel level

by dipstick on the outside of fuel

tank.

z  If the fuel level is under 0,

please add fuel from inlet on the

fuel tank. For fuel selection

please refer to

CHAPTER IV 2.2 Selection of Oil, Fuel and Coolant

.

3.6.3 Adding Oil to Gearbox

 Oil Level Check

①



z  Park the machine on level ground and put the transmission

lever in the neutral (“N”) position. Pull the parking brake

switch, and wedge the front tire.

z  Start engine and let the engine run in the idle status for

minutes. Open the checking plug on the right of the gear box.

If some oil flow out without pressure, the oil is of proper

volume. If the oil level is lower than the plug, hydraulic

transmission oil should be added. The choice of the

hydraulic transmission oil can be found in

CHAPTER IV

2.2 Selection of Oil, Fuel and Coolant

.

 New Oil Replac

②

ement

z  Park the machine on level ground and put the transmission

lever in the neutral  (“N”) position. Push the parking

brake switch, and wedge the front tire.

z

Start engine and let the engine run in the idle status for

minutes, then stop the engine. Loosen the oil drain plug

on the bottom right of the gearbox to drain the oil, and

contain it with container.





Operation & Maintenance Manual──LG936L Wheel Loader

 89



△

!

WARNING



If the temperature of the gearbox oil is relatively highs please wear

protective clothes, and operate carefully to prevent injury.


z  Drain all the oil out and clean the oil on the draining plug and the oil on shell of the gearbox.

Wrap the plug with new ptfe tape and fit it well.

z  Loosen the oil inlet cover on the right side of the gear box which is on the right joint. Inject the

new hydraulic transmission oil.

z  Start the engine and run in the idle status. Check the oil level again.



△

!

NOTICE



If the old oil is dirty, do not add new oil directly.

z  Disassemble the raw oil filter which is in profile, and clean all the parts.

If there are any metal powders or fragments please contact the

maintenance man.

z  Assemble the parts, and add a little new hydraulic transmission oil. Start

engine and hold in the idle status for 3~5 minutes. Release the oil in the

oil pan and add new oil.



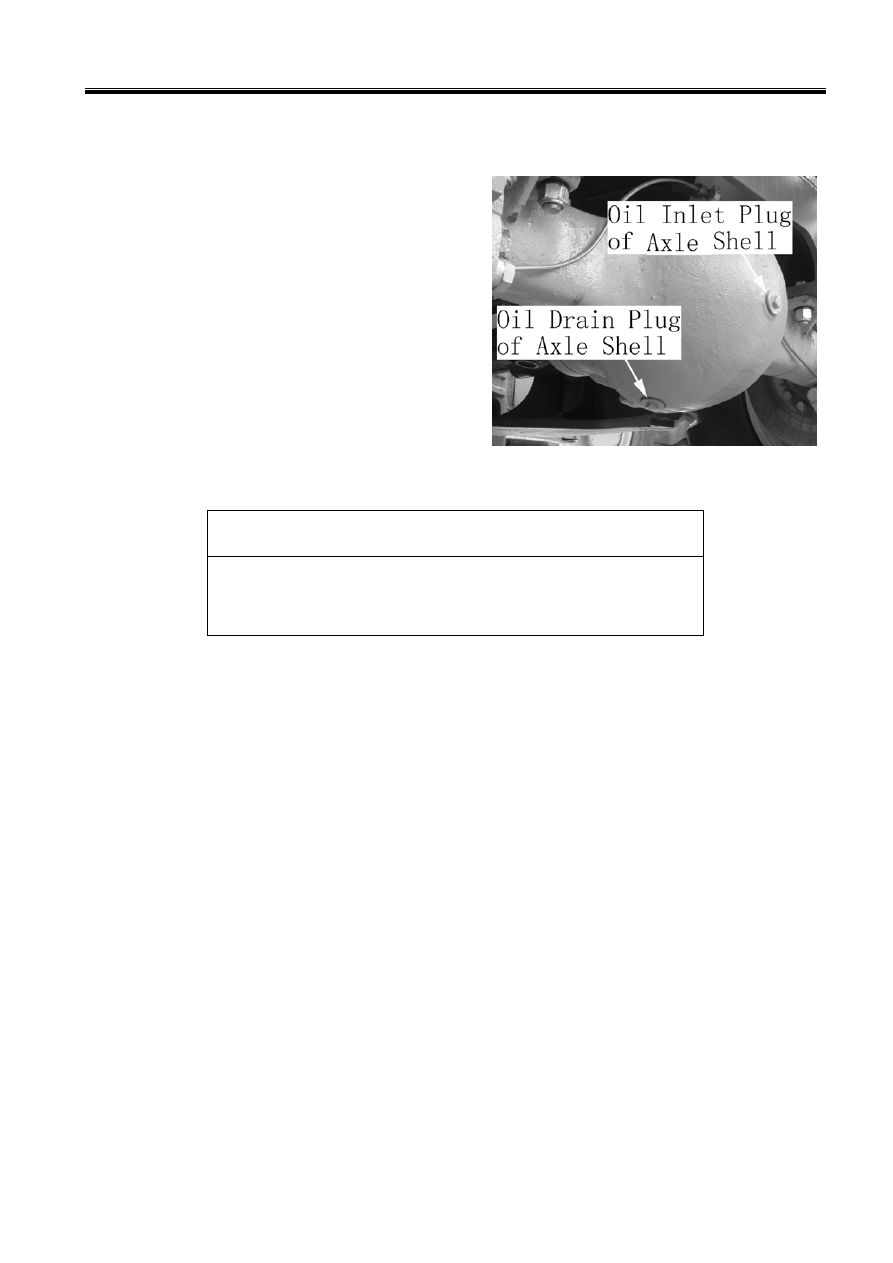

3.6.4 Adding Oil to Axle

 Oil Level Check

①



z

Park the machine on level ground and put the

transmission lever in the neutral position. Pull

the parking brake switch, and wedge the front tire.

Loosen the oil inlet plug on the shells of the front

and rear axles. It is proper if the oil level is at the

bottom side of the oil inlet, otherwise please add

axle oil. Please watch for 5 minutes after adding

oil. If the oil level keeps stable, please assemble

the plug. For selections of axle oil, please refer to

CHAPTER IV 2.2



Selection of Oil,

Fuel and Coolant.



Operation & Maintenance Manual──LG936L Wheel Loader

 90

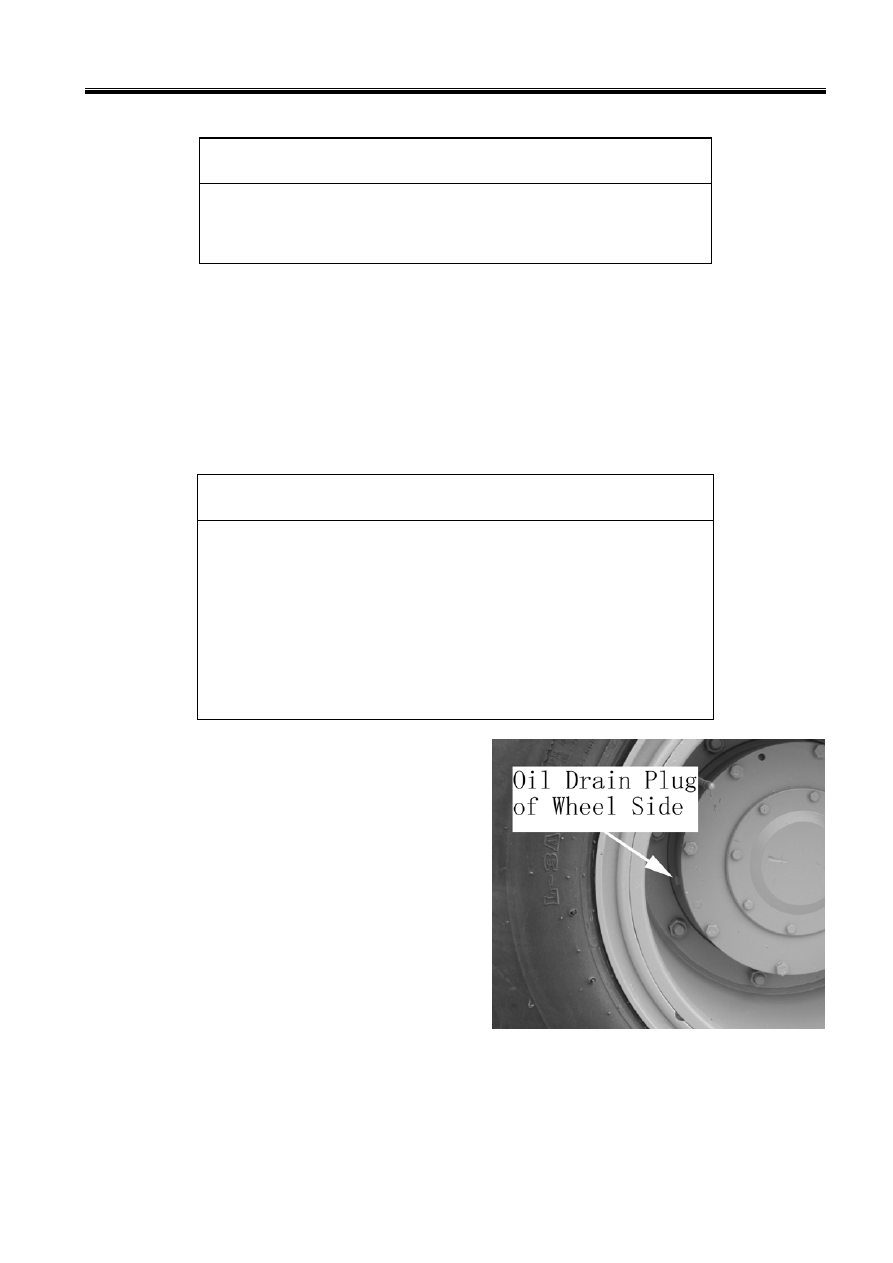

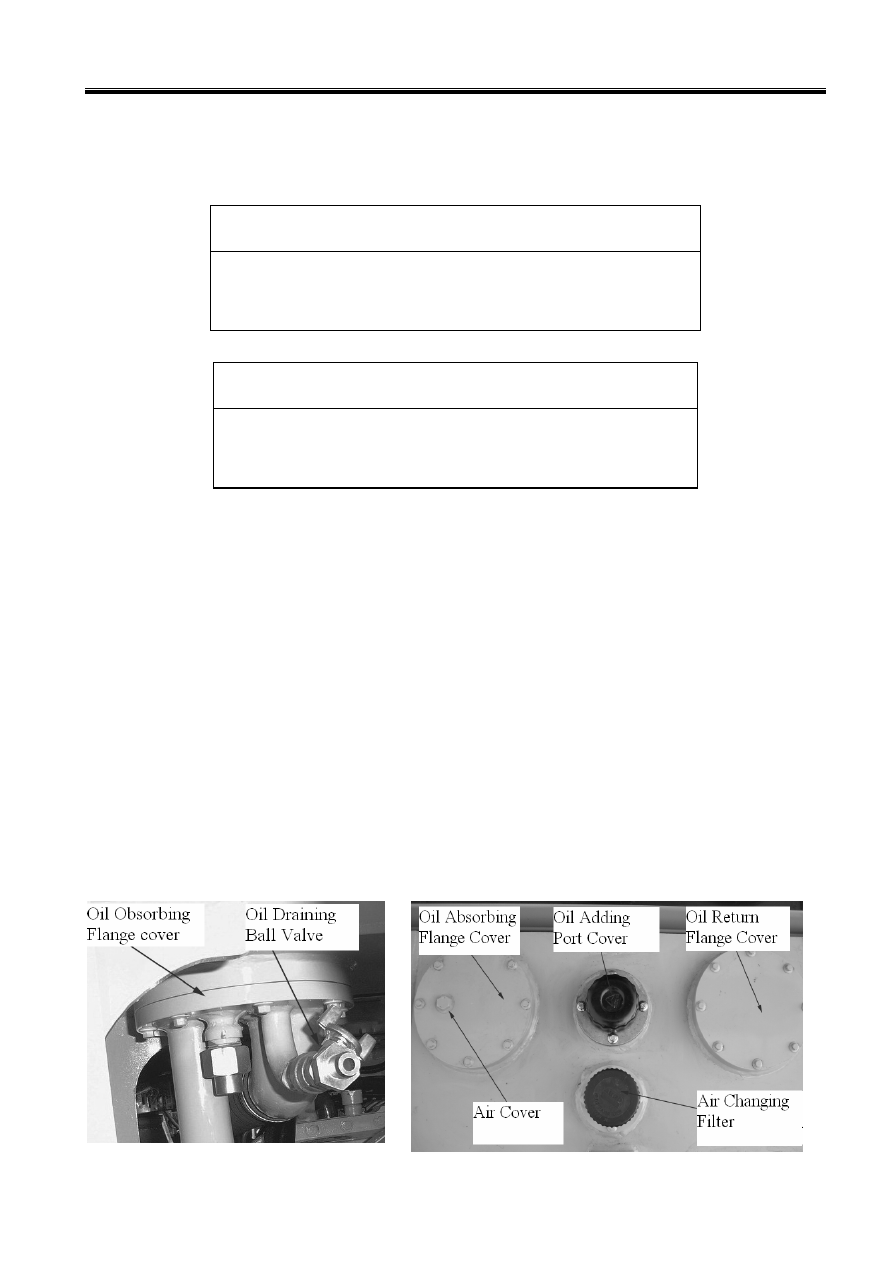

 Oil Replac

②

ement

z  Park the machine on level ground and run in idle status for about 10 minutes. Trample the

accelerator gently to move the machine slowly to

let the oil drain plug on the wheel side of the

front axle go to the lowest position

z  Shut engine. Push transmission lever in the

neutral (“N”) position. Pull the parking brake

lever, and wedge the front and rear wheels.

z  Loosen the oil drain plugs on the two wheels on

the end sides of the front axle and the oil drain

plugs at the center bottom of the axle shell to

drain oil to the container.



△

!

WARNING



The temperature of gear oil may be high, so wear protective

clothes, and operate it carefully to prevent injury.

z  Drain out all the old oil and screw tight the oil drain plugs at the center bottom of the axle shell.

z  Start engine. Rotate the parking brake switch gently until it rebounds. Move the machine slowly

with gentle acceleration to let the oil drain plug on the front axle move into the horizontal

position, and then shut the engine. Put the transmission lever in the neutral position. Pull the

parking brake lever.

z  Add new gear oil from the oil drain port on the two wheels on the end sides of the front axle and

the oil inlet port at the middle of the axle shell. And then check the oil level again.

z  Tighten the oil drain plugs on the two wheels on the end sides of the front axle and the oil inlet

plug at the middle of the axle shell.

z  Replace the rear axle gear oil according to the procedures above.

3.6.5 Adding Oil to Hydraulic Oil Box

 Oil Level Check

①



z  Park the machine on level ground and lower the bucket to the ground. Check whether there is an

angle between front and rear frame.

z  Check the oil level indicator of the hydraulic oil box on the left side of the machine. The oil level

is normal if the level indicator scale is at a range of ±2 from the middle level. If the oil level

indicator is lower than scale -2 of the middle scale, please add hydraulic oil. Refer to

Operation & Maintenance Manual──LG936L Wheel Loader

 91

CHAPTER IV 2.2



Selection of Oil, Fuel and Coolant

for selection of oil..

 Oil Replac

②

ement



△

!

WARNING



While replacing oil if other maintenance needs to be done do

so following the relevant rules, and pay attention to safety.



△

!

NOTICE



Pay attention to the clarity of the oil while replacing it; never

let other materials enter the hydraulic system directly.



z  Clean out the in bucket. Park the machine on level ground and put the transmission lever in the

neutral position. Pull the braking control lever. Start the engine and keep in the idle status for 10

minutes. Raise and lower the lift arm several times, and tilt the bucket forward and backward

several times.

z  Raise the lift arm to the highest position; tilt the bucket backwards to the extreme position and

shut the engine.

z  Push the bucket control lever forward to let the bucket tilt forward freely by its weight. Drain out

the oil in the bucket cylinder. After the bucket has tilted to the desired position, push the lift arm

control lever forward to let the lift arm fall down by its weight freely. Drain out the oil in the lift

arm cylinder.

z  Loosen the oil releasing spherical valve on the oil tank bottom to drain the oil to the container.

Open the oil inlet cover at the same time to hasten the draining process.
