Mitsubishi Outlander XL. Manual - part 950

Driver's air bag module installation
steps

>>D<<

Driver's air bag module connector
connection

>>D<<

Horn connector connection

Cover

Negative (-) battery cable connection

>>E<<

Post-installation inspection
Clock spring removal steps

<<A>>

Negative (-) battery cable connection

<<B>>

Cover

Horn connector connection

<<C>>

Driver's air bag module connector
connection

<<D>>

Driver's air bag module

<<E>>

Steering wheel assembly

Lower, upper column cover

Paddle shift assembly <vehicles with
paddle shift>

Clock spring removal steps

<<F>>

Clock spring
Clock spring installation steps

>>A<<

Pre-installation inspection

>>B<<

Clock spring

Lower, upper column cover

Paddle shift assembly <vehicles with
paddle shift>

>>C<<

Steering wheel assembly

>>C<<

Driver's air bag module

>>D<<

Driver's air bag module connector
connection

>>D<<

Horn connector connection

Cover

Negative (-) battery cable connection

>>E<<

Post-installation inspection

Steering  wheel  sensor  calibration
(Refer  to  GROUP  35C,  On-vehicle
Service  -  Steering  Wheel  Sensor
Calibration P.35C-192.)

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824:Vehicle Communication Interface
(V.C.I.)

｠

MB991827:M.U.T.-III USB Cable

｠

MB991910:M.U.T.-III Main Harness A

｠

MB992006: Extra Fine Probe

｠

MB990803: Steering Wheel Puller

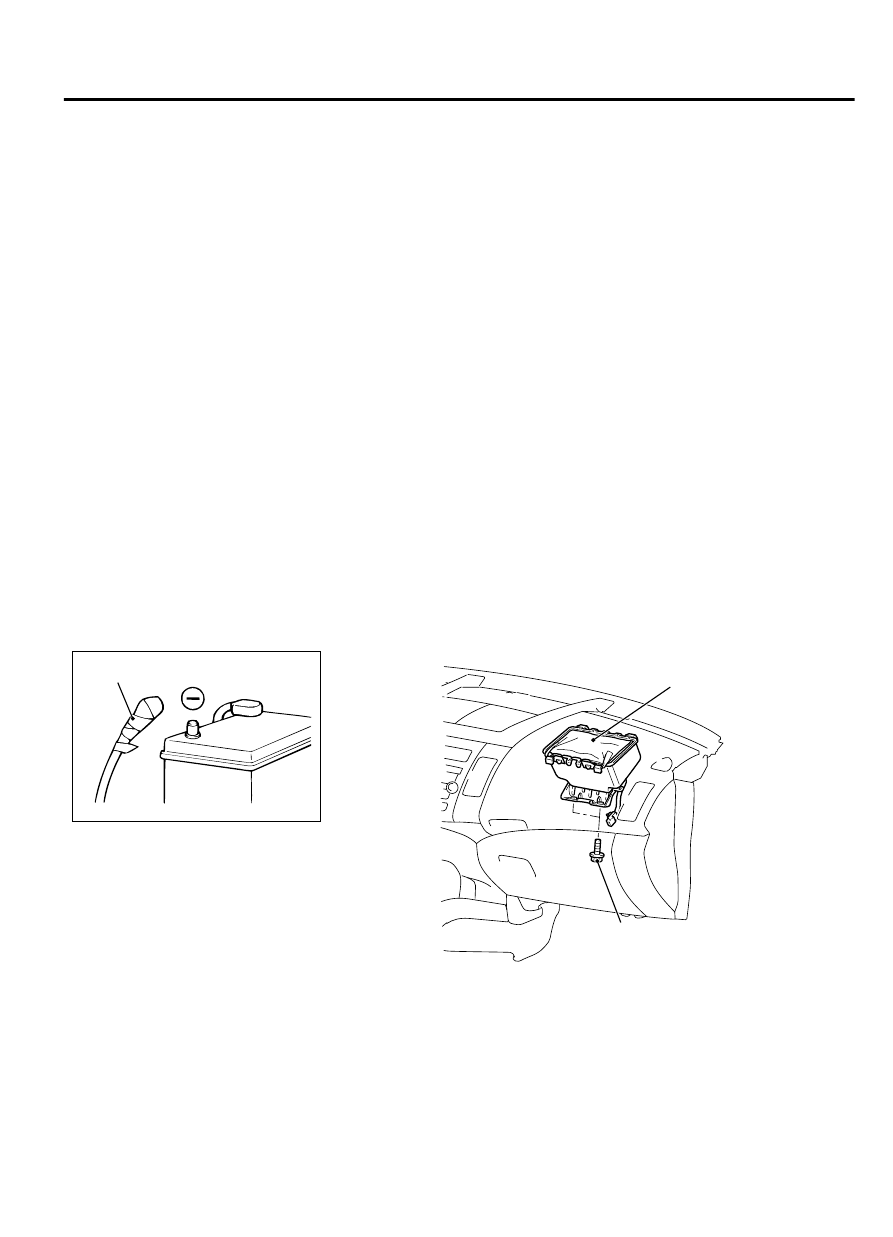

PASSENGER'S (FRONT) AIR BAG MODULE

ZC601328

5.0 ± 1.0 N·m
44 ± 9 in-lb

AA00

Passenger's (front) air bag module
removal steps

<<A>>

Negative (-) battery cable connection

<<G>>

Passenger's (front) air bag module
connector

Passenger's (front) air bag module
removal steps

Instrument panel assembly (Refer to
GROUP 52A, Instrument Panel
Assembly P.52A-2.)

<<H>>

Passenger's (front) air bag module

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-331

AIR BAG MODULE(S) AND CLOCK SPRING

Passenger's (front) Installation
steps

>>A<<

Pre-installation inspection

Passenger's (front) air bag module

Instrument panel assembly (Refer to
GROUP 52A, Instrument Panel
Assembly P.52A-2.)

Passenger's (front) Installation
steps

Passenger's (front) air bag module
connector

Negative (-) battery connection

>>E<<

Post-installation inspection

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface
(V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A

｠

MB992006: Extra Fine Probe

REMOVAL SERVICE POINTS

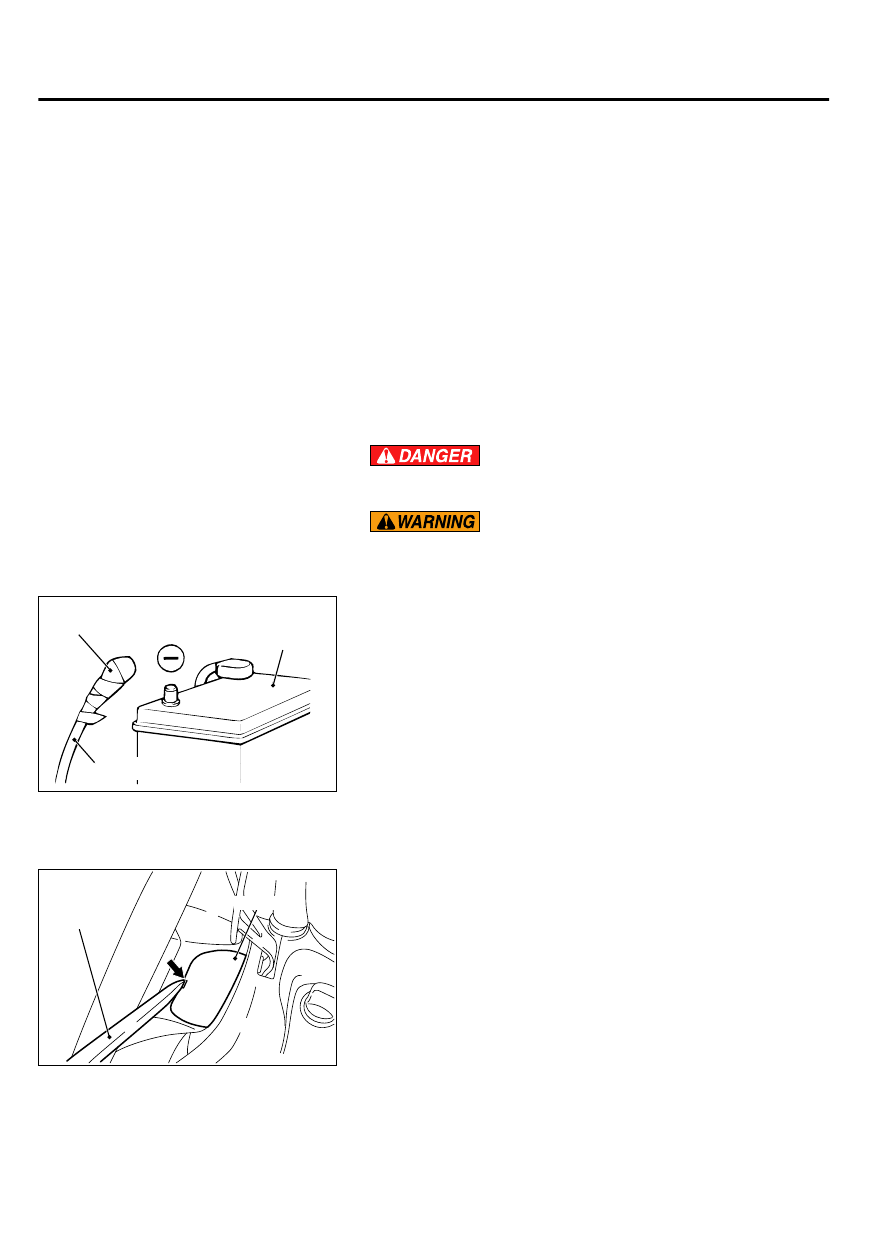

<<A>> NEGATIVE (-) BATTERY CABLE DISCONNECTION

Wait at least 60 seconds after disconnecting the battery
cable before doing any further work. (Refer to P.52B-28).

Battery posts, terminals and related accessories contain
lead and lead compounds. WASH HANDS AFTER
HANDLING.

ZC500608

Battery

Insulating tape

0000

Battery cable

Disconnect the negative (-) battery cable from the battery and
tape the terminal to prevent accidental connection and air bag
(s) deployment.

<<B>> COVER REMOVAL

ZC601548

MB990784

Cover

0000

Insert the ornament remover (Special tool: MB990784) into the
notch shown in the figure, and remove the cover.

52B-332

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

AIR BAG MODULE(S) AND CLOCK SPRING

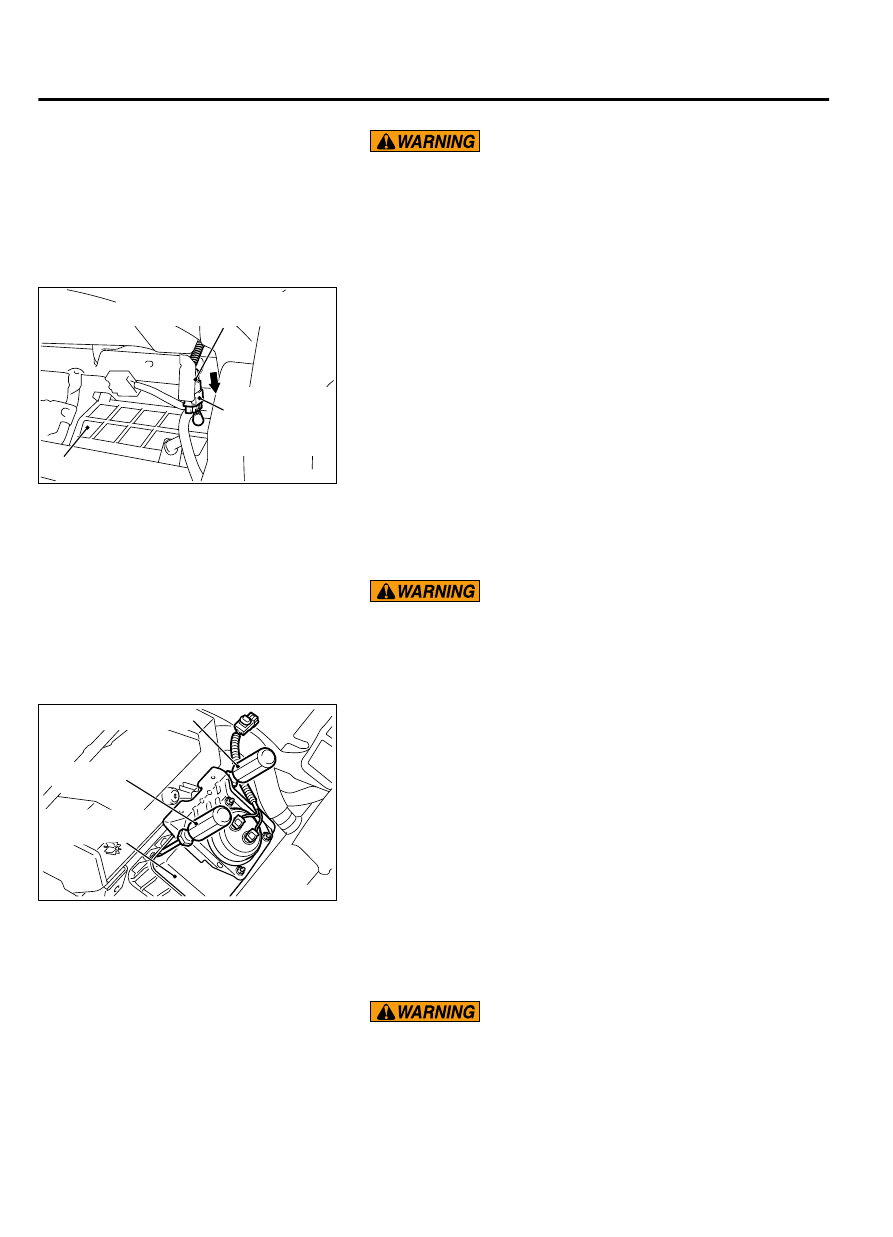

<<C>> DRIVER’S AIR BAG MODULE CONNECTOR
REMOVAL

ZC601709

AC600868

Outer housing of the driver’s air bag
module connector

Horn connector

Lower column cover

0000

Driver’s air bag
module connector
(4-pin, yellow)

Slide the outer housing of the driver’s air bag module connector
in the arrow direction shown, and disconnect the connector.

<<D>> AIR BAG MODULE ASSEMBLY REMOVAL

｠

The air bag module must not be measured with such
equipment as an ohmmeter.

｠

The air bag module must not be disassembled.

｠

The removed air bag module should be stored in a clean,
dry place with the deployment surface facing up.

Loosen the torx screw and remove the air bag module assembly.

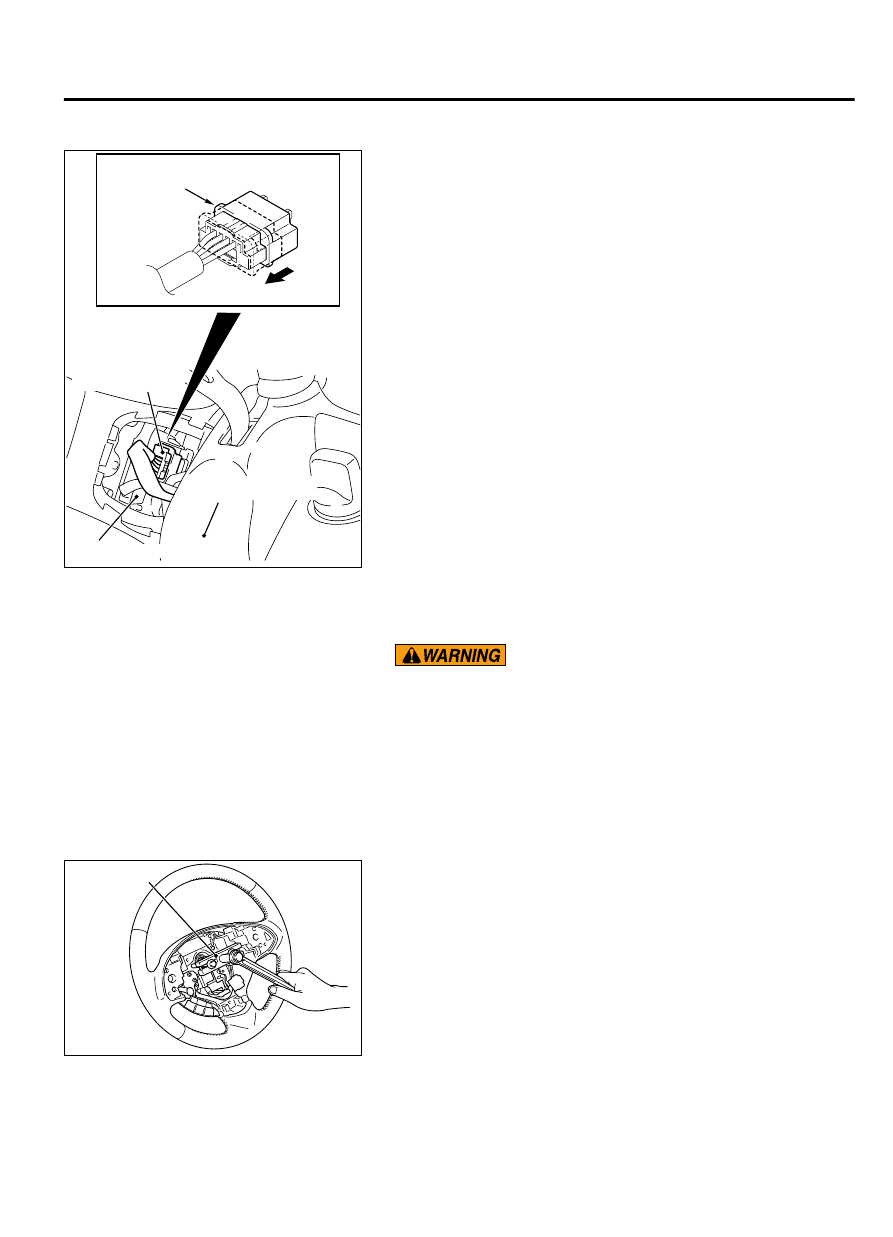

<<E>> STEERING WHEEL ASSEMBLY REMOVAL

ZC600290

MB990803

0000

Use special tool MB990803 to remove the steering wheel.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-333

AIR BAG MODULE(S) AND CLOCK SPRING

<<F>> CLOCK SPRING REMOVAL

The removed clock spring should be stored in a clean, dry
place.

<<G>> PASSENGER'S (FRONT) AIR BAG MODULE
CONNECTOR REMOVAL

ZC601552

Passenger's (front) air bag module
connector (4-pin, yellow)

Outer housing
of the passenger’s
air bag module
connector

Heater unit

0000

Slide the outer housing of the passenger’s (front) air bag module
connector in the arrow direction shown, and disconnect the
connector.

<<H>> PASSENGER'S (FRONT) AIR BAG MODULE
REMOVAL

｠

The air bag module must not be measured with such
equipment as an ohmmeter.

｠

The air bag module must not be disassembled.

｠

The removed air bag module should be stored in a clean,
dry place with the deployment surface facing up.

ZC601553

Flat-tipped
screwdriver

Flat-tipped screwdriver

Passenger's (front)
air bag module

0000

Insert a slotted (-) screwdriver or similar tool to the location
shown in the figure. After disengaging the tabs, remove the front
passenger's air bag module.

INSTALLATION SERVICE POINTS

>>A<< PRE-INSTALLATION INSPECTION

Dispose of air bag modules only according to the specified
procedure (Refer to P.52B-352).

When installing the new air bag modules and clock spring,
refer to “INSPECTION” ( P.52B-336).

52B-334

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

AIR BAG MODULE(S) AND CLOCK SPRING
