STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

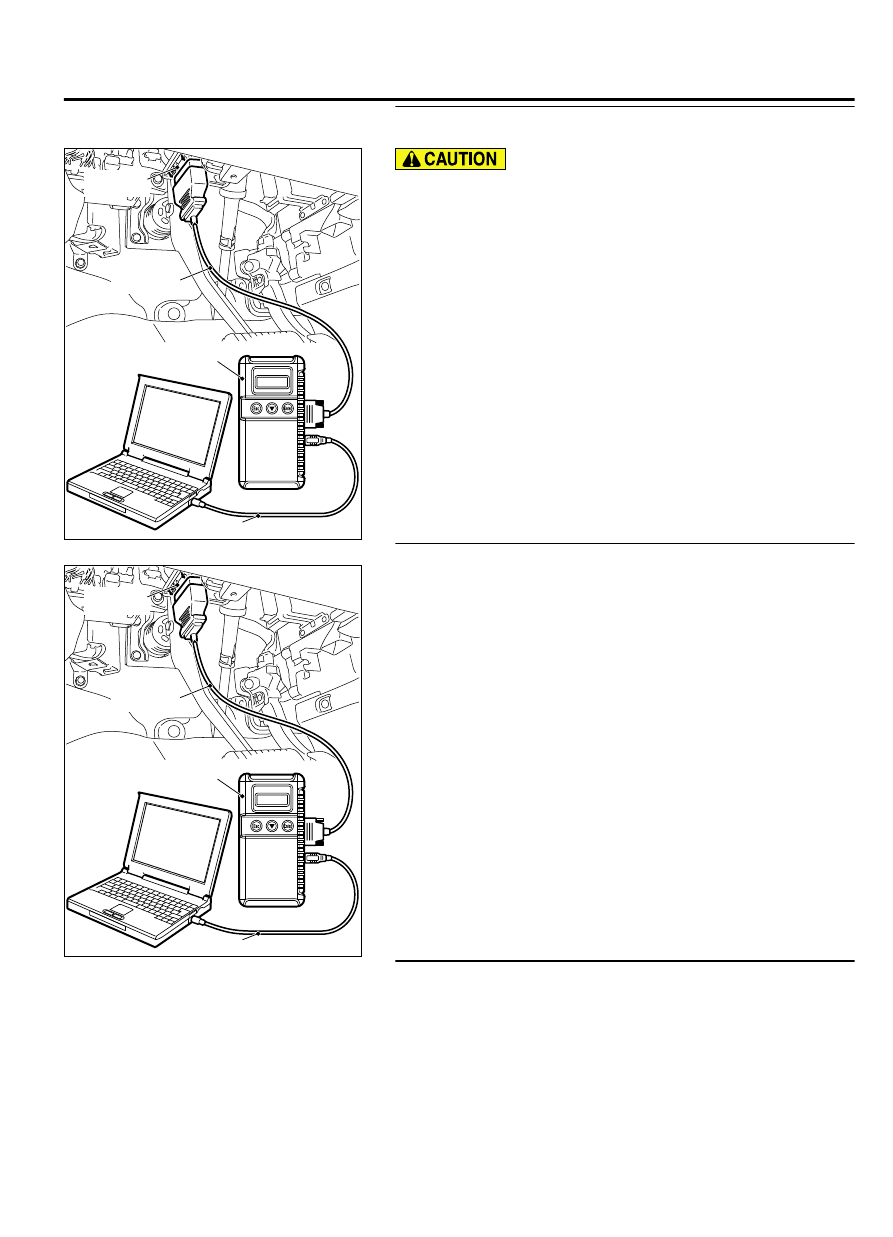

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect the
scan tool P.52B-31."

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line (Refer to GROUP 54D,

Diagnosis P.54D-17).

STEP 2. Recheck for diagnostic trouble code.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

Check again if the DTC is set.

(1)

Erase the DTC.

(2)

Turn the ignition switch to "ON" position.

(3)

Check if the DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Go to Step 3.

NO:

 There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to GROUP 00,
How to Use Troubleshooting/Inspection Service Points -
How to Cope with Intermittent Malfunctions P.00-15).

STEP 3. Check SRS-ECU connector C-27, curtain air bag
module (LH) connector D-109 and intermediate connector
D-13. (Using scan tool MB991958, read the diagnostic
trouble code.)

(1)

Disconnect the negative battery terminal.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-111

SRS AIR BAG DIAGNOSIS

ZC600210

A

Lock lever

0000

(2)

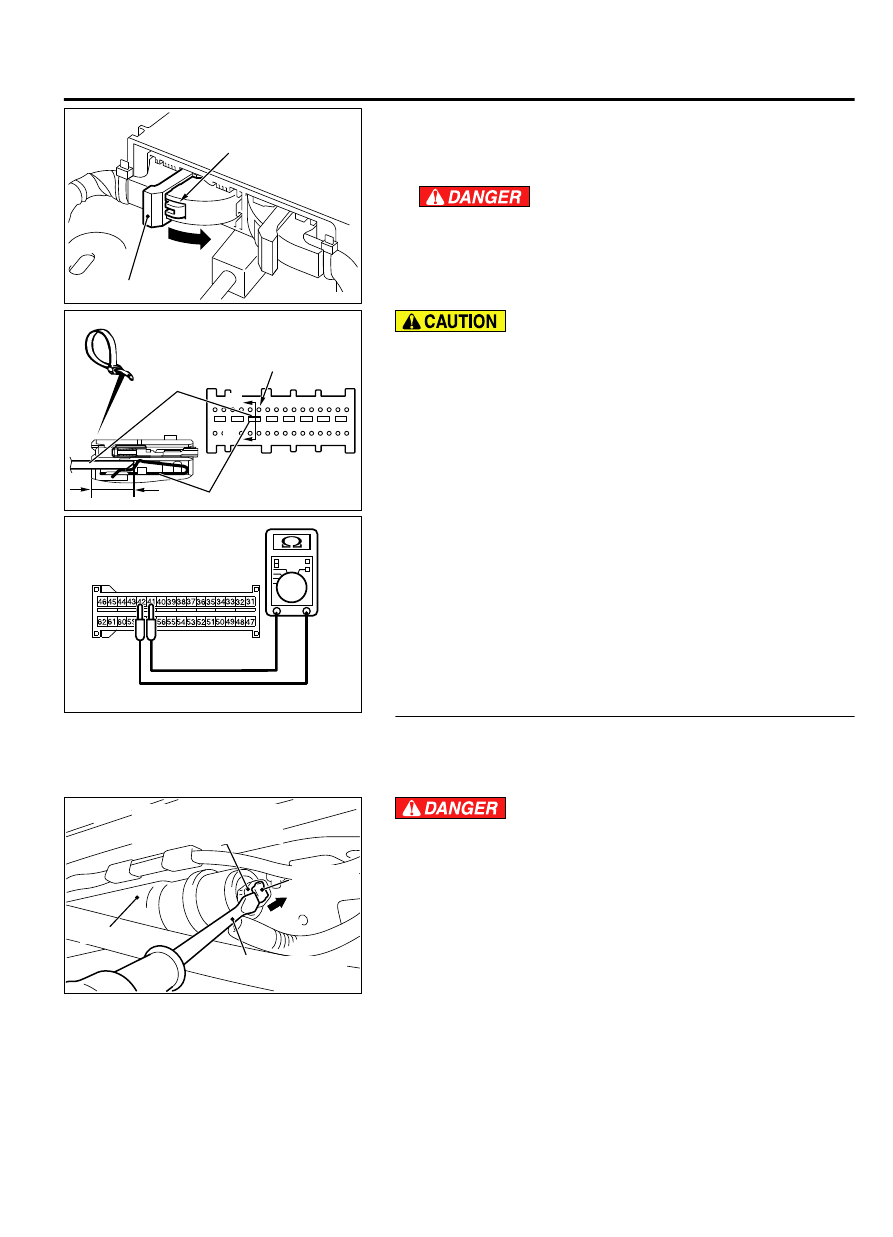

While  pushing  the  part  "A"  indicated  in  the  figure  of  the
harness side connector, turn the lock lever to the direction of
the arrow to release the lock lever, and disconnect the C-27
SRS-ECU connector.

ZC602163

Locking
button

Flat-tipped screwdriver

Inflator

Curtain air bag wiring
harness side connector

0000

(3)

After  disconnecting  the  D-13  and  D-109  harness  side
connectors,  connect  the  connectors  again.  For  the  D-109
connector  disconnection,  use  a  flat-tipped  screwdriver  to
unlock the locking button at the harness side connector by
withdrawing it to ward you in two stages, and then disconnect
the connector.

Q:Is DTC B1B1B set?

YES:

 Go to Step 4.

NO:

 Connector repair

STEP 4. Check by dummy resistor connection. (Using scan
tool MB991958, read the diagnostic trouble code.)

(1)

Disconnect the negative battery terminal.

(2)

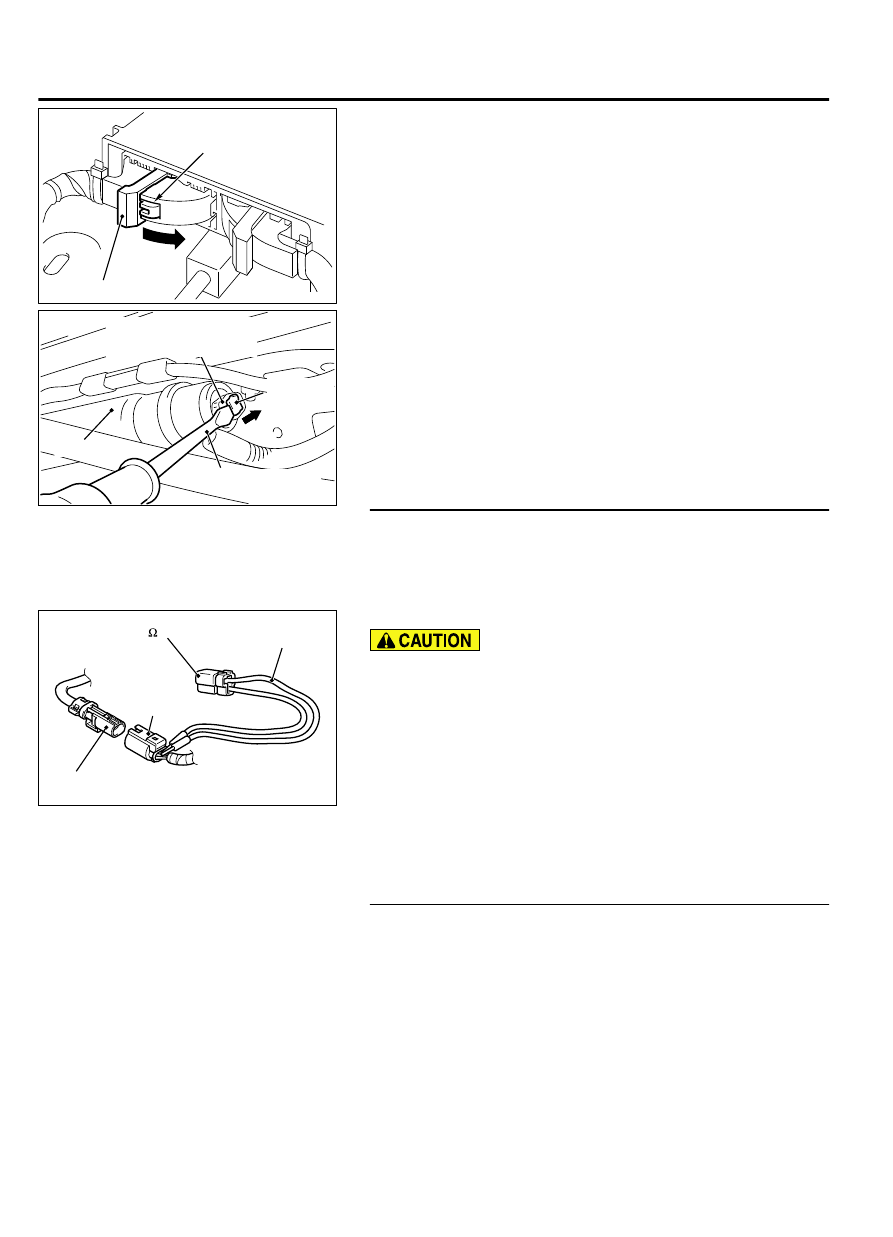

Disconnect  the  D-13  intermediate  connector  (connection
between curtain air bag harness and floor harness).

ZC600211

D-13 Intermediate connector
(Curtain air bag harness side)

D-13
Intermediate
connector



(

Floor harness side

)

MB991865
(Dummy resistor: 3



)

MB991866

(Resistor harness)

0000

(3)

Connect special tool MB991865 to special tool MB991866.

Do not insert a probe into the terminal from its front side
directly,  as  the  connector  contact  pressure  may  be
weakened.

(4)

Insert  the  probe  of  resistor  harness,  to  which  the  dummy
resistor  is  installed,  from  the  back  of  D-13  intermediate
connector (floor harness side).

(5)

Connect the negative battery terminal.

(6)

After erasing the diagnostic trouble code memory, check the
diagnostic trouble code again.

Q:Is DTC B1B1B set?

YES:

 Go to Step 5.

NO:

 Go to Step 6.

STEP 5. Resistance measurement at the C-27 SRS-ECU
connector.

(1)

Disconnect the negative battery terminal.

52B-112

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

SRS AIR BAG DIAGNOSIS

ZC600210

A

Lock lever

0000

(2)

While  pushing  the  part  "A"  indicated  in  the  figure  of  the
harness side connector, turn the lock lever to the direction of
the arrow to release the lock lever, and disconnect the C-27
SRS-ECU connector.

To  prevent  the  air  bag  from  deploying  unintentionally,
disconnect the intermediate connector D-13 to short the
squib circuit.

(3)

Disconnect  the  D-13  intermediate  connector  (connection
between curtain air bag harness and floor harness).

ZC6021620000

A

A

C-27 Harness side
connector (front view)

Section
A - A

Cable tie

Short spring

4 mm or more

Terminal

The short spring may not be released due to the insufficient
insertion. Therefore, insert the insulator for 4 mm (0.6 inch)
or more.

(4)

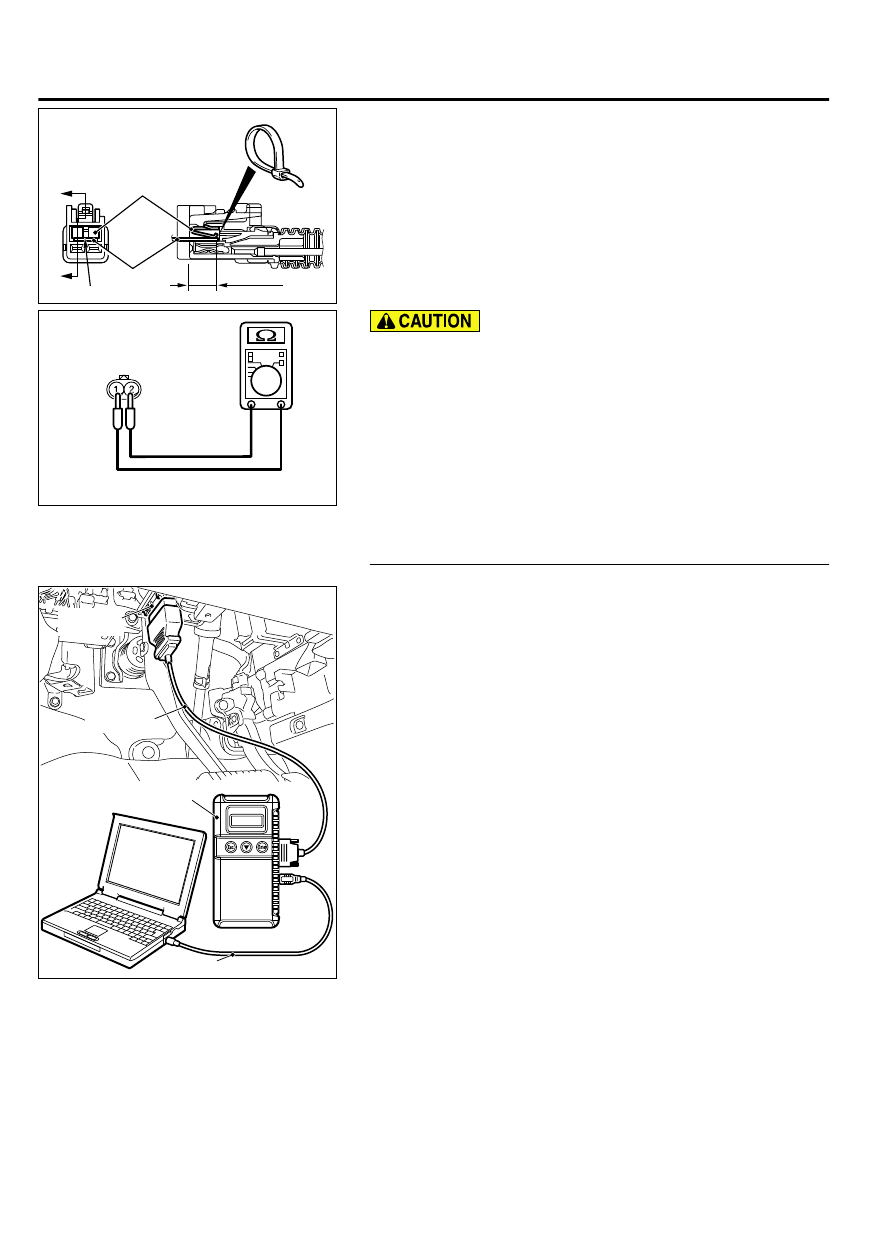

Insert a cable tie [3 mm (0.12 inch) wide, 0.5 mm (0.02 inch)
thick] between terminal 41, 42 and the short spring to release
the short spring.

ZC5007880026

C-27 Harness side
connector (front view)

(5)

Check for continuity between the C-27 wiring harness side
connector terminal No. 41 and No. 42.
It should be open circuit.

Q:Does continuity exist?

YES:

 Repair the wiring harness.

NO:

 Go to Step 7.

STEP 6. Short circuit check between the D-109 curtain air
bag module harness side connector and the D-13
intermediate harness.

(1)

Disconnect the negative battery terminal.

ZC602163

Locking
button

Flat-tipped screwdriver

Inflator

Curtain air bag wiring
harness side connector

0000

To  prevent  the  air  bag  from  deploying  unintentionally,
disconnect the curtain air bag module connector D-109 to
short the squib circuit.

(2)

Disconnect curtain air bag module (LH) D-109. Use a flat-
tipped screwdriver to unlock the locking button at the harness
side connector by withdrawing it toward you in two stages,
and then disconnect the connector.

(3)

Disconnect  the  D-13  intermediate  connector  (connection
between curtain air bag harness and floor harness).

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-113

SRS AIR BAG DIAGNOSIS

ZC600212

D-13 Intermediate
connector (module side )
(front view)

A

A

4 mm or more

Terminal

Cable tie

Short
spring

Section
A - A

0000

(4)

Because the short spring is installed to the D-13 intermediate
connector (curtain air bag harness side), insert a cable tie [3
mm  (0.12  inch)  wide,  0.5  mm  (0.02  inch)  thick]  between
terminals 1, 2 and the short spring to release the short spring.

ZC5007880052

D-13 Intermediate connector
(Curtain air bag harness side)
(rear view)

Do not insert a probe into the terminal from its front side
directly,  as  the  connector  contact  pressure  may  be
weakened.

(5)

Check  for  continuity  between  the  D-13  intermediate
connector (curtain air bag harness side) terminal No. 1, 2 and
the body ground.
It should be open circuit.

Q:Does continuity exist?

YES:

 Repair the wiring harness.

NO:

 Replace the curtain air bag module (LH) (Refer to P.

52B-341). Then go to Step 7.

STEP 7. Recheck for diagnostic trouble code.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

Check again if the DTC is set.

(1)

Erase the DTC.

(2)

Turn the ignition switch to the "ON" position.

(3)

Check if the DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is DTC B1B1B set?

YES:

 Replace SRS-ECU. (Refer to P.52B-326.)

NO:

 Intermittent Malfunction (Refer to GROUP 00, How to

Use Troubleshooting/Inspection Service Points - How to
Cope with Intermittent Malfunction P.00-15).
