Mitsubishi Outlander XL. Manual - part 874

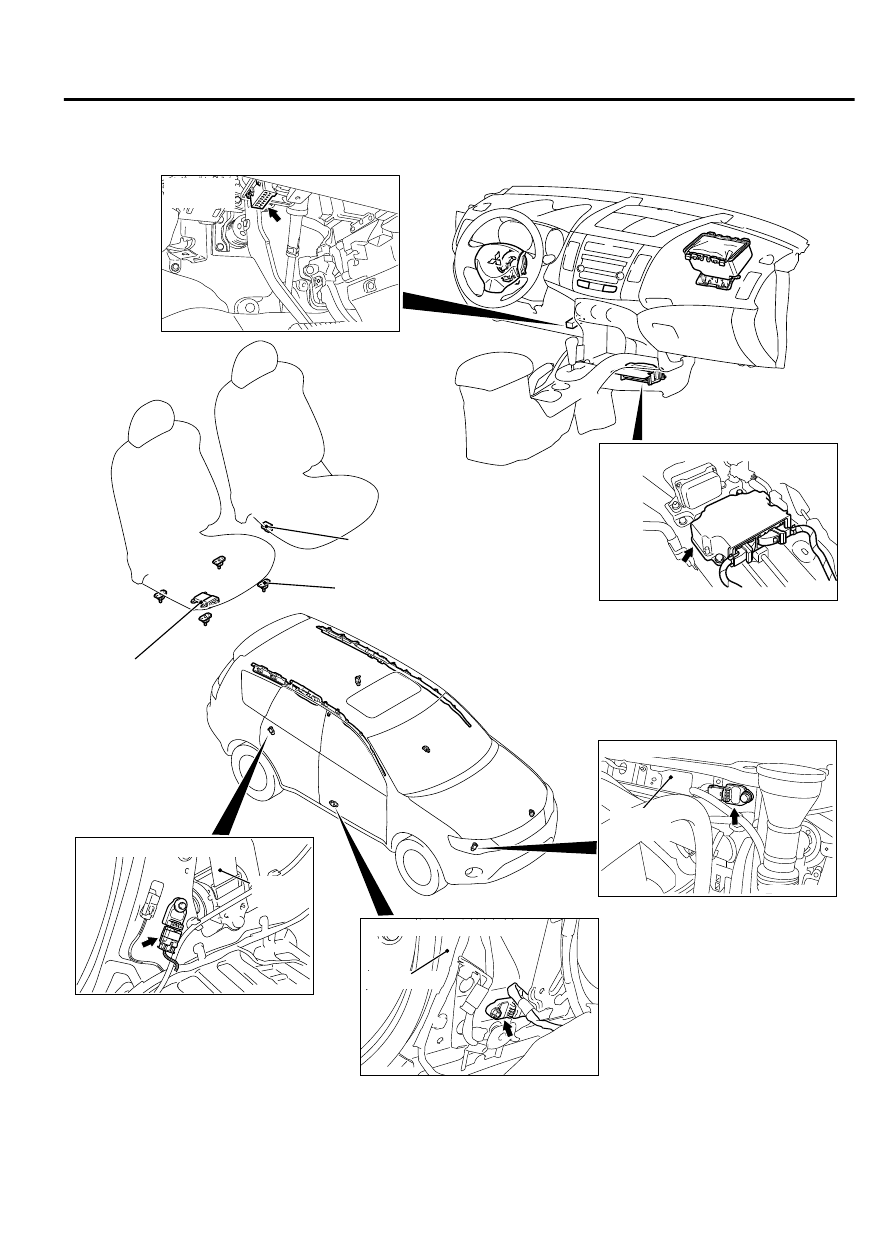

COMPONENT LOCATION

AC50636 6

ZC601669

AC50681 5

Occupant
classification-ECU

Seat slide sensor

Weight sensor

Center pillar

Side impact sensor (Front)

SRS-ECU

Side impact sensor (Rear)

Second
seat belt

0000

ZC601277

Front impact sensor

Front end
upper bar

ZC501967

Data link
connector

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-27

GENERAL INFORMATION

NOTE:

The illustration above shows the front

impact sensor (RH) and the side impact sensor
(RH). The position of the front impact sensor (LH)

and the side impact sensor (LH) is symmetrical to
this.

SERVICE PRECAUTIONS

M15204000983USA0000010000

｠

In  order  to  avoid  injury  to  yourself  or  others  from
accidental  deployment  of  the  air  bag  during  servicing,
read  and  carefully  follow  all  the  precautions  and
procedures described in this manual.

｠

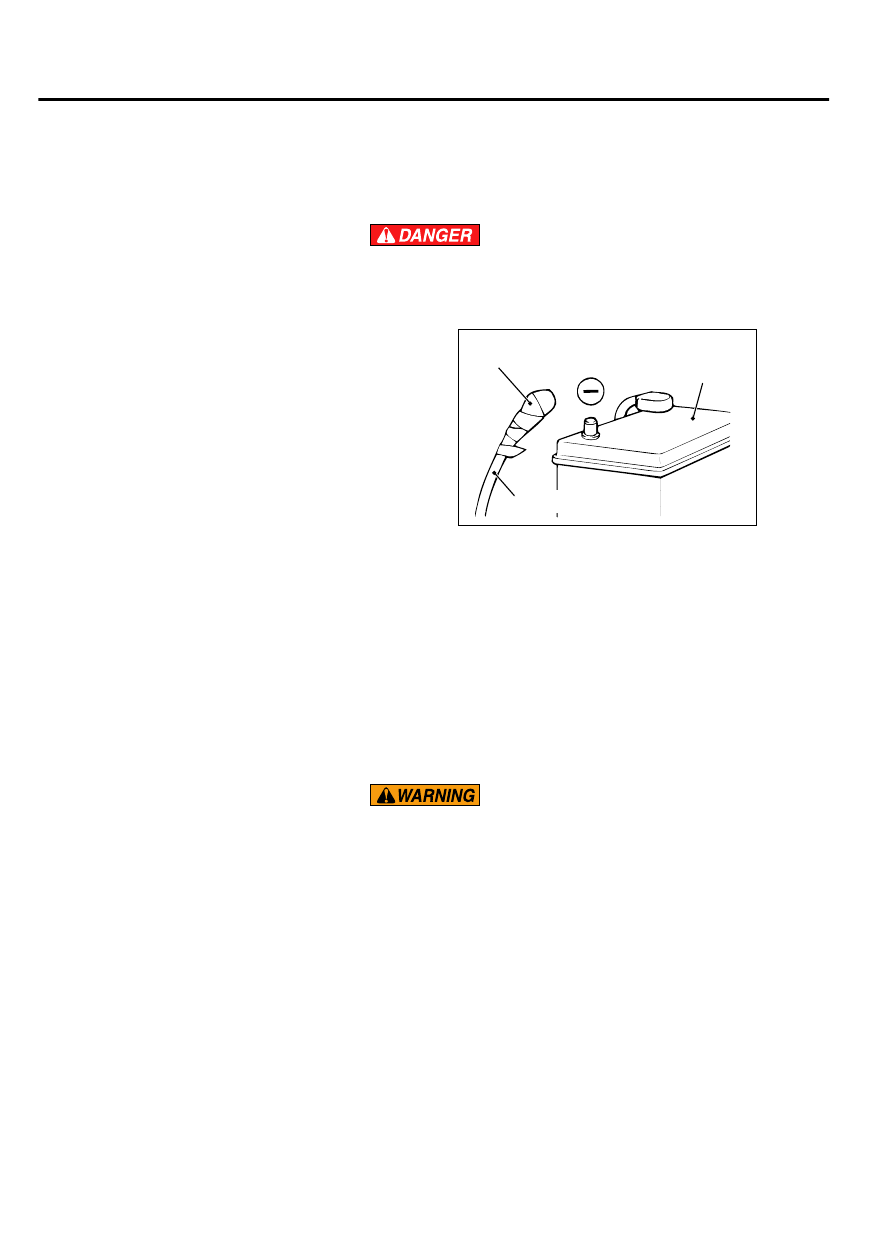

ZC500608

Battery

Insulating tape

0000

Battery cable

After disconnecting the battery cable, wait 60 seconds or
more before proceeding with the following work. The SRS
system is designed to retain enough voltage to deploy the
air bag for a short time even after the battery has been
disconnected, so serious injury may result from
unintended air bag deployment if work is done on the SRS
system immediately after the battery cables are
disconnected.

｠

The SRS-ECU adopts the rollover specification that the
curtain airbag and seat belt pre-tensioner operate at the
occurrence of rollover. Therefore, do not tilt the vehicle
to the right and left with the IG ON or tilt the SRS-ECU to
the right and left with the IG ON and the harness installed.

｠

Battery posts, terminals and related accessories contain
lead and lead compounds. WASH HANDS AFTER
HANDLING.

｠

Do not use any electrical test equipment on or near the
SRS components, except those specified on P.52B-315.

｠

Never Attempt to Repair the Following Components: SRS-
ECU, Clock Spring, Air Bag Module, Front impact sensor,
Side  Impact  Sensor,  Seat  Belt  with  Pre-tensioner,  Seat
slide  sensor,  Front  seat  assembly.  If  any  of  these
components are diagnosed as faulty, they should only be
replaced,  in  accordance  with  the  INDIVIDUAL
COMPONENT  SERVICE  procedures  in  this  manual,
starting on P.52B-321.

52B-28

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

SERVICE PRECAUTIONS

｠

ZC600206

SRS-ECU connector

0001

Do not attempt to repair the wiring harness connectors of
the SRS. If any of the connectors are diagnosed as faulty,
replace the wiring harness. If the wires are diagnosed as
faulty, replace or repair the wiring harness according to
the following table.

SRS-ECU

TERMINAL

NO.

DESTINATION OF HARNESS

CORRECTIVE ACTION

1, 2

Front wiring harness → Instrument
panel wiring harness → Front impact
sensor (RH)

Correct or replace each wiring harness.

3, 4

Front wiring harness → Instrument
panel wiring harness → Front wiring
harness → Front impact sensor (LH)

Correct or replace each wiring harness.

Instrument panel wiring harness → Air
bag OFF indicator light

Correct or replace the instrument panel
wiring harness.

8, 59

Instrument panel wiring harness →
Ground

Correct or replace the instrument panel
wiring harness.

9, 10

Can line

Correct or replace can line.

13, 14

Instrument panel wiring harness → Air
bag module (Front passenger's side)
2nd squib side

Correct or replace the instrument panel
wiring harness.

15, 16

Instrument panel wiring harness →
Clock spring → Air bag module (Driver's
side) 2nd squib side

Correct or replace the instrument panel
wiring harness. Replace the clock
spring.

17, 18

Instrument panel wiring harness → Air
bag module (Front passenger's side) 1st
squib side

Correct or replace the instrument panel
wiring harness.

19, 20

Instrument panel wiring harness →
Clock spring → Air bag module (Driver's
side) 1st squib side

Correct or replace the instrument panel
wiring harness. Replace the clock
spring.

31, 32

Floor wiring harness → Side-airbag
module (LH)

Correct or replace the floor wiring
harness.

33, 34

Floor wiring harness → Side-airbag
module (RH)

Correct or replace the floor wiring
harness.

35, 36

Floor wiring harness → Lap pre-
tensioner

Correct or replace the floor wiring
harness.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-29

SERVICE PRECAUTIONS

SRS-ECU

TERMINAL

NO.

DESTINATION OF HARNESS

CORRECTIVE ACTION

39, 40

Floor wiring harness → Curtain air bag
wiring harness (RH) → Curtain air bag
module (RH)

Correct or replace each wiring harness.

41, 42

Floor wiring harness → Curtain air bag
wiring harness (LH) → Curtain air bag
module (LH)

Correct or replace each wiring harness.

43, 44

Floor wiring harness → Seat belt pre-
tensioner (RH)

Correct or replace the floor wiring
harness.

45, 46

Floor wiring harness → Seat belt pre-
tensioner (LH)

Correct or replace the floor wiring
harness.

49, 50

Floor wiring harness → Side impact
sensor (LH)

Correct or replace the floor wiring
harness.

51, 52

Floor wiring harness → Side impact
sensor (RH)

Correct or replace the floor wiring
harness.

55, 58

Instrument panel wiring harness →
Passenger’s seat belt switch

Correct or replace the Instrument panel
wiring harness.

56, 57

Instrument panel wiring harness →
driver’s seat belt switch

Correct or replace the Instrument panel
wiring harness.

Instrument panel wiring harness →
ETACS-ECU (fuse No.18)

Correct or replace instrument panel
wiring harness.

Instrument panel wiring harness →
ETACS-ECU (fuse No.12)

Correct or replace instrument panel
wiring harness.

｠

The  SRS  components  and  seat  belt  with  pre-tensioner
should not be subjected to heat, so remove the SRS-ECU,
driver’s  and  front  passenger’s  air  bag  modules,  clock
spring,  side-airbag  modules,  Curtain  air  bag  modules,
front and side impact sensor and seat belt pre-tensioner
before drying or baking the vehicle after painting.

｠

SRS-ECU, air bag module, clock spring, impact
sensor: 93° C (200° F) or more

｠

Seat belt with pre-tensioner 90°C (194° F) or more

｠

After servicing the SRS system, check the warning light
operation to make sure that the system functions
properly. (Refer to P.52B-5).

｠

Make certain that the ignition switch is in the
"LOCK"(OFF) position when the scan tool is connected
or disconnected.

52B-30

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

SERVICE PRECAUTIONS
