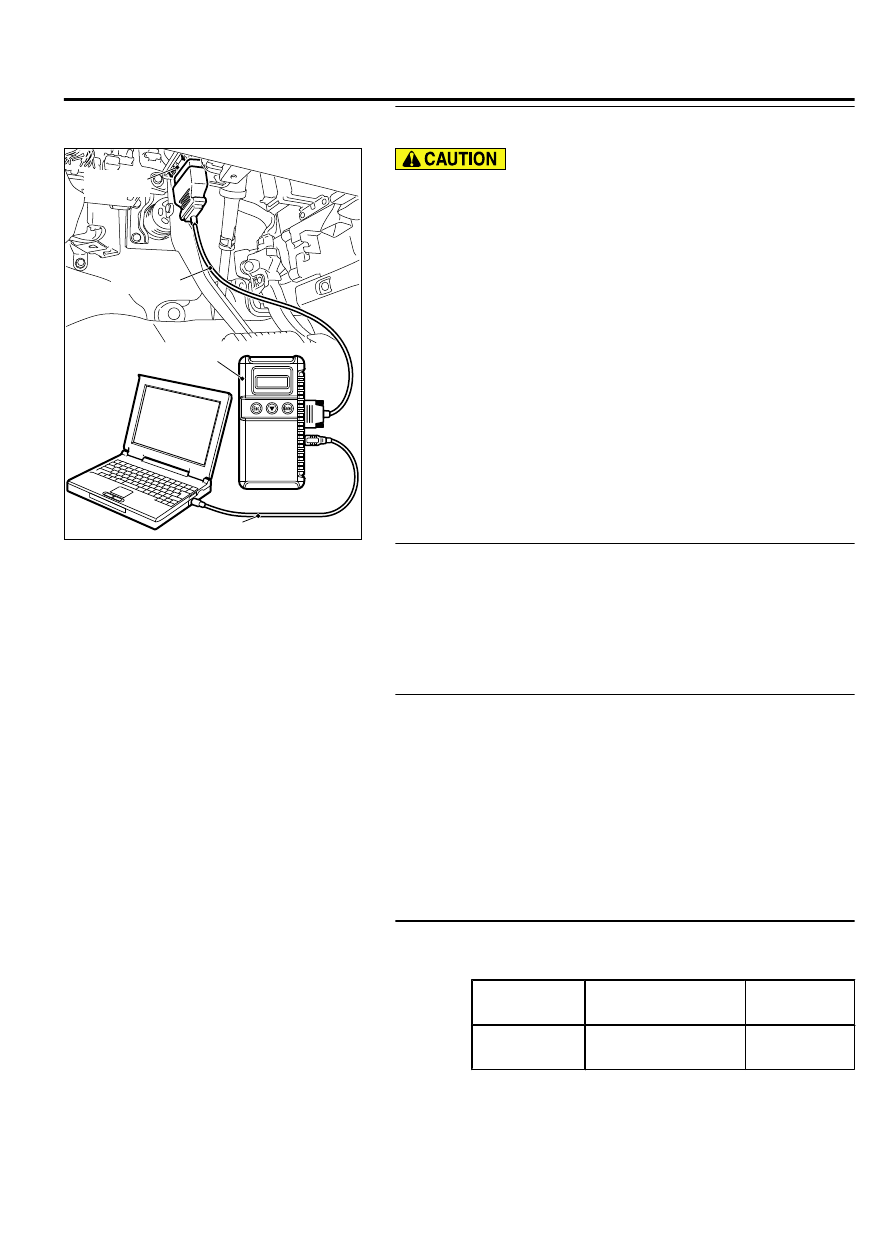

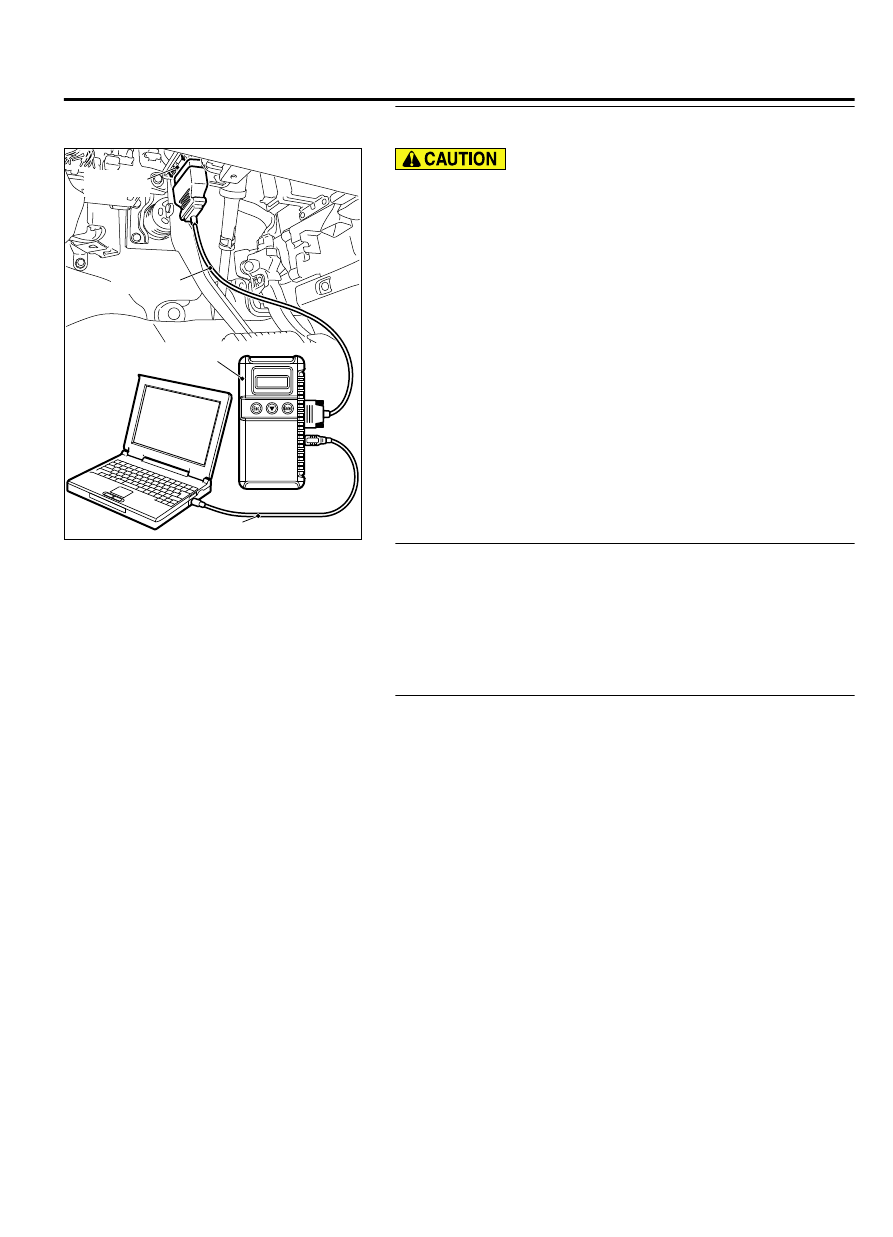

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool (MB991958), always turn
the  ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool (MB991958).

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D,

Diagnosis P.54D-17).

STEP 2. Check ETACS-ECU connector C-317 and WCM
connector C-29 for loose, corroded or damaged terminals,
or terminals pushed back in the connector.

Q:Is  ETACS-ECU  connector  C-317  and  WCM  connector

C-29 in good condition?

YES:

 Go to Step 3.

NO:

 Repair the defective connector.

STEP 3. Check the wiring harness between WCM connector
C-29 (terminal No.9) and ETACS-ECU connector C-317
(terminal No.5).

｠

Check the power supply line for open circuit.

Q:Is  the  wiring  harness  between  WCM  connector  C-29

(terminal  No.  9)  and  ETACS-ECU  connector  C-317

(terminal No. 5) in good condition?

YES:

 Go to Step 4.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector.

STEP 4. Using scan tool MB991958, check data list.
Use the ETACS-ECU data list to check the signals related to the
ignition voltage.

Item No.

Item name

Normal
conditions

Item 254

IG voltage

Battery
voltage

WIRELESS CONTROL MODULE (WCM)

42C-27

DIAGNOSIS

Q:Does scan tool MB991958 display the item "IG voltage"

as normal condition?

YES:

 Go to Step 5.

NO:

 Diagnose the ETACS-ECU. Refer to GROUP 54Ad,

Diagnosis P.54Ad-8.

STEP 5. Recheck for diagnostic trouble code.
Check again if the DTC is set to the WCM.

(1)

Erase the DTC.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Replace WCM and register the ID codes. (Refer to P.

42C-8.)

NO:

 The trouble can be an intermittent malfunction (Refer

to GROUP 00 - How to use Troubleshooting/inspection
Service Points - How to Cope with Intermittent
Malfunction P.00-15).

DTC B2204: Coding data mismatch

M14209200019USA0000010000

DTC SET CONDITION
WCM  sets  the  DTC  B2204  when  the  vehicle
information data on the CAN line does not match the
vehicle information data registered in WCM.

TECHNICAL DESCRIPTION (COMMENT)
WCM  determines  that  the  abnormality  is  present
when the vehicle information registered in it does not
match the vehicle information data.

TROUBLESHOOTING HINTS

｠

Malfunction of WCM

｠

Malfunction of ETACS-ECU

DIAGNOSTIC PROCEDURE

42C-28

WIRELESS CONTROL MODULE (WCM)

DIAGNOSIS

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool (MB991958), always turn
the  ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool (MB991958).

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D,

Diagnosis P.54D-17).

STEP 2. Using scan tool MB991958, read the ETACS-ECU
diagnostic trouble code
Check again if the DTC is set to the ETACS-ECU.

Q:Is the DTC set?

YES:

 Troubleshoot the ETACS. (Refer to GROUP 54Ad,

Diagnosis P.54Ad-8.)

NO:

 Go to Step 3.

STEP 3. Recheck for diagnostic trouble code.
Check again if the DTC is set to the WCM.

(1)

Erase the DTC.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Replace WCM and register the ID codes. (Refer to P.

42C-8.)

NO:

 The trouble can be an intermittent malfunction (Refer

to GROUP 00 - How to use Troubleshooting/inspection
Service Points - How to Cope with Intermittent
Malfunction P.00-15).

WIRELESS CONTROL MODULE (WCM)

42C-29

DIAGNOSIS

DTC B2206: VIN mismatch

M14209200020USA0000010000

DTC SET CONDITION
WCM  sets  DTC  B2206  when  chassis  number
registered in it and the VIN that has been transmitted
on the CAN bus do not match.

TECHNICAL DESCRIPTION (COMMENT)
WCM  determines  that  the  abnormality  is  present
when VIN registered in it and the one that has been
transmitted on the CAN bus do not match.

TROUBLESHOOTING HINTS

｠

Malfunction of WCM

｠

VIN registered in engine ECU unmatched

｠

WCM being registered to another vehicle

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

STEP 1. Check the VIN registered in engine control module.
Check if VIN registered in the engine control module matches
with the vehicle's VIN.

Q:Do VIN registered in the engine control module and the

vehicle's VIN match?

YES:

 Go to Step 2.

NO:

 Replace the engine control module and record VIN

(Refer to GROUP 00 - How to Perform Vehicle Identification
Number (VIN) Writing P.00-26). Record VIN and go to Step
2.

STEP 2. Recheck for diagnostic trouble code.
Check again if the DTC is set to the WCM.

42C-30

WIRELESS CONTROL MODULE (WCM)

DIAGNOSIS
