TERMINAL VOLTAGE REFERENCE CHART

M14209100068USA0000010000

KOS-ECU TERMINAL CHECK

ZC603897

C-102

0000

Termin
al
number

Check items

Check conditions

Normal conditions

1

CAN H

-

-

2

CAN L

-

-

3

-

-

-

4

Steering handle unit signal output

When the ignition switch is operated 0 to 5 V (pulse signal)

5

Steering handle unit power supply

Always

5 V

6

Interior

 transmitter

 antenna

assembly  (front  and  rear)  and
exterior

 transmitter

 antenna

assembly  (driver's  side,  front
passenger's  side,  and  liftgate)
ground

Always

0 V

7

Receiver  antenna  module  power
supply

Always

5 V

8

Push  switch  inside  the  steering
handle lock

Push  switch  inside  the  steering
handle lock: ON

12 V

9

Receiver  antenna  module  (door
entry) signal output

Keyless  operation  key  lock  switch
and unlock switch: ON

0 to 5 V (pulse signal)

10

Receiver  antenna  module  (door
entry) RSSI output

-

-

11

Receiver

 antenna

 module

(immobilizer) signal output

When  communicating  with  the
emergency key (ignition switch: ON)

0 to 5 V (pulse signal)

12

Receiver

 antenna

 module

(immobilizer) CLOCK output

When  communicating  with  the
emergency key (ignition switch: ON)

0 to 5 V (pulse signal)

13

Receiver  antenna  module  (door
entry) power control

Always

0 to 5 V (pulse signal)

14

Ground

Always

0 V

15

Interior

 transmitter

 antenna

assembly  (rear:  passenger's  side)
signal output

When  the  keyless  operation  key  is
located near the rear seat and third
seat in the passenger compartment

0 to 5 V (pulse signal)

16

Interior

 transmitter

 antenna

assembly (front) signal output

When  the  keyless  operation  key  is
located  near  the  front  seats  in  the
passenger compartment

0 to 5 V (pulse signal)

KEYLESS OPERATION SYSTEM (KOS)

42B-159

DIAGNOSIS

Termin
al
number

Check items

Check conditions

Normal conditions

17

Exterior

 transmitter

 antenna

assembly  (driver's  side)  signal
output

When  the  keyless  operation  key  is
located  near  the  driver's  door
outside the vehicle

0 to 8 V (pulse signal)

18

Exterior

 transmitter

 antenna

assembly  (front  passenger's  side)
signal output

When  the  keyless  operation  key  is
located  near  the  front  passenger's
door outside the vehicle

0 to 8 V (pulse signal)

19

Exterior

 transmitter

 antenna

assembly (liftgate) signal output

When  the  keyless  operation  key  is
located near the liftgate outside the
vehicle

0 to 8 V (pulse signal)

20

Interior

 transmitter

 antenna

assembly (rear: driver's side) signal
output

When  the  keyless  operation  key  is
located near the rear seat and third
seat in the passenger compartment

0 to 5 V (pulse signal)

21

Lock switch (driver's side) output

Lock switch: ON

0 to 5 V (pulse signal)

22

Lock switch (liftgate) output

Lock switch: ON

0 to 5 V (pulse signal)

23

Lock switch (front passenger's side)
output

Lock switch: ON

0 to 5 V (pulse signal)

24

Unlock sensor (driver's side) signal
output

When the front door outside handle
(driver's side) is grasped

0 to 5 V (pulse signal)

25

Unlock  sensor  (front  passenger's
side) signal output

When the front door outside handle
(front passenger's side) is grasped

0 to 5 V (pulse signal)

26, 27

-

-

-

28

Liftgate lock release handle output

When  the  liftgate  lock  release
handle is operated

0 to 5 V (pulse signal)

29, 30

-

-

-

31

Steering handle unit ground

Always

0 V

32

Receiver antenna module ground

Always

0 V

33

-

-

-

34

Push  switch  inside  the  steering
handle lock power supply

Push  switch  inside  the  steering
handle lock: ON

12V

35

Output to outer tone alarm (-)

Outer tone alarm is sounding

0 to 12 V (pulse signal)

36

Unlock  sensor  (driver's  and  front
passenger's side) power supply

Always

10 V

37

Output to outer tone alarm (+)

Outer tone alarm is sounding

0 to 12 V (pulse signal)

38

Battery power supply

Always

Battery voltage

39

Power  supply  from  ignition  switch
(IG1)

Ignition switch: ON

Battery voltage

40

Interior

 transmitter

 antenna

assembly  (front  and  rear)  and
exterior

 transmitter

 antenna

assembly  (driver's  side,  front
passenger's  side,  and  liftgate)
power supply

Always

｠

8

 V

 (When

transmitting  to  the
exterior  transmitter
antenna)

42B-160

KEYLESS OPERATION SYSTEM (KOS)

DIAGNOSIS

Termin
al
number

Check items

Check conditions

Normal conditions

｠

5

 V

 (When

transmitting  to  the
interior  transmitter
antenna)

KEYLESS OPERATION SYSTEM (KOS)

42B-161

DIAGNOSIS

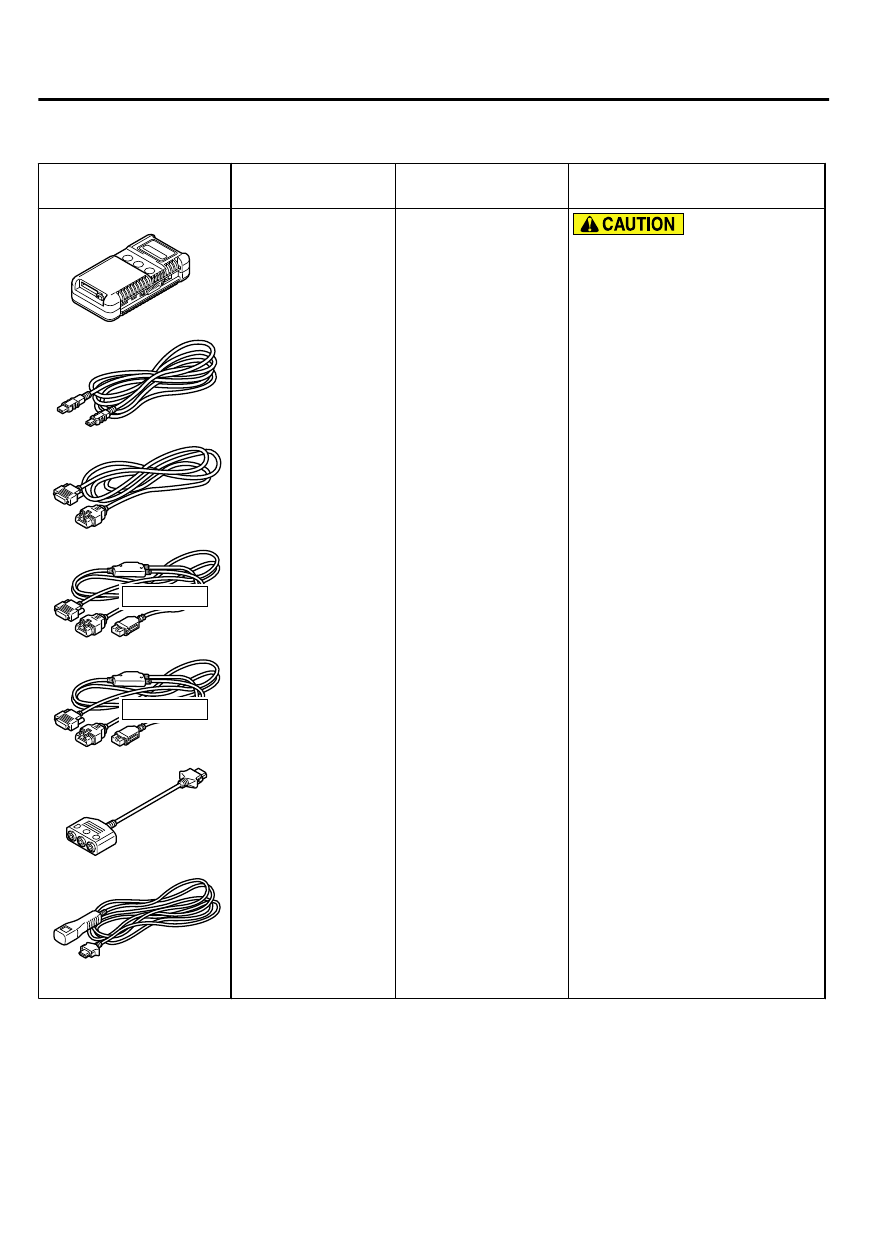

SPECIAL TOOLS

M14209100043USA0000010000

Tool

Tool  number  and
name

Supersession

Application

MB991910

MB991826

YB9919580000

MB991911

MB991914

MB991824

MB991827

MB991825

Do not use

Do not use

a

b

c

d

e

f

g

MB991958

a.

MB991824

b.

MB991827

c.

MB991910

d.

MB991911

e.

MB991914

f.

MB991825

g.

MB991826

M.U.T.-III

 sub

assembly

a.

Vehicle
communication
interface (V.C.I.)

b.

M.U.T.-III

 USB

cable

c.

M.U.T.-III

 main

harness

 A

(Vehicles

 with

CAN
communication
system)

d.

M.U.T.-III

 main

harness

 B

(Vehicles  without
CAN
communication
system)

e.

M.U.T.-III

 main

harness  C  (for
Daimler  Chrysler
models only)

f.

M.U.T.-III
measurement
adapter

g.

M.U.T.-III  trigger
harness

MB991824-KIT

NOTE:

G: MB991826

M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I. ENTER
key.

M.U.T.-III  main  harness  A
(MB991910)  should  be  used.
M.U.T.-III main harness B and C
should  not  be  used  for  this
vehicle.

｠

Diagnostic trouble code, service
data, actuator test check

｠

Registration of ID codes

42B-162

KEYLESS OPERATION SYSTEM (KOS)

SPECIAL TOOLS
