Connect a battery to the motor terminal, and check that the
motor runs freely.

Battery connection

Slider position

｠

Connect  terminal  1  to
the  negative  battery
terminal

｠

Connect  terminal  4  to
the  positive  battery
terminal

UP

｠

Connect  terminal  4  to
the  negative  battery
terminal

｠

Connect  terminal  1  to
the  positive  battery
terminal

DOWN

Q:Is the front power window motor (RH) normal?

YES:

 Go to Step 7.

NO:

 Replace the front power assembly (RH). When the front

power window sub switch (RH) is operated, the front power
window (RH) should raise and lower normally.

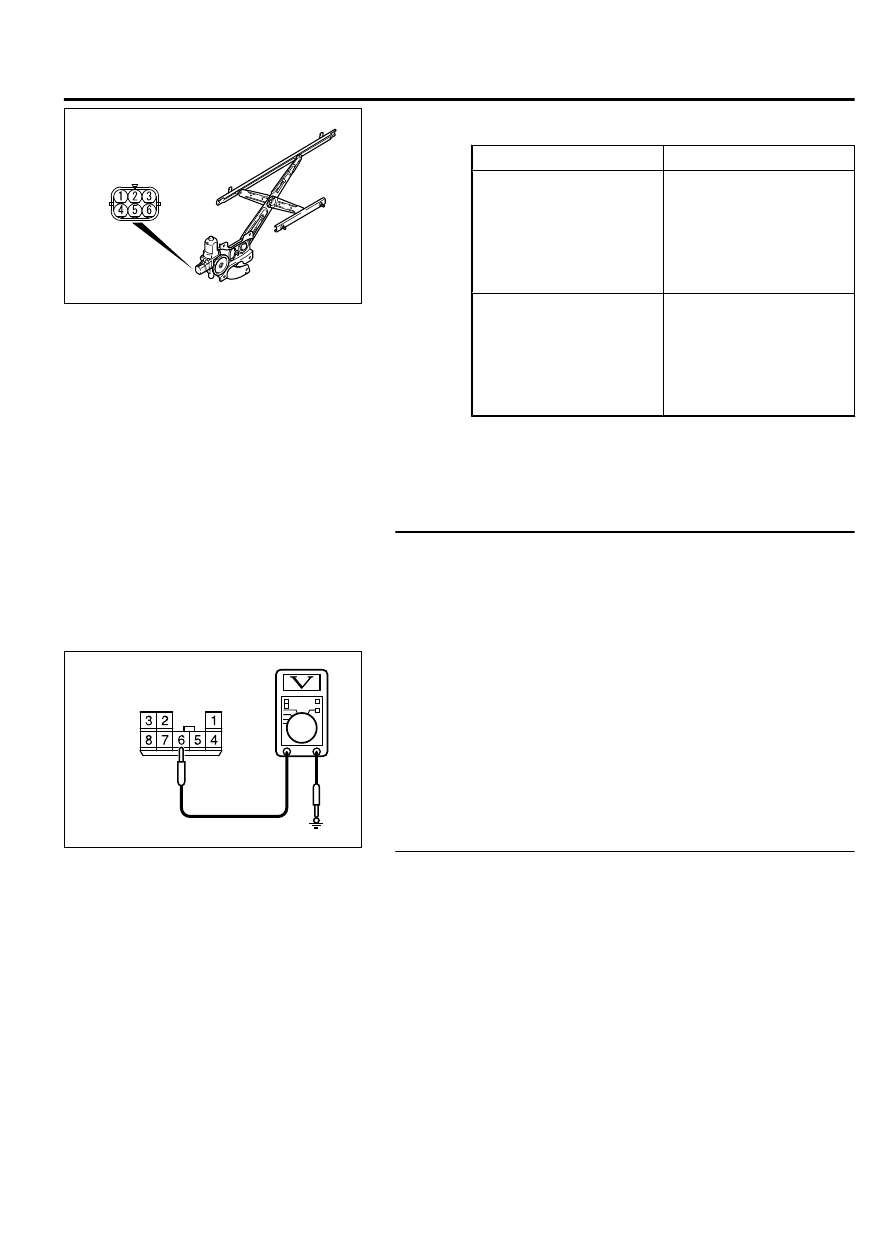

STEP 7. Check the battery power supply circuit to the front
power window sub switch. Measure the voltage at front
power window sub switch connector E-06.

(1)

Disconnect front power window sub switch connector E-06
and measure the voltage available at the wiring harness side
of the connector.

ZC500795

Connector E-06
(harness side)

0005

(2)

Measure the voltage between terminal 6 and ground.

｠

The  voltage  should  measure  approximately  12  volts
(battery positive voltage).

Q:Is the measured voltage approximately 12 volts (battery

positive voltage)?

YES:

 Go to Step 10.

NO:

 Go to Step 8.

STEP 8. Check ETACS-ECU connector C-315 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is ETACS-ECU connector C-315 in good condition?

YES:

 Go to Step 9.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. When the
front power window sub switch (RH) is operated, the front
power window (RH) should raise and lower normally.

DOOR

42Ab-63

POWER WINDOW DIAGNOSIS

STEP 9. Check the wiring harness between ETACS-ECU
connector C-315 (terminal 8) and front power window sub
switch connector E-06 (terminal 6).

NOTE:

Also check intermediate connector C-112. If

intermediate connectors C-112 is damaged, repair or replace
the damaged component(s) as described in GROUP 00E, Harness
Connector Inspection P.00E-2.

Q:Is  the  wiring  harness  between  ETACS-ECU  connector

C-315  (terminal  8)  and  front  power  window  sub  switch

connector E-06 (terminal 6 in good condition?

YES:

 No action is necessary and testing is complete.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary. When the front power window sub
switch is operated, the front power window (RH) should
raise and lower normally.

STEP 10. Check the ground circuit to the front power
window sub switch. Measure the resistance at front power
window sub switch connector E-06.

(1)

Disconnect front power window sub switch connector E-19
and measure the resistance available at the wiring harness
side of the connector.

ZC5007880005

Connector E-06
(harness side)

(2)

Measure  the  resistance  value  between  terminal  5  and
ground, and also between terminal 8 and ground.

｠

The resistance should be 2 ohms or less.

Q:Is the measured resistance 2 ohms or less?

YES:

 Go to Step 12.

NO:

 Go to Step 11.

STEP 11. Check the wiring harness between power window
main switch connector E-19 (terminals 1 and 3) and front
power window sub switch connector E-06 (terminals 8 and
5).

NOTE:

Also check intermediate connectors C-112 and C-126.

If intermediate connector C-112 or C-126 is damaged, repair
or replace the damaged component(s) as described in GROUP
00E, Harness Connector Inspection P.00E-2.

Q:Is the wiring harness between power window main switch

connector  E-19  (terminals  1  and  3)  and  front  power

window sub switch connector E-06 (terminals 8 and 5) in

good condition?

YES:

 Replace the power window main switch. When the front

power window sub switch (RH) is operated, the front power
window (RH) should raise and lower normally.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or

42Ab-64

DOOR

POWER WINDOW DIAGNOSIS

terminals pushed back in the connector. Repair the wiring
harness as necessary. When the front power window sub
switch (RH) is operated, the front power window (RH)
should raise and lower normally.

STEP 12. Check the wiring harness between front power
window sub switch connector E-06 (terminals 4 and 7) and
front power window motor (RH) connector E-03 (terminals
1 and 4).

Q:Is the wiring harness between front power window sub

switch connector E-06 (terminals 4 and 7) and front power

window motor (RH) connector E-03 (terminals 1 and 4) in

good condition?

YES:

 No action is necessary and testing is complete.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary. When the front power window sub
switch (RH) is operated, the front power window (RH)
should raise and lower normally.

STEP 13. Check rear power window sub switch (LH)
connector E-25 and rear power window motor (LH)
connector E-26 for loose, corroded or damaged terminals,
or terminals pushed back in the connector.

Q:Are rear power window sub switch (LH) connector E-25

and  rear  power  window  motor  (LH)  connector  E-26  in

good condition?

YES:

 Go to Step 14.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. When the
rear power window sub switch (LH) is operated, the rear
power window (LH) should raise and lower normally.

STEP 14. Check the rear power window sub switch (LH) for
continuity.

(1)

Remove  the  rear  power  window  sub  switch  (LH).  Refer  to
GROUP  42Ab,  Door,  Door  Glass  and  Regulator  P.
42Ab-97.

ZC6013730000

8

3

4 5

1

2

6 7

<Rear door>

(2)

Check  continuity  when  the  rear  power  window  sub  switch
(LH) is operated to "UP" or "DOWN" position.

Switch
position

Tester
connection

Specified
condition

UP

4 - 5, 6 - 7

Continuity
exists  (2  Ω  or
less)

OFF

4 - 5, 7 - 8

DOWN

4 - 6, 7 - 8

Q:Is the rear power window sub switch (LH) normal?

YES:

 Go to Step 15.

NO:

 Replace the rear power window sub switch (LH). When

the rear power window sub switch (LH) is operated, the
rear power window (LH) should raise and lower normally.

DOOR

42Ab-65

POWER WINDOW DIAGNOSIS

STEP 15. Check the rear power window motor (LH).

(1)

Remove  the  rear  power  window  regulator  assembly  (LH).
Refer to GROUP 42Ab, Door, Door Glass and Regulator P.
42Ab-97.

ZC6006080000

(2)

Connect a battery to the motor terminal, and check that the
motor runs freely.

Battery connection

Slider position

｠

Connect  terminal  1  to
the  negative  battery
terminal

｠

Connect  terminal  4  to
the  positive  battery
terminal

UP

｠

Connect  terminal  4  to
the  negative  battery
terminal

｠

Connect  terminal  1  to
the  positive  battery
terminal

DOWN

Q:Is the rear power window motor (LH) normal?

YES:

 Go to Step 16.

NO:

 Replace the rear power window motor (LH). When the

rear power window sub switch (LH) is operated, the rear
power window (LH) should raise and lower normally.

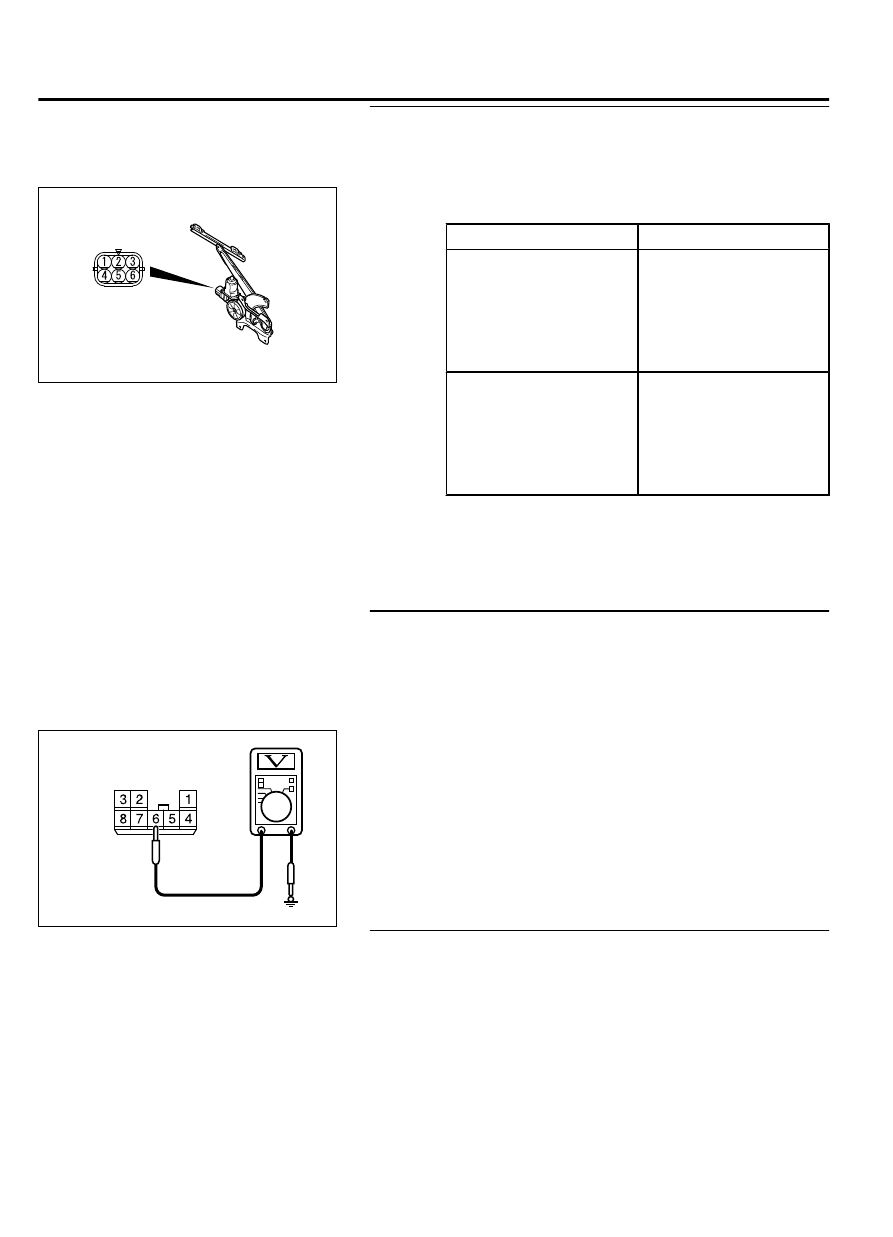

STEP 16. Check the battery power supply circuit to the rear
power window sub switch (LH). Measure the voltage at rear
power window sub switch (LH) connector E-25.

(1)

Disconnect  rear  power  window  sub  switch  (LH)  connector
E-25 and measure the voltage available at the wiring harness
side of the connector.

ZC500795

Connector E-25
(harness side)

0007

(2)

Measure the voltage between terminal 6 and ground.

｠

The  voltage  should  measure  approximately  12  volts
(battery positive voltage).

Q:Is the measured voltage approximately 12 volts (battery

positive voltage)?

YES:

 Go to Step 19.

NO:

 Go to Step 17.

STEP 17. Check ETACS-ECU connector C-311 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is ETACS-ECU connector C-311 in good condition?

YES:

 Go to Step 18.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. When the
rear power window sub switch (LH) is operated, the rear
power window (LH) should raise and lower normally.
