Mitsubishi Outlander XL. Manual - part 647

ZC5019240001

5

1

11

5

10 ± 2 N·m
89 ± 17 in-lb

24 ± 4 N·m
18 ± 3 ft-lb

5

9

12

16 ± 3 N·m
12 ± 2 ft-lb

5

10

13 ± 2 N·m
111 ± 22 in-lb

3

8

4

5

2

6

7

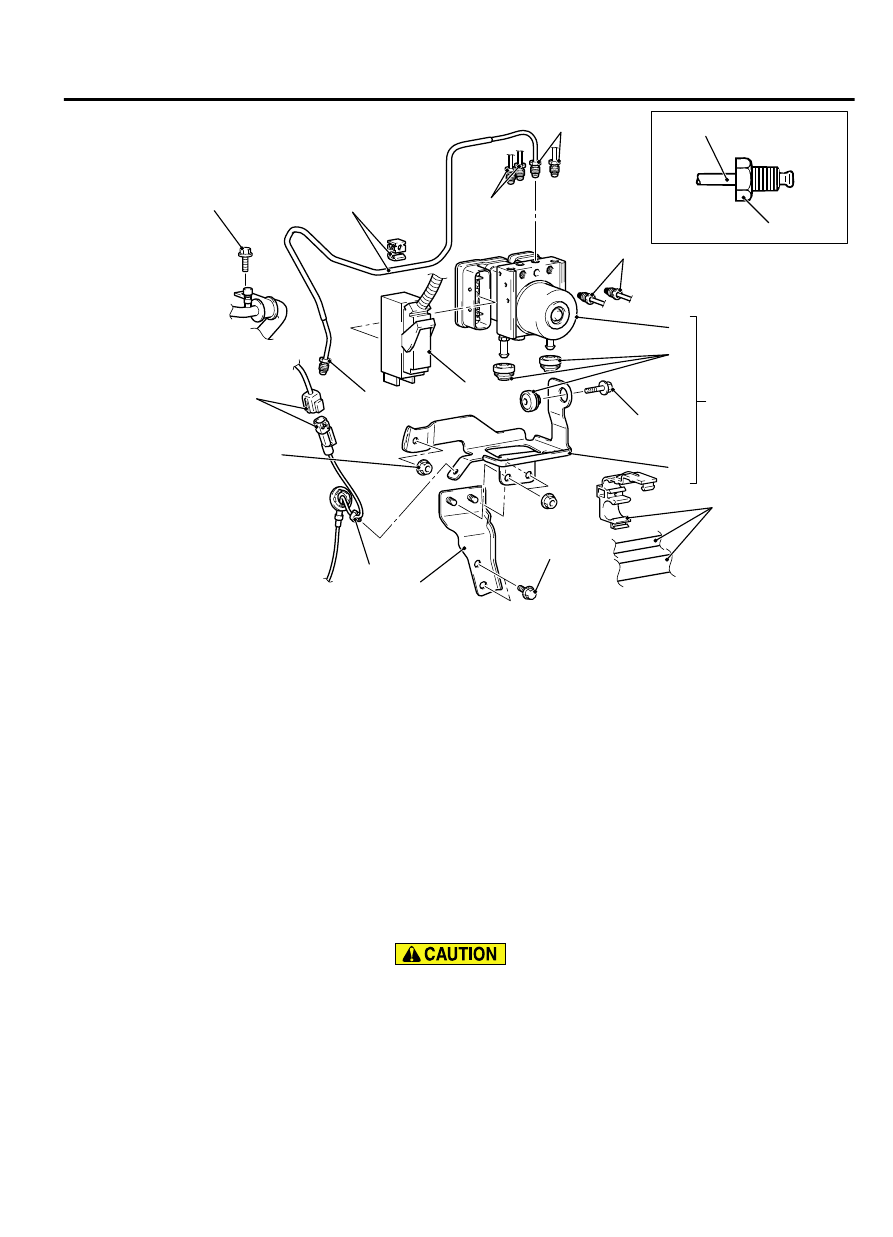

Removal steps

1.

ABS-ECU harness connector

2.

Suction pipe installation bolt

3.

Wheel

 speed

 sensor

 harness

connector connection

4.

Wheel  speed  sensor  harness  clip
connection

>>A<<

5.

Brake tube connection

6.

Brake tube and clip connection

7.

Suction  pipe,  liquid  pipe  and  clip
connection

Removal steps

8.

Hydraulic  unit  (ABS-ECU)  and
hydraulic unit bracket

<<A>>

9.

Hydraulic unit (ABS-ECU)

10. Hydraulic unit bracket insulator
11. Hydraulic unit bracket B
12. Hydraulic unit bracket A

REMOVAL SERVICE POINTS

<<A>> HYDRAULIC UNIT (ABS-ECU) REMOVAL

｠

Be careful when removing the hydraulic unit because it is
heavy.

｠

Never loosen the nuts and the bolts because the hydraulic
unit cannot be disassembled.

｠

Do not drop or shock the hydraulic unit.

｠

Do not turn the hydraulic unit upside down or lay down
the unit because the inner air becomes difficult to be bled.

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-151

HYDRAULIC UNIT

INSTALLATION SERVICE POINTS

>>A<< BRAKE TUBE CONNECTION

ZC601084

ZC6010850000

1

6

5

3

4

2

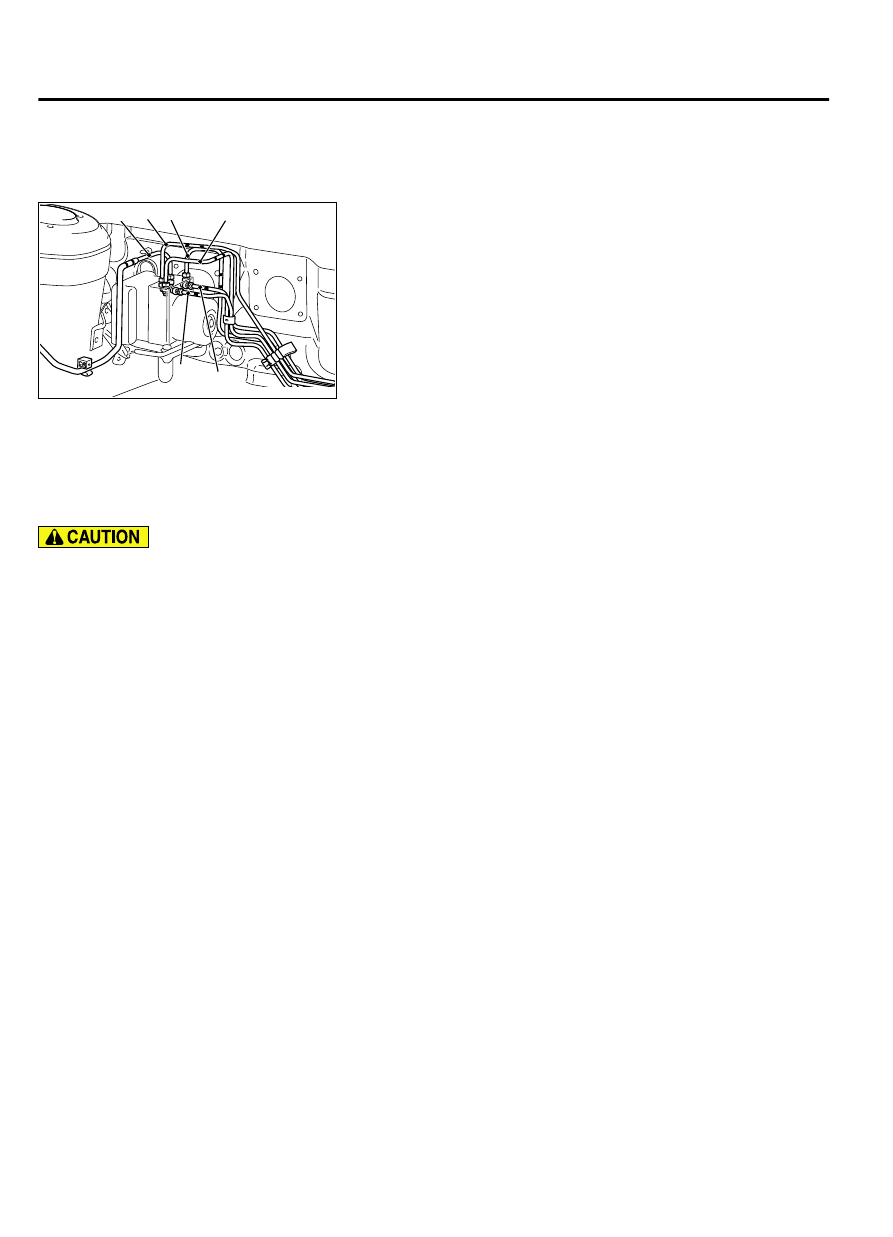

Install the brake pipe to the hydraulic unit as shown in the figure.

1.

To rear brake (RH) <Marking color: White>

2.

From master cylinder (secondary) <Marking color: Yellow>

3.

To front brake (LH) <Marking color: Red and white>

4.

To front brake (RH) <Marking color: Orange and white>

5.

From master cylinder (primary) <Marking color: Blue>

6.

To rear brake (LH) <Marking color: Pink>

WHEEL SPEED SENSOR

REMOVAL AND INSTALLATION

M13502000083USA0000010000

The vehicle speed detection encoder collects any
metallic particle easily, because it is magnetized.

Make sure that the encoder should not collect any
metallic  particle.  Check  that  there  is  not  any
trouble prior to reassembling it.

Pre-removal and post-installation operation

｠

Air cleaner body assembly removal and installation (Refer to GROUP 15 - Air Cleaner P.15-6.) Front wheel speed sensor (LH)

｠

Quarter trim removal and installation (Refer to GROUP 52A - Trim P.52A-10.) Rear wheel speed sensor

35B-152

ANTI-LOCK BRAKING SYSTEM (ABS)

WHEEL SPEED SENSOR

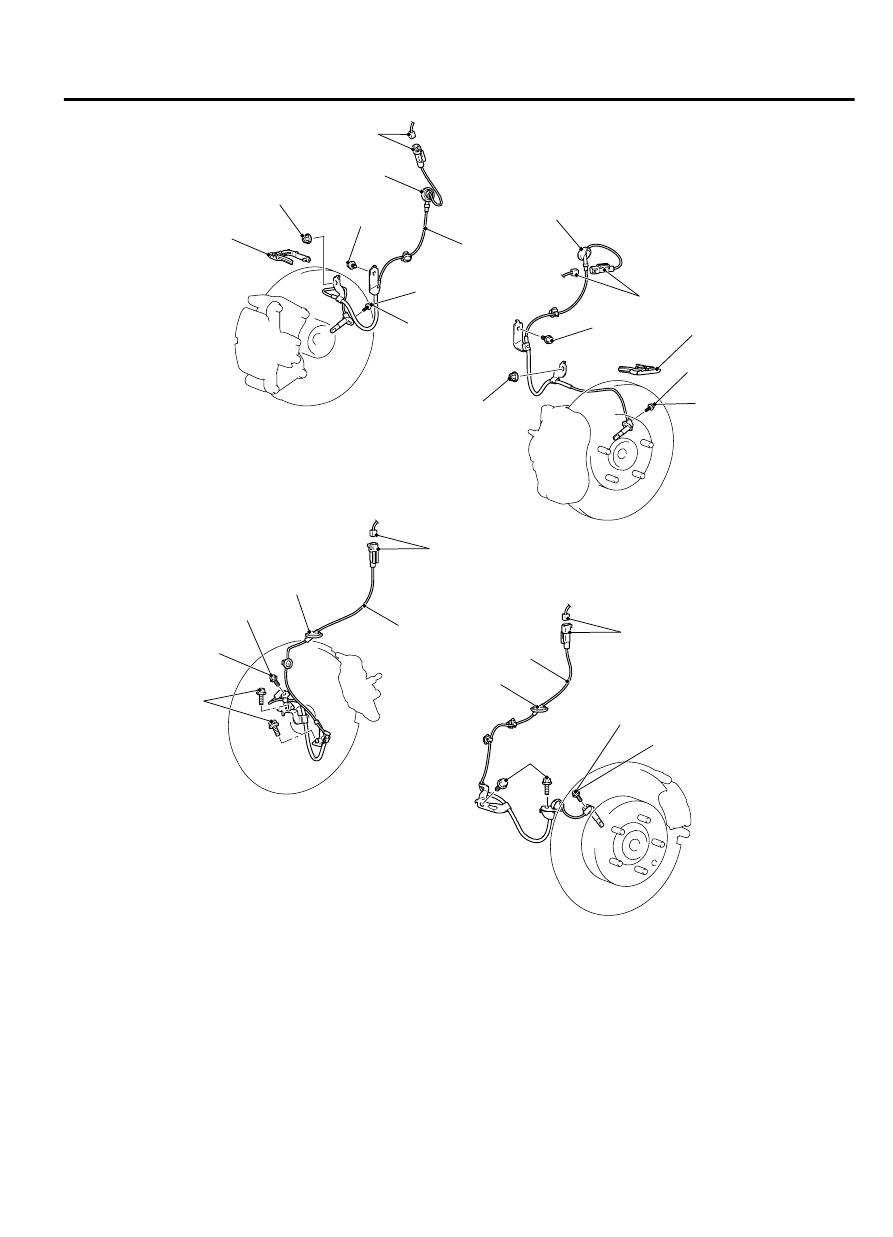

ZC5019310000

3

<Front>

<Rear>

2

1

1

2

3

6

8

4

5

13 ± 2 N·m
111 ± 22 in-lb

5

7

7

8

9

6

11 ± 2 N·m
98 ± 17 in-lb

8.5 ± 1.5 N·m
76 ± 13 in-lb

11 ± 2 N·m
98 ± 17 in-lb

13 ± 2 N·m
111 ± 22 in-lb

8.5 ± 1.5 N·m
76 ± 13 in-lb

8.5 ± 1.5 N·m
76 ± 13 in-lb

8.5 ± 1.5 N·m
76 ± 13 in-lb

11 ± 2 N·m
98 ± 17 in-lb

11 ± 2 N·m
98 ± 17 in-lb

9

Front  wheel  speed  sensor
removal steps

1.

Bolt (front wheel speed sensor and
knuckle connection)

2.

Front

 wheel

 speed

 sensor

connector

>>A<<

3.

Front

 wheel

 speed

 sensor

grommet

4.

Front wheel speed sensor

Front  wheel  speed  sensor
removal steps

5.

Harness clip

Rear

 wheel

 speed

 sensor

removal steps

6.

Rear  wheel  speed  sensor  and
trailing arm assembly connection

7.

Rear

 wheel

 speed

 sensor

connector

>>A<<

8.

Front wheel speed sensor grommet

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-153

WHEEL SPEED SENSOR

Rear

 wheel

 speed

 sensor

removal steps

9.

Rear wheel speed sensor

NOTE:

The vehicle speed detection encoder is

integrated with the front wheel bearing and the
rear hub assembly, which cannot be disassembled.

INSTALLATION SERVICE POINTS

>>A<< FRONT WHEEL SPEED SENSOR GROMMET/REAR
WHEEL SPEED SENSOR GROMMET INSTALLATION

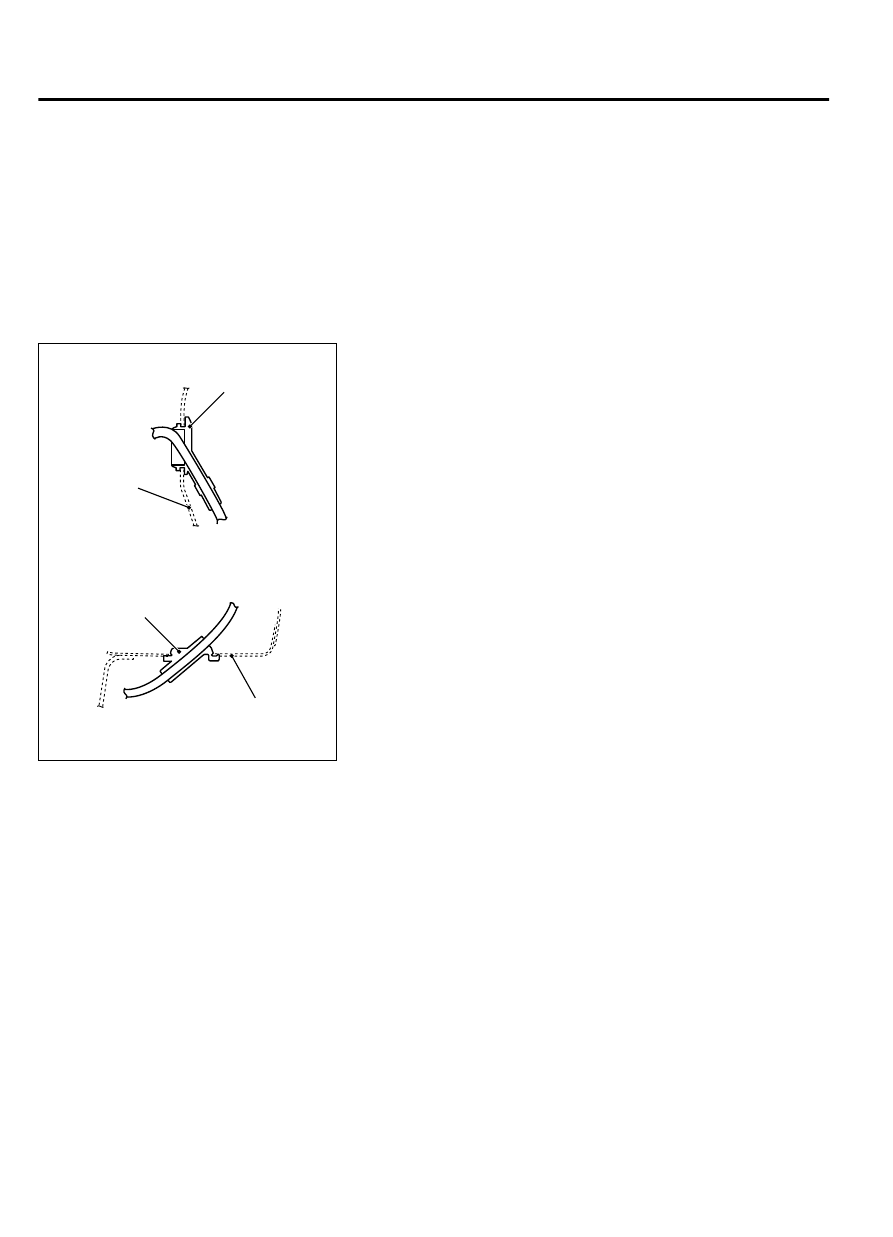

ZC5019510000

Front wheel spee

d

sensor  gromme t

Body panel

<Front>

<Rear>

Rear wheel speed
sensor  gromme t

Body panel

Install the front wheel speed sensor grommet and the rear wheel
speed sensor grommet to the body panel snugly as shown in the
figure.

35B-154

ANTI-LOCK BRAKING SYSTEM (ABS)

WHEEL SPEED SENSOR
