OPERATION
AWD-ECU  detects  an  IG1  power  supply  voltage
abnormal increase, and if any abnormality occurs, it
interrupts the system.

DTC SET CONDITIONS
If the following conditions are met when the system is
activated,  AWD-ECU  gradually  switches  the  control
from AWD to FWD, flashes the AWD/LOCK indicators
alternately, and sets the DTC No. C211D.

｠

IG1 voltage: More than 17 V

｠

Battery voltage: Less than 16 V

TROUBLESHOOTING HINTS

Current trouble

｠

Malfunction of IG1 relay in ETACS-ECU

｠

Damaged wiring harness and connectors

｠

Short or open circuit between the battery and AWD-
ECU

｠

Malfunction  of  alternator  or  other  power  supply
systems

Past trouble

｠

Intermittent wiring harness or connector failure

NOTE:

For diagnosis procedures, refer to "How

to treat past trouble". (Refer to GROUP 00, How
to Treat Past Trouble P.00-17.)

｠

Intermittent

 malfunction

 of

 ETACS-ECU

(malfunction of IG1 relay)

｠

Malfunction  of  alternator  or  other  power  supply
systems

DIAGNOSIS

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A

STEP 1. Scan tool MB991958 CAN bus diagnostics
Use scan tool MB991958 to diagnose the CAN bus lines.

Q:Is the check result normal?

YES:

 Go to Step 3.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D - CAN

bus diagnostic chart P.54D-17.) On completion, go to
Step 2.

STEP 2. Check whether the DTC is reset after repairing the
CAN bus line.

(1)

Erase the DTC.

(2)

Turn the ignition switch from the LOCK (OFF) position to the
ON position.

(3)

Check if the DTC is set.

Q:Is the DTC No. C211D set?

YES:

 Go to Step 3.

NO:

 This diagnosis is complete.

STEP 3. Check the following connector:
Check the connectors below for improper engagement, terminal
damage or terminal drawn in the connector case.

｠

C-128 AWD-ECU connector

｠

C-309, C-313, C-317 ETACS-ECU connector

Q:Are the connectors and terminals in good condition?

YES:

 Go to Step 4.

NO:

 Repair the connector(s) or terminal(s). Then go to

Step 8.

ELECTRONIC CONTROL AWD

27C-43

DIAGNOSIS

STEP 4. Wiring harness check
Check  the  wiring  harness  between  the  C-128  AWD-ECU
connector and the C-313 ETACS-ECU connector for damage or
other problem.

Q:Is the wiring harness in good condition?

YES:

 Go to Step 5.

NO:

 Repair damage or other problem in the wiring harness.

Then go to Step 8.

STEP 5. Voltage measurement at the AWD-ECU connector

(1)

Disconnect the C-128 AWD-ECU connector.

C-128 harness
connector:
harness side

ZC3047200000

(2)

Measure the voltage between the C-128 wiring harness side
connector terminals No. 4 and No. 10.

OK: Battery voltage

Q:Is the check result normal?

YES:

 Go to Step 8.

NO:

 Go to Step 6.

STEP 6. Wiring harness check
Check  the  wiring  harness  between  the  C-128  AWD-ECU
connector  (terminal  No.  4)  and  the  C-309  ETACS-ECU
connector (terminal No. 1) for damage or other problem.

Q:Is the wiring harness in good condition?

YES:

 Go to Step 7.

NO:

 Repair the wiring harness. Then go to Step 8.

STEP 7. Check whether the DTC is reset.

(1)

Erase the DTC.

(2)

Turn the ignition switch from the LOCK (OFF) position to the
ON position.

(3)

Check if the DTC is set.

Q:Is the DTC No. C211D set?

YES:

 Replace AWD-ECU. (Refer to P.27C-92.) Then go to

Step 8.

NO:

 The trouble can be an intermittent malfunction.

(Refer to GROUP 00 - How to Cope with Intermittent
Malfunction P.00-15.)

STEP 8. Check whether the DTC is reset.

(1)

Erase the DTC.

(2)

Turn the ignition switch from the LOCK (OFF) position to the
ON position.

(3)

Check if the DTC is set.

Q:Is the DTC No. C211D set?

YES:

 Diagnose again from Step 1.

NO:

 This diagnosis is complete.

27C-44

ELECTRONIC CONTROL AWD

DIAGNOSIS

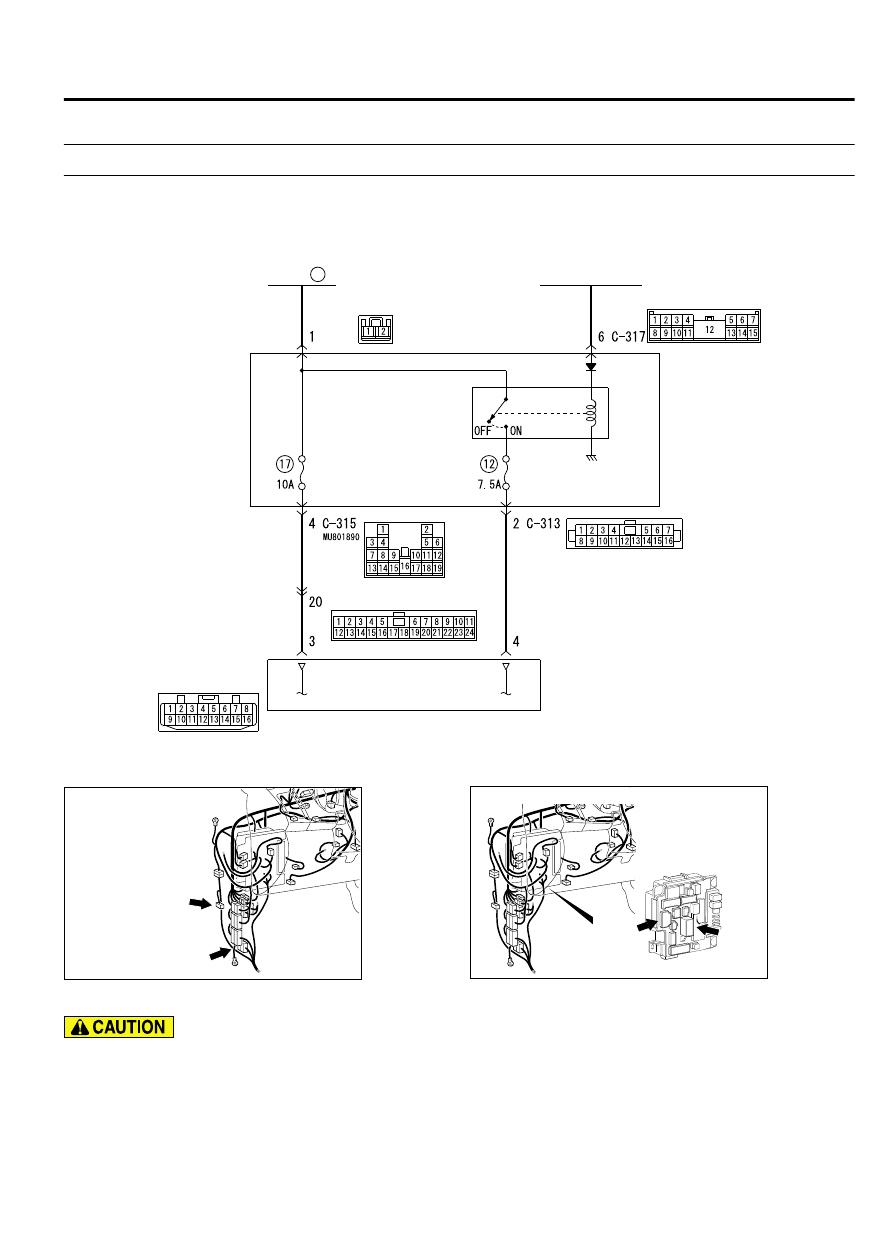

DTC C211E: Abnormal power supply voltage (Too low)

M12704100021USA0000010000

ETACS-ECU

FUSIBLE
LINK

34

IGNITION
SWITCH (IG1)

IG1
RELAY

AWD-ECU

D7G27M002A00

GREY

GREY

GREY

WHITE

WHITE

C-128

C-31

C-309

ZC6000240000

Connectors: C-31, C-128

C-128

C-31

ZC6000260000

ETACS-ECU
(front view)

C-315

C-309
(B)

Connectors: C-309, C-315



If there is any problem in the CAN bus lines, an
incorrect DTC may be set. Prior to this diagnosis,
always diagnose the CAN bus lines.

OPERATION

｠

AWD-ECU  detects  a  power  supply  voltage
abnormal  drop,  and  if  any  abnormality  occurs,  it
interrupts the system.

ELECTRONIC CONTROL AWD

27C-45

DIAGNOSIS

｠

If  any  abnormality  occurs  in  the  AWD-ECU,  the
system is deactivated.

DTC SET CONDITIONS
If the following conditions are met when the system is
activated,  AWD-ECU  gradually  switches  the  control
from AWD to FWD, flashes the AWD/LOCK indicators
alternately, and sets the DTC No. C211E.

｠

IG1 voltage: 7.5 V or more

｠

Abnormal voltage in the ECU

TROUBLESHOOTING HINTS

Current trouble

｠

Damaged wiring harness and connectors

｠

Short to ground or open circuit between the battery
and AWD-ECU

｠

AWD-ECU malfunction

Past trouble

｠

Intermittent wiring harness or connector failure

NOTE:

For diagnosis procedures, refer to "How

to treat past trouble". (Refer to GROUP 00, How
to Treat Past Trouble P.00-17.)

DIAGNOSIS

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A

STEP 1. Scan tool MB991958 CAN bus diagnostics
Use scan tool MB991958 to diagnose the CAN bus lines.

Q:Is the check result normal?

YES:

 Go to Step 3.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D - CAN

bus diagnostic chart P.54D-17.) On completion, go to
Step 2.

STEP 2. Check whether the DTC is reset after repairing the
CAN bus line.

(1)

Erase the DTC.

(2)

Turn the ignition switch from the LOCK (OFF) position to the
ON position.

(3)

Check if the DTC is set.

Q:Is the DTC No. C211E set?

YES:

 Go to Step 3.

NO:

 This diagnosis is complete.

STEP 3. Check the following connector:
Check the connectors below for improper engagement, terminal
damage or terminal drawn in the connector case.

｠

C-128 AWD-ECU connector

｠

C-309, C-315 ETACS-ECU connector

｠

C-31 intermediate connector

Q:Are the connectors and terminals in good condition?

YES:

 Go to Step 4.

NO:

 Repair the connector(s) or terminal(s). Then go to

Step 8.

27C-46

ELECTRONIC CONTROL AWD

DIAGNOSIS
