Mitsubishi Outlander XL. Manual - part 548

SYMPTOM CHART

M12701000043USA0000010001

Symptom

Inspection procedure

Reference page

Abnormal noise

1

 P.27A-3

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: Abnormal Noise

M12701000047USA0000010000

DIAGNOSIS

STEP 1. Check the rear hub assembly installation bolts for
looseness.

Q:Are the rear hub assembly installation bolts loosened?

YES:

 Tighten the rear hub assembly installation bolts to

the specified torque 95 ± 14 N·m (70 ± 10 ft-lb). Then
go to Step 3.

NO:

 Go to Step 2.

STEP 2. Check the wheel bearing end play.

(1)

Remove  the  caliper  assembly,  and  suspend  the  caliper
assembly with a wire and remove the brake disc.

ZC5018670000

(2)

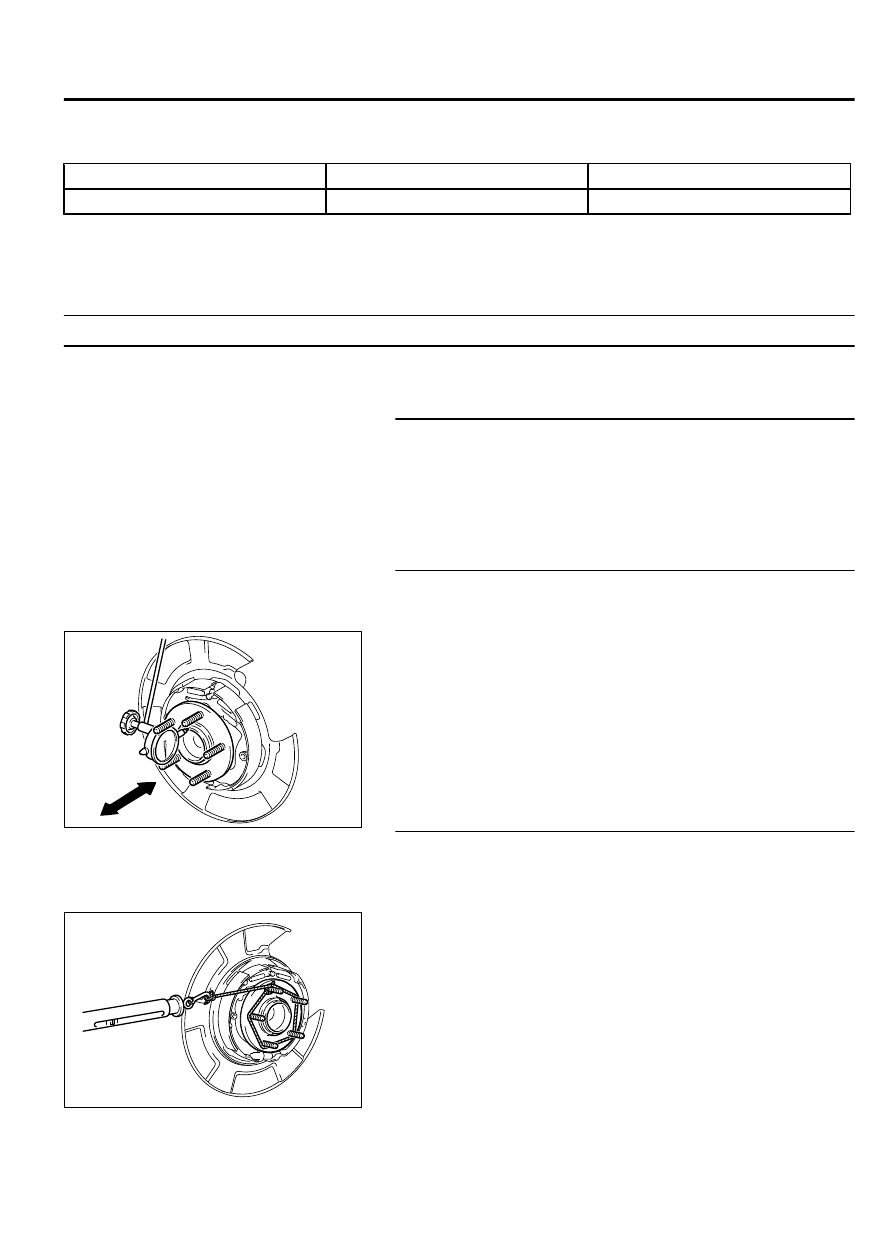

Check the bearing's end play. Place a dial gauge against the
hub  surface,  then  move  the  hub  in  the  axial  direction  and
check whether or not there is end play.

Limit: 0.05 mm (0.002 inch)

Q:Is the wheel bearing end play within the limit?

YES:

 Go to Step 3.

NO:

 Replace the rear hub assembly, then go to Step 4.

STEP 3. Check the rear hub rotary-sliding resistance.

(1)

Remove  the  caliper  assembly,  and  suspend  the  caliper
assembly with a wire and remove the brake disc.

(2)

Turn the hub a few times to seat the bearing.

ZC5019790000

(3)

Wind a rope around the hub bolt and turn the hub by pulling
at  a  90  degree  angle  with  a  spring  balance.  Measure  to
determine whether or not the rotary-sliding resistance of the
rear hub is at the limit value.

Limit: 24.5 N (5.51 lb)

Q:Is the rear hub rotary-sliding resistance within the limit?

YES:

 Go to Step 4.

NO:

 Replace the rear hub assembly if an adjustment cannot

be made to within the limit. Then go to Step 4.

REAR AXLE<FWD>

27A-3

REAR AXLE DIAGNOSIS

STEP 4. Retest the systems.

Q:Are abnormal noises generated?

YES:

 Return to Step 1.

NO:

 The procedure is complete.

SPECIAL TOOLS

M12701000006USA0000010001

Tool

Tool number and name Supersession

Application

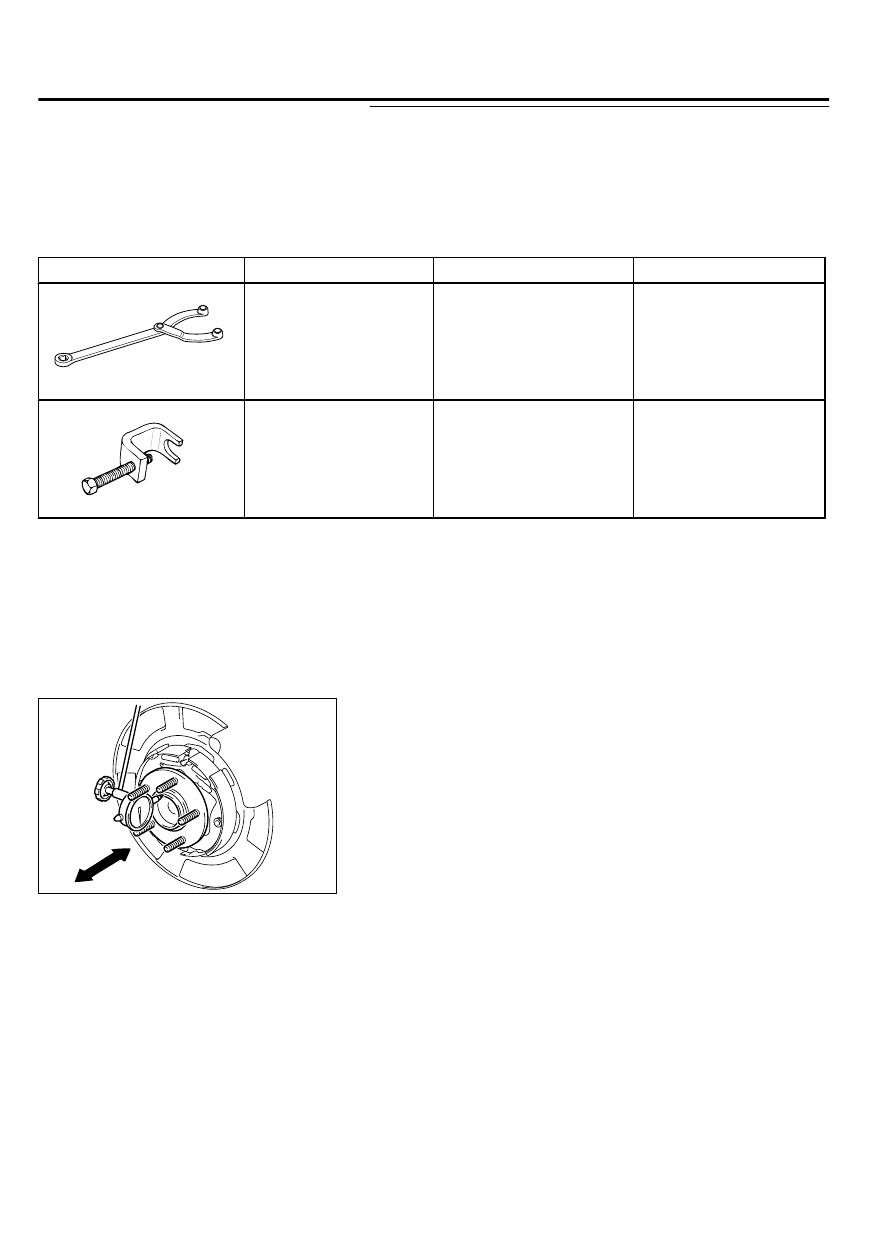

YB990767AA00

MB990767
Front  hub  and  flange
yoke holder

MB990767-01

Hub fixing

YB991618AA00

MB991618
Hub bolt remover

General service tool

Hub bolt removal

ON-VEHICLE SERVICE

WHEEL BEARING END PLAY CHECK

M12701000009USA0000010001

1.

Remove  the  caliper  assembly,  and  suspend  the  caliper
assembly with a wire and remove the brake disc.

ZC5018670000

2.

Check the bearing's end play. Place a dial gauge against the
hub  surface;  then  move  the  hub  in  the  axial  direction  and
check whether or not there is end play.

Limit: 0.05 mm (0.002 inch)

3.

Replace  the  rear  hub  assembly  if  an  adjustment  cannot  be
made to within the limit.

4.

After checking, install the brake disc and the caliper assembly,
and tighten the caliper mounting bolt to the specified torque.

Tightening torque: 55 ± 5 N·m (41 ± 3 ft-lb)

REAR HUB ROTARY-SLIDING RESISTANCE

CHECK

M12701000011USA0000010000

1.

Remove  the  caliper  assembly,  and  suspend  the  caliper
assembly with a wire and remove the brake disc.

2.

Turn the hub a few times to seat the bearing.

27A-4

REAR AXLE<FWD>

SPECIAL TOOLS

ZC5019790000

3.

Wind a rope around the hub bolt and turn the hub by pulling
at  a  90  degree  angle  with  a  spring  balance.  Measure  to
determine whether or not the rotary-sliding resistance of the
rear hub is at the limit value.

Limit: 24.5 N (5.51 lb)

4.

Replace the rear hub assembly if the rotary-sliding resistance
cannot be made to within the limit.

5.

After  having  finished  the  inspection,  install  the  brake  disc,
caliper assembly and tighten the caliper assembly mounting
bolts to the specified torque 55 ± 5 N·m (41 ± 3 ft-lb).

HUB BOLT REPLACEMENT

M12701000010USA0000010000

Required Special Tools:

｠

MB990767: Front Hub and Flange Yoke Holder

｠

MB991618: Hub Bolt Remover

1.

Remove  the  caliper  assembly,  and  suspend  the  caliper
assembly with a wire and remove the brake disc.

ZC5018560000

MB991618

Hub bolt

2.

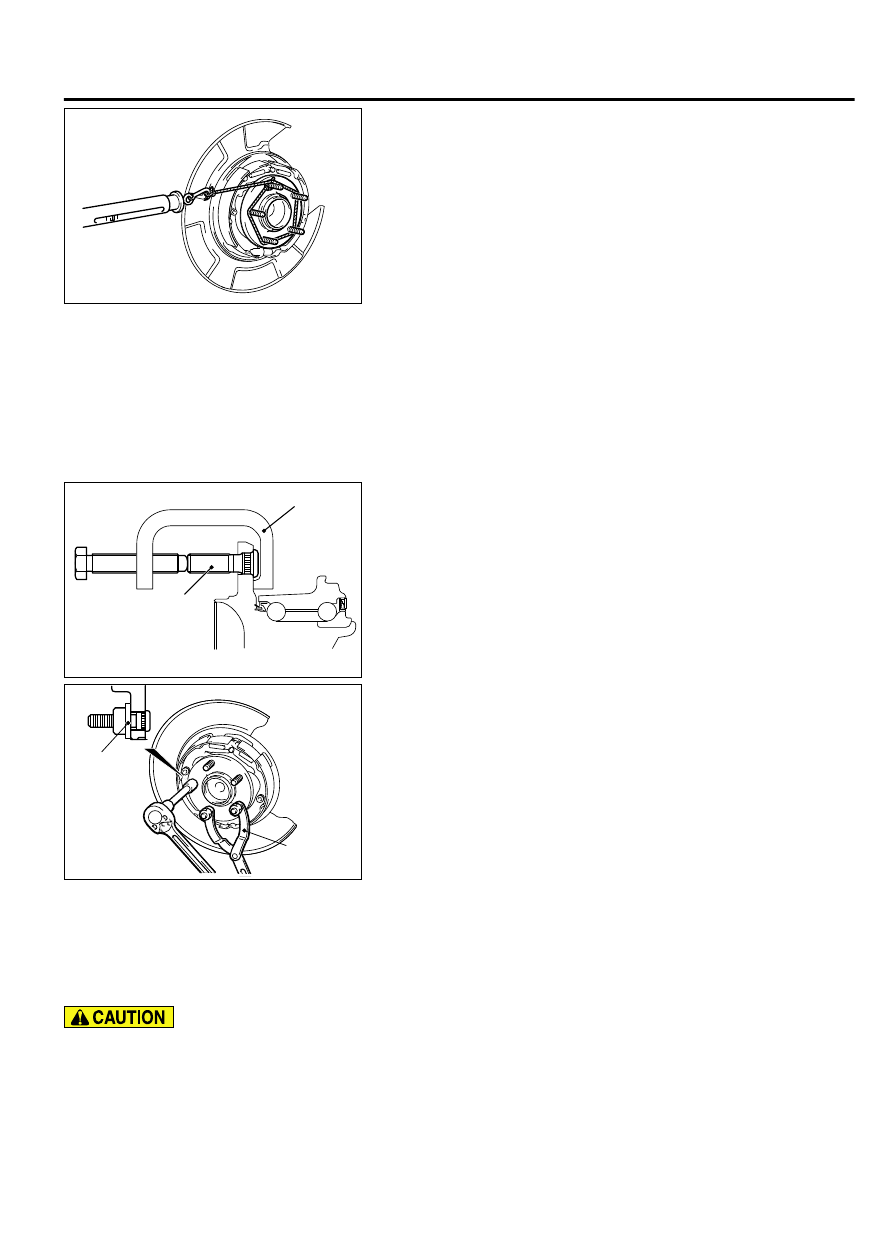

Use special tool MB991618 to remove the hub bolts.

ZC5019930000

MB990767

Plain
washer

3.

Install the plain washer to the new hub bolt, and install the bolt
with a nut while holding the hub with special tool MB990767.

4.

Install the brake disc, caliper assembly and tighten the caliper
assembly mounting bolts to the specified torque 55 ± 5 N·m
(41 ± 3 ft-lb).

REAR AXLE HUB ASSEMBLY

REMOVAL AND INSTALLATION

M12701000020USA0000010001

｠

Do  not  disassemble  the  rear  wheel  hub
assembly.

｠

The  magnetic  encoder  collects  metallic
particles easily, because it is magnetized. Make

sure  that  the  magnetic  encoder  should  not
collect metallic particles. Check that there is no
trouble prior to reassembling it.

REAR AXLE<FWD>

27A-5

ON-VEHICLE SERVICE

｠

When the rear wheel hub assembly is removed/
installed, make sure that the magnetic encoder
(integrated with inner oil seal) does not contact
with surrounding parts to avoid damage.

｠

When  removing  and  installing  the  rear  wheel
speed sensor, make sure that its pole piece at

the end does not contact with surrounding parts
to avoid damage.

｠

The part indicated with * is the bolt with friction
coefficient stabilizer. In removal, replace it with
a new one.

ZC5019940000

1

2

3

55 ± 5 N·m
41 ± 3 ft-lb

95 ± 14 N·m
70 ± 10 ft-lb

4

N

*

8.5 ± 1.5 N·m
76 ± 13 in-lb

11 ± 2 N·m
98 ± 17 in-lb

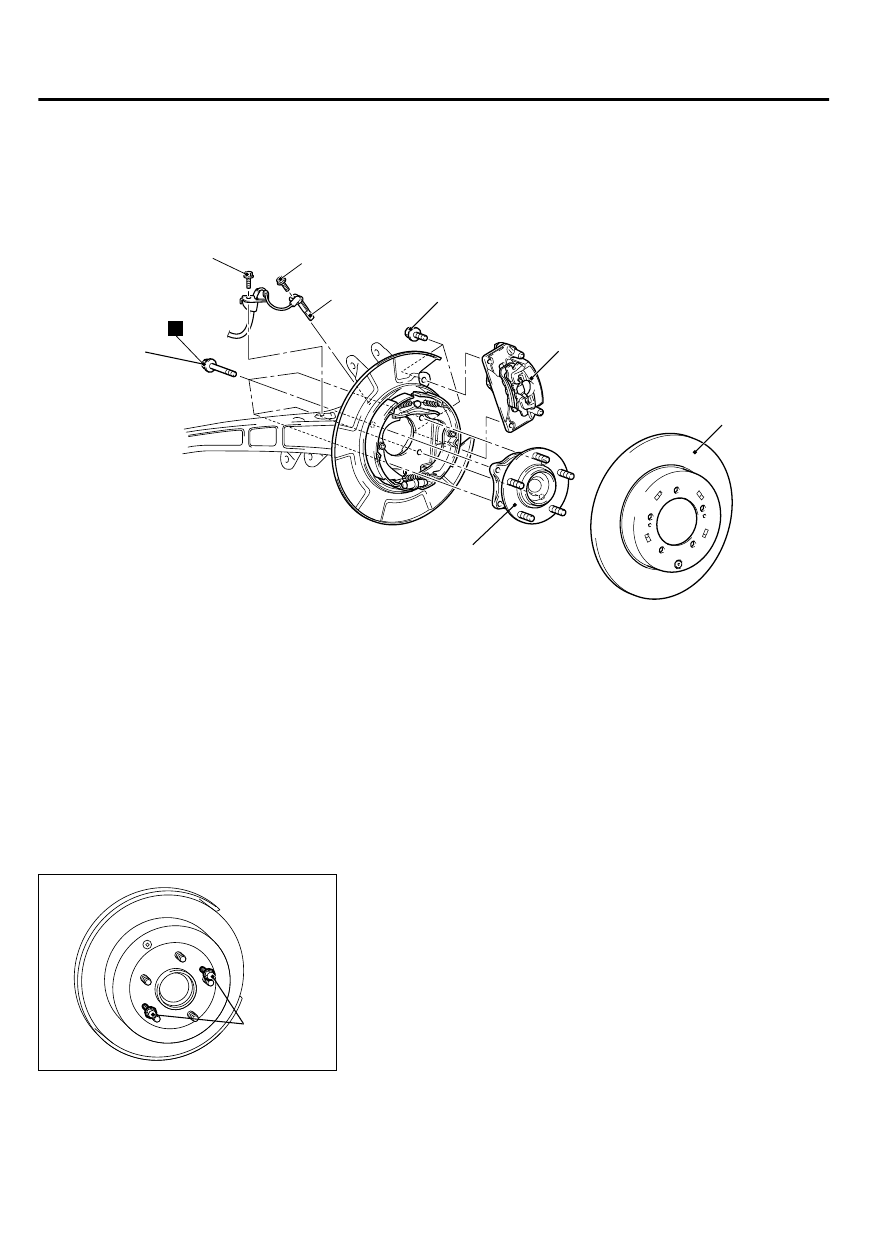

Removal steps

1.

Rear wheel speed sensor

<<A>>

2.

Caliper assembly

<<B>>

3.

Brake disc

Removal steps

4.

Rear wheel hub assembly

REMOVAL SERVICE POINTS

<<A>> CALIPER ASSEMBLY REMOVAL
Secure the removed caliper assembly with wire, etc.

<<B>> BRAKE DISC REMOVAL

ZC5019950000

Bolts
(M8 × 1.25)

If the brake disc is seized, install M8 × 1.25 bolts as shown, and
remove the disc by tightening the bolts evenly and gradually.



27A-6

REAR AXLE<FWD>

REAR AXLE HUB ASSEMBLY
