82

81 80 79 78 77 76 75 74 73 72

71

94

93 92 91 90 89 88 87 86 85 84 83

99 98 97 96 95

100

101

102

103

104

105

106

112

113

114

109

108

107

110

111

115

116

117

118

ZK603866

A-11 harness
connector:
component side

AA00

(3)

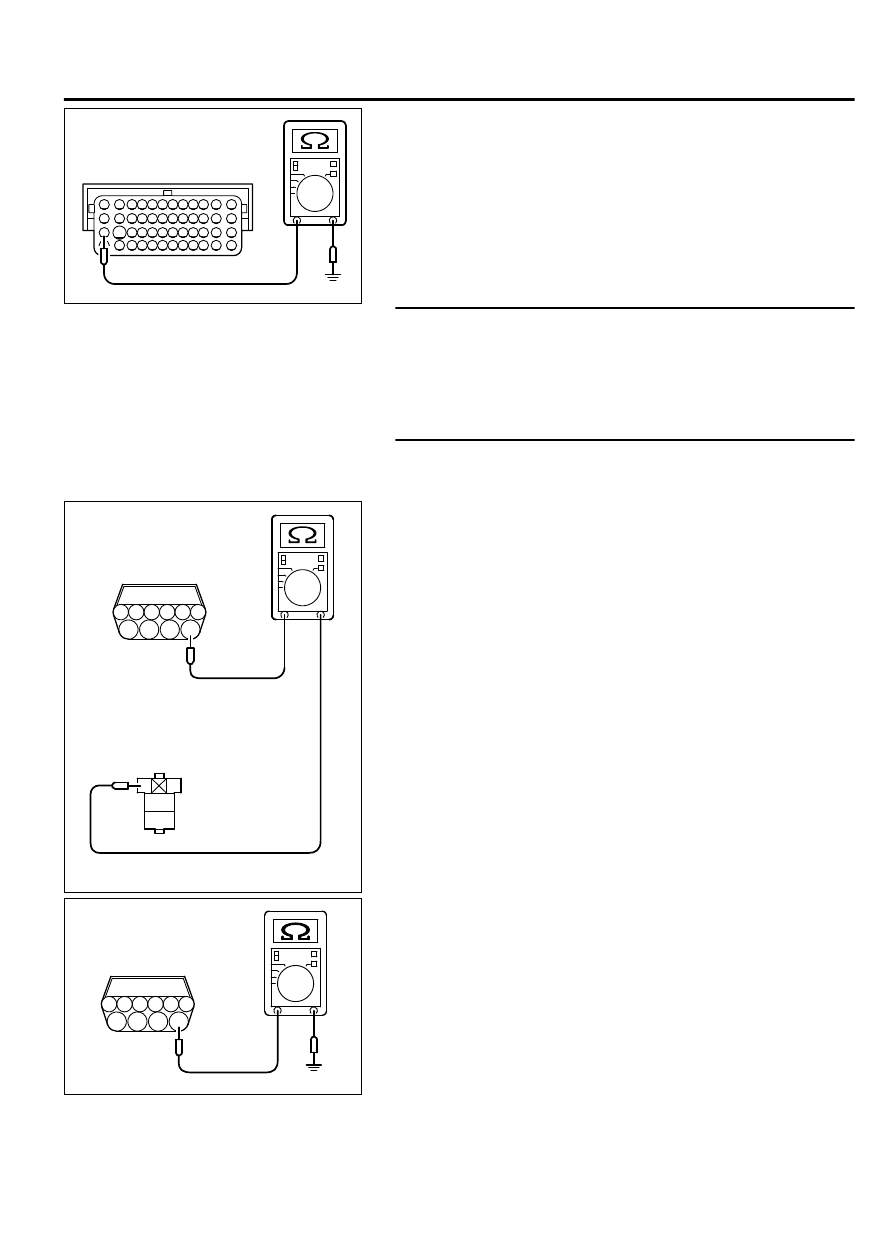

Check for the continuity between connector B-11 (terminal
No. 106) and ground.

｠

Not continuity.

Q:Is the harness wire in good condition?

YES:

 Then go to Step 5.

NO:

 Repair it. Then confirm that the malfunction symptom

is eliminated.

STEP 5. Check harness connector A-27X at starter relay.

Q:Is the connector in good condition?

YES:

 Then go to Step 6.

NO:

 Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection P.00E-2. Then confirm that the
malfunction symptom is eliminated.

STEP 6. Check for open circuit or short circuit to ground or
harness damage between transmission range switch
connector B-110 and starter relay connector A-27X.

ZK603867

A-27X harness
connector:
component side

B-110 harness
connector:
component side

AA00

8

9

3

4

5

1

2

6

7

10

2

1

3
4

(1)

Disconnect the connector B-110 and A-27X measure at the
harness side.

(2)

Measure the resistance between connector B-110 (terminal
No. 7) and connector A-27X (terminal No. 2).

｠

Should be less than 2 ohms.

ZK603868

B-110 harness
connector:
component side

AA00

8

9

3

4

5

1

2

6

7

10

(3)

Check for the continuity between connector B-110 (terminal
No. 7) and ground.

｠

Not continuity.

Q:Is the harness wire in good condition?

YES:

 Then go to Step 7.

NO:

 Repair it. Then confirm that the malfunction symptom

is eliminated.

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-823

SYMPTOM PROCEDURES

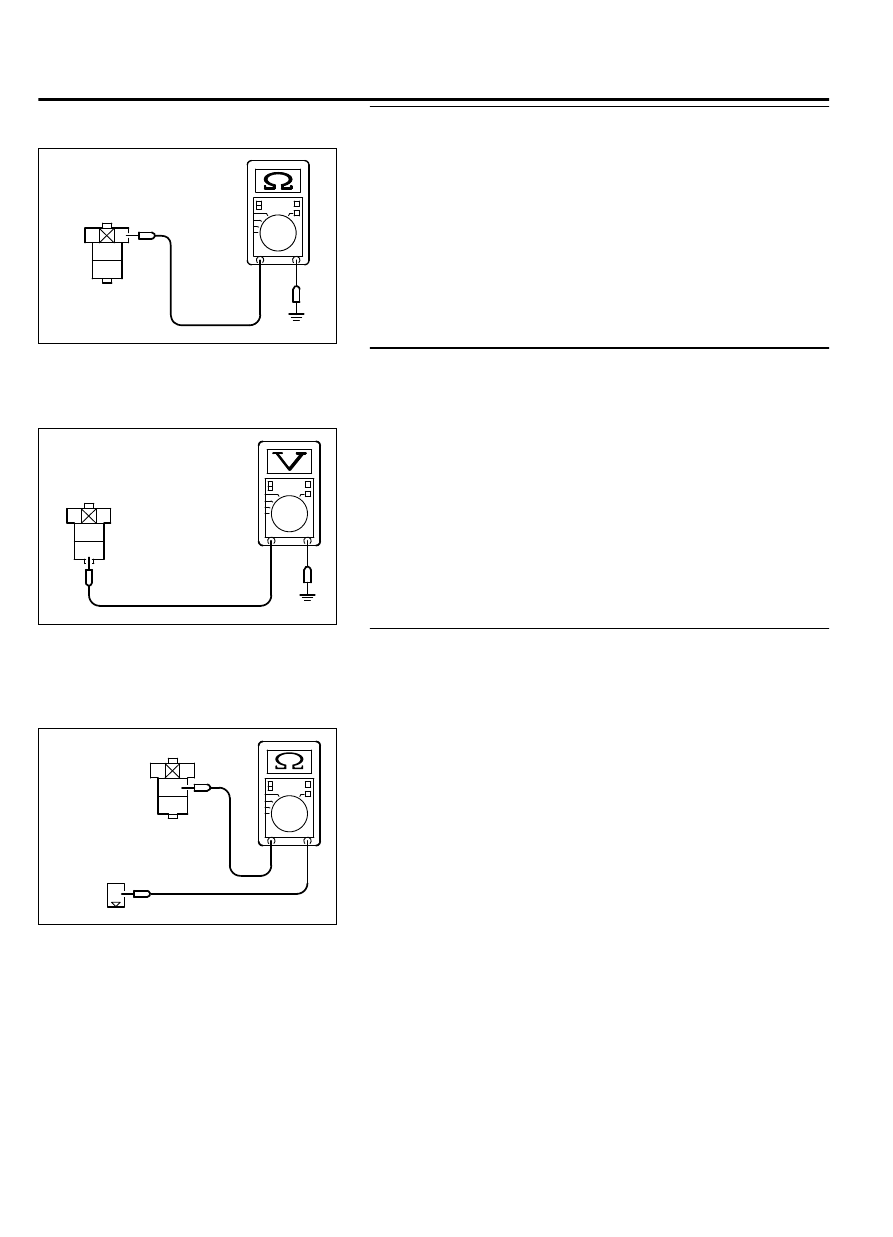

STEP 7. Check for open circuit or harness damage between
starter relay connector A-27X and ground.

ZK603869

2

1

3
4

A-27X harness
connector:
component side

AA00

(1)

Disconnect the connector A-27X and ground at the harness
side.

(2)

Measure the resistance between connector A-27X (terminal
No. 1) and ground.

｠

Should be less than 2 ohms.

Q:Is the measured resistance less than 2 ohms?

YES:

 Then go to Step 8.

NO:

 Repair it. Then confirm that the malfunction symptom

is eliminated.

STEP 8. Measure the power supply voltage at starter relay
connector A-27X.

(1)

Disconnect  the  connector  A-27X  measure  at  the  harness
side.

2

1

3
4

ZK603870

A-27X harness
connector:
component side

AA00

(2)

Measure the voltage between terminal No. 4 and ground.

｠

Voltage should be battery positive voltage.

Q:Is  battery  positive  voltage  (approximately  12  volts)

present?

YES:

 Go to Step 9.

NO:

 Repair harness wire between starter relay connector

A-27X (terminal No. 4) and fusible link (24) because of
open circuit. Then confirm that the malfunction symptom
is eliminated.

STEP 9. Check for open circuit or short circuit to ground or
harness damage between starter relay connector A-27X and
starter motor connector B-114.

(1)

Disconnect the connector A-27X and B-114 measure at the
harness side.

1

2

1

3
4

ZK603871AA00

B-114 harness connector:
component side

A-27X harness
connector:
component side

(2)

Measure the resistance between connector A-27X (terminal
No. 3) and connector B-114 (terminal No. 1).

｠

Should be less than 2 ohms.

13Ab-824

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

SYMPTOM PROCEDURES

ZK603872

2

1

3
4

A-27X harness
connector:
component side

AA00

(3)

Check for the continuity between connector A-27X (terminal
No. 3) and ground.

｠

Not continuity.

Q:Is the harness wire in good condition?

YES:

 Replace the starter motor. Then confirm that the

malfunction symptom is eliminated.

NO:

 Repair it. Then confirm that the malfunction symptom

is eliminated.

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-825

SYMPTOM PROCEDURES

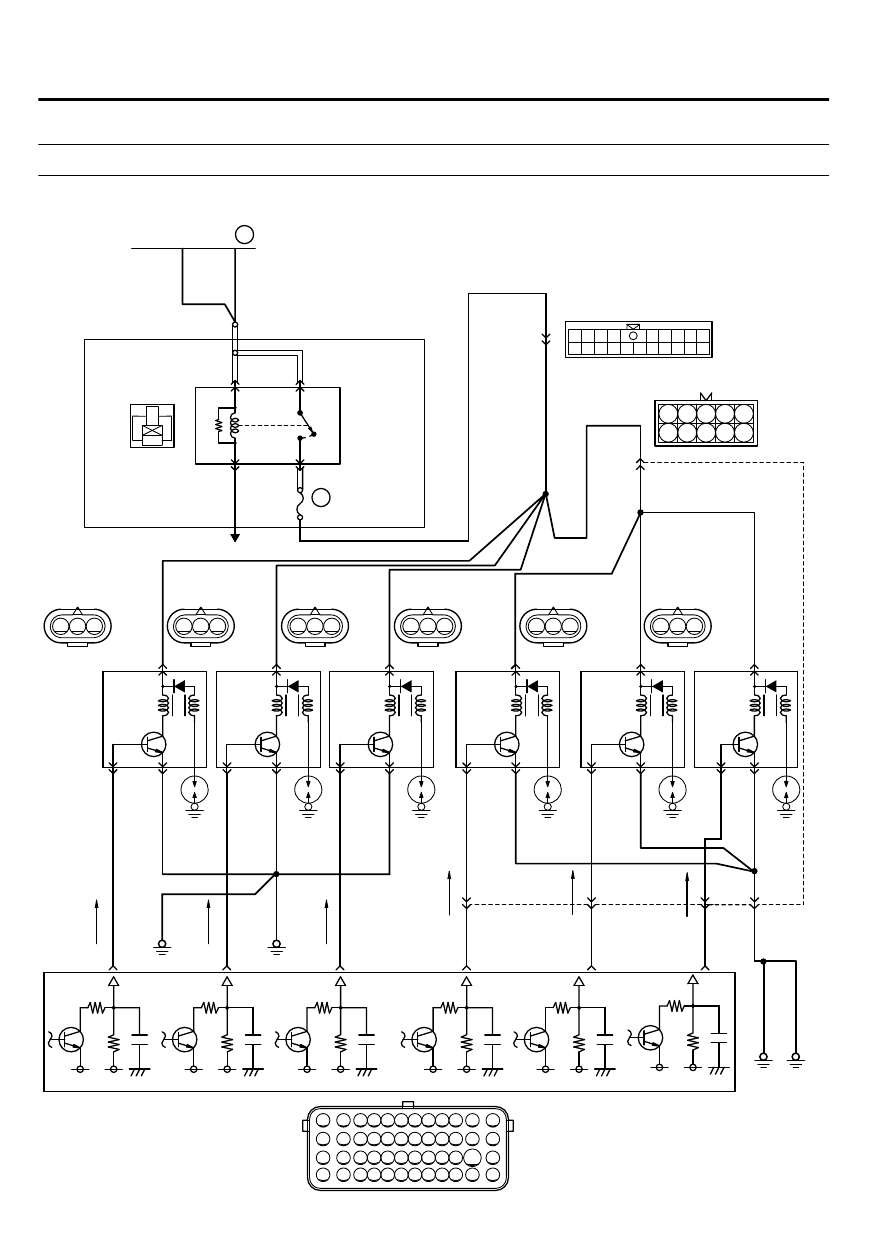

INSPECTION PROCEDURE 24: Ignition Circuit System.

M11310100308USA0000010000

ZK602873

1

3

2

4

71 72 73 74 75 76 77 78 79 80 81 82

83 84 85 86 87 88 89 90 91 92 93 94

95 96 97 98 99

100 101 102 103 104

112 113 114

109

108

107

110 111

115 116

106

105

118

117

2 3

1

2 3

1

2 3

1

2 3

1

2 3

1

2 3

1

1

2

3

6

7

8

4

5

9 10

1

10 111213 14 1516 17 1819 20

2 3 4

5 6 7 8 9

AA00

IGNITION CIRCUIT

IGNITION
COIL 2

ENGINE CONTROL MODULE

IGNITION
COIL 4

IGNITION
COIL 6

IGNITION
COIL 1

1

2

5

21

53

4

2

20

3

52

4

5

16

1

A-13

B-21

MU802645

B-10

SPARK
PLUG

SPARK
PLUG

SPARK
PLUG

SPARK
PLUG

1

3

3

3

3

IGNITION
COIL 3

3

IGNITION
COIL 5

3

2

1

2

1

2

1

1

2

2

SPARK
PLUG

SPARK
PLUG

10A

A-33X

MFI
RELAY

RELAY BOX
(ENGINE COMPARTMENT)

4

3

1

2

21

TO ECM

36

FUSIBLE LINK

WHITE

WHITE-RED

WHITE-RED

WHITE-BLUE

WHITE-GREEN

BLA

CK

BLA

CK

BLA

CK

BLA

CK

BLA

CK

BLA

CK

BLA

CK

BLA

CK

BLA

CK

BLA

CK-WHITE

WHITE

WHITE

BLA

CK-

WHITE

WHITE-BLA

CK

WHITE-

BLA

CK

BLA

CK

BLA

CK

BLA

CK-RED

WHITE-

RED

WHITE-

RED

WHITE-RED

WHITE-RED

WHITE-RED

WHITE-RED

WHITE

OFF

ON

B-19

(MU802076)

B-18

(MU802076)

B-15

(MU802076)

B-05

(MU802076)

B-01

(MU802076)

B-04

(MU802076)

13Ab-826

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

SYMPTOM PROCEDURES
