Mitsubishi Outlander XL. Manual - part 397





(2)

Check the following items in the data list. Refer to Data List
Reference Table P.13Ab-837.

a
.

Item 06: Engine Coolant Temperature Sensor.

(3)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the sensor operating properly?

YES:

 Go to Step 5.

NO:

 Repair or replace it. Then confirm that the

malfunction symptom is eliminated.

STEP 5. Check the ignition timing.
Refer  to  GROUP  11A,  On-vehicle  Service  -  Ignition  Timing
Check P.11A-14.

Q:Is the ignition timing normal?

YES:

 Go to Step 6.

NO:

 Check for installed conditions of the timing belt.

Then confirm that the malfunction symptom is eliminated.

STEP 6. Check the fuel pressure.
Refer to Fuel Pressure Test P.13Aa-17.

Q:Is the fuel pressure normal?

YES:

 Go to Step 7.

NO:

 Repair or replace it. Then confirm that the

malfunction symptom is eliminated.

STEP 7. Check the spark plugs.
Refer  to  GROUP  16,  Ignition  System  -  On-vehicle  service  -
Spark Plug Check P.16c-4.

Q:Are there any abnormalities?

YES:

 Replace the spark plug. Then confirm that the

malfunction symptom is eliminated.

NO:

 Go to Step 8.

STEP 8. Check the ignition coil.

(1)

Remove the intake manifold.

(2)

Refer to GROUP 16, Ignition System - On-vehicle service -
Ignition Coil Check P.16c-3.

Q:Are there any abnormalities?

YES:

 Replace the ignition coil. Then confirm that the

malfunction symptom is eliminated.

NO:

 Go to Step 9.

STEP 9. Check the compression pressure.
Refer  to  GROUP  11A,  On-vehicle  service  -  Compression
Pressure Check P.11A-17.

Q:Is the compression pressure normal?

YES:

 Check the engine oil viscosity.Then confirm that the

malfunction symptom is eliminated.

NO:

 Repair it. Then confirm that the malfunction symptom

is eliminated.

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-783

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 11: When the Engine Is Hot, It Stalls at Idle (die out).

M11310100288USA0000010000

COMMENT

In cases such as the above, the ignition system, air/
fuel mixture or compression pressure may be faulty.
In addition, if the engine suddenly stalls, the cause
may also be a connector damage.

TROUBLESHOOTING HINTS (The most likely
causes for this case:)

Malfunction of the fuel pump system.

Malfunction of the ignition system.

Poor compression

Malfunction of the EGR system

Improper operation of the PCV valve.

Vacuum leak.

Malfunction of the ECM.



DIAGNOSIS

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: V.C.I.

MB991827: USB Cable

MB991910: Main Harness A

STEP 1. Check if the EGR valve sounds during initialization.

Q:Is the initialization sound heard in the EGR valve?

YES:

 Go to Step 2.

NO:

 Refer to GROUP 17, Emission Control - EGR Valve

(Stepper Motor) Check P.17c-14.

13Ab-784

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

SYMPTOM PROCEDURES

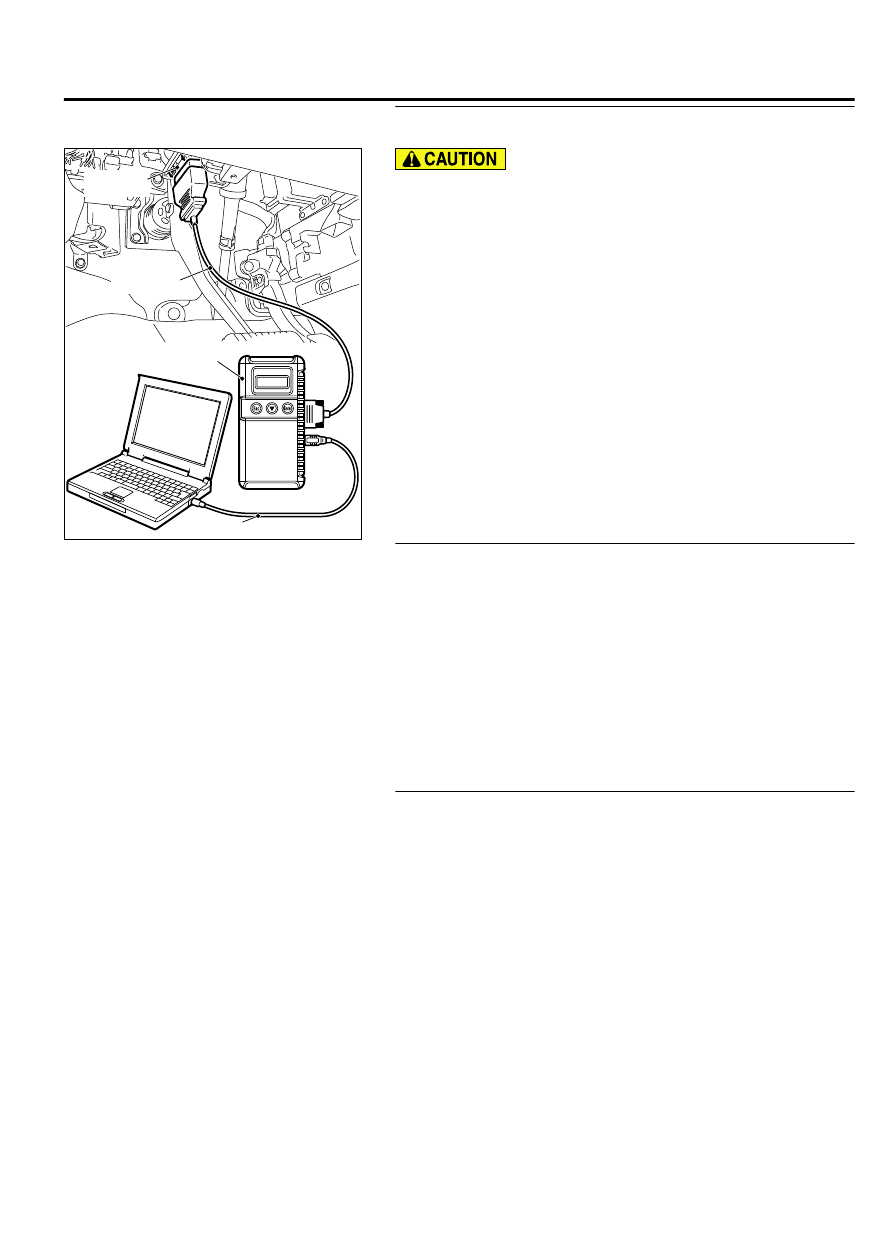

STEP 2. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to the "ON" position.

(3)

Read the DTC.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is any DTC set?

YES:

 Refer to Diagnostic Trouble Code Chart P.13Ab-44.

NO:

 Go to Step 3.

STEP 3. Using scan tool MB991958, check actuator test
items 1, 2, 3, 4, 5, 6: Injector.

(1)

Turn the ignition switch to the "ON" position.

(2)

Check following items in the actuator test. Refer to Actuator
Test Reference Table P.13Ab-857.

a
.

Item 01: Injector.

(3)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Are they operating properly?

YES:

 Go to Step 4.

NO:

 Repair or replace it. Then confirm that the

malfunction symptom is eliminated.

STEP 4. Using scan tool MB991958, check data list.

(1)

Turn the ignition switch to the "ON" position.

(2)

Check the following items in the data list. Refer to Data List
Reference Table P.13Ab-837.

a
.

Item 05: Intake Air Temperature Sensor.

b
.

Item 06: Engine Coolant Temperature Sensor.

c
.

Item 13: Throttle position sensor (main).

(3)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Are they operating properly?

YES:

 Go to Step 5.

NO:

 Repair or replace it. Then confirm that the

malfunction symptom is eliminated.

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-785

SYMPTOM PROCEDURES

STEP 5. Check the fuel pressure.
Refer to Fuel Pressure Test P.13Aa-17.

Q:Is the fuel pressure normal?

YES:

 Go to Step 6.

NO:

 Repair or replace it. Then confirm that the

malfunction symptom is eliminated.

STEP 6. Check the ignition timing.
Refer  to  GROUP  11A,  On-vehicle  Service  -  Ignition  Timing
Check P.11A-14.

Q:Is the ignition timing normal?

YES:

 Go to Step 7.

NO:

 Check for installed conditions of the timing belt.

Then confirm that the malfunction symptom is eliminated.

STEP 7. Check the spark plugs.
Refer  to  GROUP  16,  Ignition  System  -  On-vehicle  service  -
Spark Plug Check P.16c-4.

Q:Are there any abnormalities?

YES:

 Replace the spark plug. Then confirm that the

malfunction symptom is eliminated.

NO:

 Go to Step 8.

STEP 8. Check the ignition coil.

(1)

Remove the intake manifold.

(2)

Refer to GROUP 16, Ignition System - On-vehicle service -
Ignition Coil Check P.16c-3.

Q:Are there any abnormalities?

YES:

 Replace the ignition coil. Then confirm that the

malfunction symptom is eliminated.

NO:

 Go to Step 9.

STEP 9. Check the compression pressure.
Refer  to  GROUP  11A,  On-vehicle  service  -  Compression
Pressure Check P.11A-17.

Q:Is the compression pressure normal?

YES:

 Go to Step 10.

NO:

 Repair it. Then confirm that the malfunction symptom

is eliminated.

STEP 10. Check the positive crankcase ventilation valve.
Refer  to  GROUP  17,  Emission  Control  System  -  Positive
Crankcase Ventilation Check P.17c-19.

Q:Is the positive crankcase ventilation valve?

YES:

 Go to Step 11.

NO:

 Repair it. Then confirm that the malfunction symptom

is eliminated.

STEP 11. Engine stall reproduction test.

Q:Is it easy to reproduce the engine stall?

YES:

 Check the following items, and repair or replace the

defective items.

13Ab-786

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

SYMPTOM PROCEDURES
