DTC P0204: Injector Circuit Malfunction - Cylinder 4

M11310100212USA0000010000

ZK602846

1

3

2

4

1

2

3
4

1

2

3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

1 2 3 4

5 6 7

15

14

13

12

11

9

8

1

6

4

5

9

8

10

10

11

13

15

14

12

16

7

2 3

1

10 111213 14 1516 17 1819 20

2 3 4

5 6 7 8 9

2

1

INJEC TOR
NO. 4

B-116

(MU802062)

1

2

ENGINE CONT ROL MODUL E

ETACS -
ECU

19

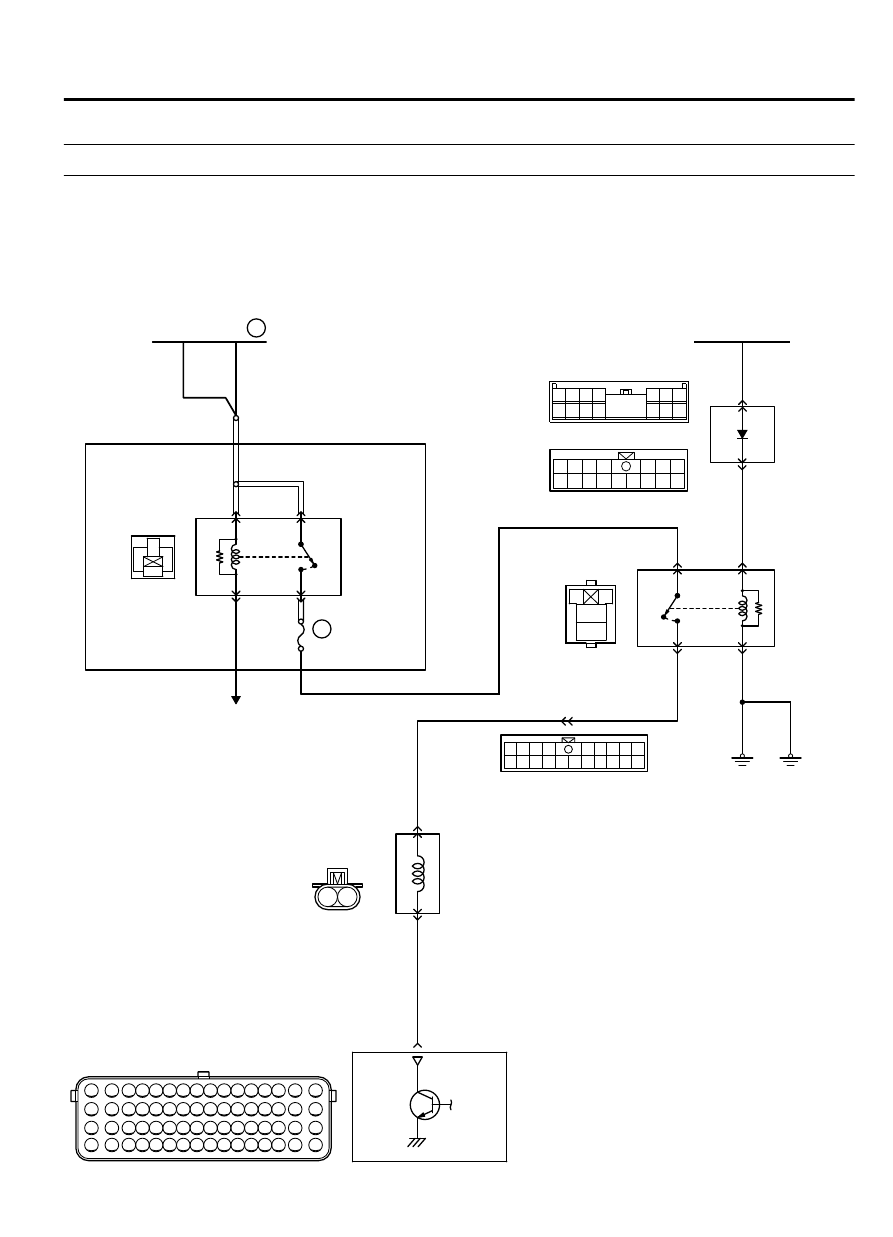

INJECTOR CIRCUIT-CYLINDER 4

BLUE

PINK

B-10

AA00

20A

WHITE

WHITE

A-33X

MFI
RELAY

RELAY BOX
(ENGINE COMPARTMENT)

4

3

1

2

22

TO ECM

OFF

ON

WHITE

RED-WHITE

4

1

10

6

7

C-304

C-317

A-13

A-24X

3

BLUE

BLA

CK

BLA

CK

BLA

CK

2

IGNITION
SWITCH (IG1)

OFF

ON

INJECTOR
RELAY

WHITE

36

FUSIBLE LINK

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-355

DIAGNOSTIC TROUBLE CODE PROCEDURES

ZK603601

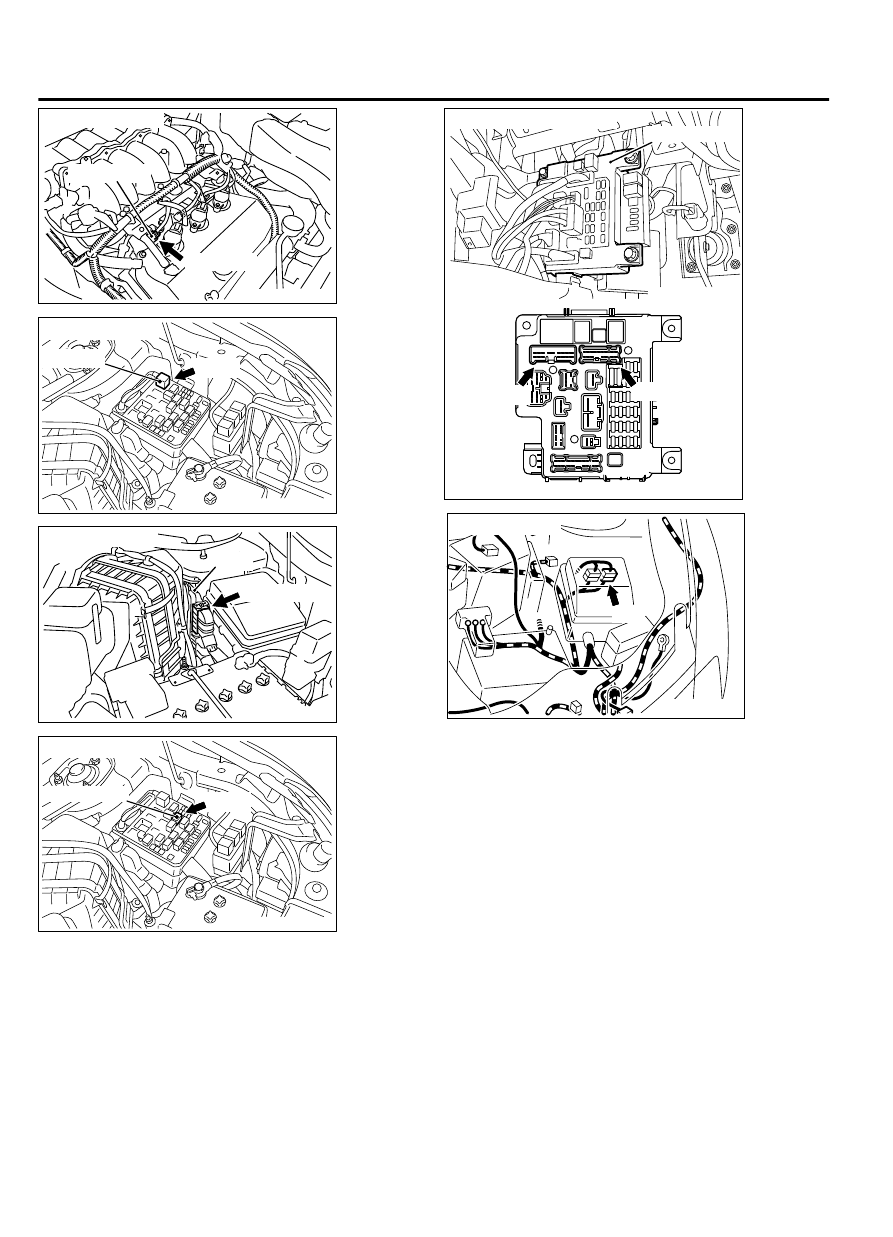

Connector: B-120

B-120 (GR)

AA00

Injector No.2

ZK603589

MFI relay

A-33X

Connector: A-33X

AA00

ZK603591

ECM

B-10 (GR)

Connector: B-10

AA00

ZK603607

A-24X

Connector: A-24X

AA00

Injector relay

ZK603608 AA00

ETACS-ECU

C-317

Connectors: C-304, C-317

C-304

ZK603650AA00

A-13

Connector: A-13



CIRCUIT OPERATION

｠

The injector power is supplied from the injector relay
(terminal No. 3).

｠

The ECM controls the injector by turning the power
transistor in the ECM "ON" and "OFF".

TECHNICAL DESCRIPTION

｠

The  amount  of  fuel  injected  by  the  injector  is
controlled by the amount of continuity time the coil
is grounded by the ECM.

DESCRIPTIONS OF MONITOR METHODS
The ECM detects open circuit and short malfunction.

13Ab-356

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES

MONITOR EXECUTION

Continuous

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored in
memory for the item monitored below)

｠

Not applicable

Sensor (The sensor below is determined to be
normal)

｠

Not applicable

DTC SET CONDITIONS <Circuit continuity - open circuit and shorted low>

Logic Flow Chart

Good

Malfunction

Vinj = 3V

Start

Continuous

failure for 2secs

End

No

No

No

Yes

Yes

No

ZK603735AA00

Monitoring

condition

Check Condition

｠

Engine is running.

Judgement Criterion

｠

The  supply  voltage  is  3  volts  or  less  without  the
injector driving.

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-357

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC SET CONDITIONS <Circuit continuity - shorted high>

Logic Flow Chart

Start

End

No

Yes

Yes

Yes

No

No

Malfunction

Good

Continuous

failure for 2secs

Current >= 4A

Monitoring

conditions

ZK603736 AA00

Check Condition

｠

Engine is running.

Judgement Criterion

｠

The coil current is 4 ampere or more with the injector
driving.

OBD-II DRIVE CYCLE PATTERN

Refer to Diagnostic Function - OBD-II Drive Cycle -
Pattern 24 P.13Ab-8.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

｠

No. 4 cylinder injector failed.

｠

Connector damage.

｠

Harness damage.

｠

ECM failed.



DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

13Ab-358

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES
