DIAGNOSTIC BY DIAGNOSTIC TEST MODE II

(INCREASED SENSITIVITY)

Required Special Tools:

｠

MB991958: Scan tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: USB Cable

｠

MB991910: Main Harness A

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-23

DIAGNOSTIC FUNCTION

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991958.

NOTE:

When mode II is selected with MB991958, the

Malfunction Indicator Lamp (SERVICE ENGINE SOON or Check
Engine Lamp) will light when the engine control module (ECM)
first detects the trouble (Note that this is only for
emission-related trouble). At the same time, the relevant
diagnostic trouble codes will be registered. In respect to
the comprehensive component electrical faults (opens/
shorts), the time for the diagnostic trouble code to be
registered after the fault occurrence is four seconds → one
second. Therefore, the confirmation of the trouble symptom
and the confirmation after completing repairs can be
reduced. To return to the normal mode I after mode II has
been selected once, the ignition switch must be turned "OFF"
once or mode I must be reselected with the scan tool
MB991958. The diagnostic trouble code, system readiness
test status and freeze frame data, etc., will be erased when
mode I is returned to, so record these before returning to
mode I.

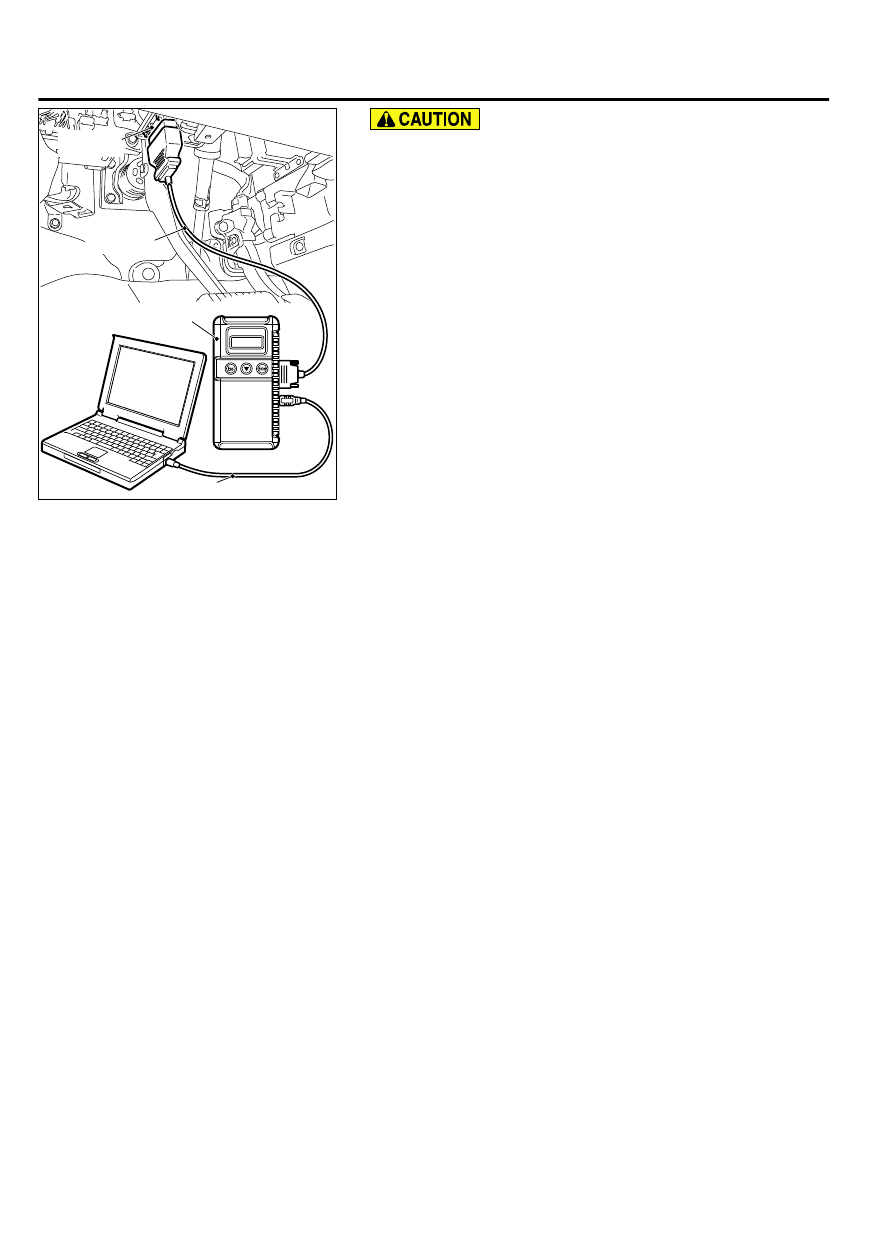

Connect scan tool MB991958 to the data link connector.

Turn the ignition switch to the "ON" position.

Change the diagnostic test mode of the powertrain control
module to DIAGNOSTIC TEST MODE II (INCREASED
SENSITIVITY).

Road test the vehicle.

Read the diagnostic trouble code and repair the
malfunctioning part.

Turn the ignition switch to the "LOCK" (OFF) position.

Disconnect scan tool MB991958 from the data link connector.

ON-BOARD DIAGNOSTICS

The engine control module (ECM) monitors the input/
output signals (some signals all the time and others
under  specified  conditions)  of  the  ECM.  When  a
malfunction continues for a specified time or longer
after the irregular signal is initially monitored, the ECM
judges that a malfunction has occurred. After the ECM
first detects a malfunction, a diagnostic trouble code
is recorded when the engine is restarted and the same
malfunction  is  re-detected.  However,  for  items
marked  with  a  "*",  a  diagnostic  trouble  code  is
recorded  on  the  first  detection  of  the  malfunction.
There are 164 diagnostic items. The diagnostic results
can be read out with a scan tool. Since memorization
of the diagnostic trouble codes is backed up directly
by the battery, the diagnostic results are memorized
even if the ignition key is turned off. The diagnostic
trouble  codes  will,  however,  be  erased  when  the
battery  terminal  or  the  ECM  connector  is

disconnected. In addition, the diagnostic trouble code
can also be erased by turning the ignition switch to ON
and sending the diagnostic trouble code erase signal
from scan tool MB991958 to the ECM.

NOTE:

If the sensor connector is disconnected

with the ignition switch turned on, the diagnostic
trouble code is memorized. In this case, send the
diagnostic trouble code erase signal to the ECM in
order to erase the diagnostic memory. The 164
diagnostic items are all indicated sequentially
from the smallest code number. The ECM records the
engine operating condition when the diagnostic
trouble code is set. This data is called "Freeze-
frame" data. This data can be read by using the
scan tool, and can then be used in simulation
tests for troubleshooting. Data items are as
follows:

NOTE:

If the ECM detects multiple malfunctions,

the ECM stores the "Freeze-frame" data for only

13Ab-24

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC FUNCTION

the first item that was detected. However, if the
ECM detects a misfire or a fuel system
malfunction, the ECM stores the data by giving
priority to the misfire or fuel system

malfunction, regardless of the order in which the
malfunction was detects

NOTE:

As for Diagnostic trouble code P1603,

"Freeze-frame" data is not memorized.

Freeze Frame Data for M.U.T.-III

ITEM NO. M.U.T.-III SCAN TOOL

DISPLAY

DATA ITEM

UNIT or STATE

Airflow sensor

g/s

TP sensor (main)

Throttle position sensor (main)

Target EGR

Target EGR steppper motor

Barometric

pressure

sensor

Barometric pressure sensor

kPa or inHg

Fuel system status
(bank1)

Fuel system status (bank1)

｠

Open loop

｠

Closed loop

｠

Open loop-drive condition

｠

Open loop-DTC set

｠

Closed loop-O2 (rear)
failed

Fuel system status
(bank2)

Fuel system status (bank2)

｠

Open loop

｠

Closed loop

｠

Open loop-drive condition

｠

Open loop-DTC set

｠

Closed loop-O2 (rear)
failed

Calculated load value

ECT sensor

Engine coolant temperature sensor

°C or °F

Short term fuel trim
(bank1)

Short term fuel trim (bank1)

Long term fuel trim
(bank1)

Long term fuel trim (bank1)

Short term fuel trim
(bank2)

Short term fuel trim (bank2)

Long term fuel trim
(bank2)

Long term fuel trim (bank2)

MAP sensor

Manifold absolute pressure sensor

kPa or inHg

Crankshaft

position

sensor

Crankshaft position sensor

r/m

Vehicle speed

km/h or mph

Spark advance

deg

Intake air temperature
sensor

Intake air temperature sensor

°C or °F

Time since engine
running

Time since engine running

sec

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-25

DIAGNOSTIC FUNCTION

ITEM NO. M.U.T.-III SCAN TOOL

DISPLAY

DATA ITEM

UNIT or STATE

EVAP. emission purge
SOL. duty

Evaporative emission purge control
solenoid duty

Fuel level gauge

Freeze Frame Data for General Scan Tool

COMMON
EXAMPLE

GENERAL SCAN
TOOL DISPLAY

PRAMETER
IDENTIFICATION
(PID)

DESCRIPTION

UNIT or STATE

DTCFRZF

DTC that caused required freeze frame
data storage

Pxxxx, Uxxxx

FUELSYS 1

See M.U.T.-III Item No. C0

FUELSYS 2

See M.U.T.-III Item No. C1

LOAD_PCT

See M.U.T.-III Item No. C2

ECT

See M.U.T.-III Item No. C3

SHRTFT 1

See M.U.T.-III Item No. C4

LONGFT 1

See M.U.T.-III Item No. C6

SHRTFT 2

See M.U.T.-III Item No. C8

LONGFT 2

See M.U.T.-III Item No. CA

MAP

See M.U.T.-III Item No. CC

RPM

See M.U.T.-III Item No. CD

VSS

See M.U.T.-III Item No. CE

SPARKADV

See M.U.T.-III Item No. CF

IAT

See M.U.T.-III Item No. D0

MAF

See M.U.T.-III Item No. AA

See M.U.T.-III Item No. AB

RUNTM

See M.U.T.-III Item No. D1

EGR_PCT

See M.U.T.-III Item No. BA

EVAP_PCT

See M.U.T.-III Item No. D6

FLI

See M.U.T.-III Item No. D7

BARO

See M.U.T.-III Item No. BB

VPWR

Control module voltage

LOAD_ABS

Absolute Load Value

EQ_RAT

Commanded Equivalence Ratio

TP_R

Relative Throttle Position

AAT

Ambient air temperature

°C (°F)

TP_B

Absolute Throttle Position B

APP_D

Accelerator pedal position D

APP_E

Accelerator pedal position E

TAC_PCT

Command Throttle Actuator Control

13Ab-26

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC FUNCTION
