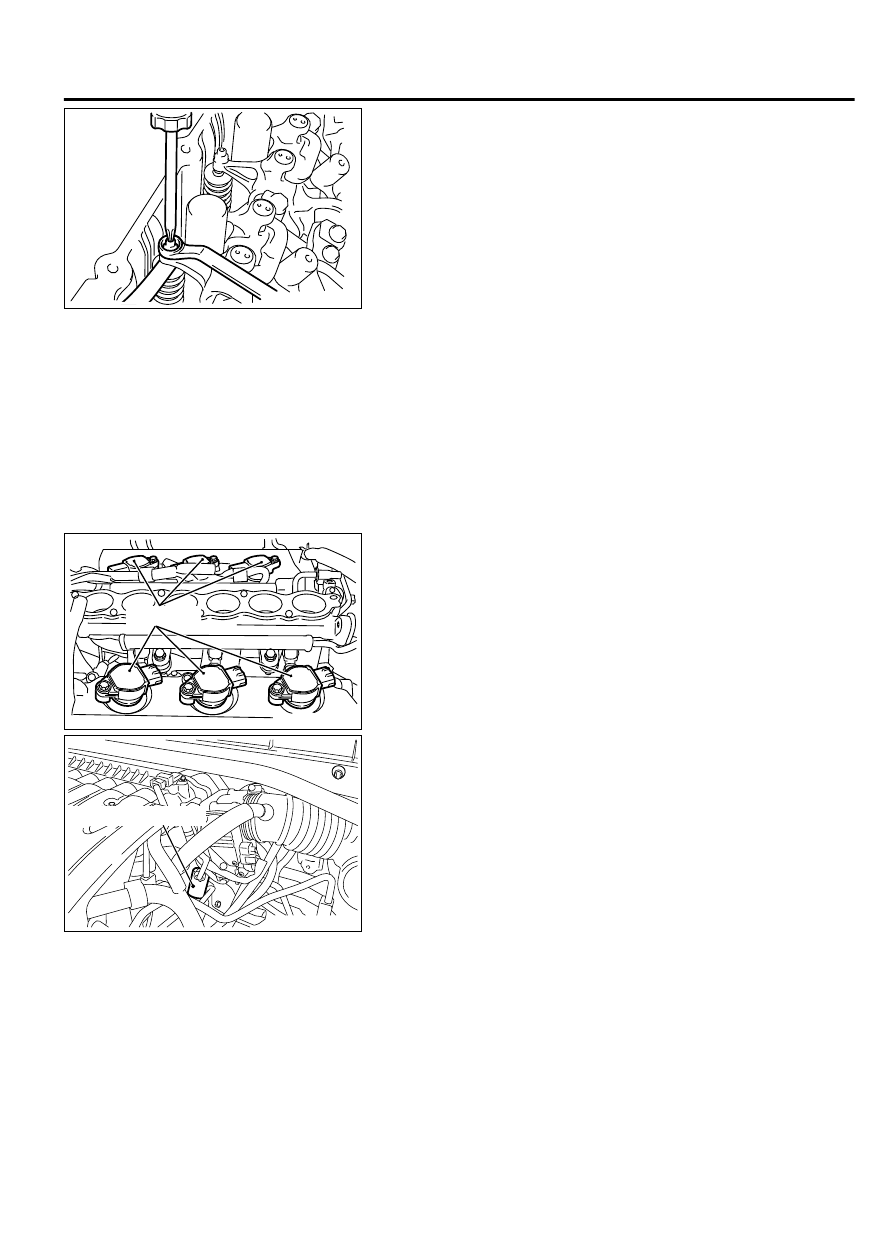

Measure the valve clearance for intake side.
If the valve clearance is not as specified, loosen the rocker
arm lock nut and adjust the clearance using a thickness gauge
while turning the adjusting screw.

Standard value (hot engine): 0.20 mm (0.008 inch)

NOTE:

Valve clearance check and adjustment is

unnecessary for exhaust side due to auto lash adjuster
installed.

While holding the adjusting screw with a screwdriver to
prevent it from turning, tighten the lock nut to the specified
torque.

Tightening torque: 9 ± 1 N·m (80 ± 9 in-lb)

Turn the crankshaft 360 degrees to line up the notch on the
crankshaft pulley with the "T" mark on the timing indicator.

10.

Repeat steps (7) and (8) on other valves for clearance
adjustment.

11.

Install the rocker cover.

12.

Install the ignition coils.

ROCKER ARM PISTON OPERATION CHECK

M11102000908USA0000010000

Ighition coil

ZK600325AA00

Remove all of the ignition coils.

Remove the rocker cover.

ZK600326

Engine oil control valve

AA00

Remove the engine oil control valve.

Remove the oil pipe.

Turn the crankshaft clockwise until the notch on the crankshaft
pulley is lined up with the "T" mark on the lower cover of timing
belt.

ENGINE MECHANICAL

11A-13

ON-VEHICLE SERVICE

ZK600324

No. 6

No. 2

No. 4

AA00

Right bank

Left bank

No. 1

No. 5

No. 3

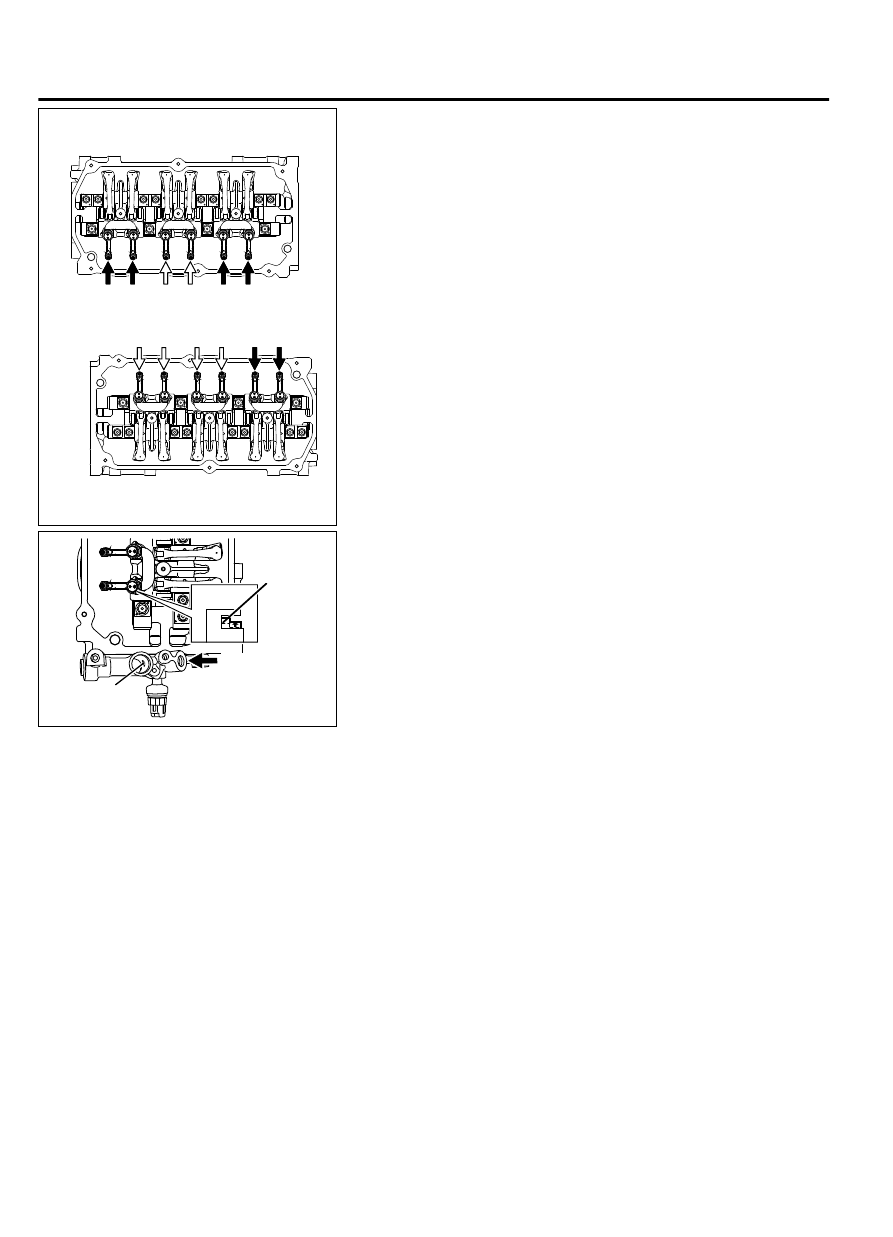

Move the rocker arms on the No.1 and No.4 cylinders up and
down by hand to determine which cylinder has its piston at the
top dead center on the compression stroke.

NOTE:

The rocker arm piston operation check can be

performed on rocker arms indicated by white arrow mark
when the No.1 cylinder piston is at the top dead center
on the compression stroke, and on rocker arms indicated
by black arrow mark when the No.4 cylinder piston is at
the top dead center on the compression stroke.

Blow
compressed
air

Rocker arm
piston

Oil passage
hole

ZK600327 AA00

While shutting up the oil passage hole at the depth of the
engine oil control valve's installation hole by finger not to leak
air, blow compressed air into the engine oil pressure switch's
installation hole by air blowgun. At this time, confirm that the
rocker arm piston can operate.

NOTE:

To fully confirm the check, prevent the compression

air from leaking as much as possible by bind vinly tape
to the end of air blowgun. The compression air pressure
is required more than 620 kPa (90 psi).

Turn the crankshaft clockwise until the notch on the crankshaft
pulley is lined up with the "T" mark on the lower cover of timing
belt.

Confirm the rest of the rocker arm pistons under the procedure
7.

10.

When the rocker arm piston does not operate, replace the
rocker arm assy.

11.

Install the engine oil pressure switch and the engine oil
control valve. (Refer to Camshaft and Valve Stem Seal -
Removal and Installation P.11A-27.)

12.

Install the rocker cover.

13.

Install all of the ignition coils.

IGNITION TIMING CHECK

M11102000902USA0000010000

Required Special Tool:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A

11A-14

ENGINE MECHANICAL

ON-VEHICLE SERVICE

ZK600760AA00

DATA LINK

CONNECTOR

MB991824

MB991827

MB991910

Before inspection, set the vehicle in the following condition:

｠

Engine coolant temperature: 80 - 95°C (176 - 203°F)

｠

Lights and all accessories: OFF

｠

Transaxle: P range

NOTE:

On vehicles for Canada, the headlight, taillight,

etc. remain lit even when the lighting switch is in "OFF"
position but this is no problem for checks.

To prevent damage to scan tool MB991958, always turn
the ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991958.

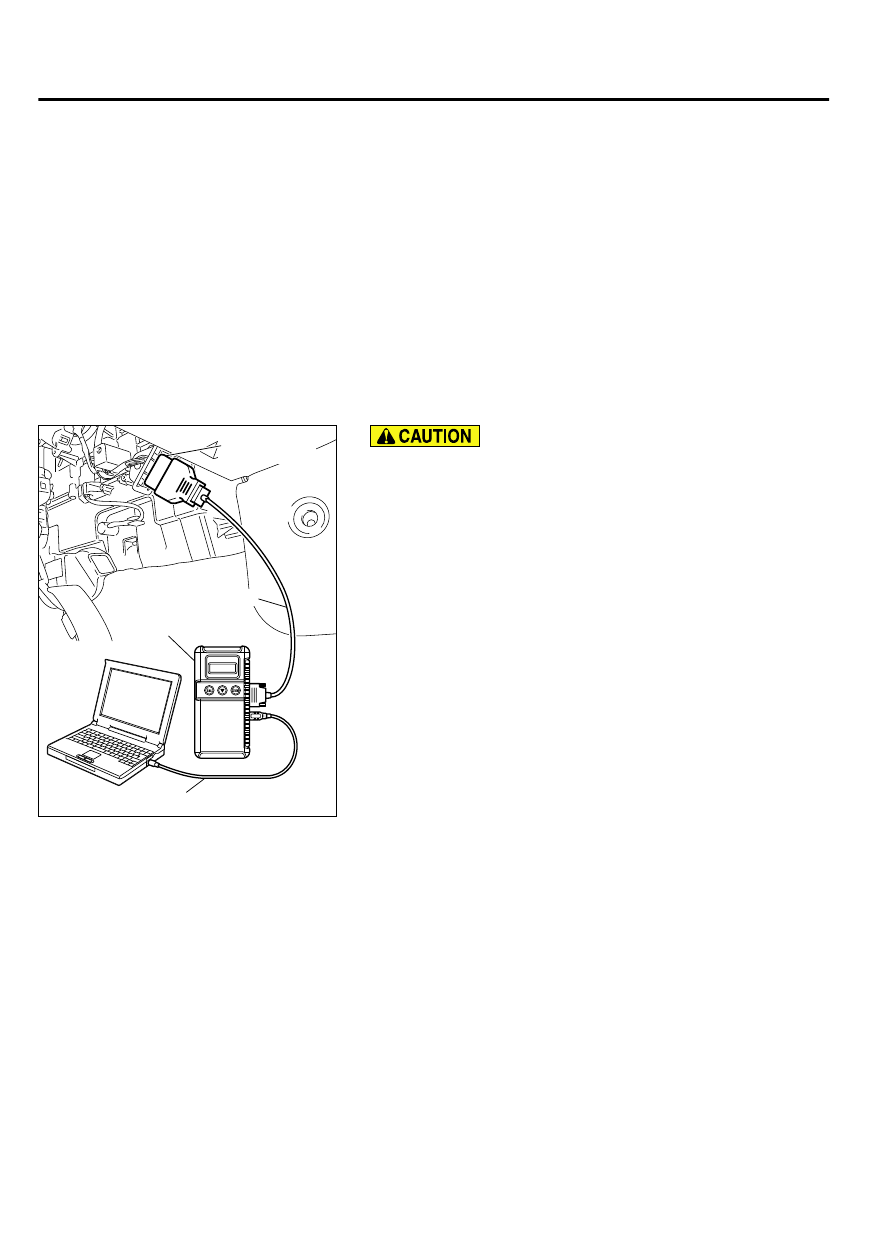

Connect scan tool MB991958 to the data link connector.

ZK600329

Ignition timing pickup loop

No.2 ignition coil

AA00

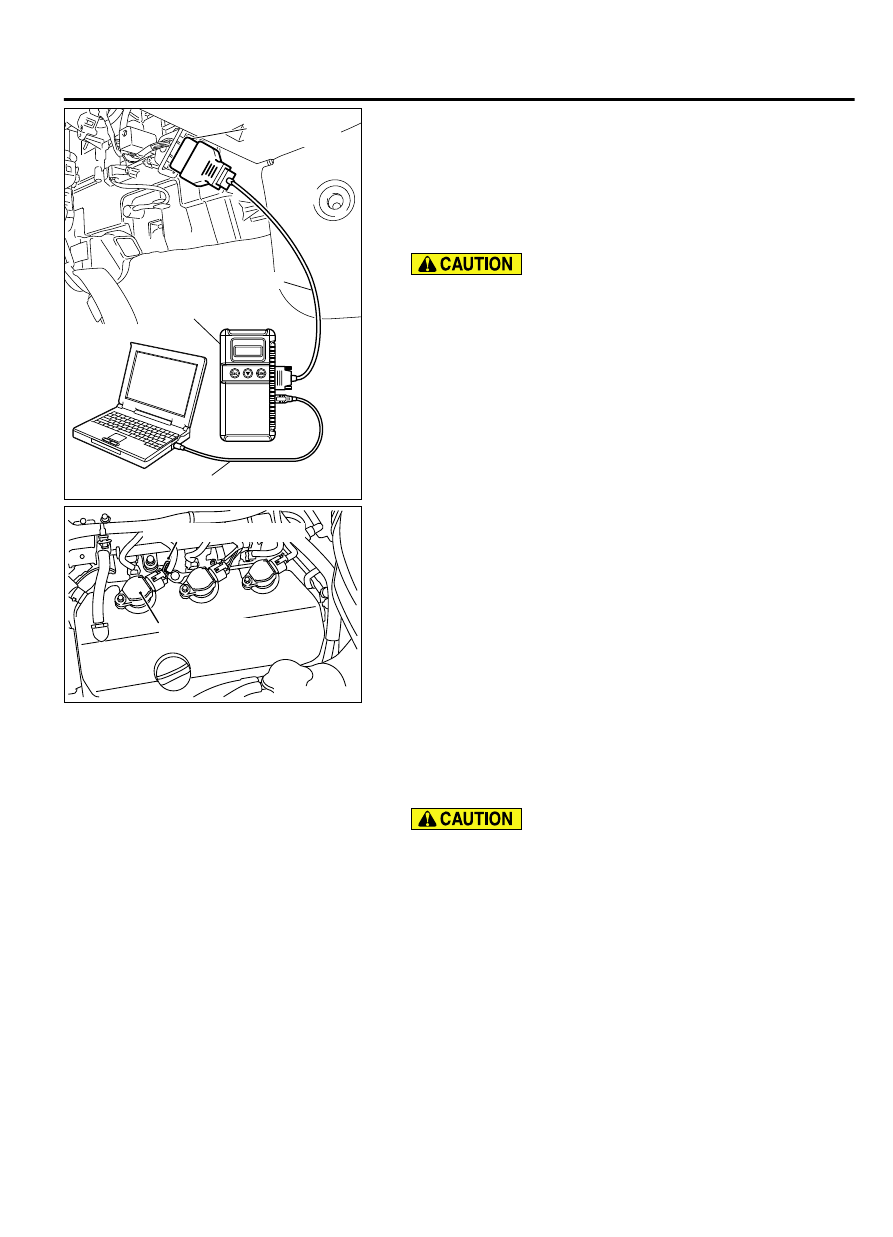

Set the timing light to the power supply line (terminal No. 1) of
the ignition coil No. 2.

NOTE:

The power supply line is looped and also longer

than the other ones.

Start the engine and run it at idle.

Check that the idle speed is approximately 600 r/min.

Select scan tool MB991958 actuator test "item number 4".

Check that basic ignition timing is within the standard value.

Standard value: 5° BTDC ± 3°

If the basic ignition timing is not within the standard value,
check the following items:

｠

Diagnostic output

｠

Timing belt cover and crankshaft position sensor installation
conditions

｠

Crankshaft sensing blade condition

If the actuator test is not canceled, the forced drive will
continue for 27 minutes. Driving in this state could lead
to engine failure.

Press the clear key on scan tool MB991958 (select forced
drive stop mode), and cancel the actuator test.

10.

Check that the actual ignition timing is at the standard value.

Standard value: Approximately 10° BTDC

NOTE:

Ignition timing fluctuates about ± 7° Before Top

Dead Center, even under normal operating condition.

NOTE:

It is automatically further advanced by about 5°

to 10° Before Top Dead Center at higher altitudes.

ENGINE MECHANICAL

11A-15

ON-VEHICLE SERVICE

CURB IDLE SPEED CHECK

M11102000912USA0000010000

Required Special Tool:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A

Before inspection, set the vehicle in the following condition:

｠

Engine coolant temperature: 80 - 95°C (176 - 203°F)

｠

Lights and all accessories: OFF

｠

Transmission: P range

NOTE:

On vehicles for Canada, the headlight, taillight,

etc. remain lit even when the lighting switch is in "OFF"
position but this is no problem for checks.

ZK600760AA00

DATA LINK

CONNECTOR

MB991824

MB991827

MB991910

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991958.

Connect scan tool MB991958 to the data link connector.

Check the basic ignition timing.

Standard value: 5° BTDC ± 3°

Start the engine.

Run the engine at idle for 2 minutes.

Check the idle speed. Select item number 2 and take a reading
of the idle speed.

Curb idle speed: 600 ± 100 r/min

NOTE:

The idle speed is controlled automatically by the

idle air control system.

If the idle speed is outside the standard value, refer to GROUP
13A, Multiport Fuel Injection (MFI) - Multiport Fuel Injection
(MFI) Diagnosis - Symptom Chart P.13Ab-49.

IDLE MIXTURE CHECK

M11102000913USA0000010000

Required Special Tool:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A

Before inspection, set the vehicle in the following condition:

｠

Engine coolant temperature: 80 - 95°C (176 - 203°F)

｠

Lights and all accessories: OFF

11A-16

ENGINE MECHANICAL

ON-VEHICLE SERVICE
