Adjustment
item  (M.U.T.-III
scan

 tool

display)

Adjustment item

Adjusting

 contents

(M.U.T.-III  scan  tool
display)

Adjusting contents

ACC power auto
cut

Time to ACC power
cut-off  when  the
ignition  switch  is  in
the ACC position

Disable

No function (default)

30 min

30 minutes

60 min

60 minutes

Turn

 power

source

Adjustment  of  turn-
signal

 light

operation condition

ACC or IG1

Operable with ACC or ON position

IG1

Operable with ON position (default)

Comfort flasher With/without

comfort

 flasher

function

Disable

No function

Enable

With function (default)

Comfort  flasher
switch time

Switch

 operation

time  to  activate  the
comfort

 flasher

function

Normal

0.4 seconds (default)

Long

0.8 seconds

Hazard  answer
back

Adjustment  of  the
number  of  keyless
hazard warning light
answer

 back

flashes

Lock:1, Unlock:2

LOCK:  Flashes  once,  UNLOCK:  Flashes
twice (default)

Lock:1, Unlock:0

LOCK: Flashes once, UNLOCK: No flash

Lock:0, Unlock:2

LOCK: No flash, UNLOCK: Flash twice

Lock:2, Unlock:1

LOCK: Flash twice, UNLOCK: Flash once

Lock:2, Unlock:0

LOCK: Flash twice, UNLOCK: No flash

Lock:0, Unlock:1

LOCK: No flash, UNLOCK: Flash once

Lock:0, Unlock:0

No function

Front

 wiper

operation

Adjustment  of  the
intermittent
windshield

 wiper

operation

Normal INT

Intermittent  wiper  interval  is  fixed  to  4
seconds.

Variable INT

Intermittent wiper interval is calculated only
by the wiper volume control.

Vehicle

 speed

dependent

Intermittent  wiper  interval  is  calculated
according to the intermittent wiper volume
control and vehicle speed (default).

Front

 wiper

washer

Disabling

 or

enabling

 washer-

linked

 wiper

function

Washer only

No function

Washer-linked wiper

With function (default)

Rear

 wiper

intermittent
duration

Adjustment  of  rear
wiper interval

0 seconds

No wiper interval

4 seconds

4 seconds

8 seconds

8 seconds (default)

16 seconds

16 seconds

Rear  wiper  low
speed mode

Disabling

 or

enabling  rear  wiper
continuous
operation

Disabled

No function (default)

Enabled

With function

54A-30

CHASSIS ELECTRICAL

ETACS

Adjustment
item  (M.U.T.-III
scan

 tool

display)

Adjustment item

Adjusting

 contents

(M.U.T.-III  scan  tool
display)

Adjusting contents

Dome

 light

delay timer with
door

Adjustment

 of

interior  light  delay
shutdown time

0sec

0 second (no delay shutdown time)

7.5sec

7.5 seconds

15sec

15 seconds

30sec

30 seconds (default)

60sec

60 seconds

120sec

120 seconds

180sec

180 seconds

Head  light  auto
cut customize

Adjustment

 of

headlight  automatic
shutdown function

Disable

No function

C-spec.

With function (default)

Interior

 light

auto cut timer

Adjustment

 of

interior

 light

automatic shutdown
function  operation
time

Disable

No function

3min

3 minutes

30min

30 minutes (default)

60min

60 minutes

Door

 unlock

mode

Door lock system

All doors unlock

All the doors are unlocked when the driver's
side door is unlocked.

Dr door unlock

Only the driver's side door is unlocked when
the driver's side door is unlocked. (default)

Auto

 door

unlock  by  P
position

Auto door unlock by
P position function

Disable

No function (default)

Always enabled

Always with function

P/W unlocked

With  function  (with  power  window
unlocked)

Duration of horn
chirp

Horn sounding time
during  horn  answer
back

Short

0.01 second (default)

Long

0.02 second

Horn  chirp  by
RKE

Horn chirp by RKE

Not sound horn

No horn answerback function

Lock any time

The horn sounds when the lock button of
keyless entry transmitter is pressed once.

W lock any time

The horn sounds when the lock button of
keyless entry transmitter is pressed twice.
(default)

Tone

 alarm

answer back

Adjusts  the  tone
alarm  answer  back
function.

Not sound tone alarm

No function

At keyless key

Sounds when the keyless entry system is
activated.

At keyless

Sounds when KOS is activated (default).

At Both

Sounds when the keyless entry system or
KOS is activated.

CHASSIS ELECTRICAL

54A-31

ETACS

Adjustment
item  (M.U.T.-III
scan

 tool

display)

Adjustment item

Adjusting

 contents

(M.U.T.-III  scan  tool
display)

Adjusting contents

Timer lock timer Timer  lock  period

adjustment

30sec

30 seconds (default)

60sec

60 seconds

120sec

120 seconds

180sec

180 seconds

Duration

 pre-

alarm

Adjustment  of  pre-
alarm continue time

10 sec

10 seconds (default)

6 sec

6 seconds

Alarm

With/without  theft-
alarm function

Disable

No function

Enable

With function (default)

Panic

 alarm

switch

With/without  panic
alarm function

Disable

No function

Enable

With function (default)

KOS auto lock

With/without  KOS
auto lock function

Enable

No function (default)

Disable

With function

Fob out of car

With/without  KOS
key

 exterior

detection function

Enable

No function

Disable

With function (default)

KOS feature

KOS

 function

adjustment

Both enable

All KOS functions are enabled (default).

DoorEntry enable

Only door entry function is enabled.

ENG strt enable

Only engine starting function is enabled.

Both disabled

All KOS functions are disabled.

KOS

 unlock

disable time

Adjusts  the  door
unlock

 inhibition

period  after  door
lock is activated.

0sec

0 seconds

3sec

3 seconds (default)

5sec

5 seconds

THEFT-ALARM SYSTEM

GENERAL INFORMATION

M25400000001USA0000010008

｠

When the doors are locked using the keyless entry
or  KOS  (except  when  locked  by  using  the  key
cylinder or door lock switch), the improper opening
of door or hood causes the ETACS-ECU function
and control to give off an alarm with the flashing of
head lights and the intermittent sounding of horn.
Also,  the  ETACS-ECU  warns  that  the  theft-alarm

system  is  being  set  by  flashing  the  theft-alarm
indicator.(Refer  to  ETACS-ECU  function  and
controls P.54A-34)

｠

By  pressing  the  panic  button  of  transmitter,  the
flashing of head lights and the intermittent sounding
of  horn  can  be  performed  by  remote  control
operation.(Refer  to  ETACS-ECU  function  and
controls P.54A-34)

54A-32

CHASSIS ELECTRICAL

THEFT-ALARM SYSTEM

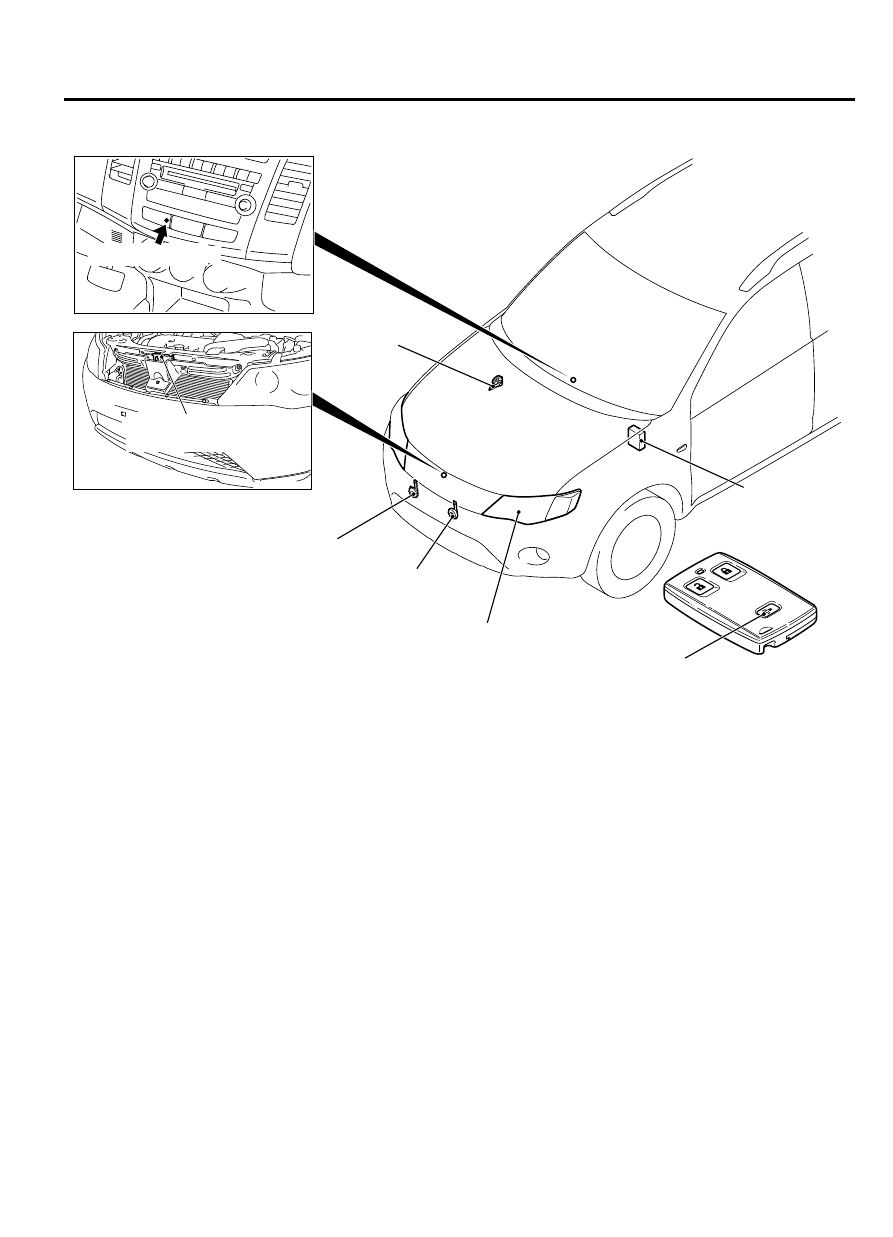

CONSTRUCTION DIAGRAM

ZC6013810000

Hood latch
(incorporating hood switch)

Theft-alarm indicator

Horn (for theft-alarm)

ETACS-ECU

Headlight

Panic button

Horn (HI)

Horn (LO)

DATA LIST

M25400000131USA0000010002

Using  the  M.U.T.-III  scan  tool  MB991958,  the  input
data sent from the sensors and switches can be read.
For service data items, refer to Workshop Manual.

CHASSIS ELECTRICAL

54A-33

THEFT-ALARM SYSTEM
