Windshield wiper linked with washer function Initial condition: with function, with windshield washer
check valve

ZC5012810000

t

t

T

T

ON

OFF

ON

OFF

ON

OFF

ON

OFF

Windshield wiper
auto stop signal

Windshield washer relay

Windshield washer switch

Windshield wiper
drive signal

Wiper switch in
off position

Wiper switch in intermittent
operation position

t: 0.3 second
T: Intermittent wiper intermittent time

Wiper switch

OFF position

Intermittent operation position

Low-speed

 or

high-speed
operation
position

Washer  switch  ON
time(t)

0.3
second
or less

0.3

 to

0.5
second

0.5
second
or more

0.2
second
or less

0.2  to
0.4
second

0.4

 to

0.6
second

0.6
second
or more

-

T

0
second

2
seconds

3
seconds

0
second

1
second

2
seconds

3
seconds

3 seconds

When  the  windshield  washer  switch  on  the  column
switch is turned ON while the ignition switch is in ACC
or ON position, ETACS turns the windshield washer
relay ON.
When the windshield washer switch is kept ON for 0.3
seconds or longer, the windshield wiper drive signal
(the wiper drive signal output time varies depending
on the conditions. For details, see the table.) is turned
ON, and the windshield wiper operates at high speed.
The windshield wiper is turned OFF with 3 seconds
delay  after  the  windshield  washer  switch  is  turned
OFF.
Even when the windshield washer switch is turned ON
while the windshield wiper is operating intermittently,

the  intermittent  action  starts  again  after  the  linked
operation is finished.
If the ignition switch is turned to ACC position while
the windshield washer switch is ON, the windshield
washer relay turns ON, but the windshield wiper does
not perform the linked operation. When the windshield
washer  switch  is  turned  OFF  and  then  ON,  the
windshield wiper starts the linked operation.

NOTE:

｠

Using the configuration function, the washer linked
windshield wiper function can be turned off. (Refer
to P.51-13.)

｠

Using the configuration function, when the washer
linked windshield wiper function is turned off, only
the washer operates. It is useful to melt down ice on
a frozen windshield.

51-10

EXTERIOR

REAR WIPER AND WASHER

REAR WIPER AND WASHER

M25100000080USA0000010000

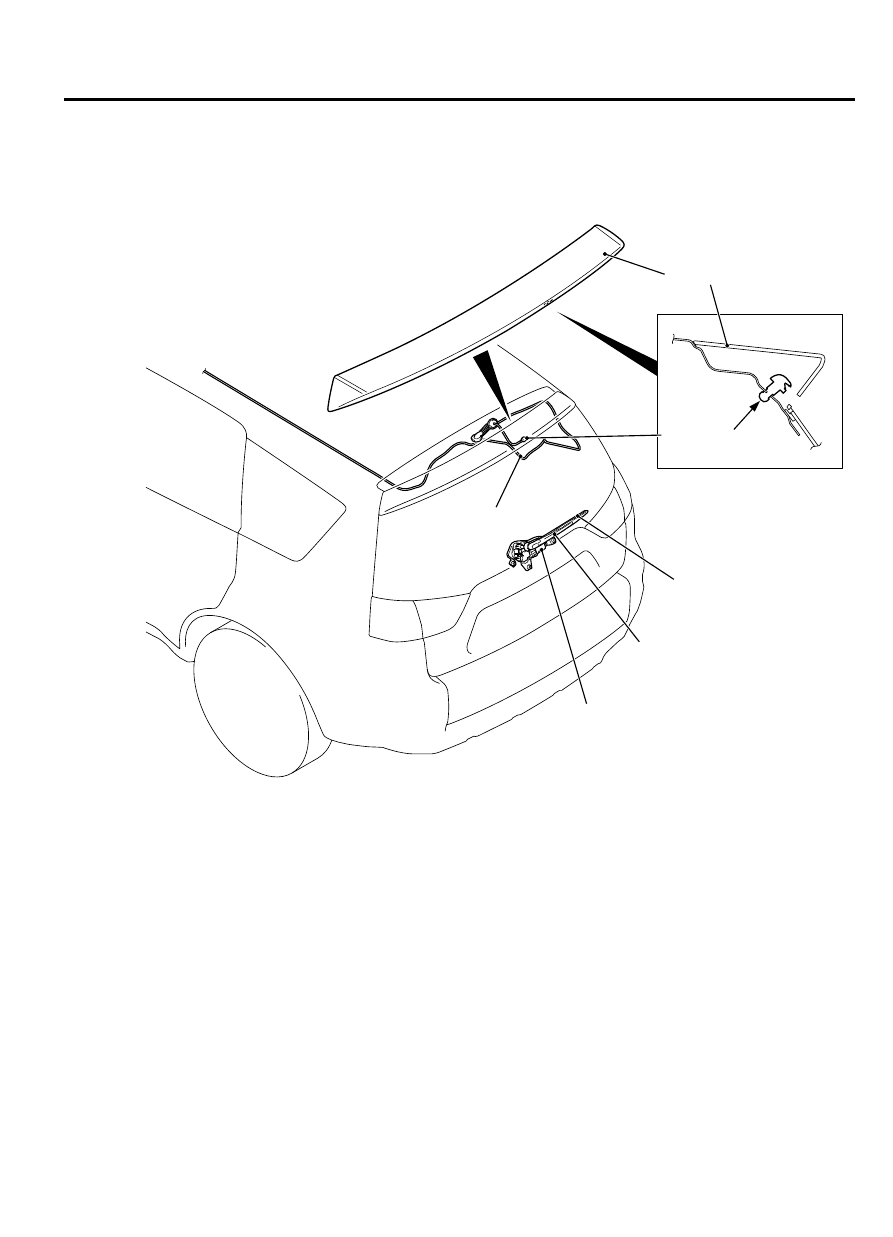

CONSTRUCTION DIAGRAM

ZC6002320000

Tailgate spoiler

Rear wiper arm

Rear wiper blade

Rear wiper hose

Rear washer
nozzle

Rear wiper
motor

｠

Resin  wiper  arm  has  been  adopted  to  achieve
weight  reduction  and  integration  of  the  arm  and
blade.

｠

Fixed  interval  type  intermittent  wiper*  provides  a
clear rear view in rainy weather.

｠

The  washer  tank  is  shared  with  the  windshield
washer.

｠

The initial continuous operation function has been
adopted.  In  this  function,  the  rear  wiper  performs
continuous low-speed operation for 2 to 3 cycles to
sweep the raindrops away from the rear windshield
after the rear wiper switch is turned on, and then
proceeds with intermittent operation.

｠

Reverse gear-linked rear wiper function has been
adopted.  In  this  function,  the  rear  wiper  performs

continuous  low-speed  operation  for  2  to  3  cycles
approximately 1 second after the selector lever is
shifted to “R” position while the rear wiper switch is
in the intermittent position, and then proceeds with
intermittent operation.

｠

Washer-linked  wiper  function*  has  been  adopted.
Washer  fluid  can  be  optionally  injected  without
operating  the  wiper.  When  the  ignition  switch  is
turned  ON  while  the  washer  switch  is  ON,  the
washer motor operates but the wiper does not.

NOTE:

*: Using the configuration function, the

fixed interval type intermittent wiper and the
washer-linked wiper function can be adjusted.
(Refer to P.51-13.)

EXTERIOR

51-11

REAR WIPER AND WASHER

DESCRIPTION OF CONSTRUCTION AND OPERATION

Rear wiper control [Initial condition: 8 seconds (without successive operations)]

ZC5013040000

t

ON

OFF

ON

OFF

ON

OFF

T2

T3

T2

T3

T1

T4

T4

T1

T4

T4

T4

T3

T2

T2

T2

T2: 7.4 seconds

Rear wiper drive signal

Rear wiper switch

Inhibitor switch "R" position

T1: 3.0 seconds

t: 1.0 second

T3: 8.0 seconds
T4: 0.6 second

1.

When the rear wiper switch on the column switch
is turned ON while the ignition switch is in ACC or
ON  position,  ETACS  turns  the  rear  wiper  drive
signal  ON  for  3  seconds  (for  approximately  2
cycles)  and  operates  the  intermittent  action  in  8
second intervals.
When the selector lever is moved to R (reverse)
position  during  the  rear  wiper  operation,  the
transmission range switch R (reverse) turns ON,
and one second after that, ETACS turns the rear

wiper  drive  signal  ON  for  3  seconds  (for
approximately  2  cycles),  and  operates  the
intermittent action in 8 second intervals again.

2.

By the special operation of the rear wiper switch
on the column switch (2 consecutive operations),
the rear wiper can operate continuously regardless
of the set intermittent time.

NOTE:

Using the configuration function, the rear

wiper intermittent time can be adjusted. (Refer
to P.51-13.)

Rear wiper linked with washer function Initial condition: with function

ZC5013050000

   t : 0.3 second
T4 : 0.6 second
T1 : 3 seconds

T2 : 7.4 seconds
T3 : 8 seconds

t

t

t

ON

OFF

ON

OFF

ON

OFF

T1

T1

T1

T2

T3

T4

T4

Rear wiper switch
in OFF position

Rear wiper switch in ON position

Rear washer switch

Rear washer relay

Rear wiper drive
signal

When the rear washer switch on the column switch is
turned ON while the ignition switch is in ACC or ON
position, ETACS turns the rear washer relay ON.

51-12

EXTERIOR

REAR WIPER AND WASHER

The rear washer relay turns ON after the rear washer
switch has been ON for 0.3 second, then turns the rear
wiper  drive  signal  ON  to  operate  the  rear  wiper
simultaneously.  When  the  rear  washer  switch  is
turned OFF, after 3 seconds the rear wiper is turned
OFF.

If the rear washer switch is turned ON during the rear
wiper  operation,  7.4  seconds  after  turning  OFF  the
rear  wiper  drive  signal  turns  OFF,  the  intermittent
action is resumed in 8 second intervals.

NOTE:

Using the configuration function, the

washer linked rear wiper function can be turned
off. (Refer to P.51-13.)

OUTSIDE MIRROR

M25100000081USA0000010000

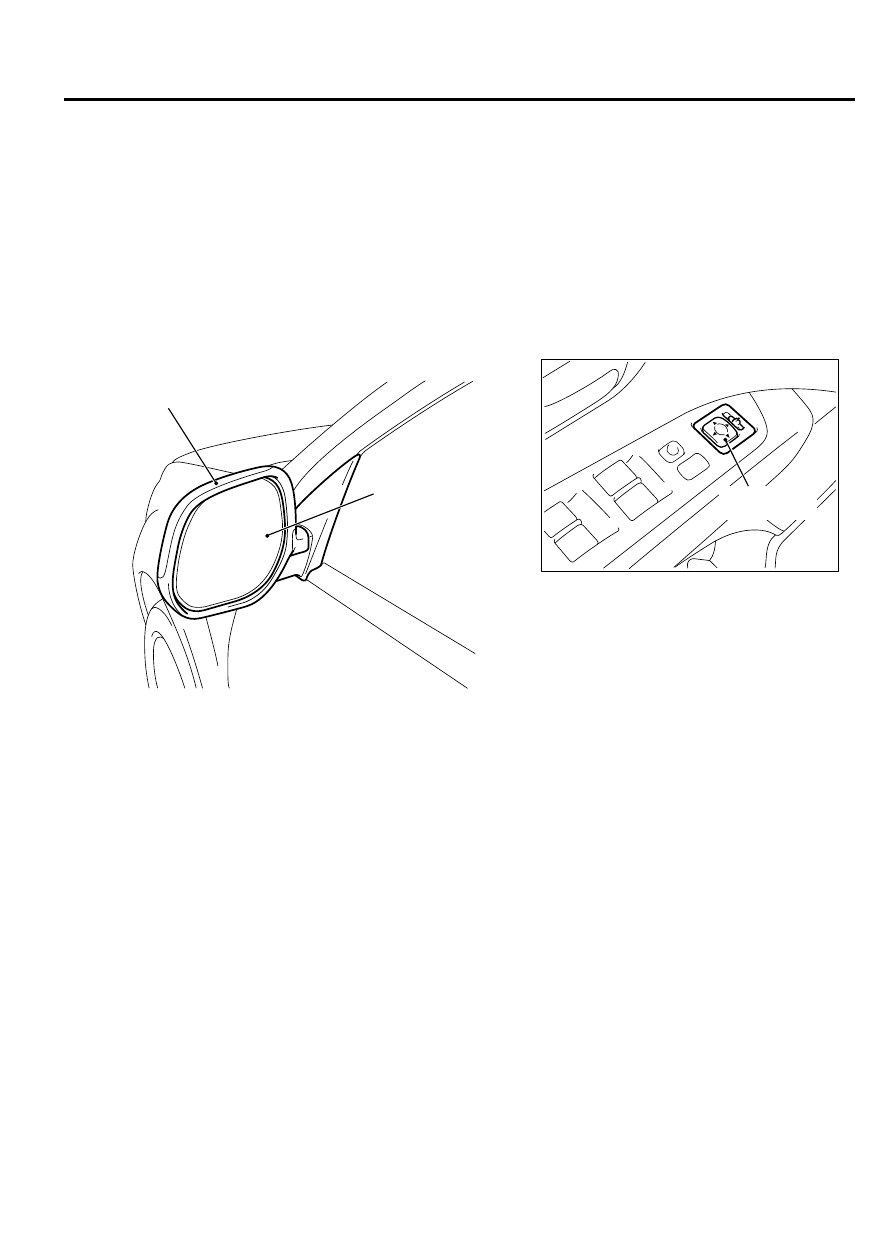

CONSTRUCTION DIAGRAM

ZC6002290001

Door mirror assembly

Mirror glass

Remote control
mirror switch

Door mirrors have the following features:

｠

Remote controlled door mirrors have been adopted.

｠

Door  mirrors  with  heater  element  have  been
adopted.

｠

Large size mirror glass has been adopted for easy
confirmation of safety around the vehicle.

｠

Low  air  resistance  door  mirror  shape  has  been
introduced.

｠

Flag  type  which  secures  sufficient  distance
between the door mirror and delta pillar has been
adopted to reduce the blind spot area of the forward
view.

CONFIGURATION FUNCTION

M25100000092USA0000010000

Using the M.U.T.-III scan tool, the following functions
can be programmed. The programmed information is

kept  in  memory  even  when  the  battery  is
disconnected.

EXTERIOR

51-13

OUTSIDE MIRROR
