GENERAL INFORMATION
M23400000001USA0000010000
The trailing arm type multi-link suspension is adopted.
The main features are listed as follows:
｠
The wheel tread is enlarged to improve cornering
ability.
｠
The roll center height is reviewed with regard to the
vehicle specifications to improve the steering ability.
｠
The double crossmember is adopted and the upper
arm, lower arm, toe control arm are jointed to the
crossmember to improve the suspension alignment
accuracy and maintenance performance.
｠
Improvement of arms installation accuracy
eliminates the camber adjustment to improve
maintenance performance.
｠
The trailing arm bushings are installed in the upper
position to improve the movement of the
suspension when the vehicle negotiates bumps and
increase the riding comfort.
｠
Twin tube type shock absorber is adopted to secure
the optimum rolling rigidity and improve the steering
ability.
｠
The high efficiency ball joint type stabilizer link is
adopted to improve the steering ability.
｠
The toe control arm is installed in the lower position
to increase the toe and camber rigidity and improve
the steering ability.

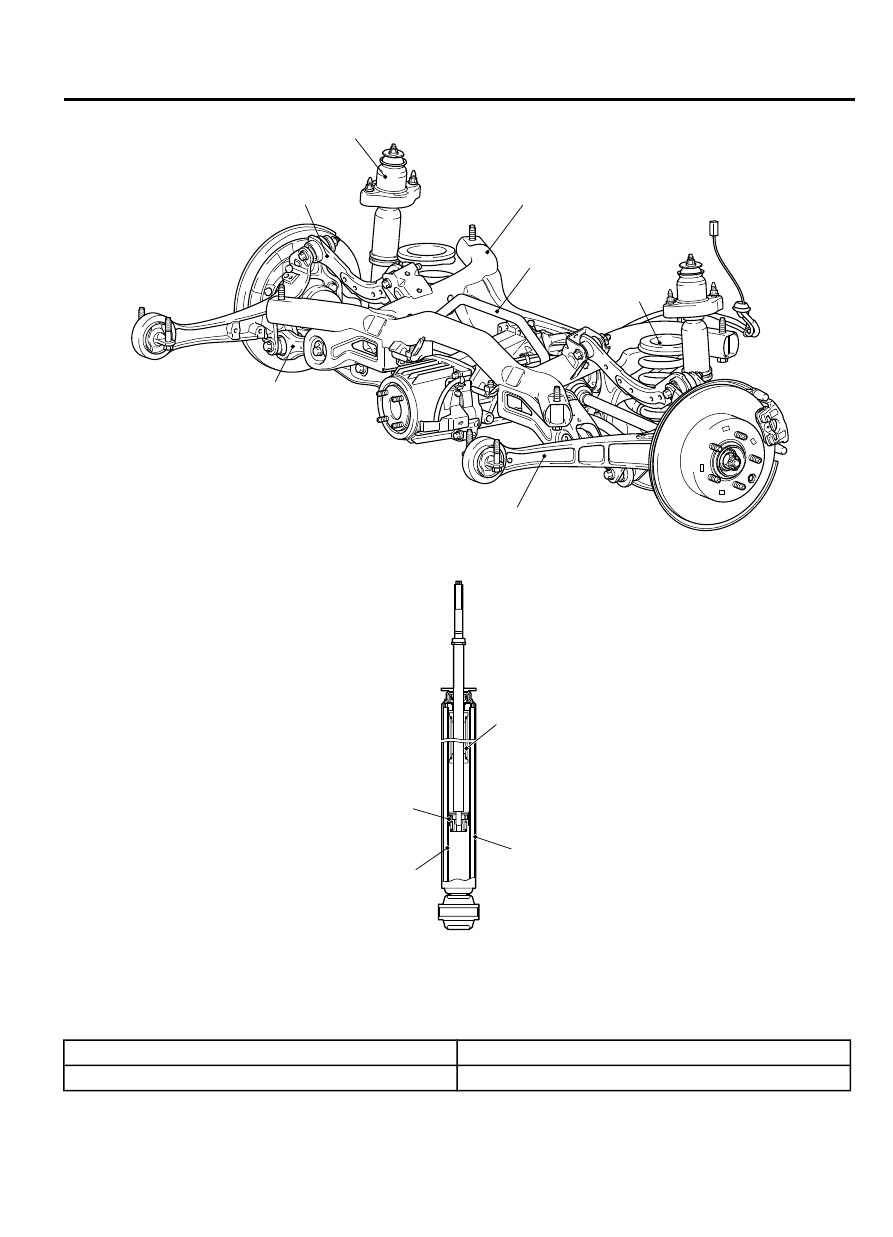

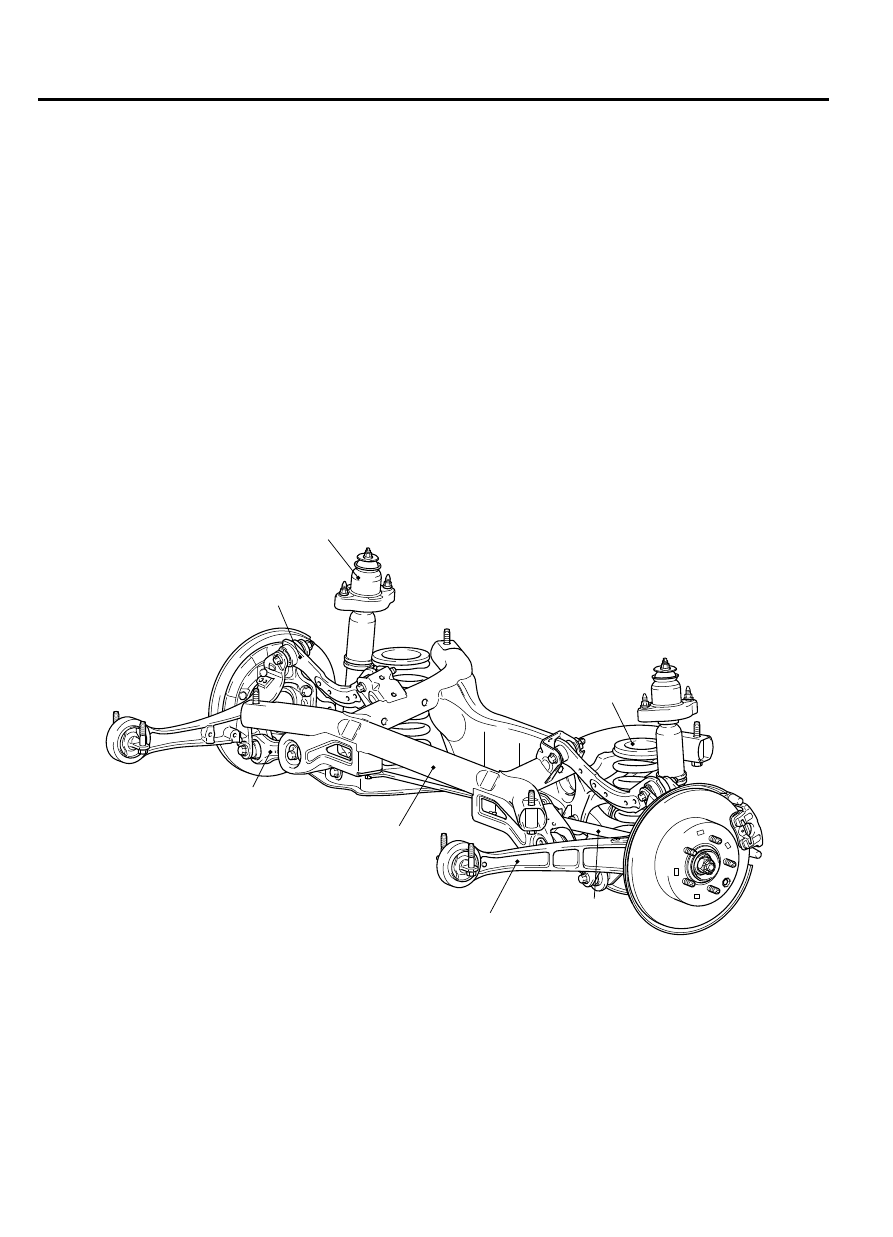

CONSTRUCTION DIAGRAM
ZC6002930000
Toe control arm
Upper arm
Shock absorber
Rear crossmember
Trailing arm
Stabilizer bar
Coil spring
<2WD>
34-2
REAR SUSPENSION
GENERAL INFORMATION
