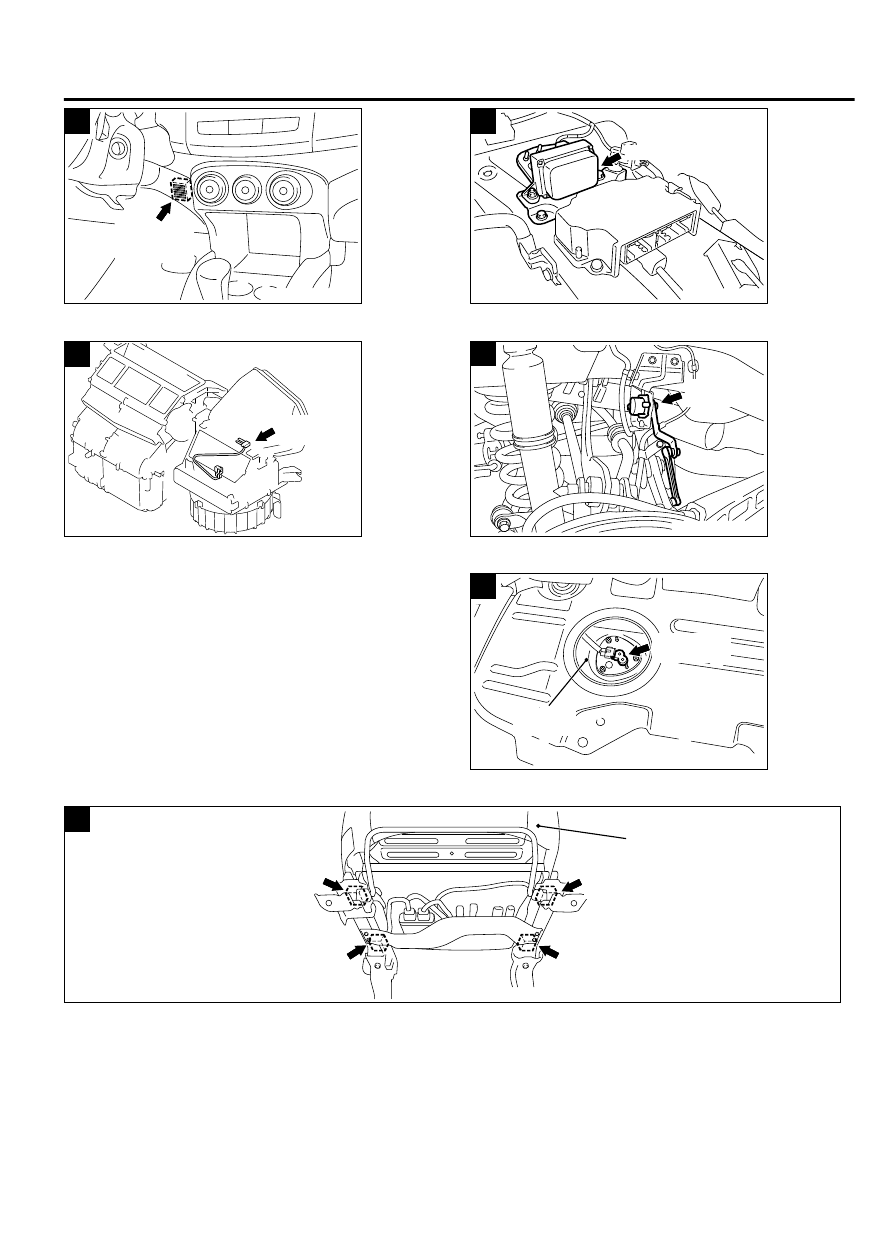

Mitsubishi Outlander XL. Manual - part 1218

ZC6011580000

Interior
temperature
sensor

Q

ZC6036350000

G and yaw rate sensor

R



ZC6036360000

Air thermo
sensor

S

ZC6016350000

Rear
height sensor

T



ZC6011570000

Fuel level
sensor (sub)

U

Fuel tank
assembly



ZC6013620000

Front passenger’s
seat

V

Weight sensor
(front-RH)

Weight sensor
(rear-RH)

Weight sensor
(front-LH)

Weight sensor
(rear-LH)



COMPONENT LOCATIONS

70-11

SENSOR

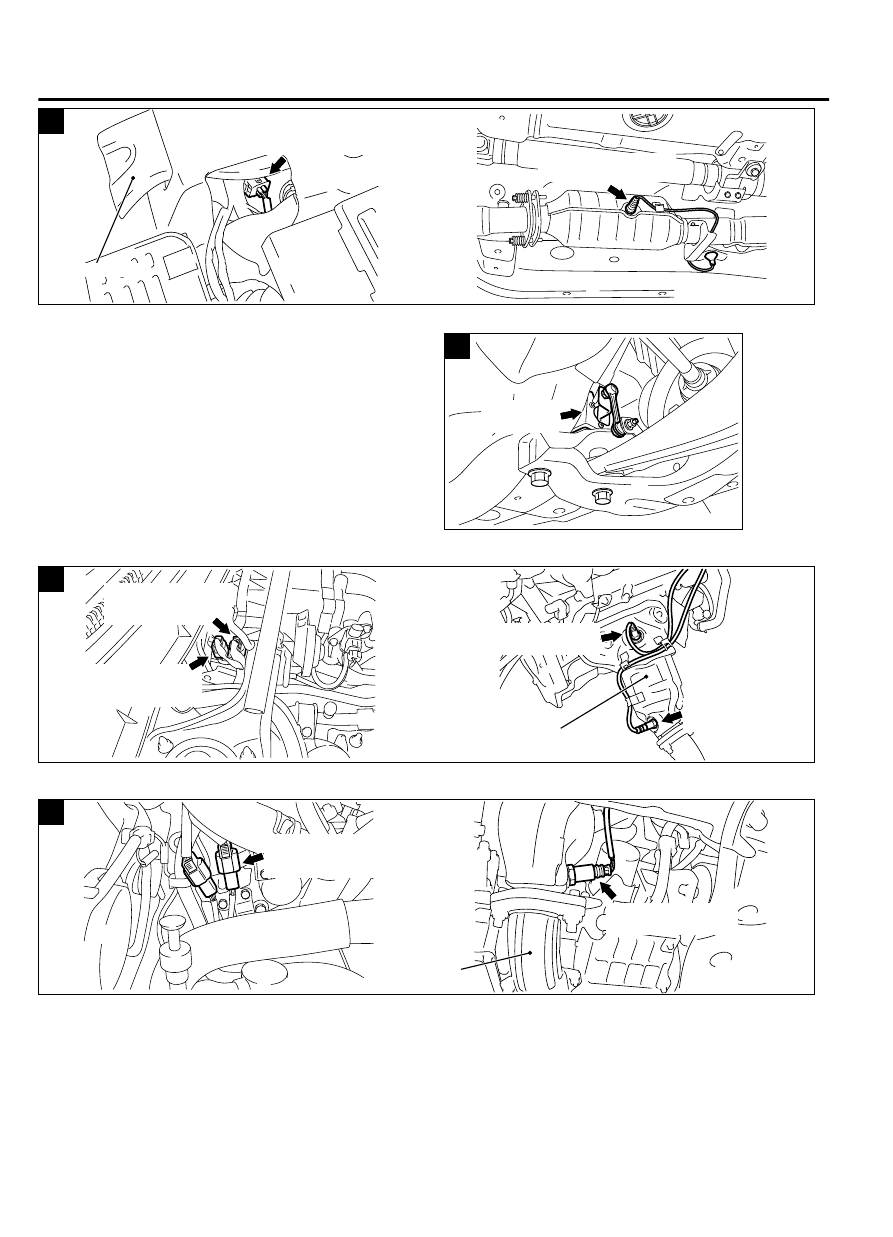

ZC6037060000

Center exhaust pipe
heated oxygen sensor

W

Center exhaust pipe
heated oxygen sensor connector

Rear heater duct



ZC6016340001

Front
height sensor

X



ZC6037070000

Y

Right bank heated
oxygen sensor (rear)

Right bank heated
oxygen sensor (front)

Right bank heated
oxygen sensor (front)
connector

Right bank heated
oxygen sensor (rear)
connector

Front exhaust
pipe RH



ZC6037090000

Left bank heated
oxygen sensor (rear)

Left bank heated
oxygen sensor (rear)
connector

Front
exhaust pipe

Z



70-12

COMPONENT LOCATIONS

SENSOR

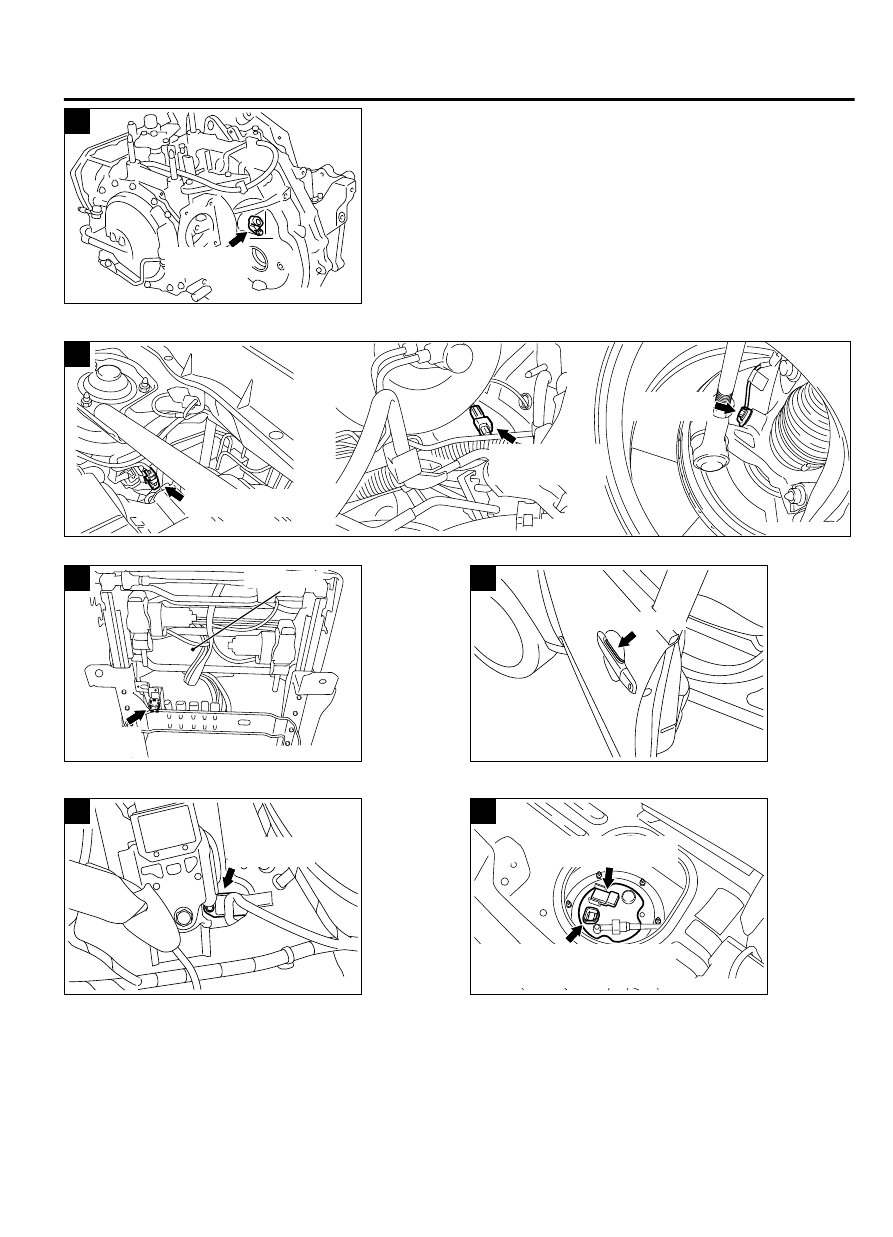

ZC6016400000

Output shaft
speed sensor

a



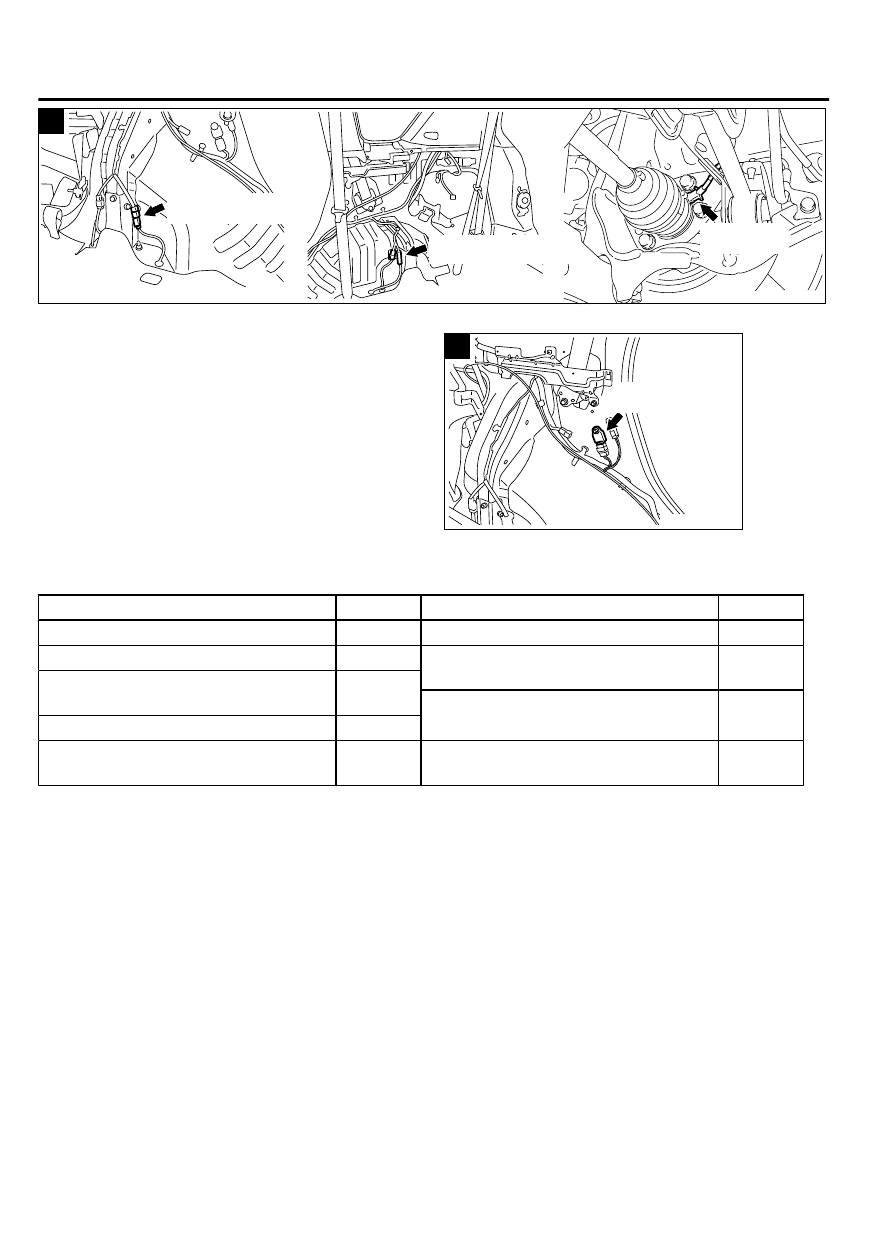

ZC6036370000

Front wheel
speed sensor (LH)
connector

Front wheel
speed sensor

b

Front wheel speed
sensor (RH) connector



ZC6016360000

Driver’s seat

c

Seat slide
sensor

ZC6036380000

Unlock sensor

d



ZC6016420000

Side impact
sensor (front)

e

ZC6011600000

Fuel pump module (incorporating
fuel level sensor (main) and
fuel tank temperature sensor)

Fuel tank differential
pressure sensor

f



COMPONENT LOCATIONS

70-13

SENSOR

ZC6036390000

Rear wheel speed
sensor (RH) connector

Rear wheel
speed sensor

Rear wheel speed
sensor (LH) connector

g



ZC6036430000

Side impact
sensor (rear)

h

SOLENOID AND SOLENOID VALVE

M17001000008USA0000010000

Name

Symbol

Name

Symbol

A/T control solenoid valve assembly

F

Exhaust gas recirculation valve

E

Engine oil control valve

D

Hydraulic  unit  (incorporating  ABS
solenoid valve)

B

Electronic  control  coupling  solenoid
AWD

H

Selector  lever  assembly  (incorporating
shift lock solenoid)

G

Evaporative emission purge solenoid

C

Evaporative

 emission

 ventilation

solenoid

I

Variable intake air control solenoid valve A

70-14

COMPONENT LOCATIONS

SOLENOID AND SOLENOID VALVE
