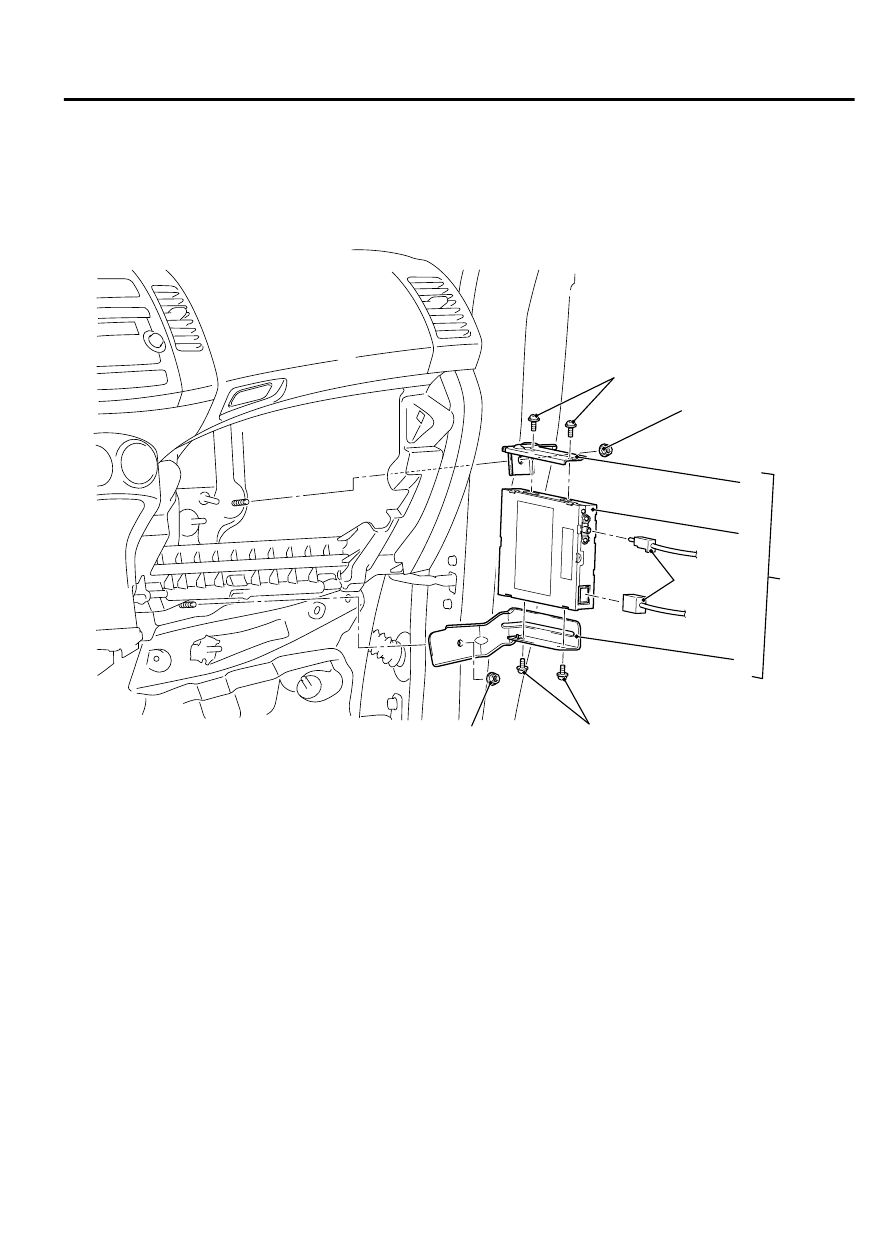

SATELLITE RADIO

REMOVAL AND INSTALLATION

M15410800370USA0000010000

ZC6006570000

3

5

2

1

4

1.0 ± 0.5 N·m
9 ± 4 in-lb

13 ± 2 N·m
111 ± 22 in-lb

1.0 ± 0.5 N·m
9 ± 4 in-lb

13 ± 2 N·m
111 ± 22 in-lb

Removal Steps

·

Glove box assembly (Refer to GROUP
52A, Instrumental Panel Assembly P.
52A-2.)

1.

Satellite radio tuner connector

2.

Satellite radio tuner assembly

Removal Steps

3.

Satellite radio tuner bracket (upper)

4.

Satellite radio tuner bracket (lower)

5.

Satellite radio tuner

AUDIO AND NAVIGATION SYSTEM

54B-169

SATELLITE RADIO

SPEAKER

REMOVAL AND INSTALLATION

M15410800064USA0000010000

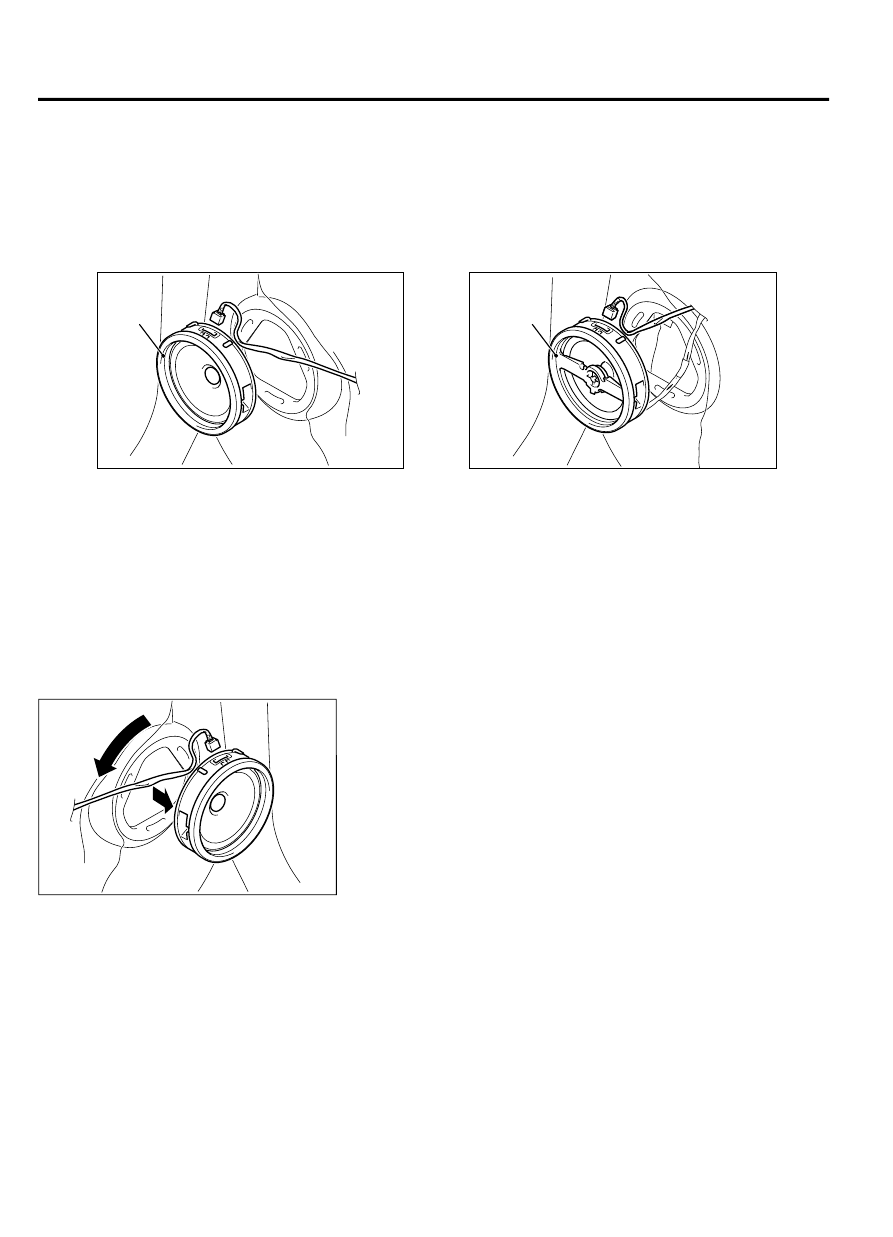

Front or rear door speaker

AC506847

AC506846

ZC6003830000

1

2

Front Door Speaker Removal Steps

·

Front door trim (Refer to GROUP 52A,
Door Trims P.52A-11.)

<<A>>

1.

Front door speaker

Rear Dooraspeaker Removal Steps

·

Rear door trim (Refer to GROUP 52A,
Door Trims P.52A-11.)

<<A>>

2.

Rear door speaker

REMOVAL SERVICE POINT

<<A>> FRONT DOOR SPEAKER OR REAR DOOR SPEAKER
REMOVAL

ZC6003840000

Disconnect the connector, and remove by twisting as shown in
the figure.

54B-170

AUDIO AND NAVIGATION SYSTEM

SPEAKER

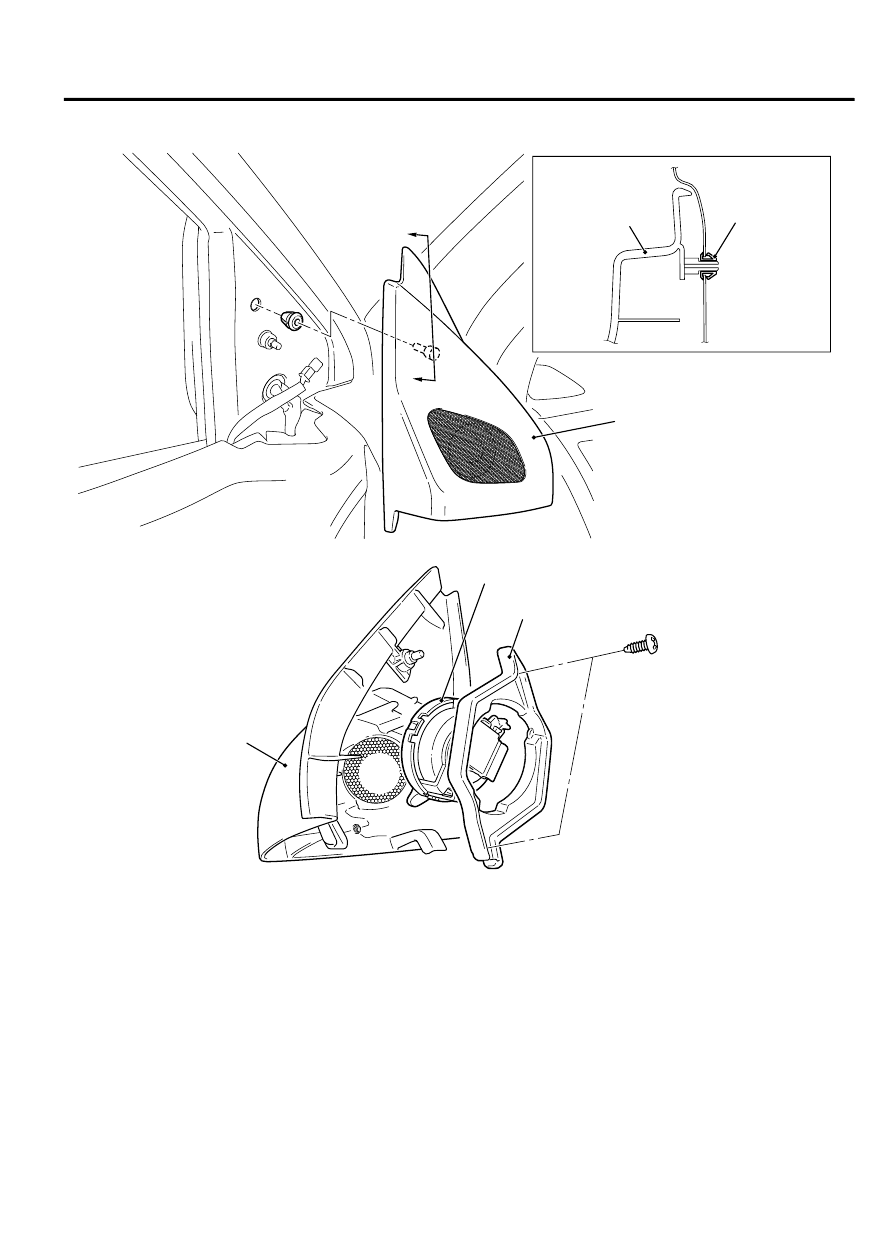

Tweeter

ZC6003850000

AC507613

AC507047

1

1

Section A – A

Clip

A

A

ZC6003860000

AC507046

2

3

4

Removal Steps

>>A<<

1.

Front door sash trim assembly

2.

Tweeter bracket

3.

Tweeter

Removal Steps

4.

Front door sash trim

AUDIO AND NAVIGATION SYSTEM

54B-171

SPEAKER

INSTALLATION SERVICE POINT

>>A<< FRONT DOOR SASH TRIM ASSEMBLY
INSTALLATION

ZC6003870000

AC507220

Clip

Mount with the clip attached.

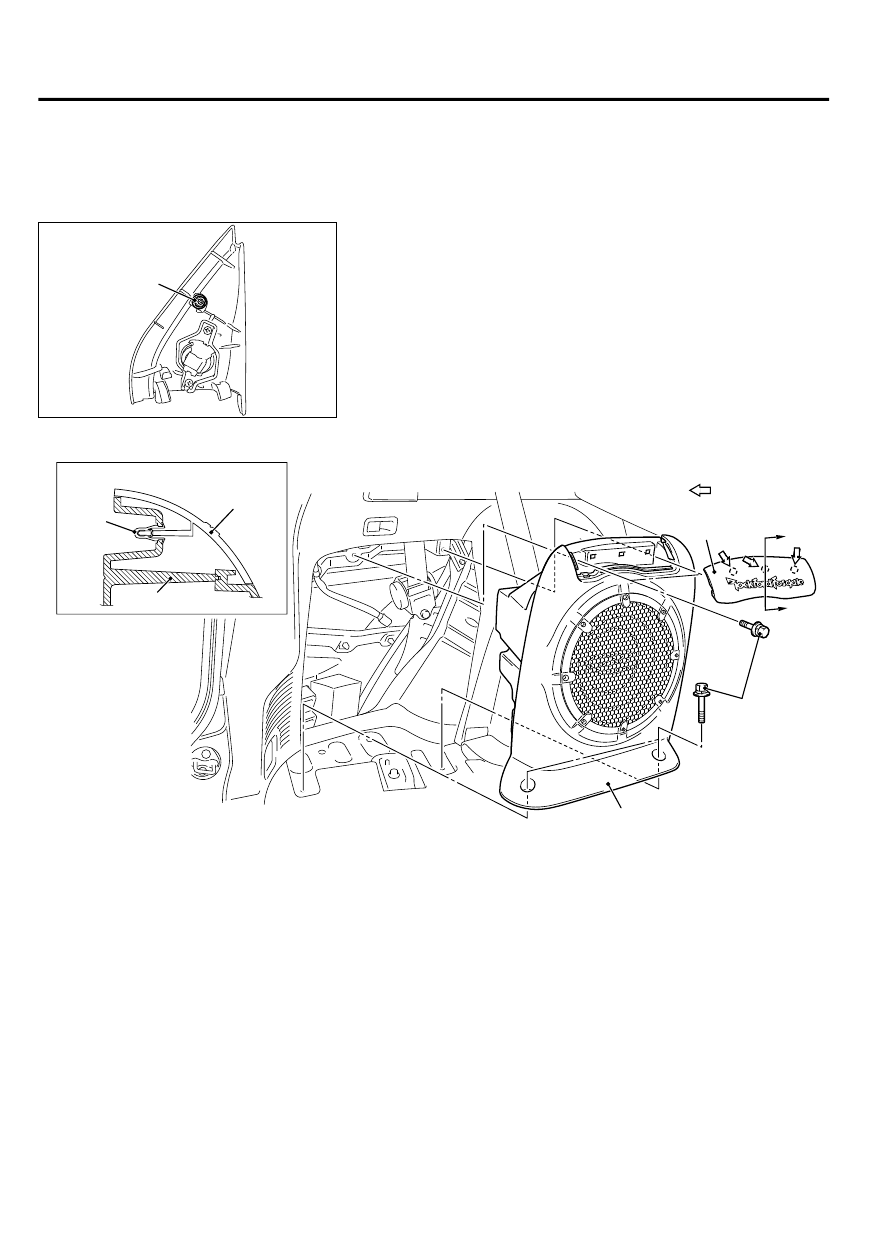

Woofer

ZC6003880000

AC506427

AC505896

A

A

1

2

1

2

Section A – A

Clip

4.0 ± 2.0 N·m
36 ± 17 in-lb

Note
       : Clip positions

Removal Steps

1.

Woofer cover

Removal Steps

2.

Woofer

54B-172

AUDIO AND NAVIGATION SYSTEM

ANTENNA
