back in the connector. If ETACS-ECU connector C-307 or C-317
is damaged, repair or replace the damaged component(s) as
described in GROUP 00E, Harness Connector Inspection P.
00E-2.

Q:Is  the  wiring  harness  between  hands-free  module

connector C-121 (terminal 15) and fusible link (36) in good

condition?

YES:

 Replace the hands-free module. The system should

communicate with the hands-free module normally.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary.

REMOVAL AND INSTALLATION

M15410400020USA0000010000

ZC6005820000

1

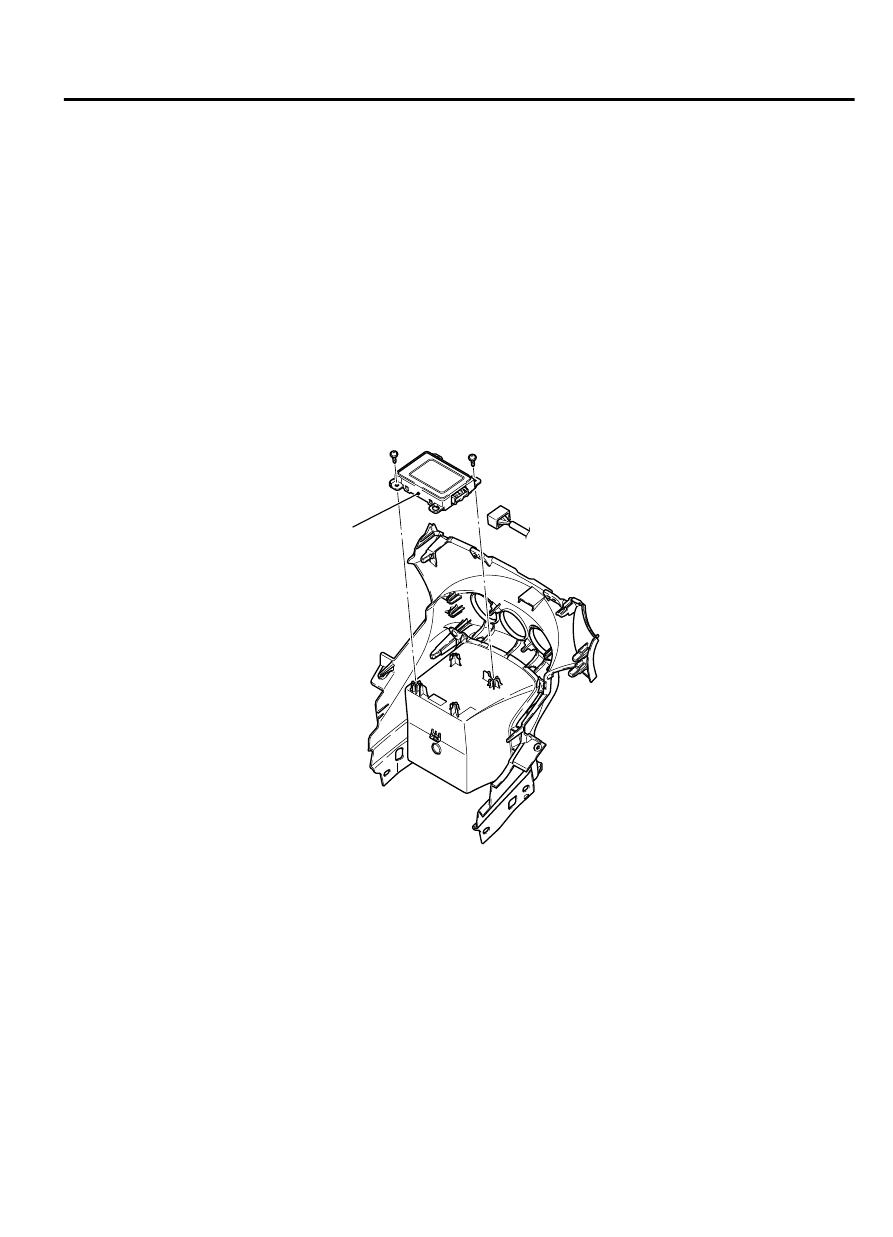

Hands free module removal steps

·

Radio  and  CD  changer  <vehicles
without  MMCS>  or  audio  visual
navigation unit <vehicles with MMCS>
(Refer

 to

 GROUP

 54B,

 P.

54B-165<radio  and  CD  changer>

Hands free module removal steps
or P.54B-166<audio visual navigation
unit>.)

1.

Hands free module

ACCESSORY

54Ae-35

HANDS-FREE CELLULAR PHONE SYSTEM

ZC6027270000

2

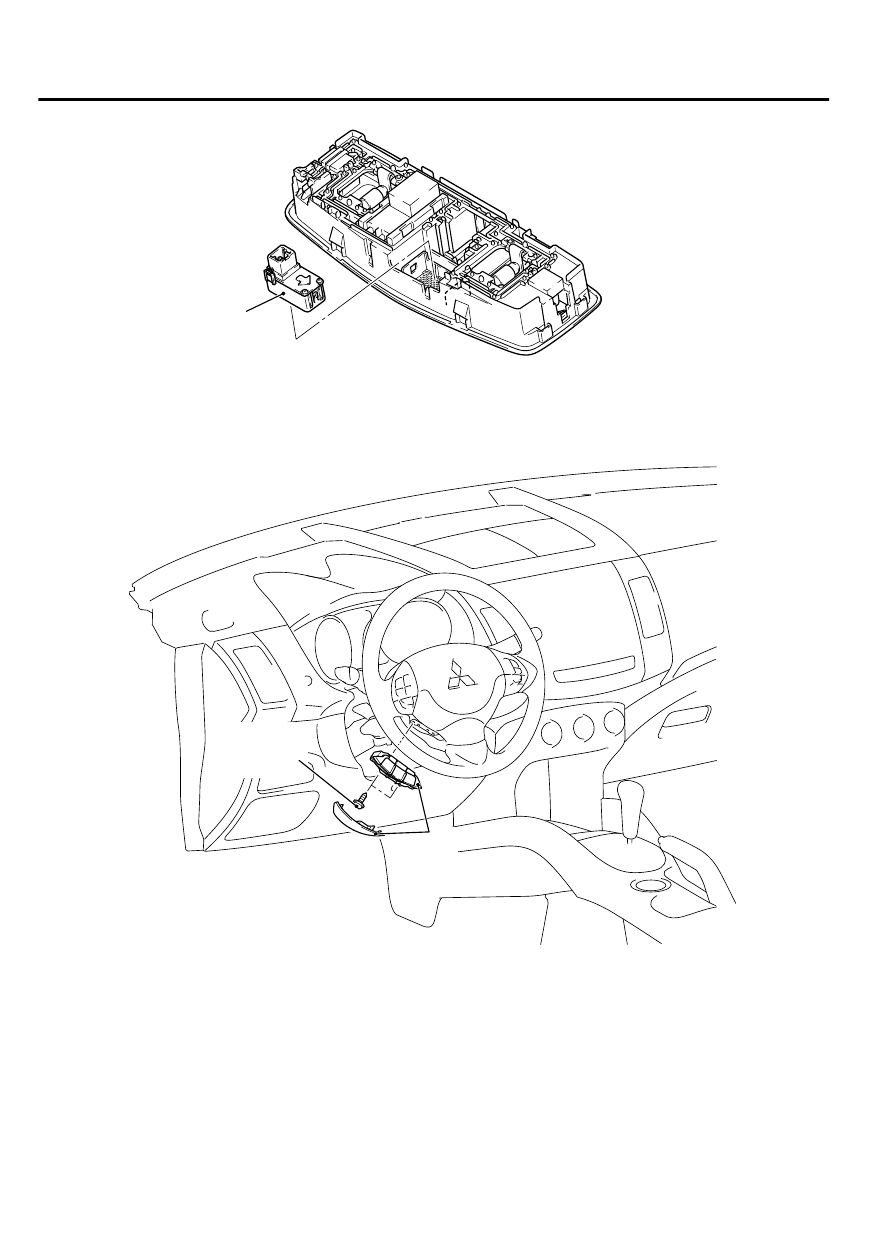

Microphone unit removal steps

·

Front  dome  light  assembly  (Refer  to
GROUP 52A, Headlining P.52A-15.)

Microphone unit removal steps

2.

Microphone unit

ZC6011670000

3

2.5 ± 0.5 N·m
23 ± 4 in-lb

Steering  voice  control  switch
removal step

<<A>>

4.

Steering voice control switch

54Ae-36

ACCESSORY

HANDS-FREE CELLULAR PHONE SYSTEM

REMOVAL SERVICE POINT

<<A>> STEERING VOICE CONTROL SWITCH REMOVAL
Remove the cover first, and then remove the screw that is used
to fix the switch body part.

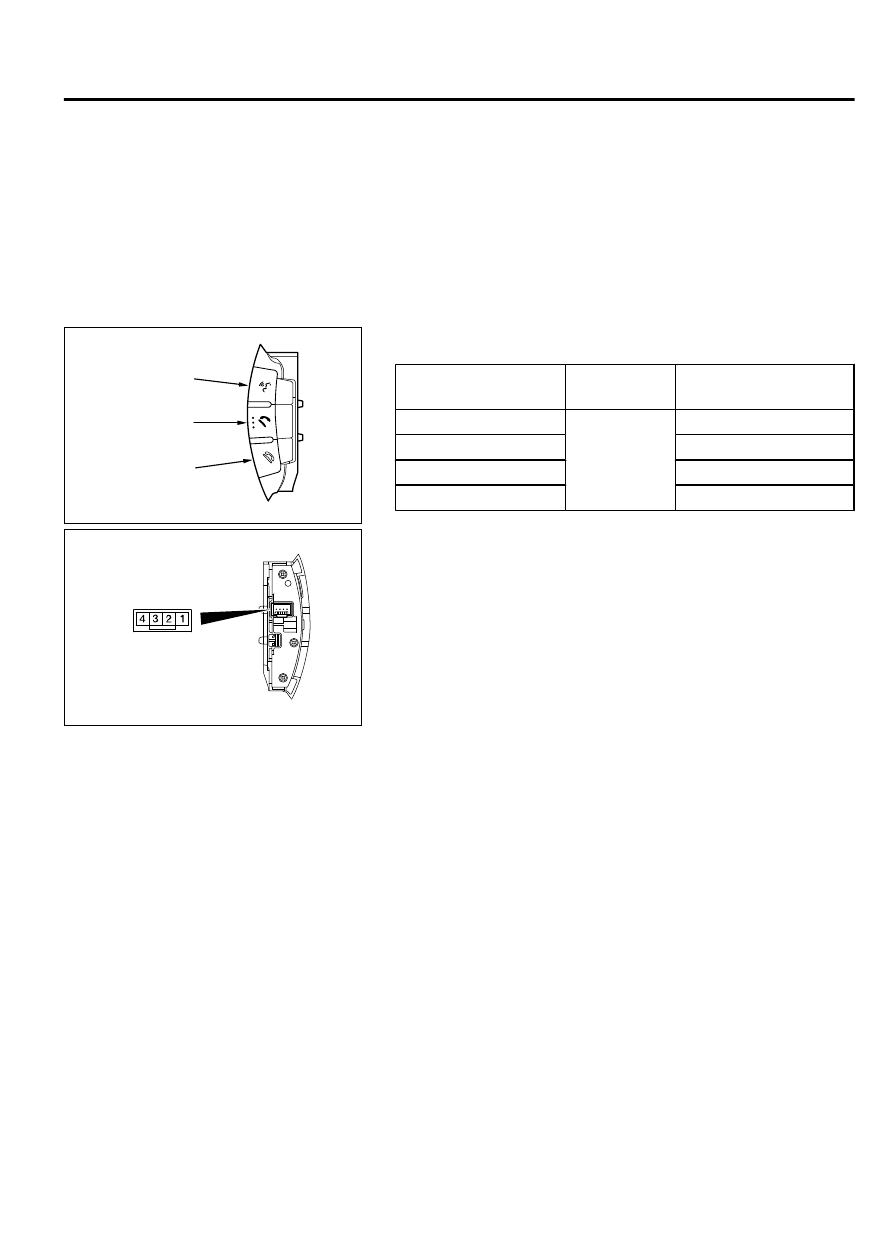

STEERING WHEEL VOICE-CONTROL SWITCH

CONTINUITY CHECK

M15410400024USA0000010000

ZC6019350000

“Speech” switch

“Pick-up” switch

“Hang-up” switch

ZC6016190000

Use an ohmmeter to measure the resistance value between the
terminal.

Switch Position

Tester
Connection

Measurement Value

No push

2 - 3

Approximately 74 kΩ

"Speech" switch

Approximately 1.5 kΩ

"Pick-up" switch

Approximately 3.3 kΩ

"Hang-up" switch

Approximately 5.0 kΩ

ACCESSORY

54Ae-37

HANDS-FREE CELLULAR PHONE SYSTEM
