Mitsubishi Outlander XL. Manual - part 1035





to GROUP 00, How to Cope with Intermittent Malfunction P.
00-15)

STEP 5. Recheck for diagnostic trouble code.
Check again if the DTC is set to the ETACS-ECU.

(1)

Erase the DTC.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Replace the ETACS-ECU.

NO:

 The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus lines
between the ABS-ECU or ASC-ECU and the ETACS-ECU. (Refer
to GROUP 00, How to Cope with Intermittent Malfunction P.
00-15)

DTC U0126: Steering wheel sensor CAN timeout

M15410600076USA0000010000

｠

If DTC U0126 is set to the ETACS-ECU, always
diagnose the CAN bus line.

｠

Before  replacing  the  ECU,  ensure  that  the
communication circuit is normal.

TROUBLE JUDGMENT
If  the  signal  from  steering  wheel  sensor  cannot  be
received, the ETACS-ECU sets DTC U0126.

JUDGMENT CRITERIA
After the following statuses continue to be true for 5
seconds, if the communication with the steering wheel
sensor cannot be established for 0.6 second or more,

the  ETACS-ECU  determines  that  a  problem  has
occurred.

｠

No abnormality is present to the network.

｠

Ignition switch is in the ON position.

｠

No abnormality is present to the power supply fuse,
or the odometer value is at 80.5 km (50.0 miles) or
more.

｠

ETACS-ECU system voltage is at 10-16 volts.

TROUBLESHOOTING HINTS

｠

The steering wheel sensor may be defective.

｠

The ETACS-ECU may be defective.

｠

The CAN bus may be defective.

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

ETACS

54Ad-19

DIAGNOSIS

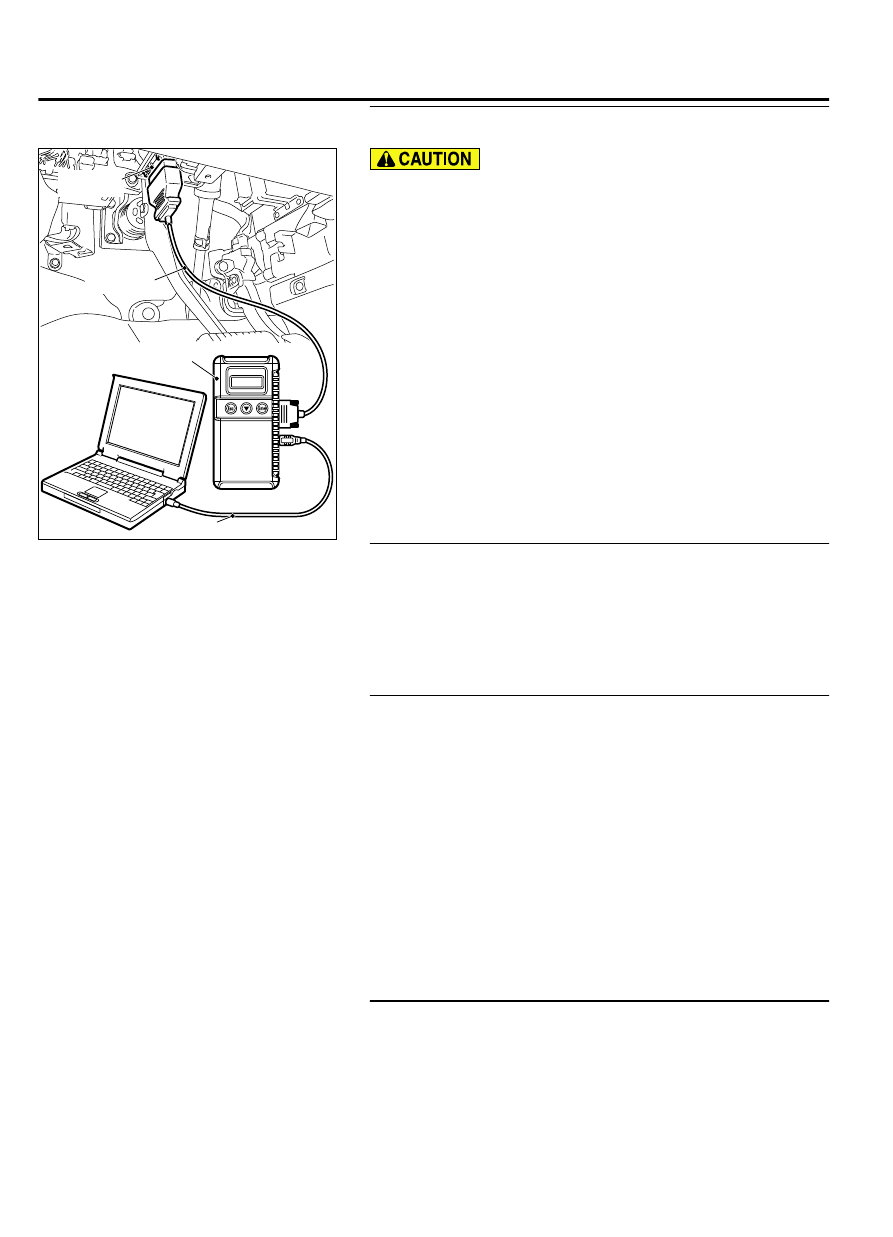

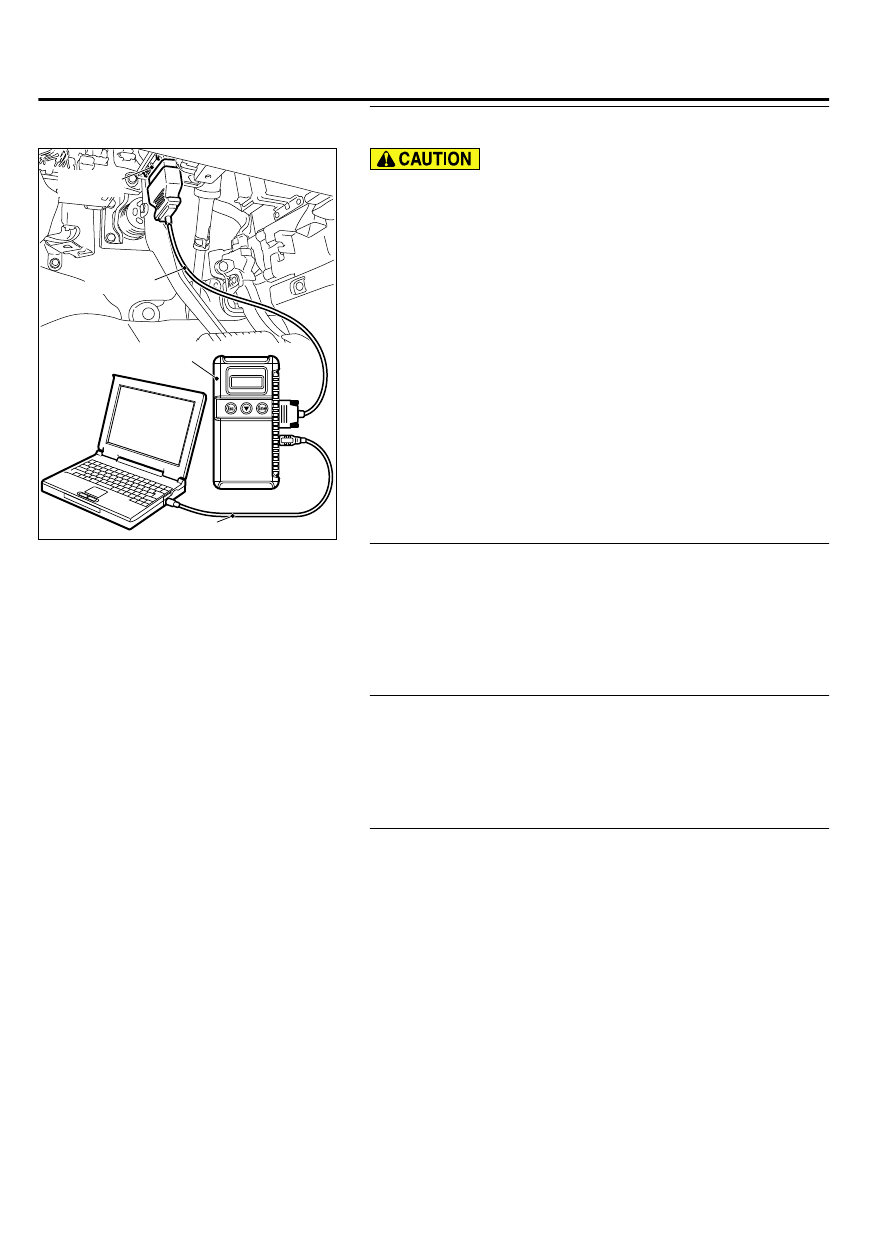

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect the
Scan Tool (M.U.T.-III) P.54Ad-5."

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D,

Diagnosis P.54D-17).

STEP 2. Using scan tool MB991958, read the ASC-ECU
diagnostic trouble code.
Check if DTC is set to the ASC-ECU.

Q:Is the DTC set?

YES:

 Troubleshoot the steering. (Refer to GROUP 35C,

Diagnosis P.35C-11.)

NO:

 Go to Step 3.

STEP 3. Recheck for diagnostic trouble code.
Check again if the DTC is set to the ETACS-ECU.

(1)

Erase the DTC.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Replace the steering wheel sensor, and then go to

Step 4.

NO:

 The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus lines
between the steering wheel sensor and the ETACS-ECU.
(Refer to GROUP 00, How to Cope with Intermittent
Malfunction P.00-15)

STEP 4. Recheck for diagnostic trouble code.
Check again if the DTC is set to the ETACS-ECU.

(1)

Erase the DTC.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if DTC is set.

54Ad-20

ETACS

DIAGNOSIS

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Replace the ETACS-ECU.

NO:

 The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus lines
between the steering wheel sensor and the ETACS-ECU.
(Refer to GROUP 00, How to Cope with Intermittent
Malfunction P.00-15)

DTC U0151: SRS-ECU CAN timeout

M15410600055USA0000010000

｠

If DTC U0151 is set to the ETACS-ECU, always
diagnose the CAN bus line.

｠

Before  replacing  the  ECU,  ensure  that  the
communication circuit is normal.

TROUBLE JUDGMENT
If the signal from SRS-ECU cannot be received, the
ETACS-ECU sets DTC U0151.

JUDGMENT CRITERIA
After the following statuses continue to be true for 5
seconds,  if  the  communication  with  the  SRS-ECU
cannot  be  established  for  0.6  second  or  more,  the

ETACS-ECU  determines  that  a  problem  has
occurred.

｠

No abnormality is present to the network.

｠

Ignition switch is in the ON position.

｠

No abnormality is present to the power supply fuse,
or the odometer value is at 80.5 km (50.0 miles) or
more.

｠

ETACS-ECU system voltage is at 10-16 volts.

TROUBLESHOOTING HINTS

｠

The SRS-ECU may be defective.

｠

The ETACS-ECU may be defective.

｠

The CAN bus may be defective.

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

ETACS

54Ad-21

DIAGNOSIS

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect the
Scan Tool (M.U.T.-III) P.54Ad-5."

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D,

Diagnosis P.54D-17).

STEP 2. Using scan tool MB991958, read the SRS-ECU
diagnostic trouble code
Check if DTC is set to the SRS-ECU.

Q:Is the DTC set?

YES:

 Troubleshoot the SRS. (Refer to GROUP 52B,

Diagnosis P.52B-33.)

NO:

 Go to Step 3.

STEP 3. Using scan tool MB991958, read the A/C-ECU
diagnostic trouble code.
Check if the DTC U0151 is set to the A/C-ECU.

Q:Is the DTC set?

YES:

 Go to Step 4.

NO:

 Go to Step 5.

STEP 4. Recheck for diagnostic trouble code.
Check again if the DTC is set to the ETACS-ECU.

(1)

Erase the DTC.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Replace the SRS-ECU.

NO:

 The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus lines
between the SRS-ECU and the ETACS-ECU. (Refer to GROUP 00,
How to Cope with Intermittent Malfunction P.00-15)

54Ad-22

ETACS

DIAGNOSIS
