STARTING SYSTEM

CIRCUIT DIAGRAMS

90-29

NOTES

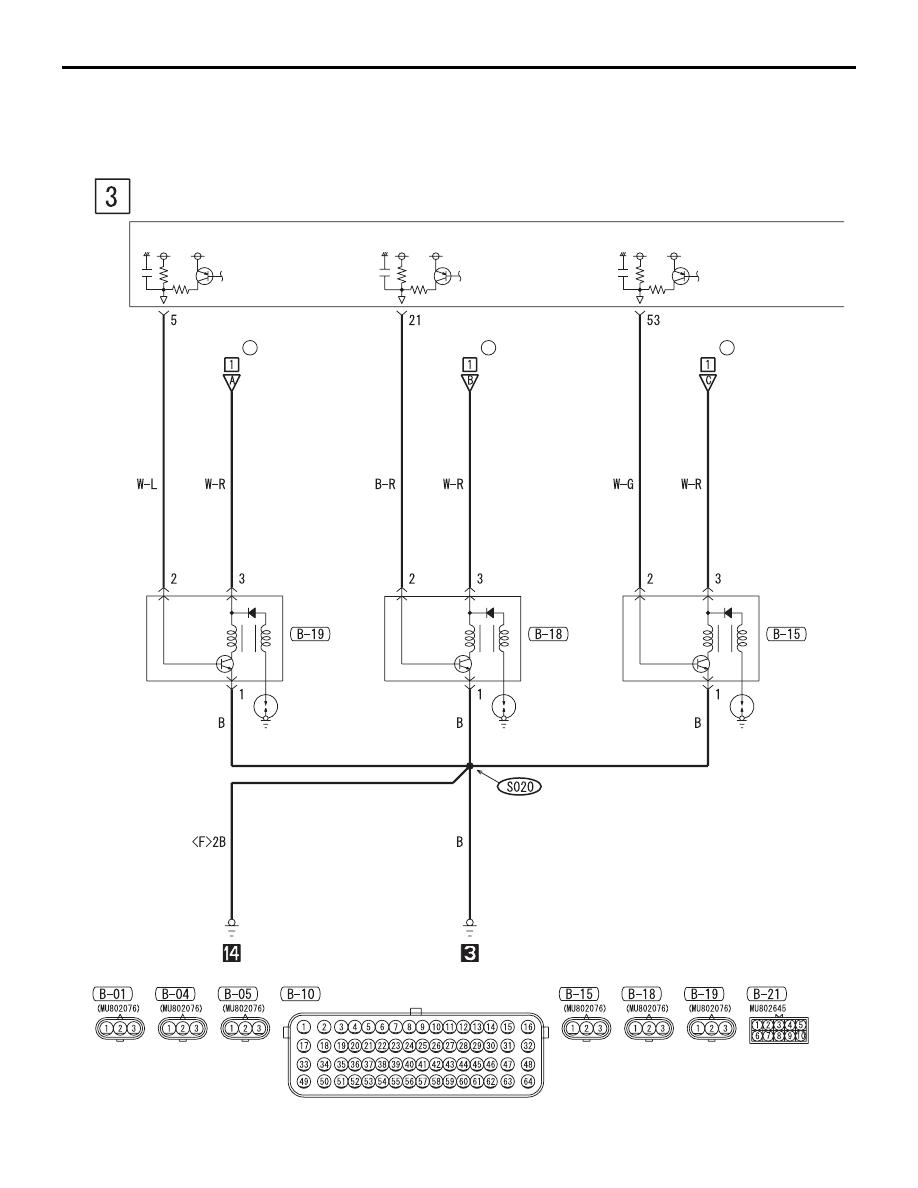

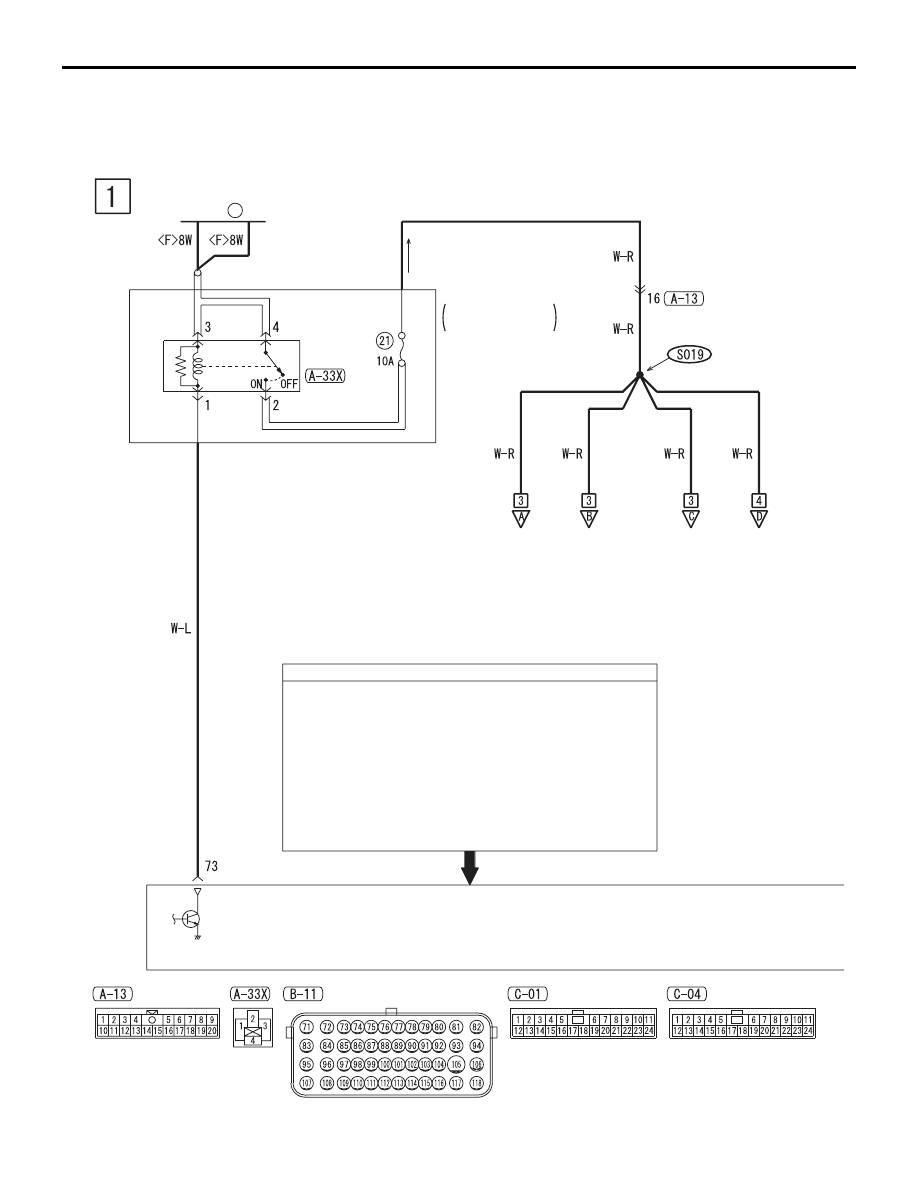

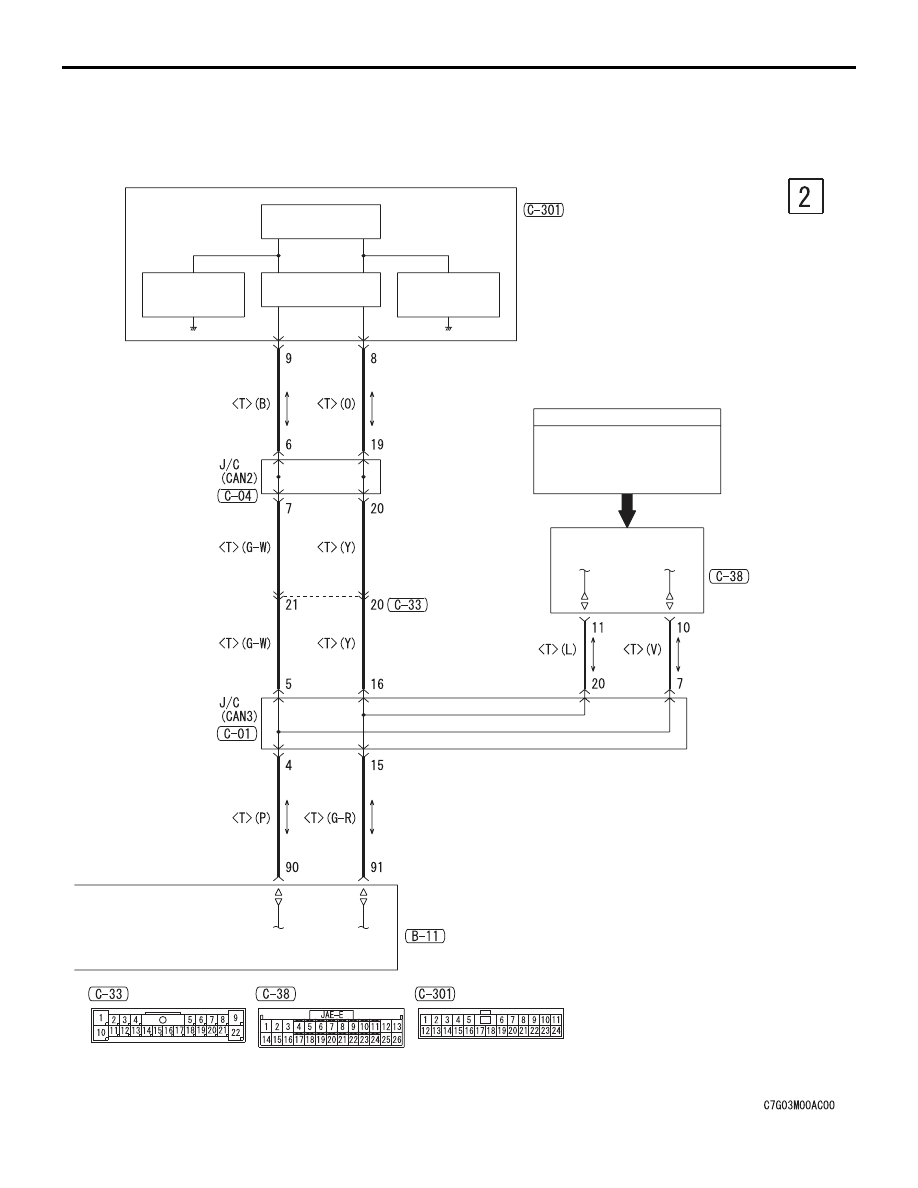

IGNITION SYSTEM

CIRCUIT DIAGRAMS

90-30

IGNITION SYSTEM

FUSIBLE
LINK

36

MFI
RELAY

ENGINE
COMPARTMENT

RELAY BOX

ENGINE CONTROL MODULE INPUT SIGNAL

·ACCELERATOR PEDAL
 POSITION SENSOR
·CAMSHAFT POSITION
 SENSOR
·CRANKSHAFT
 POSITION SENSOR
·ENGINE COOLANT
 TEMPERATURE SENSOR
·FUEL TANK DIFFERENTIAL
 PRESSURE SENSOR
·HEATED OXGEN SENSOR

·IGNITION SWITCH (ST)
·INTAKE AIR
 TEMPERATURE SENSOR
·KNOCK SENSOR
·MANIFOLD ABSOLUTE
 PRESSURE SENSOR
·MASS AIRFLOW
 SENSOR
·THROTTLE POSITION
 SENSOR

IGNITION SYSTEM

CIRCUIT DIAGRAMS

90-31

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE

ETACS-ECU

CAN DRIVE
CIRCUIT

INTERFACE
CIRCUIT

ANALOG
INTERFACE
CIRCUIT

ANALOG
INTERFACE
CIRCUIT

ENGINE
CONTROL
MODULE

INPUT SIGNAL

·OUTPUT SHAFT SPEED
 SENSOR
·TRANSMISSION RANGE
 SWITCH (N)

TRANSMISSION
CONTROL
MODULE

IGNITION SYSTEM

CIRCUIT DIAGRAMS

90-32

IGNITION SYSTEM (CONTINUED)

SPARK
PLUG

IGNITION
COIL 2

IGNITION
COIL 4

IGNITION
COIL 6

SPARK
PLUG

SPARK
PLUG

RELAY BOX

(FUSE     )

21

RELAY BOX

(FUSE     )

21

RELAY BOX

(FUSE     )

21
