Mitsubishi Outlander XL. Manual - part 70

DASH PANEL

CONFIGURATION DIAGRAMS

80A-15

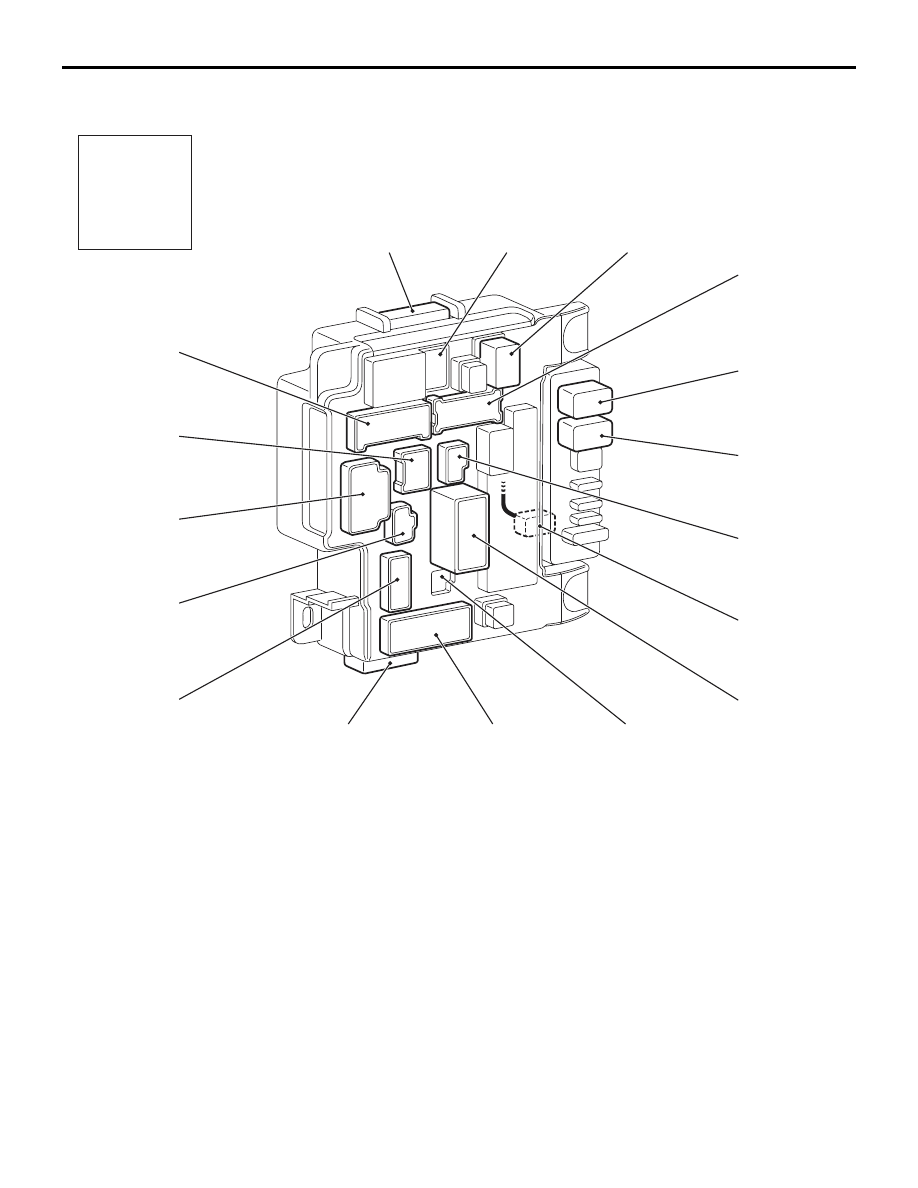

DASH PANEL (CONTINUED)

ZC6003270000

Connector
symbol

-301
thru
-317

C-301

C-302

C-303

ETACS-ECU

C-304

C-305

C-306

C-307

C-308

C-309

C-310

C-311

C-312

C-313

C-314

C-315

C-316

C-317

C-301 (24)

Instrument panel wiring harness and
ETACS-ECU combination

C-302 (4)

No connection

C-303 (4)

Blower relay

C-304 (16)

Front wiring harness and ETACS-ECU
combination

C-305 (4)

Heated seat relay

C-306 (4)

Rear window defogger relay

C-307 (2-B)

Front wiring harness and ETACS-ECU
combination

C-308 (1-GR)

Instrument panel wiring harness and
ETACS-ECU combination

C-309 (2-B)

Front wiring harness and ETACS-ECU
combination

C-310 (4)

No connection

C-311 (20)

Floor wiring harness and ETACS-ECU
combination

C-312 (16)

Front wiring harness and ETACS-ECU
combination

C-313 (16-BR) Floor wiring harness and ETACS-ECU

combination

C-314 (2)

Floor wiring harness and ETACS-ECU
combination

C-315 (19)

Instrument panel wiring harness and
ETACS-ECU combination

C-316 (6)

Roof wiring harness and ETACS-ECU
combination

C-317 (15)

Instrument panel wiring harness and
ETACS-ECU combination

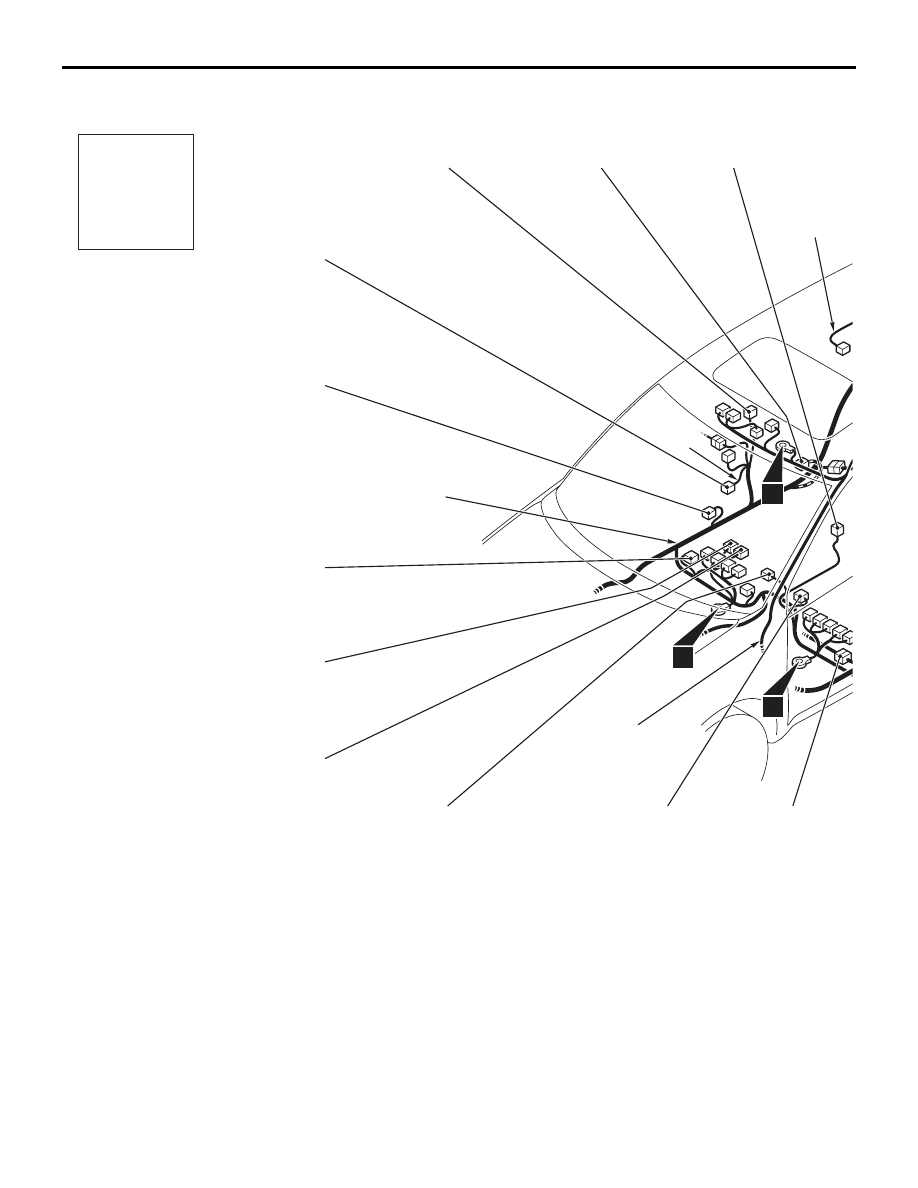

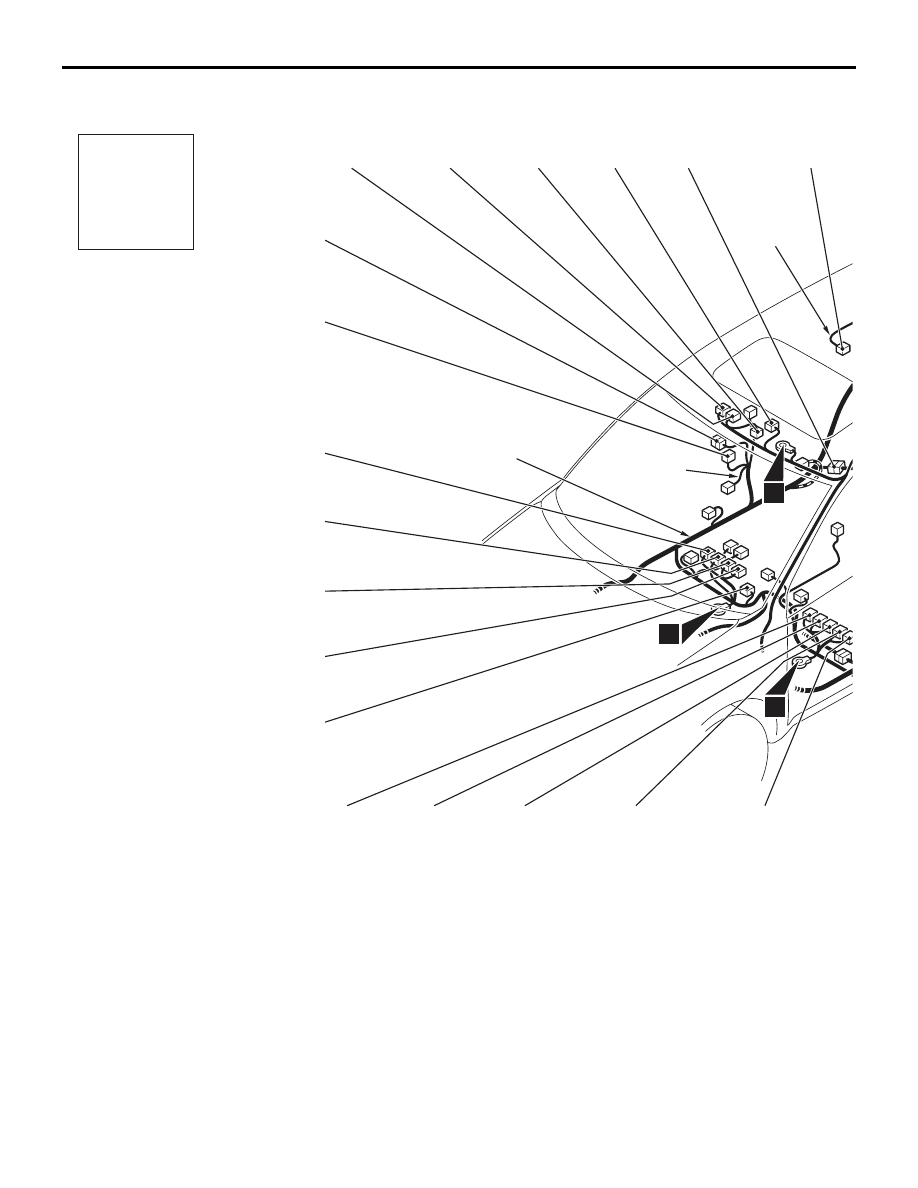

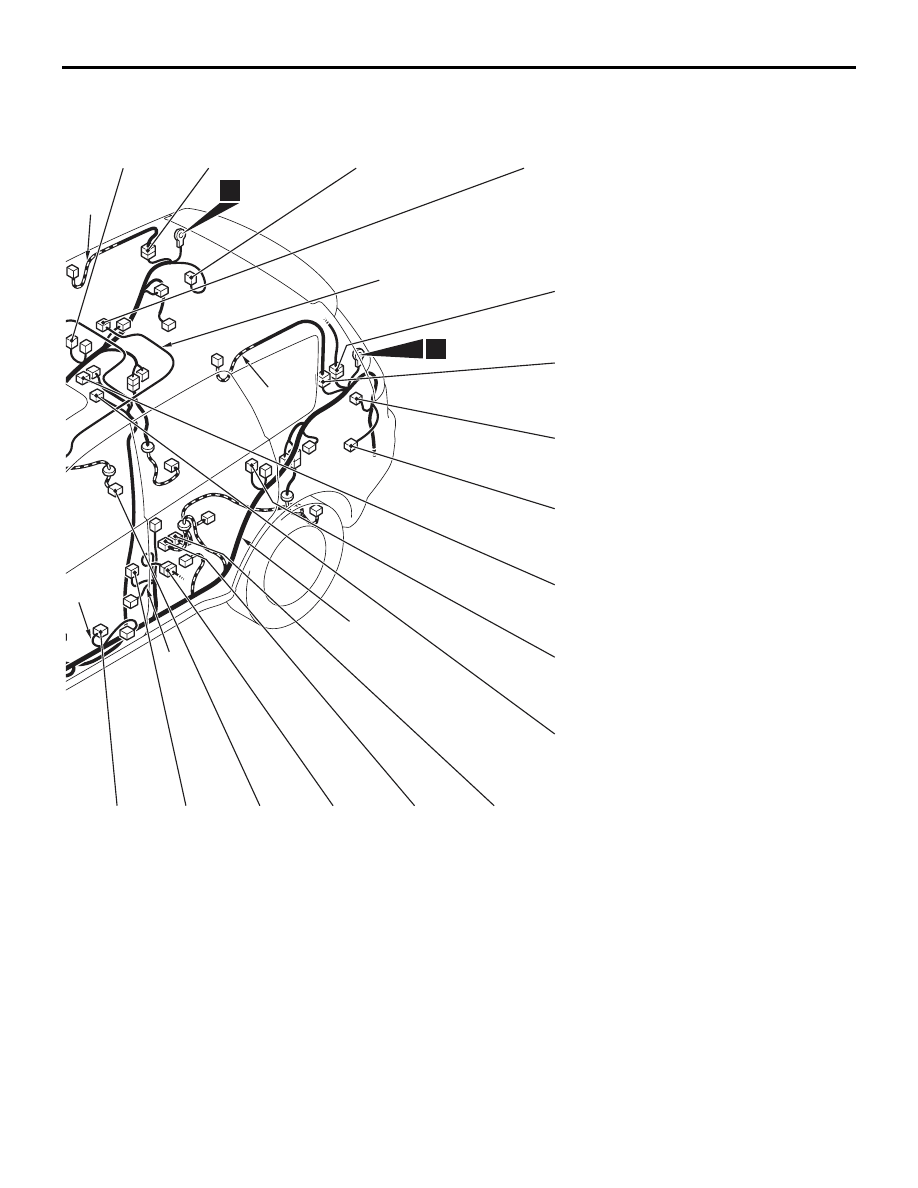

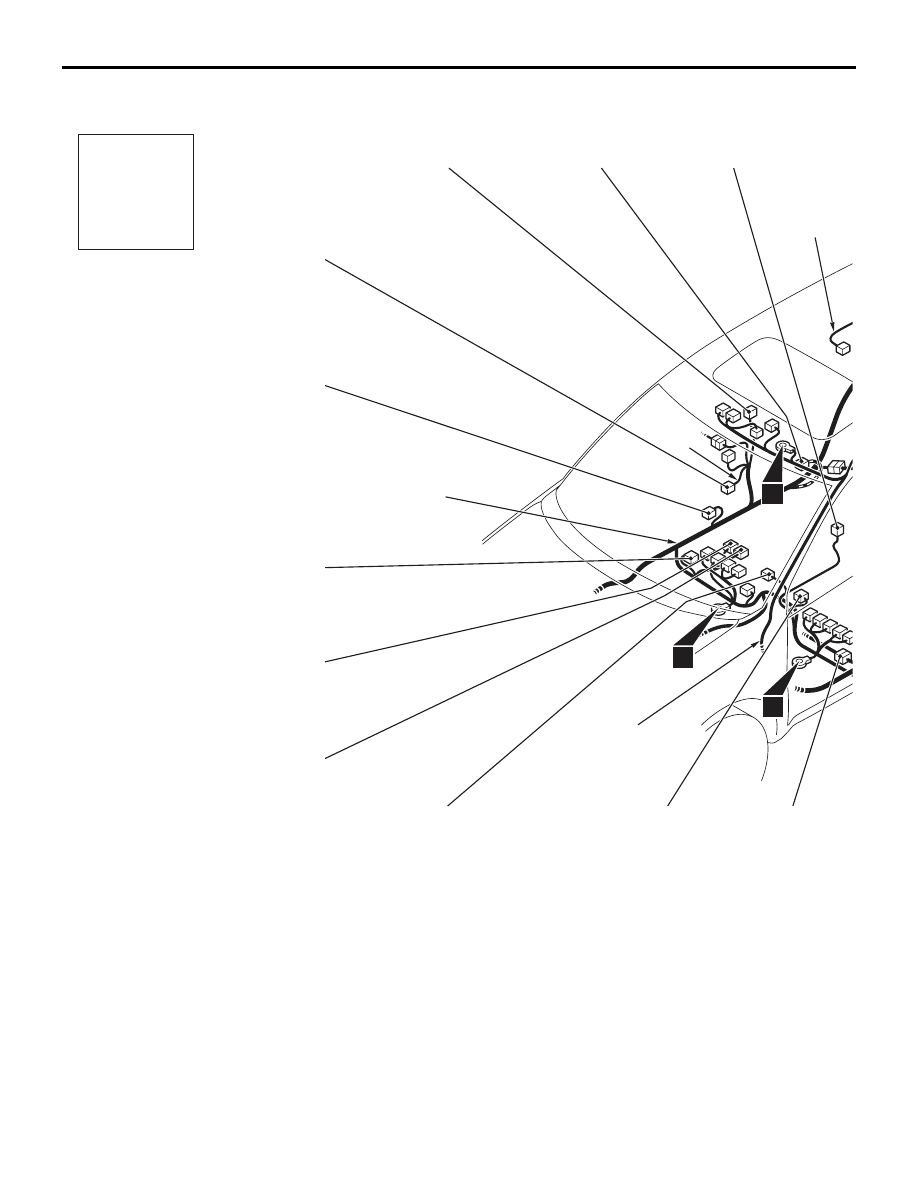

FLOOR AND ROOF

CONFIGURATION DIAGRAMS

80A-16

FLOOR AND ROOF

Connector
symbol

-01
thru
-36

D-01

D-02

D-03

D-04

D-05

D-06

D-25

D-26

D-27

D-28

D-29

D-30

D-31

D-32

D-33

D-34

D-35

D-36

Rear display
wiring harness

Floor
wiring harness

Connector color
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

D-01

(3)

Microphone unit

D-02

(3)

Front dome light

D-03

(6-B)

Sunroof switch

D-04

(10-GR) Sunroof motor assembly

D-05

(2)

Floor wiring harness and fuel wiring
harness combination

D-06

(22-L)

Rear display unit

D-07

(3)

Rear door switch (RH)

D-08

(2-Y)

Floor wiring harness and curtain air
bag wiring harness (RH) combination

D-09

(4)

Rear combination light (RH)

D-10

(2-GR)

Rear dome light

D-12

(14)

Floor wiring harness and liftgate wiring
harness combination

D-13

(2-Y)

Floor wiring harness and curtain air
bag wiring harness (LH) combination

D-14

(4)

Rear combination light (LH)

D-15

(4-B)

Sub woofer

D-16

(10)

Rear display unit

D-17

(3)

Rear door switch (LH)

D-18

(4)

Spare connector (for rear display)

FLOOR AND ROOF

CONFIGURATION DIAGRAMS

80A-17

ZC600328

ZC6003280000

D-07

D-08

D-09

D-10

D-12

D-13

D-14

D-15

D-16

D-17

D-18

D-19

D-20

D-21

D-22

D-23

D-24

Floor wiring
harness

Roof wiring
harness

D-19

(3-B)

Fuel tank differential pressure sensor

D-20

(5-GR)

Fuel pump module

D-21

(10)

Floor wiring harness and rear door
wiring harness (LH) combination

D-22

(2)

Fuel level sensor (sub)

D-23

(3)

Front door switch (LH)

D-24

(2-B)

Lap pre-tensioner

D-25

(2)

Power seat assembly

D-26

(4-B)

Heated seat assembly (LH)

D-27

(2-GR)

Seat slide sensor

D-28

(4-B)

Seat belt switch (Driver's side)

D-29

(2-Y)

Side-airbag module (squib) (LH)

D-30

(4-B)

Center exhaust pipe heated oxygen
sensor

D-31

(2-Y)

Side-airbag module (squib) (RH)

D-32

(2-B)

Seat belt switch (Passenger's side)

D-33

(4-B)

Heated seat assembly (RH)

D-34

(6)

Occupant classification-ECU

D-35

(3)

Front door switch (RH)

D-36

(10)

Floor wiring harness and rear door
wiring harness (RH) combination

FLOOR AND ROOF

CONFIGURATION DIAGRAMS

80A-18

FLOOR AND ROOF (CONTINUED)

Connector
symbol

-101
thru
-133

D-101

D-102

D-103

D-123

D-124

D-125

D-126

D-127

D-128

D-129

D-130

Rear display
wiring harness

Roof wiring
harness

Floor
wiring
harness

Connector color
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

D-101 (3)

Outside transmission antenna
assembly (Passenger's side)

D-102 (6-B)

Foot light (RH)

D-103 (3)

AC outlet

D-104 (2-B)

Curtain air bag module (squib) (RH)

D-105 (10)

Spare connector (for switch box)

D-106 (3)

Inside transmission antenna assembly
(Rear: Passenger's side)

D-108 (2)

Accessory socket 1

D-109 (2-B)

Curtain air bag module (squib) (LH)

D-112 (3)

Inside transmission antenna assembly
(Rear: Driver's side)

D-113 (4)

Floor wiring harness and evaporative
emission ventilation solenoid sub
wiring harness combination

D-114 (2-B)

Rear wheel speed sensor (LH)

D-115 (4-Y)

Side impact sensor (Rear: LH)

D-116 (2-B)

Evaporative emission ventilation
solenoid

D-117 (3)

Floor wiring harness and rear height
sensor sub wiring harness
combination <Headlight automatic
leveling system>
