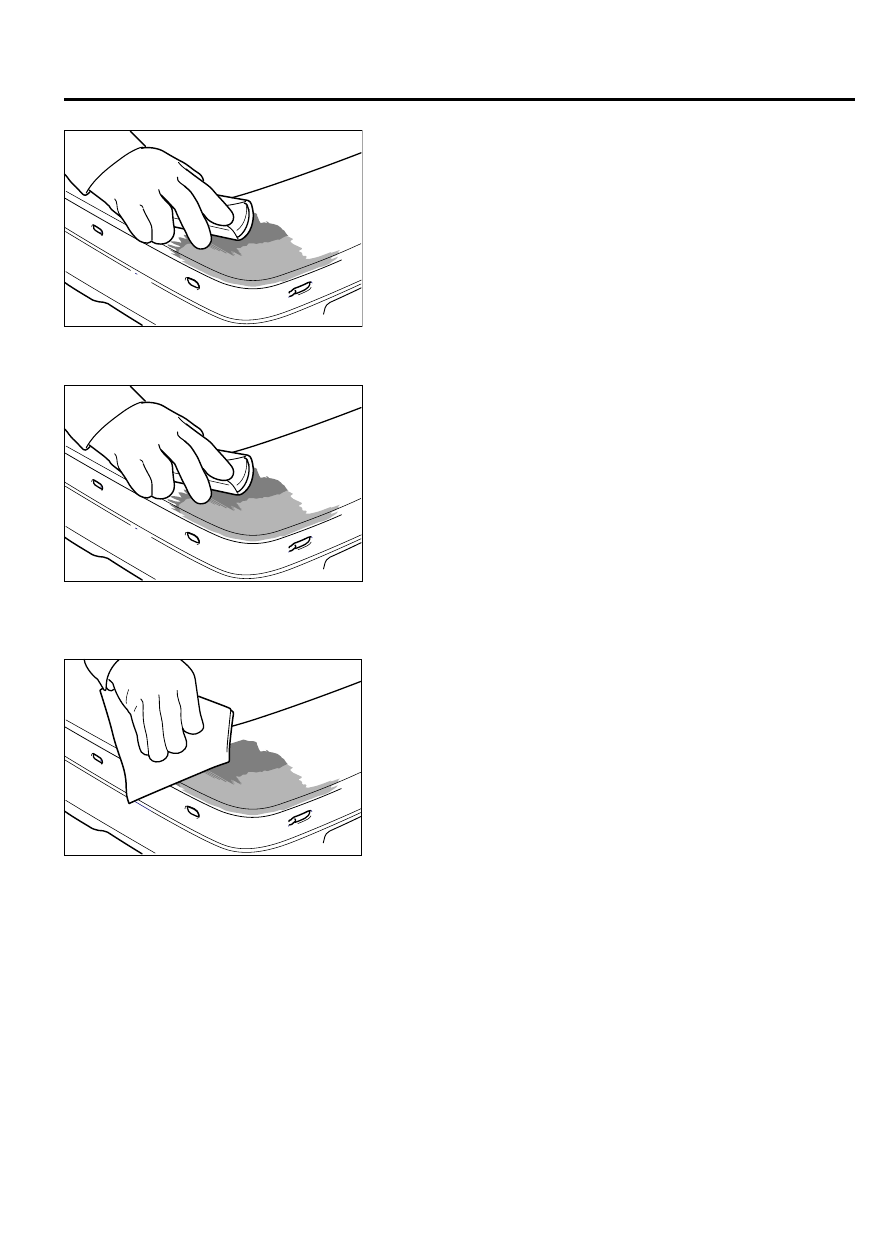

8. Surface grinding

ZB6002860000

After drying, grind with a sandpaper #120.

9. Surface preparation for primer-surfacer

ZB6002860000

Grind with a sandpaper #180 to #240. Grind the primer-surfacer
application  area  as  a  surface  preparation  for  painting.  In
addition, remove the grind mark.



10. Cleaning and degreasing

ZB6002870000

Using SU Silicone Off, degrease and wipe off completely.

11. Masking
To avoid splashing of primer-surfacer during the coating, apply
masking.

Masking: Masking paper tape
Brand: 3M™ Scotch Block Masking Paper or equivalent

BASE OF BODY REPAIR

9-47

REPAIR OF SYNTHETIC-RESIN PARTS

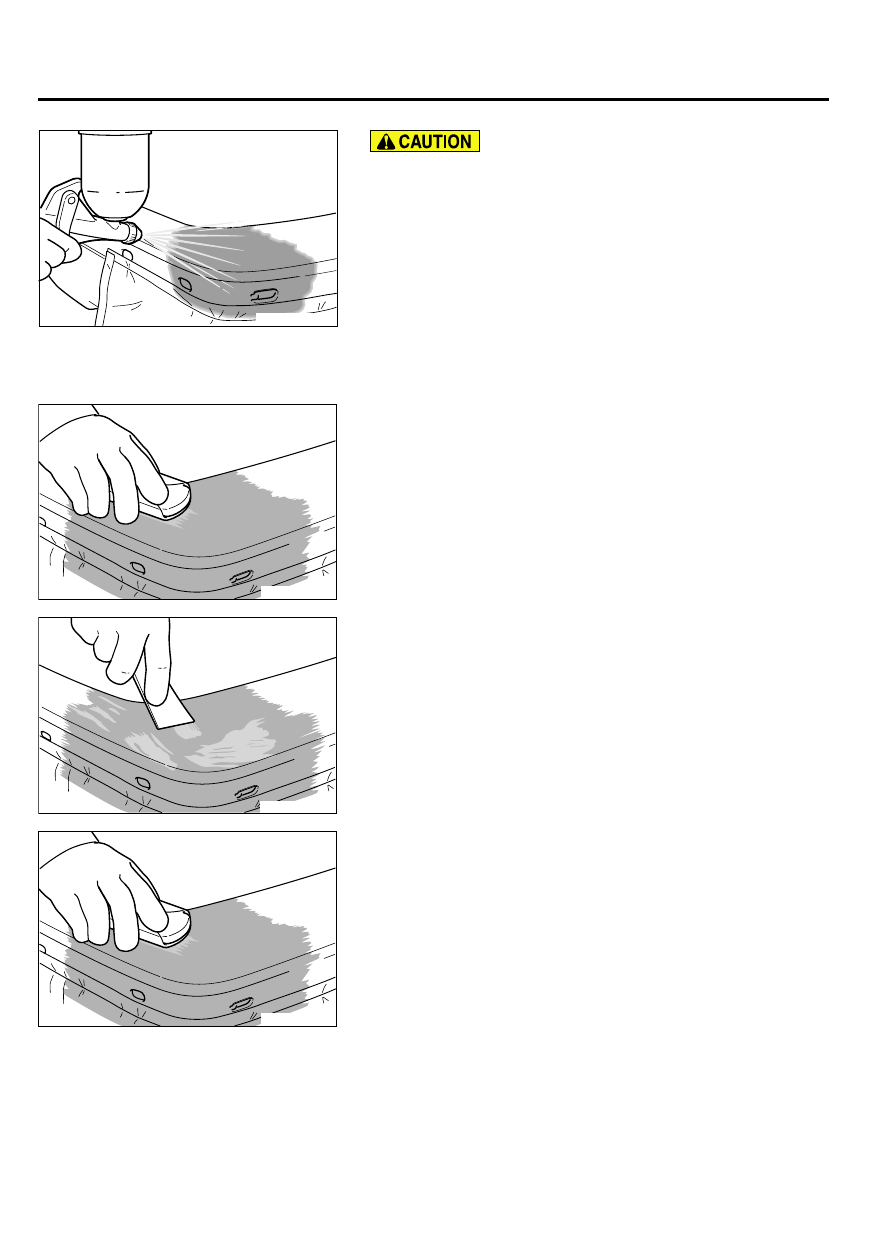

12. Primer-surfacer coating

ZB6002880000

｠

If an excessive amount is applied at a time, or force-dried
in a short time, the coating film may crack.

｠

For color separation, use masking tape.

While taking flash off time, apply 1 to 3 times of double coating,
using a spray gun.



13. Primer-surfacer grinding

ZB600289 0000

1.

Grind the base surface with a sandpaper #240 to #320.

ZB600290 0000

2.

Apply  the  putty  to  cover  pinholes,  grind  marks,  and  slight
distortion. Do not apply an excessive amount at a time. Repeat
application of small amount, taking a drying time.

ZB600289 0000

3.

Grind with a sandpaper #240 to #320. If the PP base surface
is exposed, apply PP primer.

Primer : PP primer
Brand : 3M™ Automix Polyolefin Adhesion Promoter
5907 or equivalent

9-48

BASE OF BODY REPAIR

REPAIR OF SYNTHETIC-RESIN PARTS

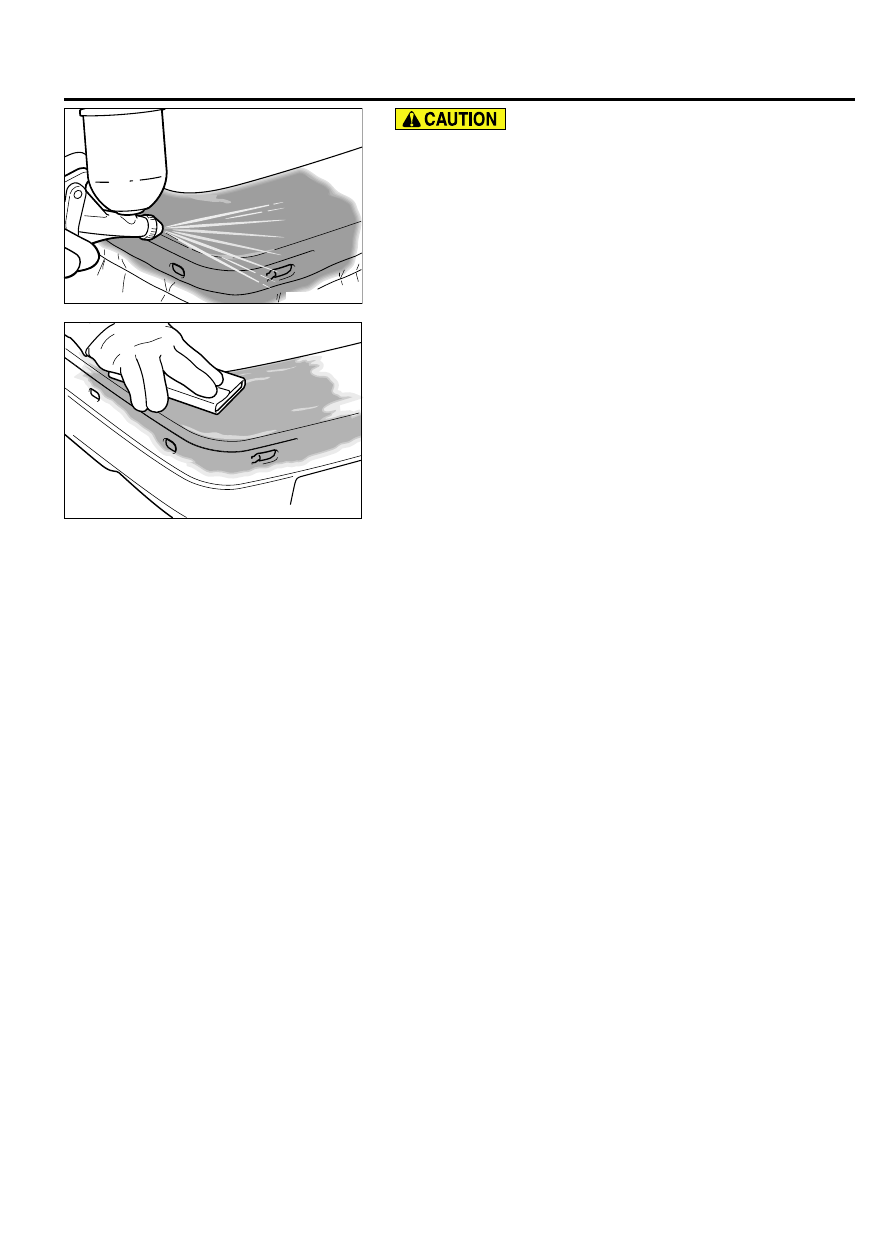

ZB600291 0000

If an excessive amount is applied at a time, or force-dried in
a short time, the coating film may crack.

4.

While taking flash off time, apply 1 to 3 times of double coating,
using a spray gun.

ZB6002920000

5.

Dry sand with a sandpaper #240 to #300 or finer. Then, as a
surface  preparation  for  painting,  grind  lightly  so  as  not  to
expose the base surface. Finally, use a sandpaper #600 (#800
for dark color coating) or finer to remove grind marks.

BASE OF BODY REPAIR

9-49

REPAIR OF SYNTHETIC-RESIN PARTS
