MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-833

STEP 1. Check harness connector B-16 at engine oil
pressure switch and harness connector B-10 at ECM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 2.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then confirm that the

malfunction symptom is eliminated.

STEP 2. Measure the power supply voltage at engine oil
pressure switch connector B-16.
(1) Disconnect the connector B-16 measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal No. 1 and ground.

• The voltage should equal battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts)

present?
YES : Go to Step 5.
NO :  Go to Step 3.

1

AK700522AB

B-16 harness
connector:
component side

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-834

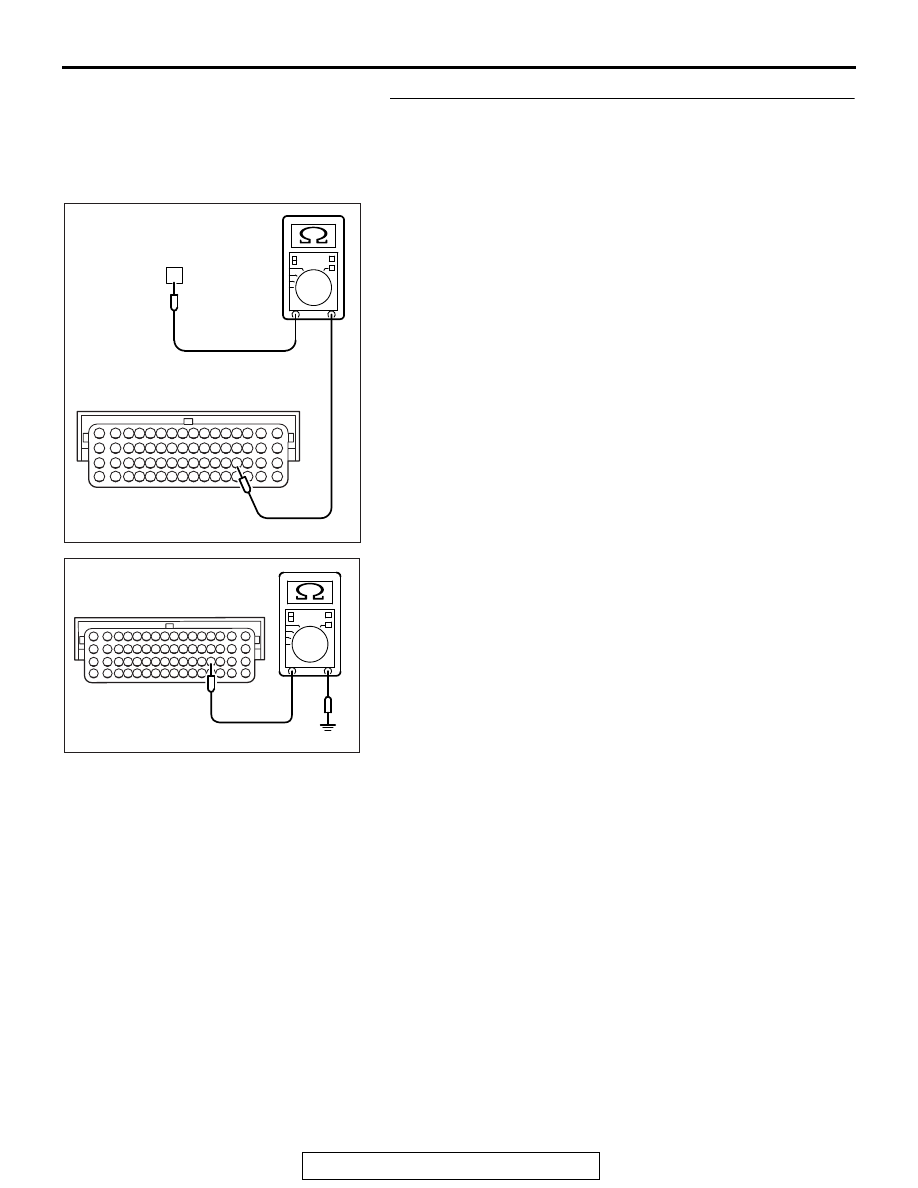

STEP 3. Check for open circuit or short circuit to ground or
harness damage between engine oil pressure switch
connector B-16 and ECM connector B-10.
(1) Disconnect the connector B-16 and B-10 measure at the

harness side.

(2) Measure the resistance between connector B-16 (terminal

No. 1) and connector B-10 (terminal No. 36).

• Should be less than 2 ohms.

(3) Check for the continuity between connector B-10 (terminal

No. 36) and ground.

• Not continuity.

Q: Is the harness wire in good condition?

YES : Then go to Step 4.
NO :  Repair it. Then confirm that the malfunction symptom

is eliminated.

16 15 14 13 12 11 10 9 8 7 6 5 4 3

2

1

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

1

AK700523AB

B-16 harness connector:
component side

B-10 harness connector:
component side

AK700524

16 15 14 13 12 11 10 9 8 7 6 5 4 3

2

1

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

AB

B-10 harness
connector:
component side

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-835

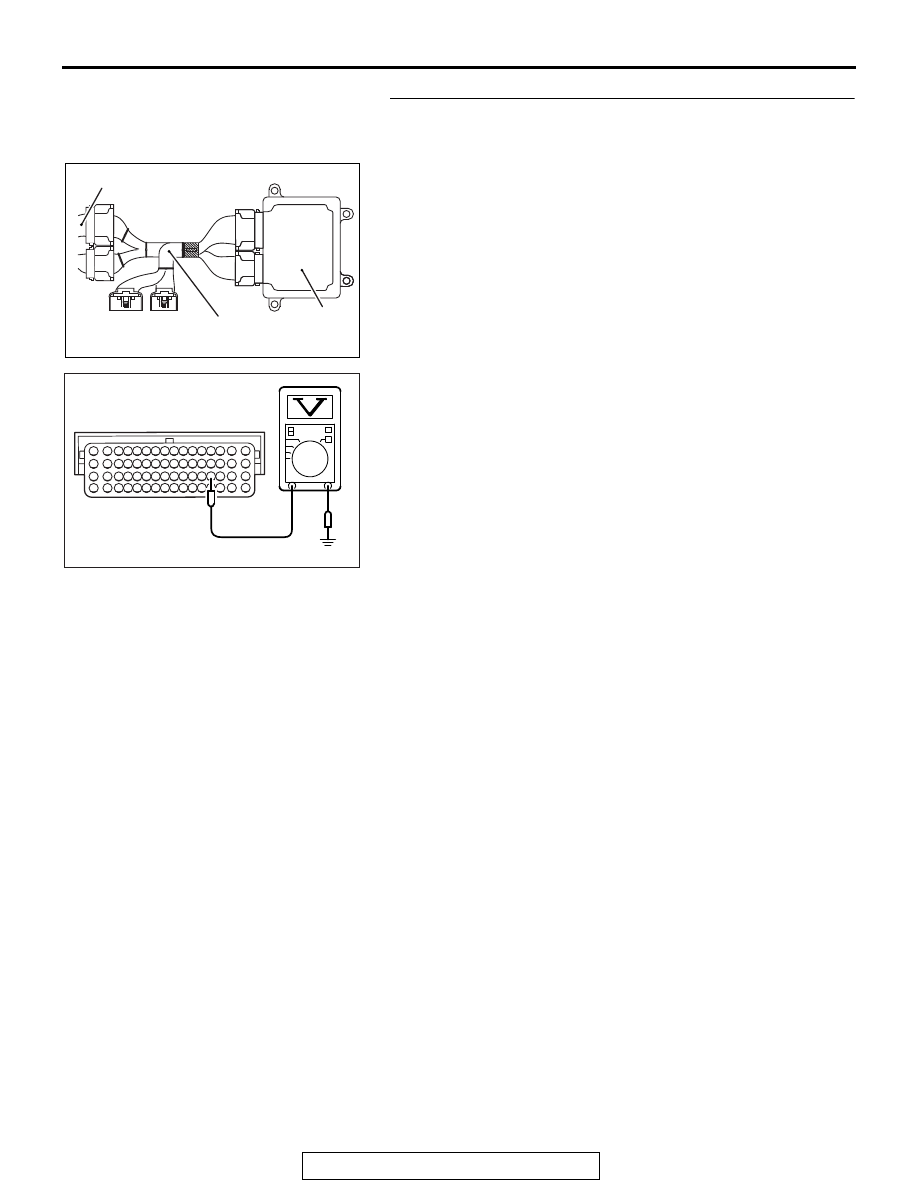

STEP 4. Measure the voltage at ECM connector B-10 by
using power plant ECU check harness special tool
MB992110.
(1) Disconnect all ECM connectors. Connect the power plant

ECU check harness special tool MB992110 between the
separated connectors.

(2) Measure the voltage between terminal No. 36 and ground.

OK:
1 V or less (ignition switch: ON)
System voltage (during idling)

Q:

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-15

.

NO :  Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, Diagnosis
− ID Codes Registration Judgment Table <Vehicles

with KOS>

P.42B-15

 or GROUP 42C, Diagnosis

− ID

Codes Registration Judgment Table <Vehicles with
WCM>

P.42C-10

.

AK700249

ECM

AB

Body side harness

MB992110

AK700525

16 15 14 13 12 11 10 9 8 7 6 5 4 3

2

1

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

AB

Special tool 64-pin
connector:
component side

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-836

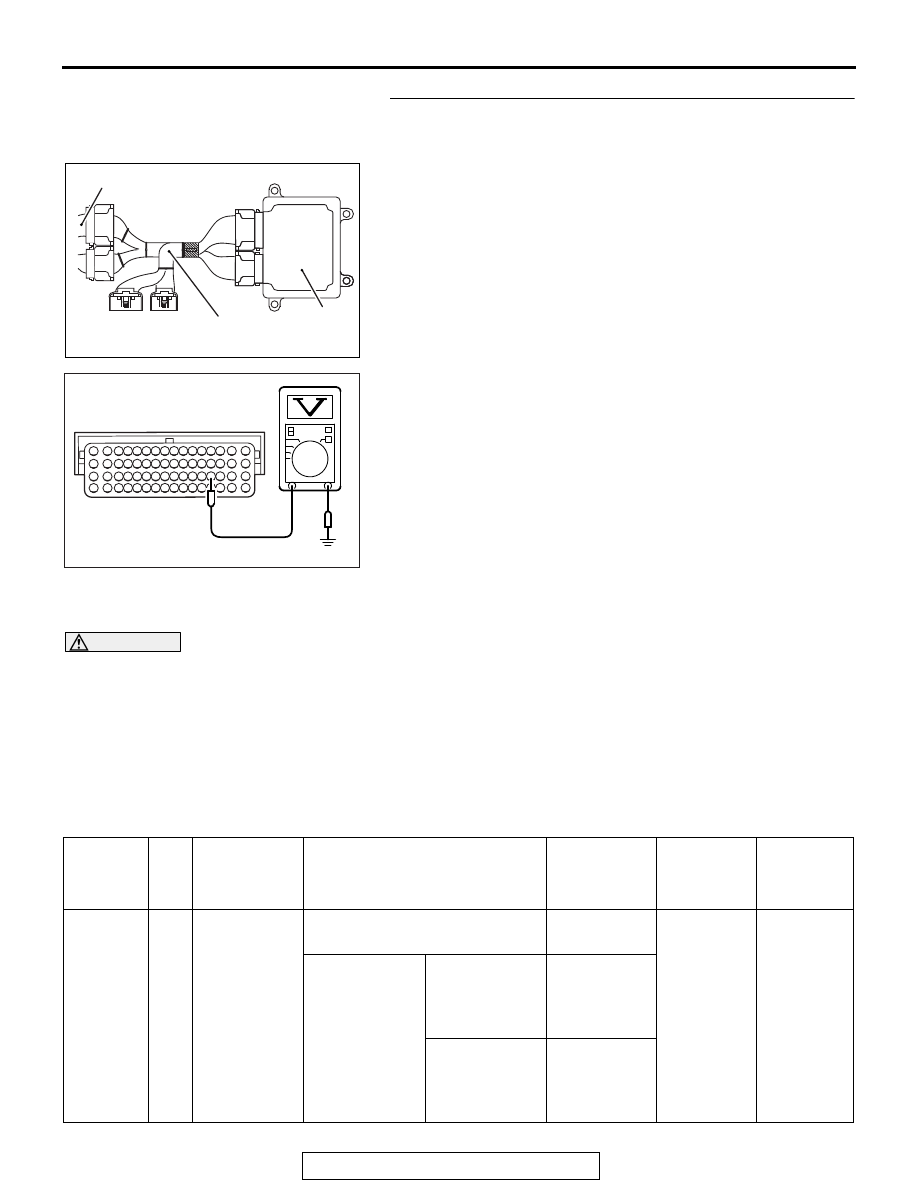

STEP 5. Measure the voltage at ECM connector B-10 by
using power plant ECU check harness special tool
MB992110.
(1) Disconnect all ECM connectors. Connect the power plant

ECU check harness special tool MB992110 between the
separated connectors.

(2) Measure the voltage between terminal No. 36 and ground.

OK:
1 V or less (ignition switch: ON)
System voltage (during idling)

Q:

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-15

.

NO :  Replace the engine oil pressure switch. Then confirm

that the malfunction symptom is eliminated.

DATA LIST REFERENCE TABLE

M1131152004469

CAUTION

• When shifting the selector lever to D range,

the brakes should be applied so that the vehi-
cle does not move forward.

• Driving tests always need two persons: one

driver and one observer.

NOTE: *

1

: In a new vehicle [driven approximately

500 km (311 mile) or less], the mass airflow sensor
output value is sometimes 10% higher than the stan-
dard value.

NOTE: *

2

: The injector drive time represents the time

when the cranking speed is at 250 r/min or below
when the power supply voltage is 11 volts.
NOTE: *

3

: In a new vehicle [driven approximately

500 km (311 mile) or less], the injector drive time is
sometimes 10% longer than the standard time.
NOTE: *

4

: Vehicles for Canada, the headlight, tail-

light, etc. remain lit even when the lighting switch is
in "OFF" position but this is no problem for checks.

AK700249

ECM

AB

Body side harness

MB992110

AK700525

16 15 14 13 12 11 10 9 8 7 6 5 4 3

2

1

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

AB

Special tool 64-pin
connector:
component side

M.U.T.-III
SCAN
TOOL
DISPLAY

ITEM
NO.

INSPECTION
ITEM

INSPECTION REQUIREMENT

NORMAL
CONDITION

INSPECTION
PROCEDURE
NO.

REFERENCE
PAGE

A/C
compress
or relay

93

A/C
compressor
clutch relay

• Engine: warming up, idling

• A/C switch: "OFF"

OFF

Procedure
No. 25

P.13B-829

• Engine:

warming up,
idling

• A/C switch:

"ON"

A/C
compressor
clutch is not
operating

OFF

A/C
compressor
clutch is
operating

ON
