MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-777

• MB991827: USB Cable

• MB991910: Main Harness A

STEP 1. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Read the DTC.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is any DTC set?

YES : Refer to Diagnostic Trouble Code Chart

P.13B-50

.

NO :  Go to Step 2.

STEP 2. Using scan tool MB991958, check data list.
(1) Turn the ignition switch to the "ON" position.
(2) Check the following item in the data list. Refer to Data List

Reference Table

P.13B-836

.

a. Item 6: Engine Coolant Temperature Sensor.
b. Item 11: Accelerator pedal position sensor (main)

c. Item 12: Accelerator pedal position sensor (sub)

d. Item 76: A/C switch
e. Item 83: Power steering pressure switch

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : Refer to GROUP 17, Emission Control

− Evaporative

Emission Control System

− Evaporative Emission

Purge Solenoid Check

P.17-78

.

NO :  Repair or replace it. Then confirm that the malfunction

symptom is eliminated.

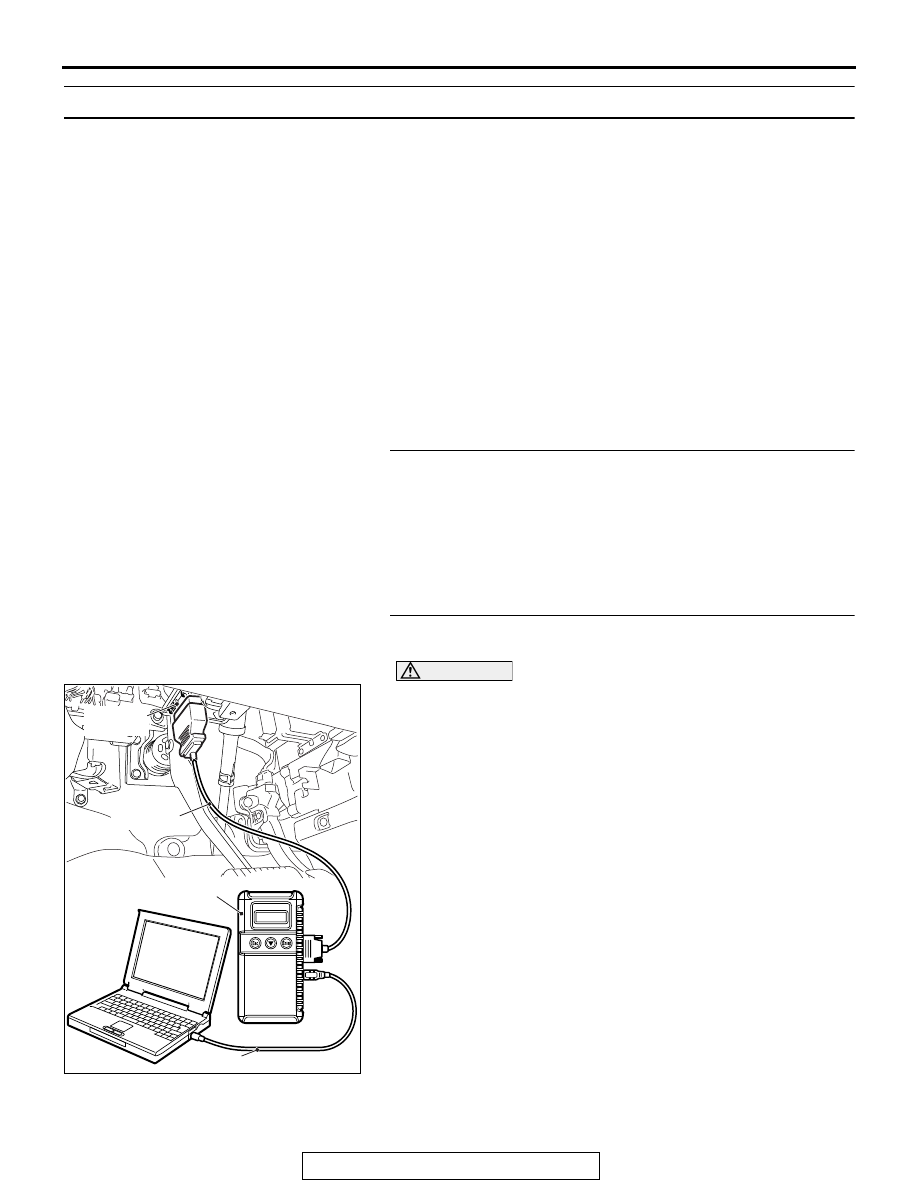

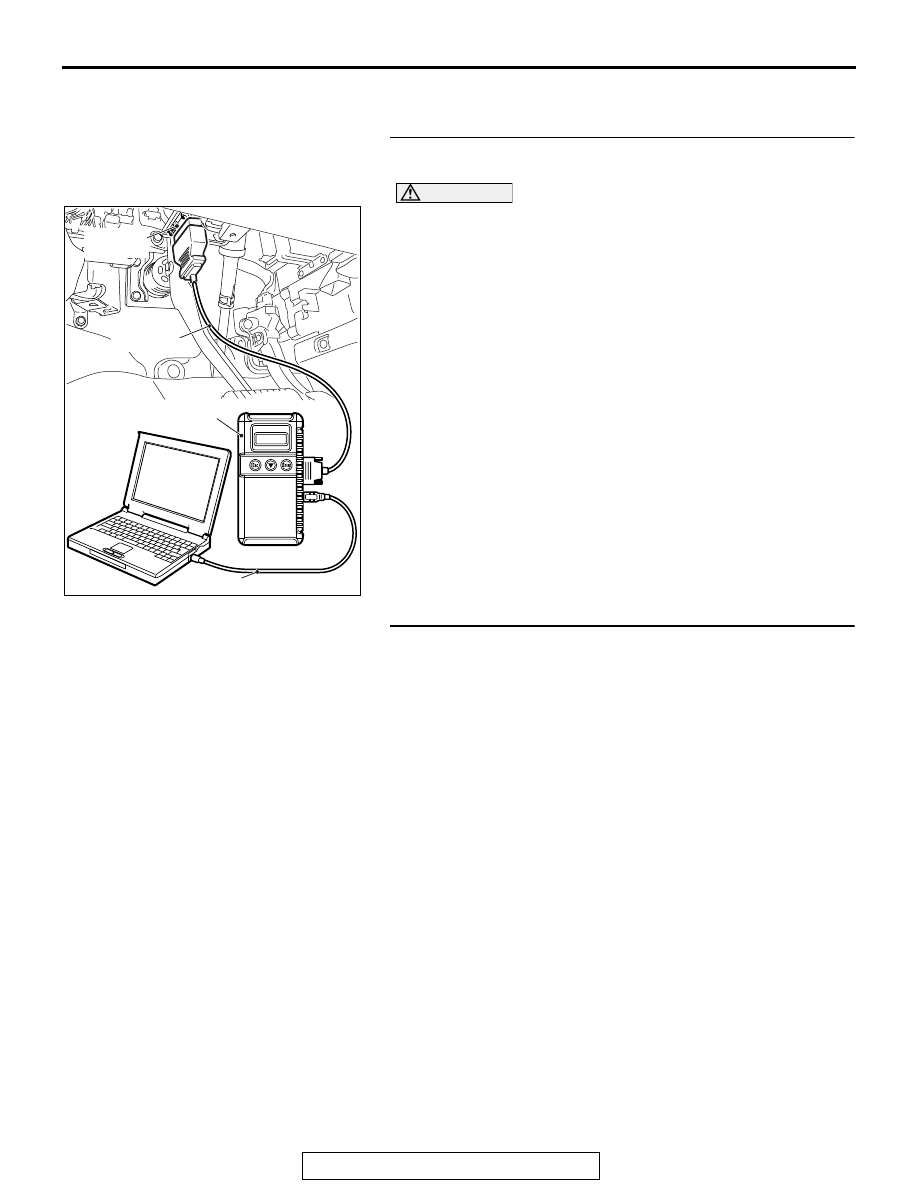

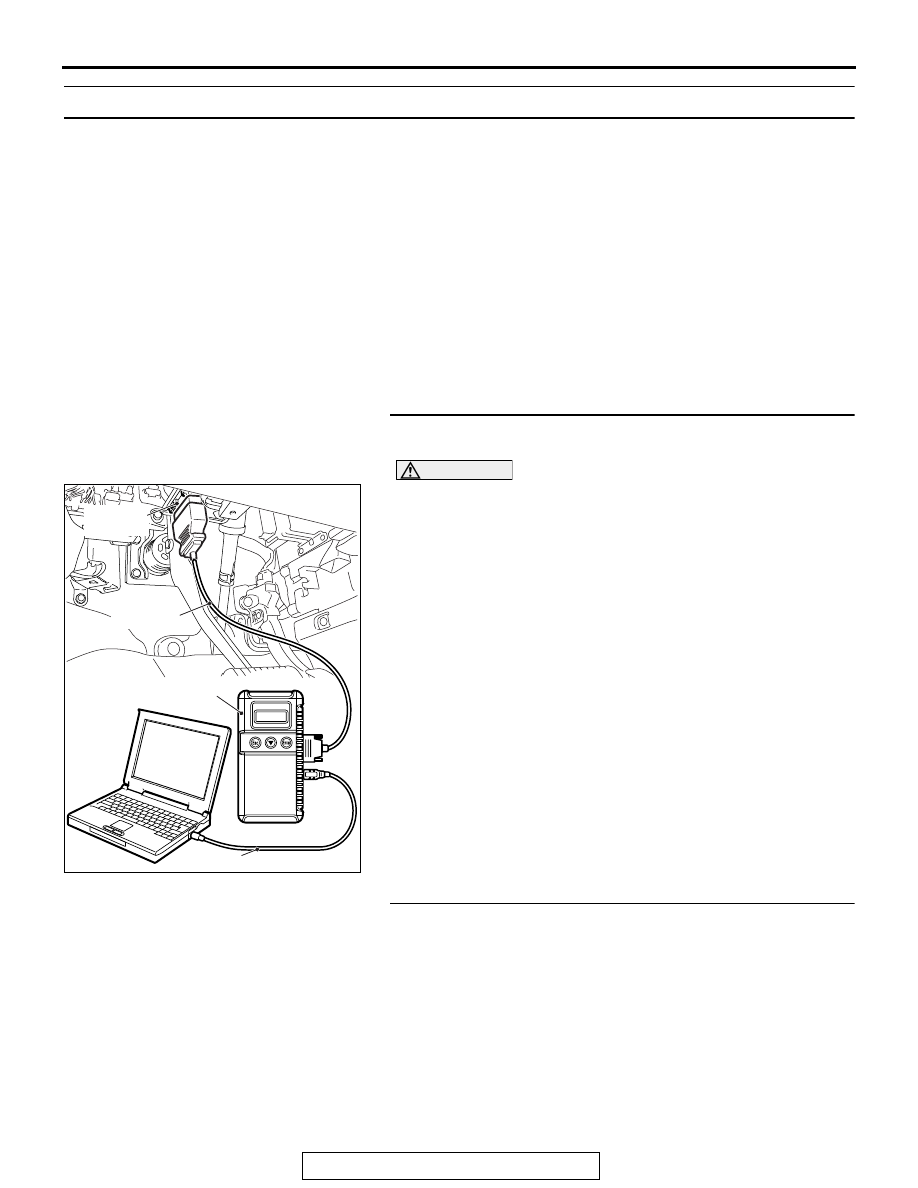

AK700568AB

MB991824

MB991827

MB991910

Data link
connector

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-778

INSPECTION PROCEDURE 9: Idle Speed Is Low (improper idle speed).

.

COMMENT

• In cases such as the above, the cause is proba-

bly that the intake air volume during idle is too
small.

.

TROUBLESHOOTING HINTS (The most
likely causes for this case:)

• Malfunction of the engine coolant temperature

sensor signal.

• Malfunction of the torque converter.

• Malfunction of the ECM.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

STEP 1. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Read the DTC.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is any DTC set?

YES : Refer to Diagnostic Trouble Code Chart

P.13B-50

.

NO :  Go to Step 2.

STEP 2. Using scan tool MB991958, check data list.
(1) Turn the ignition switch to the "ON" position.
(2) Check the following item in the data list. Refer to Data List

Reference Table

P.13B-836

.

a. Item 6: Engine Coolant Temperature Sensor.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : Refer to GROUP 23C, Automatic Transaxle

Diagnosis

− Torque Converter Stall Test

P.23C-24

.

NO :  Repair or replace it. Then confirm that the malfunction

symptom is eliminated.

AK700568AB

MB991824

MB991827

MB991910

Data link
connector

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-779

INSPECTION PROCEDURE 10: When the engine is cold, it stalls at idle (die out).

.

COMMENT

• In such cases as the above, the air/fuel mixture

may be inappropriate when the engine is cold.

.

TROUBLESHOOTING HINTS (The most
likely causes for this case:)

• Malfunction of the fuel pump system.

• Malfunction of the ignition system.

• Poor compression

• Malfunction of the EGR system

• Improper operation of the PCV valve.

• Improper engine oil viscosity

• Malfunction of the ECM.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

STEP 1. Check if the EGR valve sounds during
initialization.
Q: Is the initialization sound heard in the EGR valve?

YES : Go to Step 2.
NO :  Refer to GROUP 17, Emission Control

− Exhaust Gas

Recirculation (EGR) System

− EGR Valve (Stepper

Motor) Check

P.17-81

.

STEP 2. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Read the DTC.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is any DTC set?

YES : Refer to Diagnostic Trouble Code Chart

P.13B-50

.

NO :  Go to Step 3.

AK700568AB

MB991824

MB991827

MB991910

Data link
connector

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-780

STEP 3. Using scan tool MB991958, check actuator test.
(1) Turn the ignition switch to the "ON" position.
(2) Check following items in the actuator test. Refer to Actuator

Test Reference Table

P.13B-858

.

a. Item 1: Injector.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Are they operating properly?

YES : Go to Step 4.
NO :  Repair or replace it. Then confirm that the malfunction

symptom is eliminated.

STEP 4. Using scan tool MB991958, check data list.
(1) Turn the ignition switch to the "ON" position.
(2) Check the following items in the data list. Refer to Data List

Reference Table

P.13B-836

.

a. Item 6: Engine Coolant Temperature Sensor.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : Go to Step 5.
NO :  Repair or replace it. Then confirm that the malfunction

symptom is eliminated.

STEP 5. Check the ignition timing.
Refer to GROUP 11C, On-vehicle Service

− Ignition Timing

Check

P.11C-13

.

Q: Is the ignition timing normal?

YES : Go to Step 6.
NO :  Check for installed conditions of the timing belt. Then

confirm that the malfunction symptom is eliminated.

STEP 6. Check the fuel pressure.
Refer to On-vehicle Service

− Fuel Pressure Test

P.13B-883

.

Q: Is the fuel pressure normal?

YES : Go to Step 7.
NO :  Repair or replace it. Then confirm that the malfunction

symptom is eliminated.

STEP 7. Check the spark plugs.
Refer to GROUP 16, Ignition System

− On-vehicle Service −

Spark Plug Check And Cleaning

P.16-45

.

Q: Are there any abnormalities?

YES : Replace the spark plug. Then confirm that the

malfunction symptom is eliminated.

NO :  Go to Step 8.
