MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-249

STEP 4. Check the trouble symptoms.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Pattern 21

P.13B-11

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0137 set?

YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, Diagnosis
− ID Codes Registration Judgment Table <Vehicles

with KOS>

P.42B-15

 or GROUP 42C, Diagnosis

− ID

Codes Registration Judgment Table <Vehicles with
WCM>

P.42C-10

. Then go to Step 5.

NO :   It can be assumed that this malfunction is

intermittent. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-15

.

STEP 5. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Pattern 21

P.13B-11

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0137 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-250

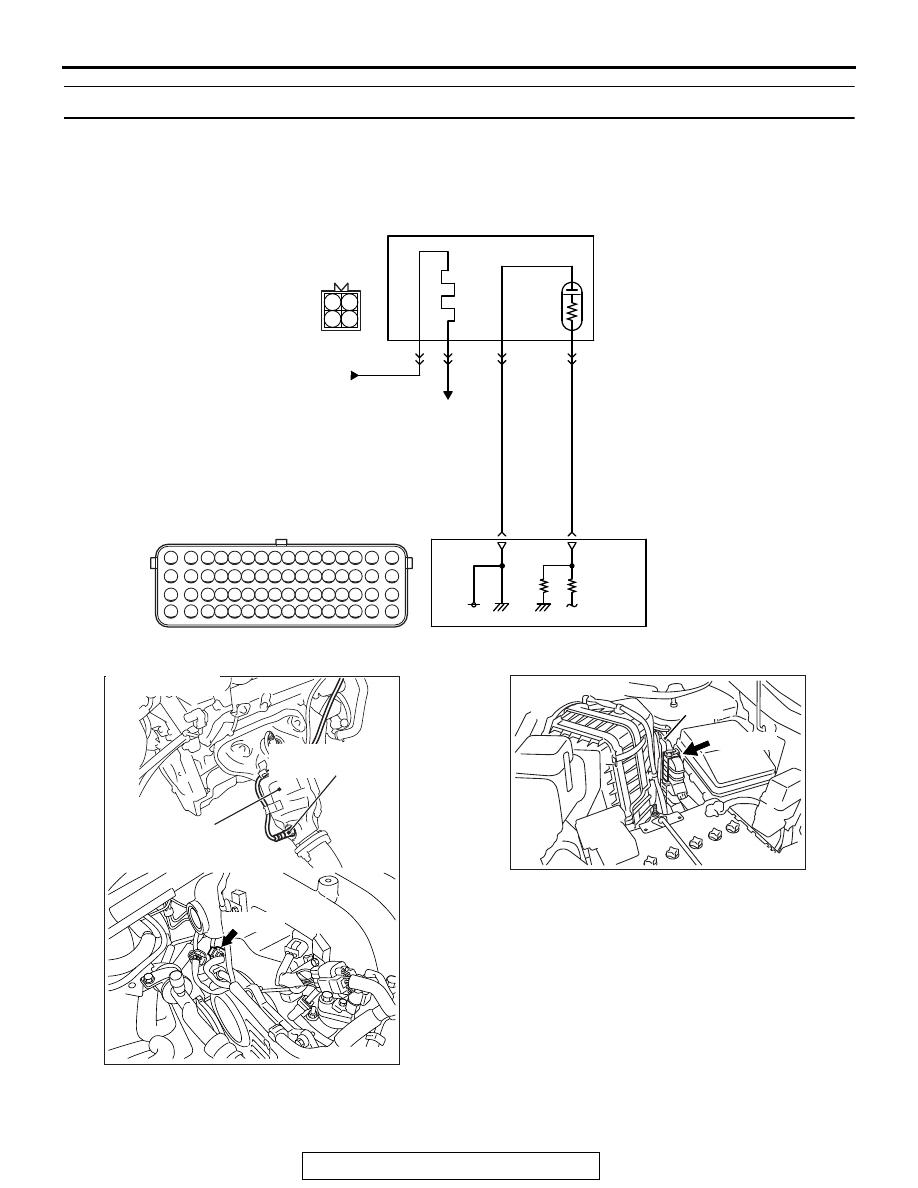

DTC P0138: Heated Oxygen Sensor Circuit High Voltage (bank 1, sensor 2)

.

AK700139

1

2

3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

2

1

4

3

AB

1

2

3

4

57

PINK

LIGHT GREEN

56

B-10

B-02

MU802605

FROM MFI RELAY

0.5 V

ENGINE
CONTROL
MODULE

TO ECM

RIGHT BANK HEATED OXYGEN SENSOR (REAR) CIRCUIT

RIGHT BANK HEATED
OXYGEN SENSOR (REAR)

AK900130AD

Right bank heated
oxygen sensor (rear)

Front exhaust
pipe RH

B-02 (B)

Connector: B-02

AK700401AB

ECM

B-10 (GR)

Connector: B-10

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-251

CIRCUIT OPERATION

• A voltage corresponding to the oxygen concen-

tration in the exhaust gas is sent to the ECM (ter-
minal No. 56) from the output terminal (terminal
No. 4) of the right bank heated oxygen sensor
(rear).

• Terminal No. 2 of the right bank heated oxygen

sensor (rear) is grounded with ECM (terminal No.
57).

• The ECM applies an offset voltage of 0.5 volt to

terminal No. 2 of the right bank heated oxygen
sensor (rear).

.

TECHNICAL DESCRIPTION

• The output signal of the right bank heated oxygen

sensor (front) is compensated by the output sig-
nal of the right bank heated oxygen sensor (rear).

• The ECM checks for the right bank heated oxy-

gen sensor (rear) output voltage.

.

DESCRIPTIONS OF MONITOR METHODS

Right bank heated oxygen sensor (rear) output volt-

age is over the specified range.

.

MONITOR EXECUTION

Continuous

.

MONITOR EXECUTION CONDITIONS
(Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Engine coolant temperature sensor

.

DESCRIPTIONS OF MONITOR METHODS

Right bank heated oxygen sensor (rear) output volt-

age is over the specified range.

.

MONITOR EXECUTION

Continuous

.

MONITOR EXECUTION CONDITIONS
(Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Heated oxygen sensor (front) monitor

• Heated oxygen sensor (front) inactive monitor

• Heated oxygen sensor offset voltage monitor

• Heated oxygen sensor (front) heater monitor

• Heated oxygen sensor (rear) heater monitor

• Air/fuel ratio feedback monitor

Sensor (The sensor below is determined to be

normal)

• Mass airflow sensor

• Engine coolant temperature sensor

• Intake air temperature sensor

• Barometric pressure sensor

.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-252

DTC SET CONDITION

Logic Flow Chart

.

Check Conditions

• 2 seconds or more have passed since the engine

starting sequence was completed.

• Heated oxygen sensor off set voltage is between

0.4 and 0.6 volt.

Judgement Criterion

• Right bank heated oxygen sensor (rear) output

voltage has continued to be 1.8 volts or higher for
2 seconds.

.

OBD-II DRIVE CYCLE PATTERN

Refer to Diagnostic Function

− OBD-II Drive Cycle −

Pattern 22

P.13B-11

.

.

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are: )

• Connector damage.

• Harness damage

• ECM failed.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

End

Malfunction

No

No

No

2secs have passed?

Output voltage

> 1.8V

Good

AK604322

Start

Yes

Yes

Yes

Monitoring
conditions
