HANDS-FREE INTERFACE SYSTEM
TSB Revision

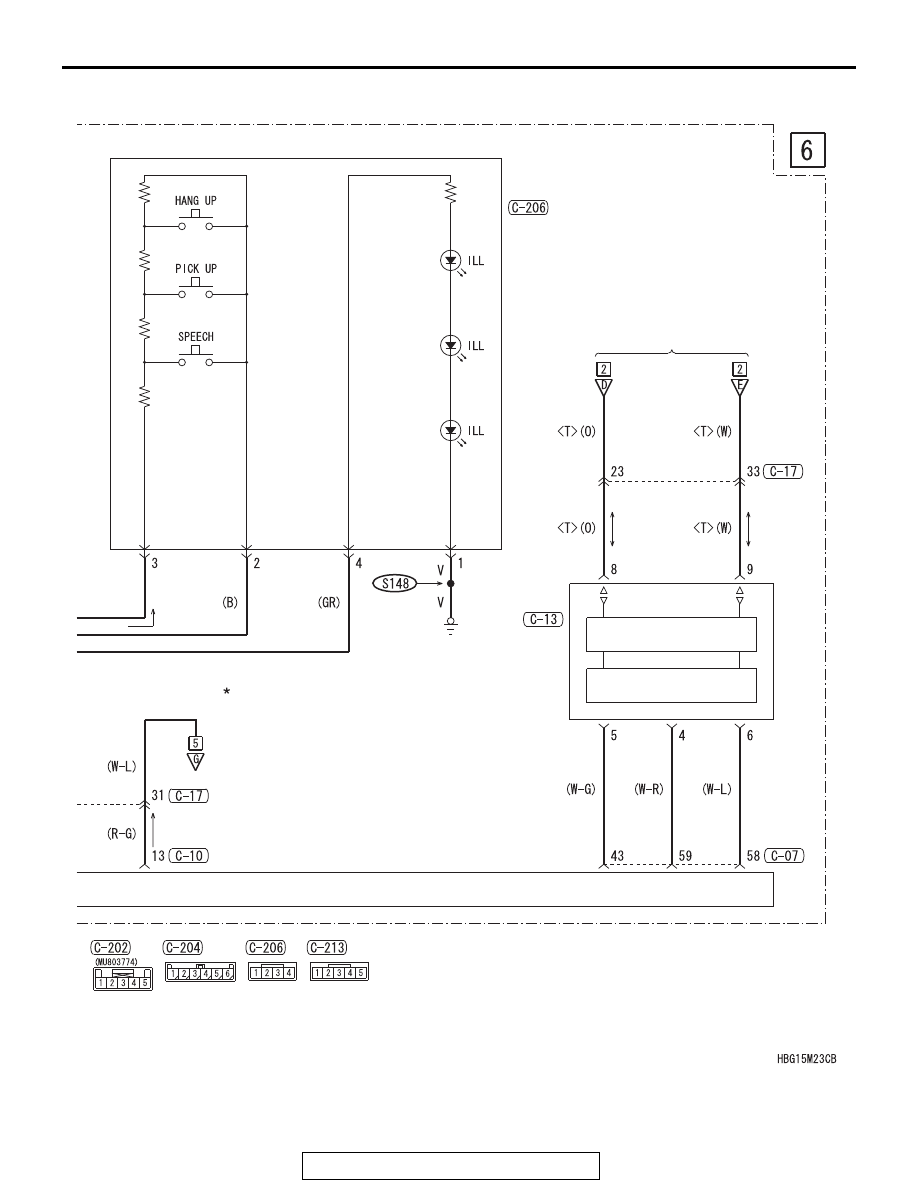

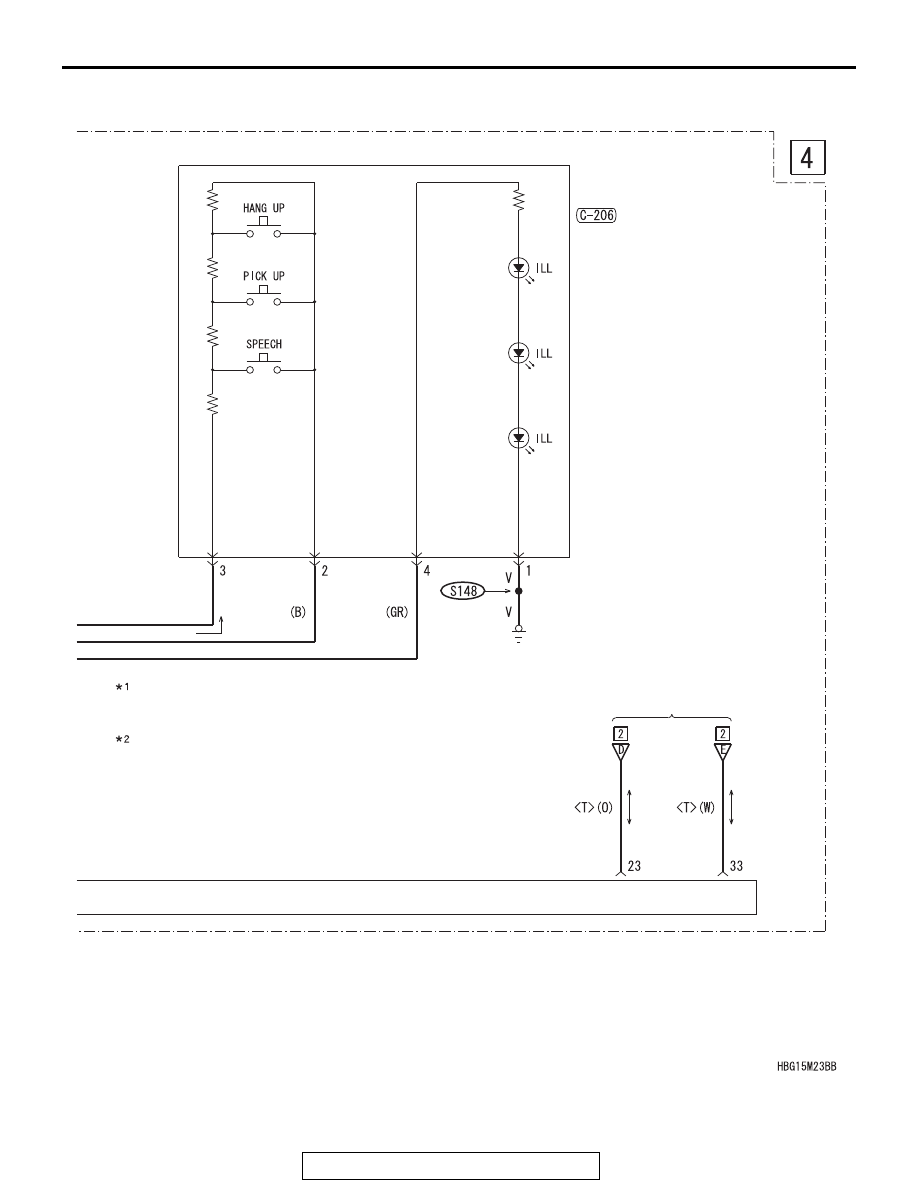

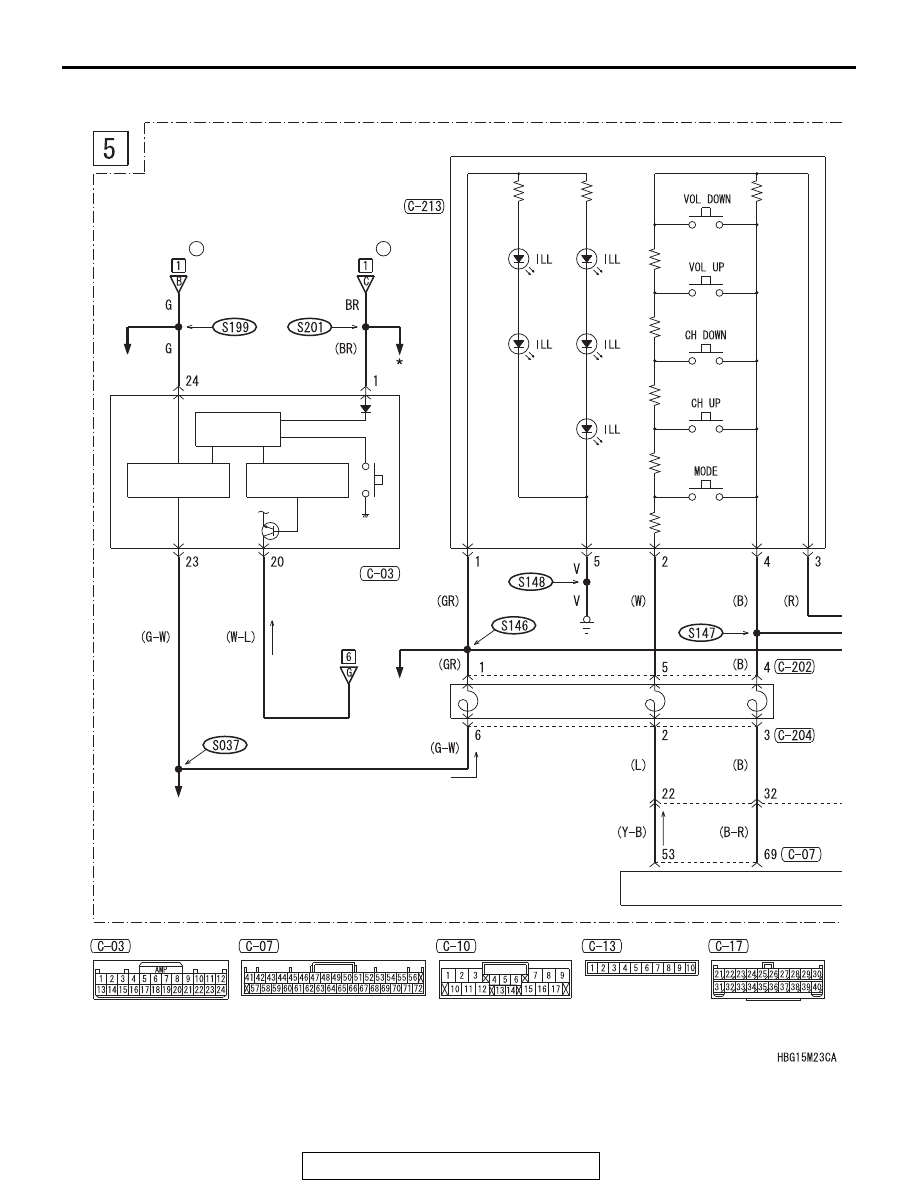

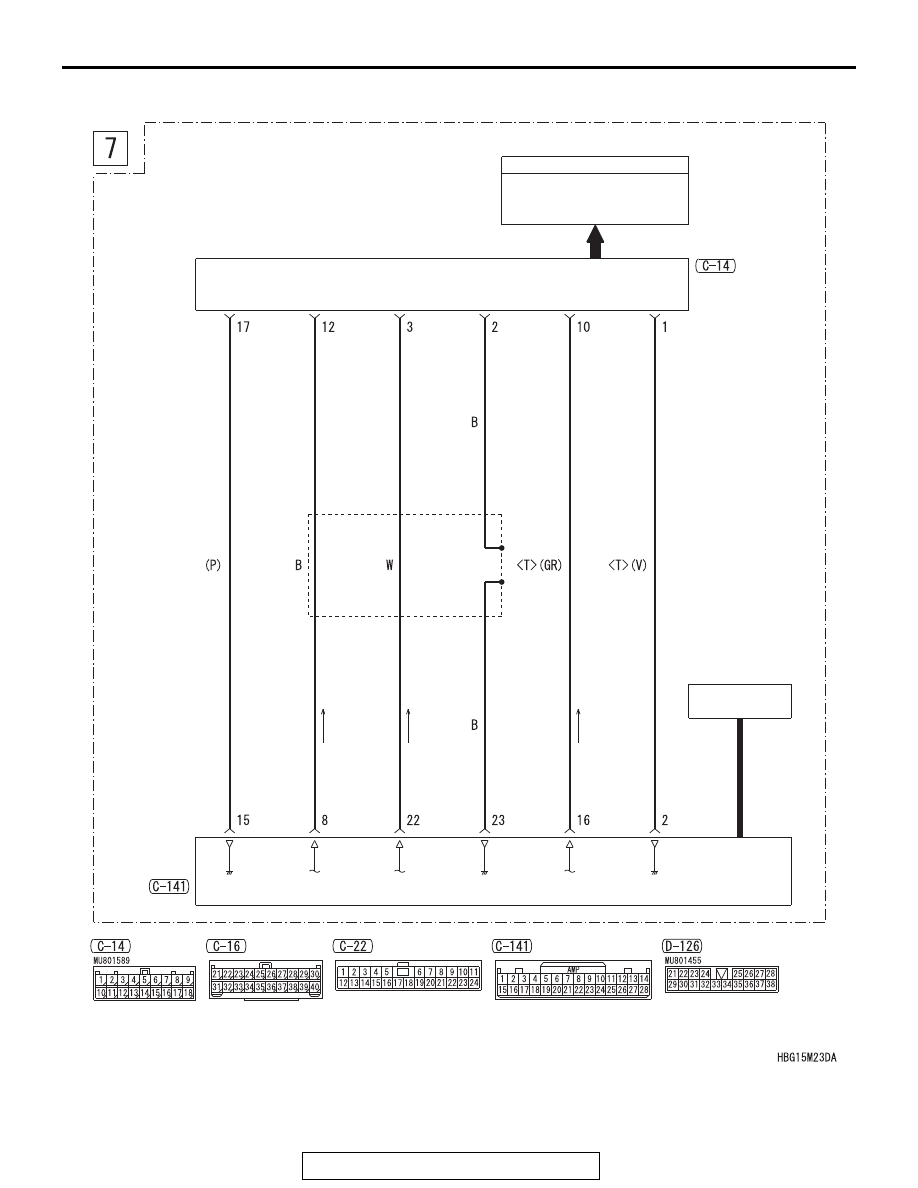

CIRCUIT DIAGRAMS
90-281
STEERING WHEEL
VOICE CONTROL
SWITCH
JOINT CONNECTOR
(CAN1)
RADIO AND CD PLAYER
:
:
NOTE
·ANTI-LOCK BRAKING SYSTEM (ABS)
AND ACTIVE STABILITY CONTROL
SYSTEM (ASC)
·INVECS-II 6A/T
·INVECS-III CVT
·AIR CONDITIONING SYSTEM
·CENTRAL DOOR LOCKING SYSTEM
·DAYTIME RUNNING LIGHT (DRL)
·DOME LIGHT, LUGGAGE
COMPARTMENT LIGHT AND
IGNITION KEY HOLE
ILLUMINATION LIGHT
·FOG LIGHT
·GLOVE BOX LIGHT
·HEADLIGHT
·IGNITION KEY REMINDER TONE
ALARM <VEHICLES WITH KOS>
·IMMOBILIZER SYSTEM
·KEYLESS OPERATING SYSTEM (KOS)
·REAR WIPER AND WASHER
·TAILLIGHT, POSITION LIGHT,
REAR SIDE MARKER LIGHT,
LICENSE PLATE LIGHT AND
LIGHTING MONITOR TONE ALARM
·THEFT-ALARM SYSTEM
·TIRE PRESSURE MONITORING
SYSTEM (TPMS)
·TURN-SIGNAL LIGHT AND
HAZARD WARNING LIGHT
·WINDSHIELD WIPER AND WASHER
WIRE COLOR CODE
B : BLACK LG : LIGHT GREEN G : GREEN L : BLUE W : WHITE Y : YELLOW SB : SKY BLUE
BR : BROWN O : ORANGE GR : GRAY R : RED P : PINK V : VIOLET PU : PURPLE SI : SILVER
