TRANSAXLE

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

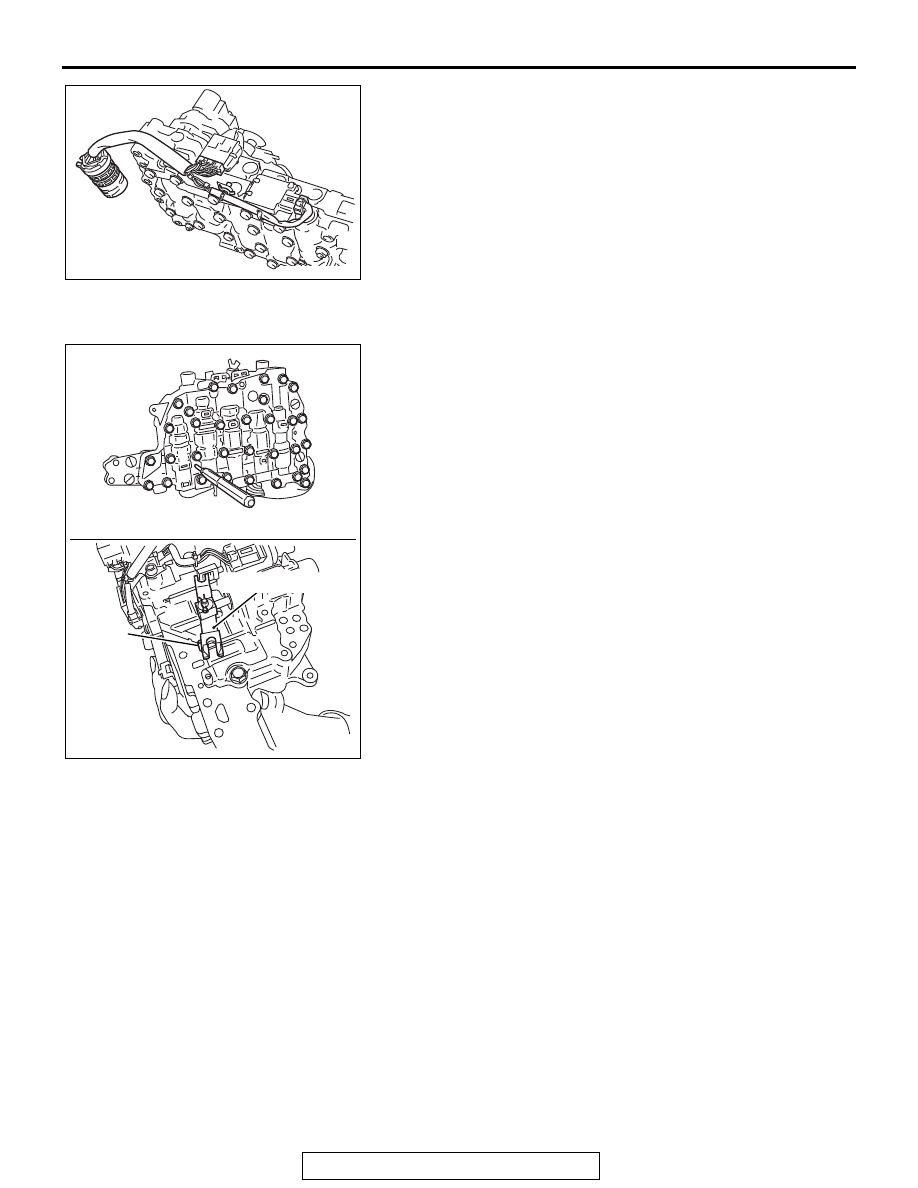

23B-53

34.Install the valve body harness on the control valve.

35.Install the control valve assembly on the transaxle case as

follows:

(1) Insert pins etc. (

φ3 mm) into linkage stopper holes of the

control valve assembly to fix the pulley ratio linkage.

AK502233

AK502225AD

Pulley ratio linkage

Pin

TRANSAXLE

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

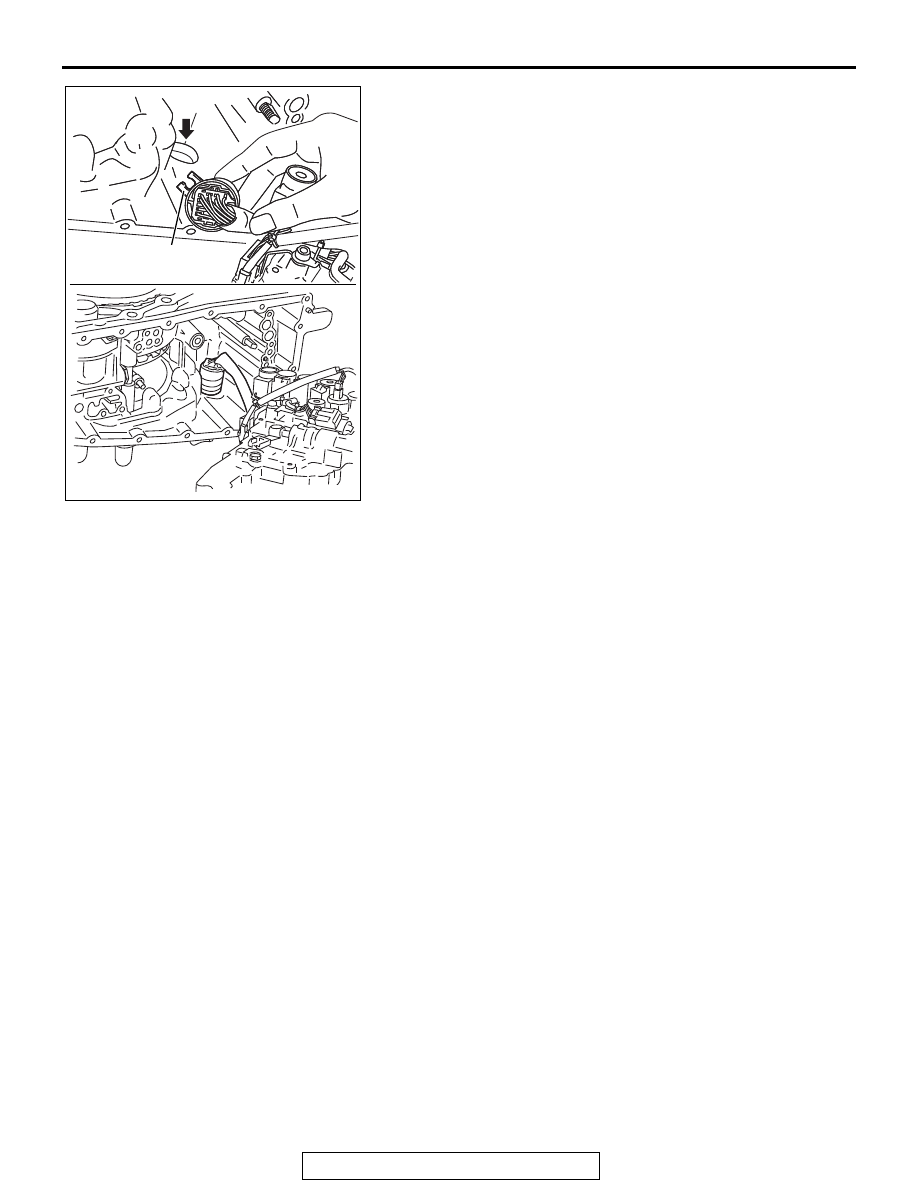

23B-54

(2) Install the terminal body on the transaxle case, while

aligning the detent of terminal body with the transaxle
case as shown in the diagram.

AK502274AD

Stopper

TRANSAXLE

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

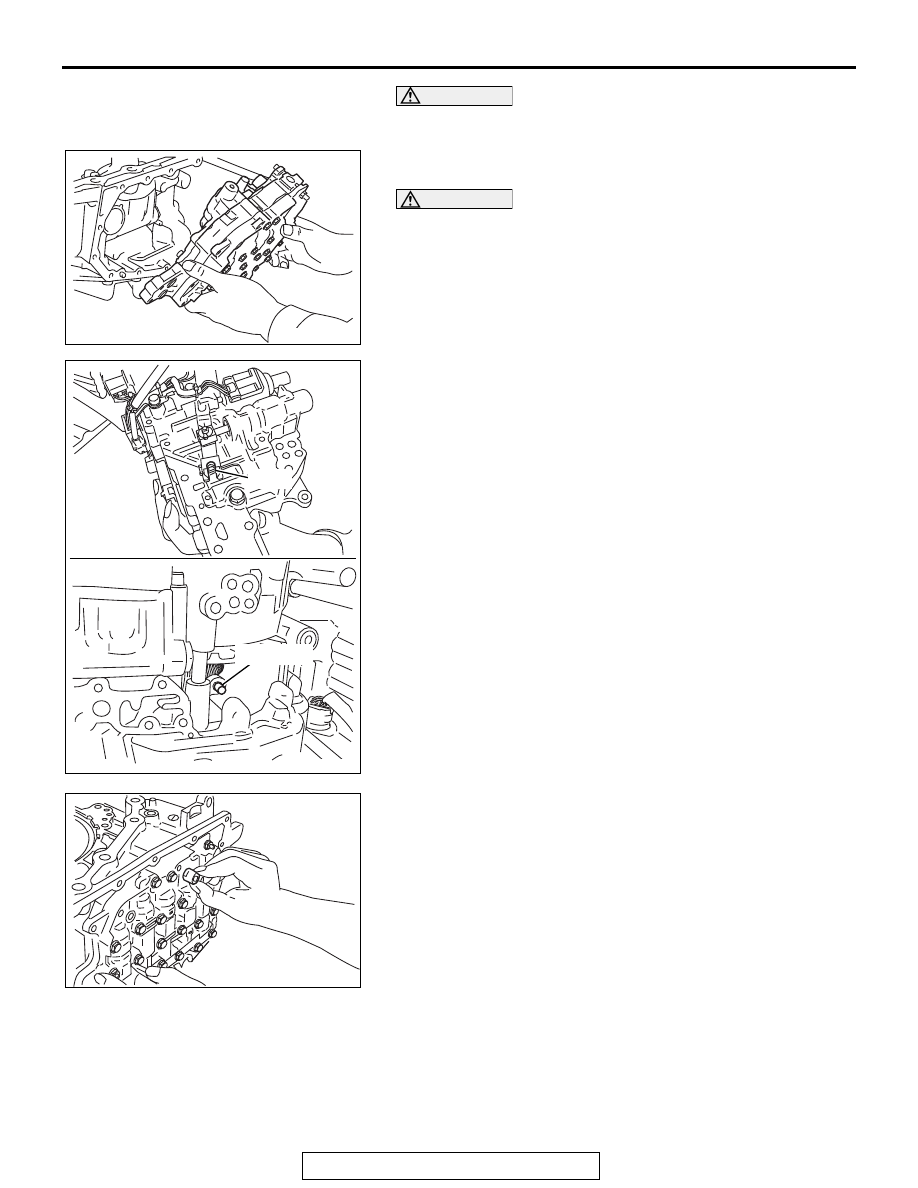

23B-55

CAUTION

Align the notch of pulley ratio linkage with the prong of
pulley sensor.

(3) Slide the control valve assembly from the bottom, and

install it on the transaxle case.

CAUTION

Apply transmission fluid when attaching the bush.

(4) Install the bush on the control valve assembly.

AKA00546

AK502275

Notch

Protrusion

AD

AK502276

TRANSAXLE

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

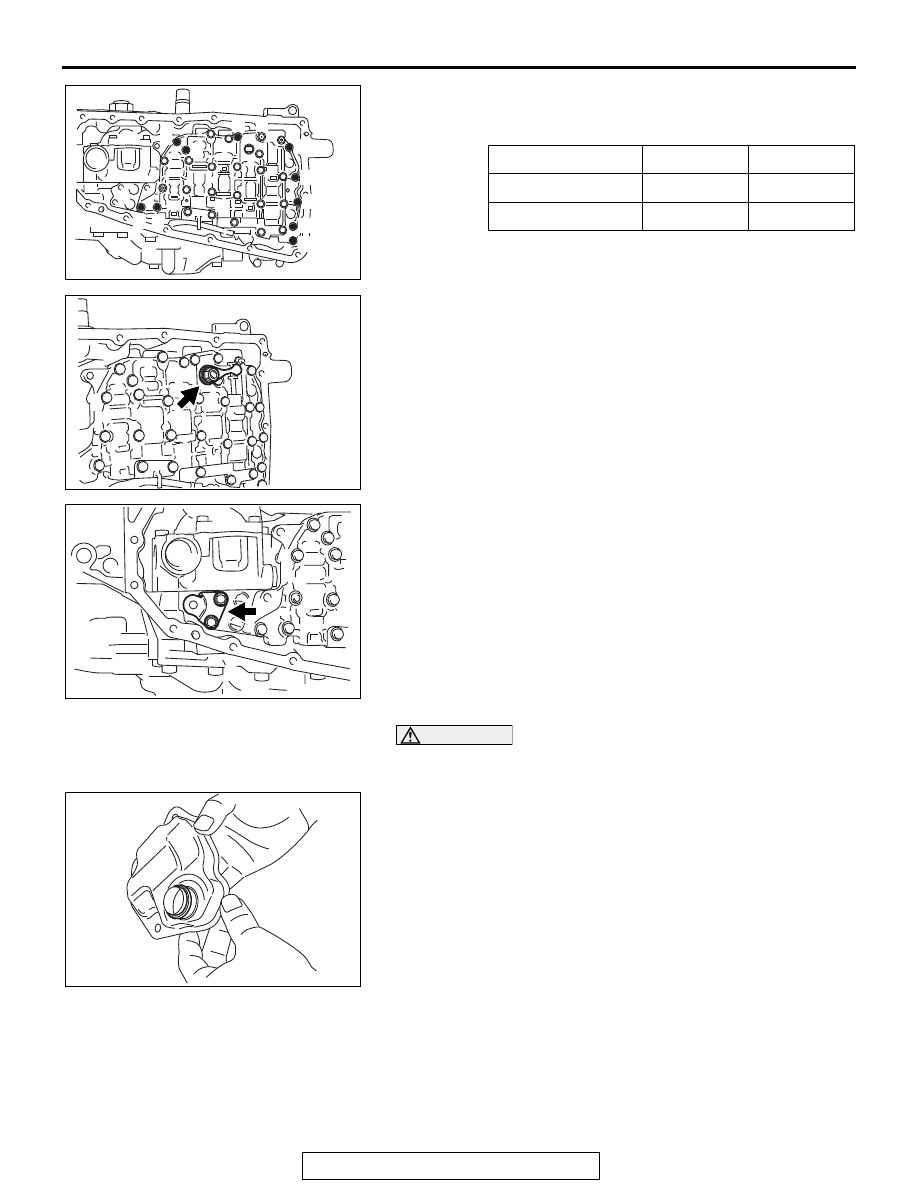

23B-56

(5) Install the fastening bolts of control valve assembly and

tighten the bolt to the specified torque.

Tightening torque: 7.9 N

⋅m (70 in-lb)

36.Install the manual lever and tighten the bolt to the specified

torque.

Tightening torque: 22.1 N

⋅m (16 ft-lb)

37.Install the bracket on the control valve assembly and tighten

the bolt to the specified torque.

Tightening torque: 7.9 N

⋅m (70 in-lb)

CAUTION

• Do not re-use the O-ring.
• Apply transmission fluid when installing the O-ring.

38.Install the O-ring on the oil strainer.

Bolt symbol

A

B

Shank length mm

54

44

Quantity

10

1

AK502226AD

A

A

A

A
A

A

A

A

A

A

B

AK502224AD

AK502223AD

AK502277
