TRANSAXLE

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-29

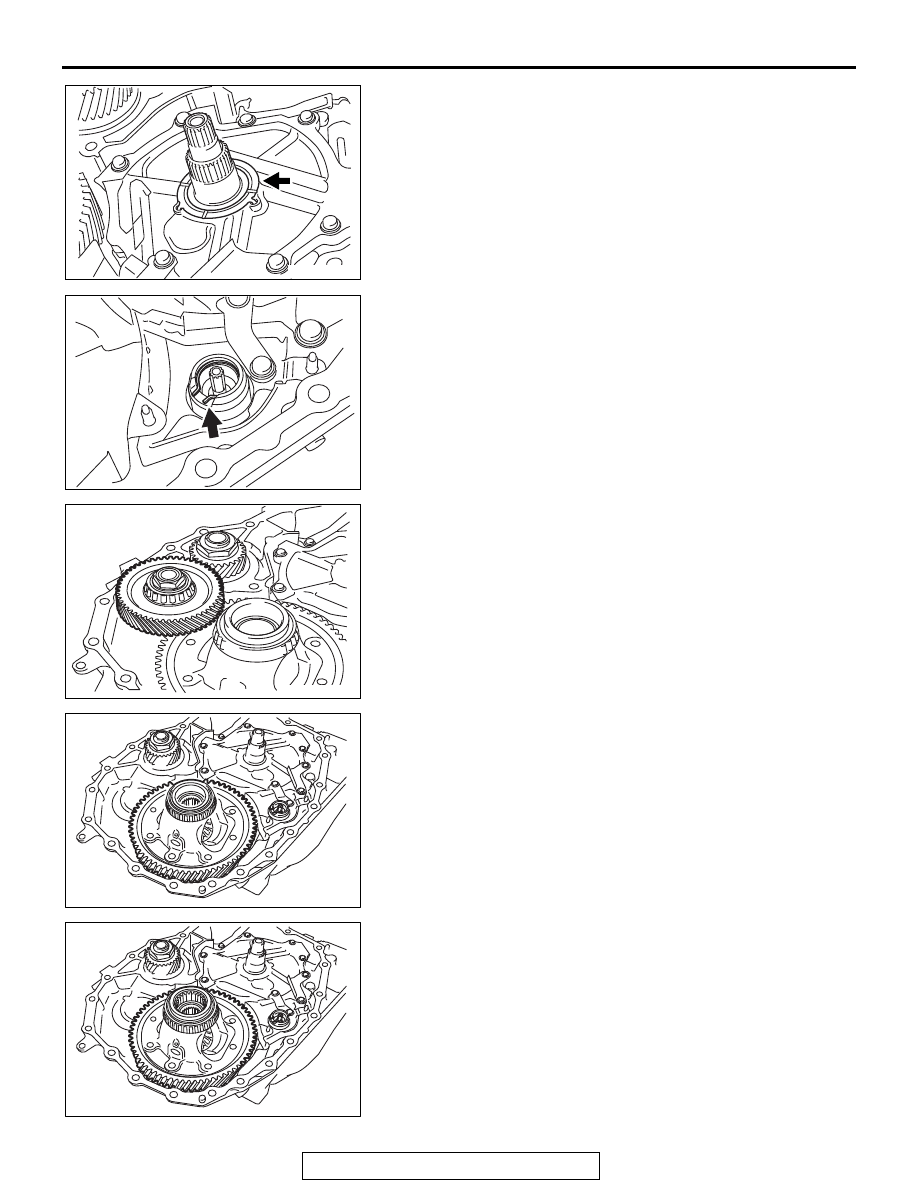

30.Remove the thrust washer from the oil pump cover.

31.Remove the snap ring from the oil pump.

32.Remove the reduction gear assembly from the transaxle

case.

33.Remove the differential assembly from the transaxle case.

AK502210AD

AK502211AD

AK502212

AK605044

<F1CJA>

AC

AK502213

<W1CJA>

AD

TRANSAXLE

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-30

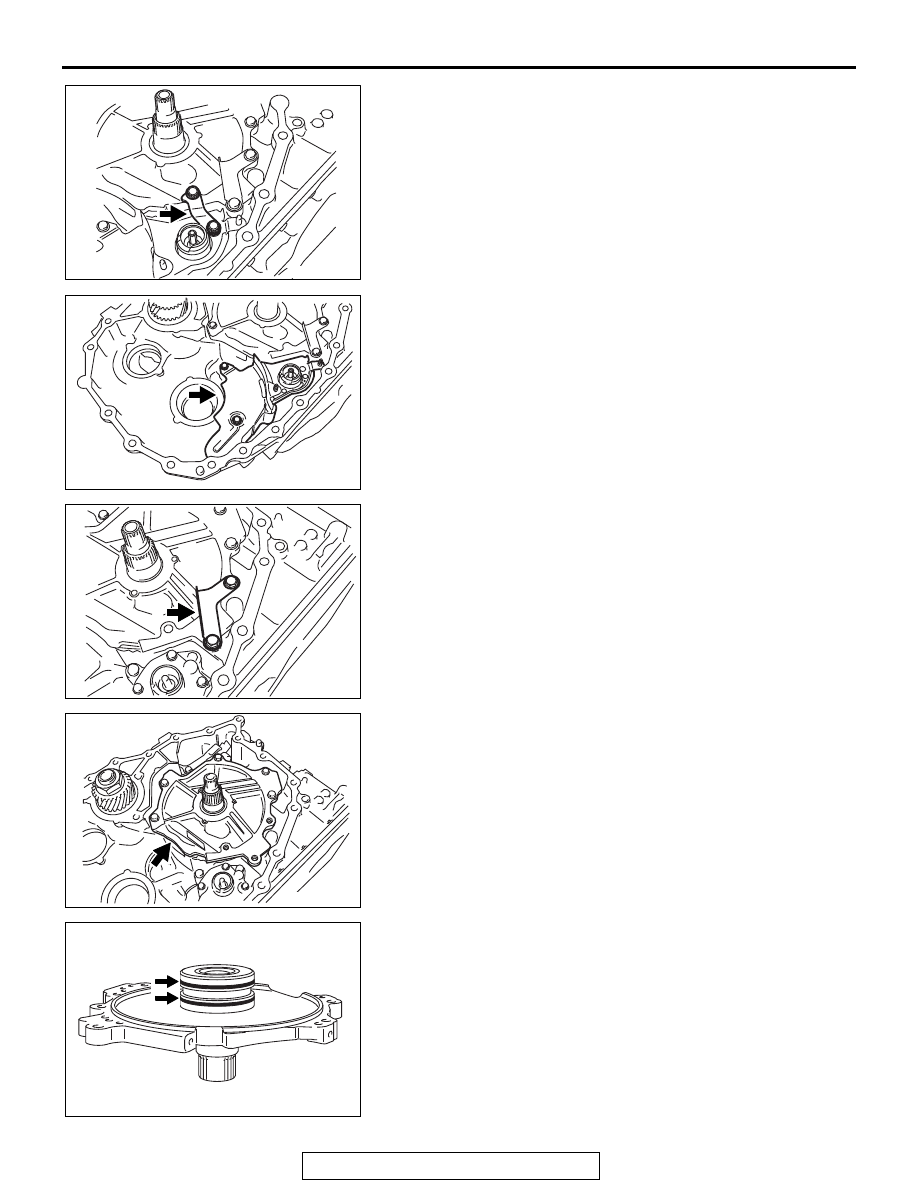

34.Remove the bracket.

35.Remove the oil guide.

36.Remove the baffle plate.

37.Remove the oil pump cover from the transaxle case.

38.Remove the seal rings from the oil pump cover.

AK502214AD

AK502215AE

AK502216AE

AK502217AD

AK502218AD

TRANSAXLE

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-31

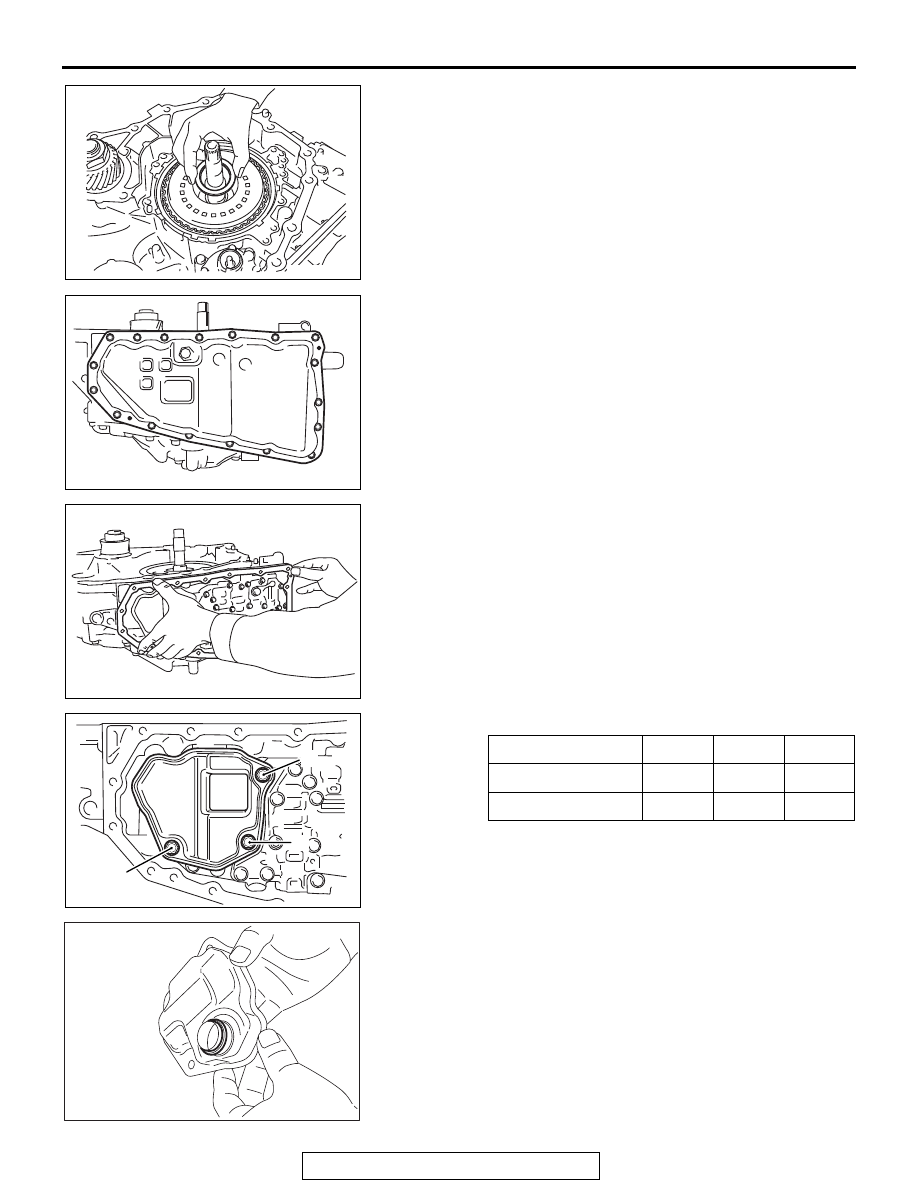

39.Remove the needle bearing from the forward clutch

assembly.

40.Remove the oil pan from the transaxle case.
41.Remove the magnet from the oil pan.

42.Remove the oil pan gasket from the transaxle case.

43.Remove the oil strainer

44.Remove the O-ring from the oil strainer.

Bolt symbol

A

B

C

Shank length mm

12

44

12

Quantity

1

1

1

AK502219

AK502220

AK502221

AK502222AD

C

B

A

AK502780

TRANSAXLE

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-32

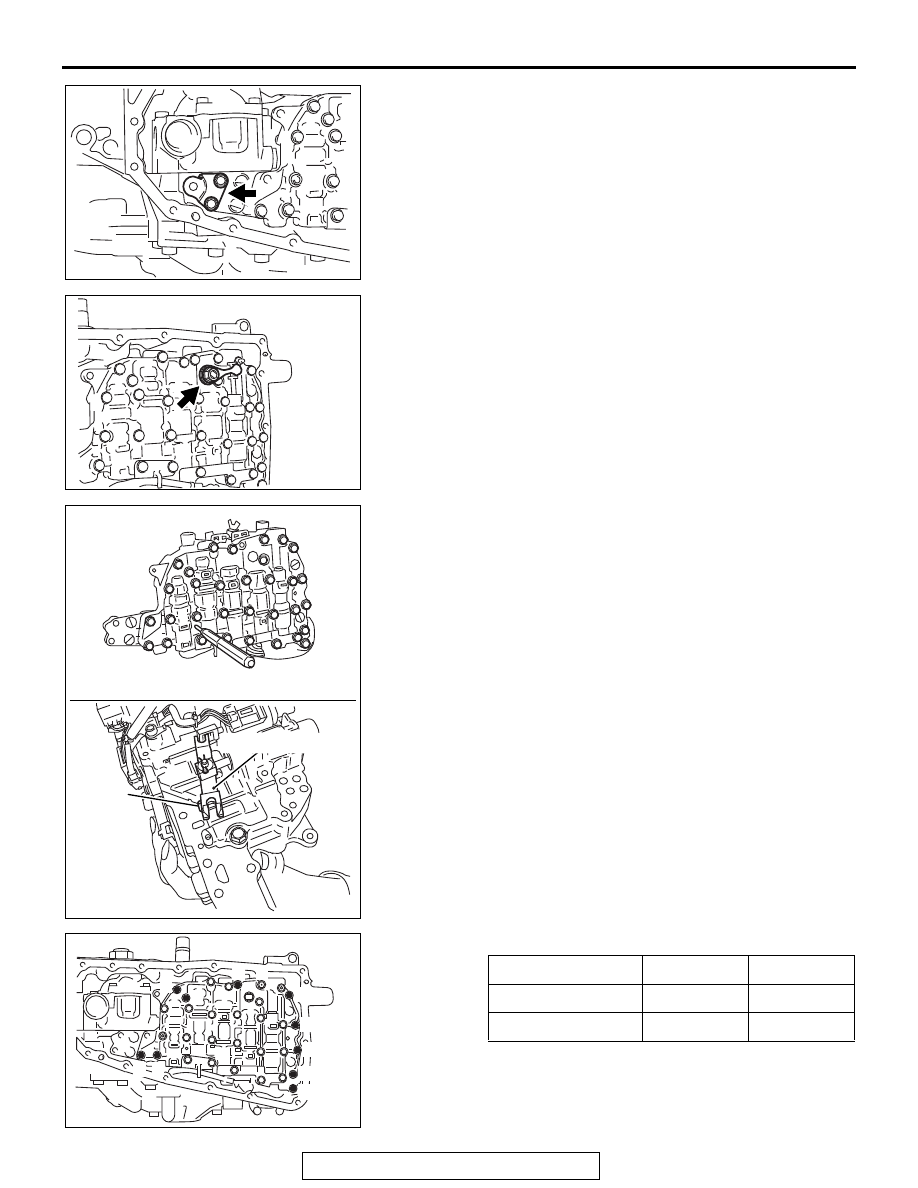

45.Remove the bracket from the control valve assembly.

46.Remove the manual lever.

47.Remove the control valve assembly from the transaxle case

as follows:

(1) Insert pins etc. (

φ3 mm) into linkage stopper holes of the

control valve assembly to fix the pulley ratio linkage.

(2) Remove fastening bolts of the control valve assembly.

Bolt symbol

A

B

Shank length mm

54

44

Quantity

10

1

AK502223AD

AK502224AD

AK502225AD

Pulley ratio linkage

Pin

AK502226AD

A

A

A

A
A

A

A

A

A

A

B
