Mitsubishi Outlander GS45X. Manual - part 1602

CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-57

STEP 3. Using scan tool MB991958, read the ETACS
system DTC.
(1) Connect scan tool MB991958 to the data link connector

(Refer to

P.17-12

).

(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to check for ETACS system DTC

(Refer to GROUP 54A, ETACS, Troubleshooting

−

Diagnostic Function

P.54A-753

).

Q: Is DTC U0155 set?

YES : Repair the ETACS system (Refer to GROUP 54A,

ETACS, Troubleshooting, Diagnostic Trouble Code
Procedures

− DTC U0155: Combination Meter-ECU

CAN Communication Time Out

P.54A-773

.) Then go

to Step 6.

NO :  Go to Step 4.

STEP 4. Using scan tool MB991958, check the combination
meter system actuator test item 7: Cruise indicator 1.
(1) Connect scan tool MB991958 to the data link connector

(Refer to

P.17-12

).

(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to check the actuator test for

combination meter system item 7: indicator 1 (Refer to
GROUP 54A, Combination Meter, Troubleshooting

−

Actuator Teat Table

P.54A-107

.)

Q: Is the check result satisfactory?

YES : Go to Step 5.
NO :  Repair the combination meter system (Refer to

GROUP 54A, Combination Meter, Troubleshooting,
Symptom Procedures

− Inspection Procedure 5: The

combination meter light does not illuminate normally
or the multi information display is not displayed
normally

P.54A-87

.) Then go to Step 6.

STEP 5. Check the symptom.
Q: When the "ON/OFF" switch is turned ON, is the

"CRUISE" indicator light illuminated?
YES : It can be assumed that this malfunction is intermittent

(Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-15

).

NO :  Replace the ECM [Refer to GROUP 13A, Engine

Control Module (ECM)

P.13A-887

] <2.4L Engine> or

[Refer to GROUP 13B, Engine Control Module (ECM)

P.13B-904

] <3.0L Engine>. Then go to Step 6.

STEP 6. Check the symptom.
Q: When the "ON/OFF" switch is turned ON, is the

"CRUISE" indicator light illuminated?
YES : The procedure is complete.
NO :  Return to Step 1.

CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-58

DATA LIST REFERENCE TABLE

M1172002402109

CAUTION

• Driving tests always need two persons: one driver and one observer.
• When shifting the selector lever to "D" range apply the brakes should be applied so that the vehi-

cle does not move forward.

Scan tool
display

Item
num
ber

Inspection item Inspection requirement

Normal condition

Brake light
switch

74

Stoplight switch
(for stoplight
circuit)

Ignition
switch: "ON"

Brake pedal: Depressed

ON

Brake pedal: Released

OFF

Cancel code

57

Cancel code

Ignition switch: "ON"

The cancel code,
which set when the
cruise control
system was
cancelled at the
last time.

Cancel switch 75

Cruise control
switch
("CANCEL"
switch)

Ignition
switch: "ON"

"CANCEL" switch: Pressed

ON

"CANCEL" switch: Released

OFF

Cruise switch 81

Cruise control
system
operation

Cruise control system: active

ON

Cruise control system: Inactive

OFF

Main switch

86

Cruise control
switch
("ON/OFF"
switch)

Ignition
switch: "ON"

"ON/OFF" switch: Pressed

ON

"ON/OFF" switch: Pressed
again

OFF

Neutral switch 88

Transmission
range switch

Ignition
switch: "ON"

Selector lever: "N" or "P"
position

ON

Selector lever: Other than "N" or
"P" position

OFF

Normally
closed brake
switch

89

Stoplight switch
(for Cruise
control circuit)

Ignition
switch: "ON"

Brake pedal: Depressed

ON

Brake pedal: Released

OFF

Resume
switch

91

Cruise control
switch
("ACC/RES"
switch)

Ignition
switch: "ON"

"ACC/RES" switch: Pressed

ON

"ACC/RES" switch: Released

OFF

Set switch

92

Cruise control
switch
("COAST/SET"
switch)

Ignition
switch: "ON"

"COAST/SET" switch: Pressed ON
"COAST/SET" switch: Released OFF

Vehicle speed 4

Vehicle speed
signal

Road test the vehicle

The speedometer
and scan tool
MB991958 display
the same value.

CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-59

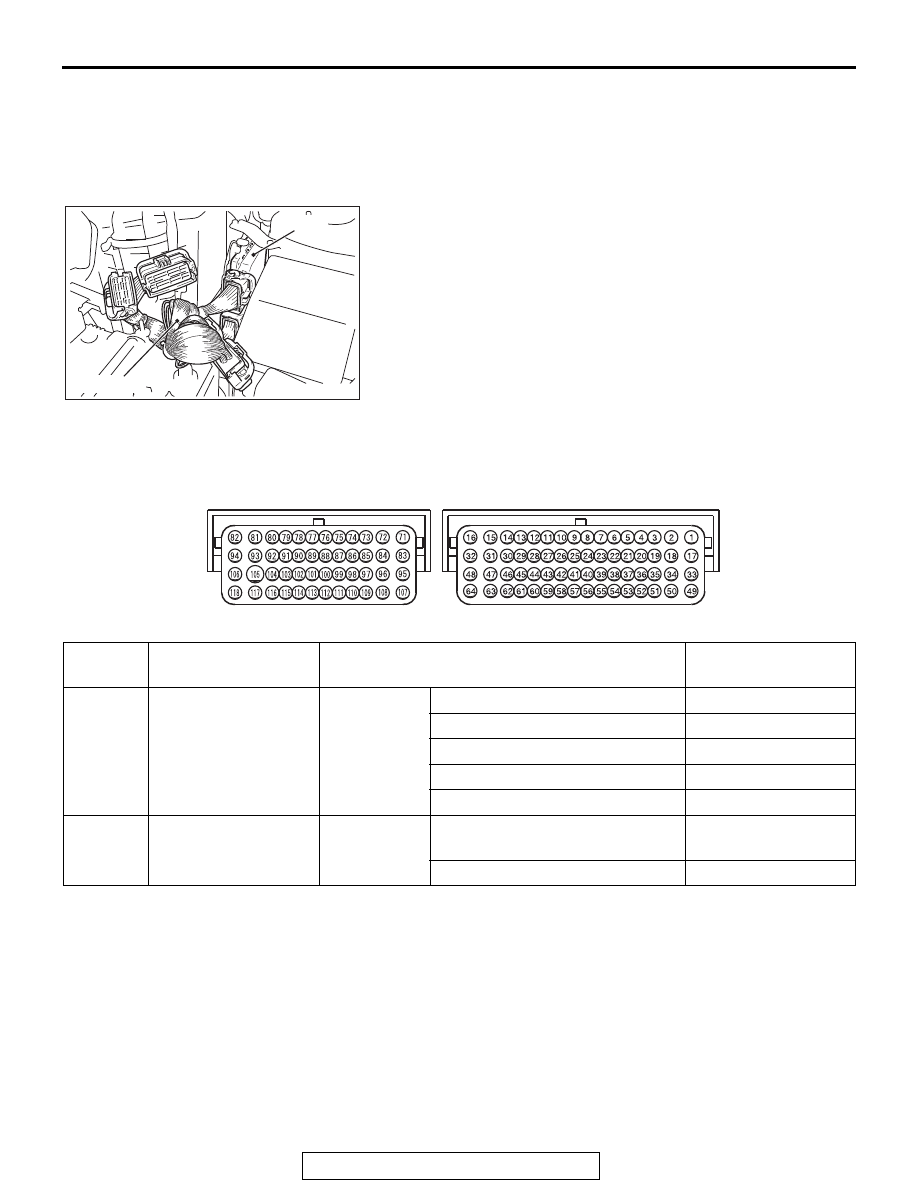

ECM TERMINAL VOLTAGE REFERENCE CHART
FOR CRUISE CONTROL SYSTEM OPERATION

M1172006000129

Required Special Tool:

• MB992110: Power plant ECU check harness

Use special tool MB992110, check the ECM terminal voltage.
1. Disconnect the all ECM connectors, and connect special

tool (MB992110) in between [Refer to GROUP 13A, Engine
Control Module (ECM)

P.13A-887

] <2.4L Engine> or [Refer

to GROUP 13B, Engine Control Module (ECM)

P.13B-904

]

<3.0L Engine>.

2. Measure the voltages between the check connector

terminals of special tool (MB992044) and ground terminals
(ECM connector B-11 terminal 81 or 93).

AC707852AD

MB992110

ECM

AC703944

AB

Special tool - Power plant ECU check harness (MB992110) connector: Component side

48-Pin connector
(ECM connector B-11)

64-Pin connector
(ECM connector B-10)

Terminal
number

Check item

Check condition

Normal condition

107

Cruise control switch
power supply

Ignition
switch: "ON"

All switches: Released

4.7 - 5.0 V

"ON/OFF" switch: Pressed

0 - 0.5 V

"CANCEL" switch: Pressed

1.0 - 1.8 V

"COAST/SET" switch: Pressed

2.3 - 3.0 V

"ACC/RES" switch: Pressed

3.5 - 4.2 V

108

Stoplight switch
(brake switch)

Ignition
switch: "ON"

Depress the brake pedal.

Battery positive
voltage

Release the brake pedal.

1V or less

CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-60

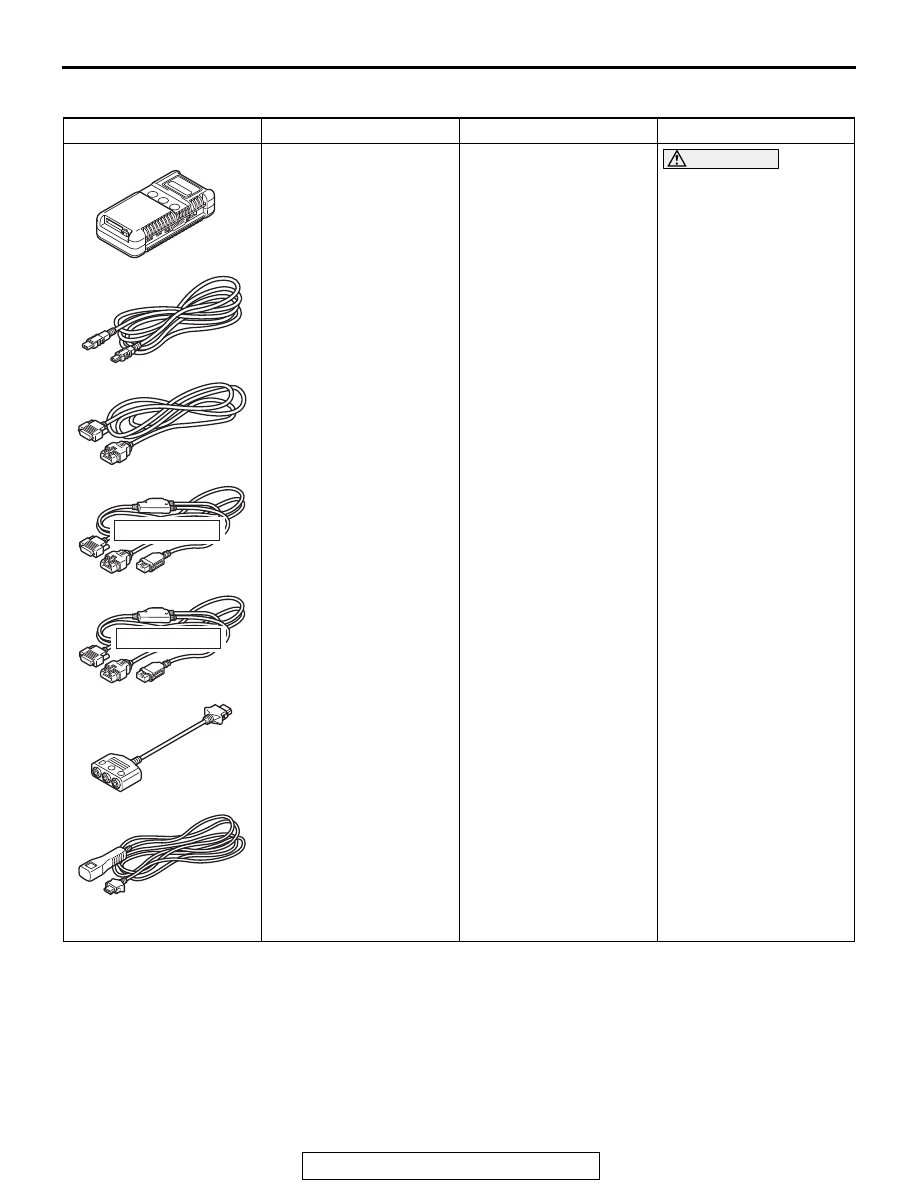

SPECIAL TOOLS

M1172000601870

Tool

Tool number and name Supersession

Application

MB991958

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991914
f. MB991825
g. MB991826

M.U.T.-III sub assembly

a. Vehicle

communication
interface (V.C.I.)

b. M.U.T.-III USB cable
c. M.U.T.-III main

harness A (Vehicles
with CAN
communication
system)

d. M.U.T.-III main

harness B (Vehicles
without CAN
communication
system)

e. M.U.T.-III main

harness C (for
Chrysler models only)

f. M.U.T.-III

measurement adapter

g. M.U.T.-III trigger

harness

MB991824-KIT
NOTE: g: MB991826
M.U.T.-III trigger harness
is not necessary when
pushing V.C.I. ENTER
key.

CAUTION

For vehicles with CAN
communication, use
M.U.T.-III main harness
A to send simulated
vehicle speed. If you
connect M.U.T.-III main
harness B or C instead,
the CAN
communication does
not function correctly.
Checking data list

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

a

b

c

d

e

f

g

DO NOT USE
