CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-13

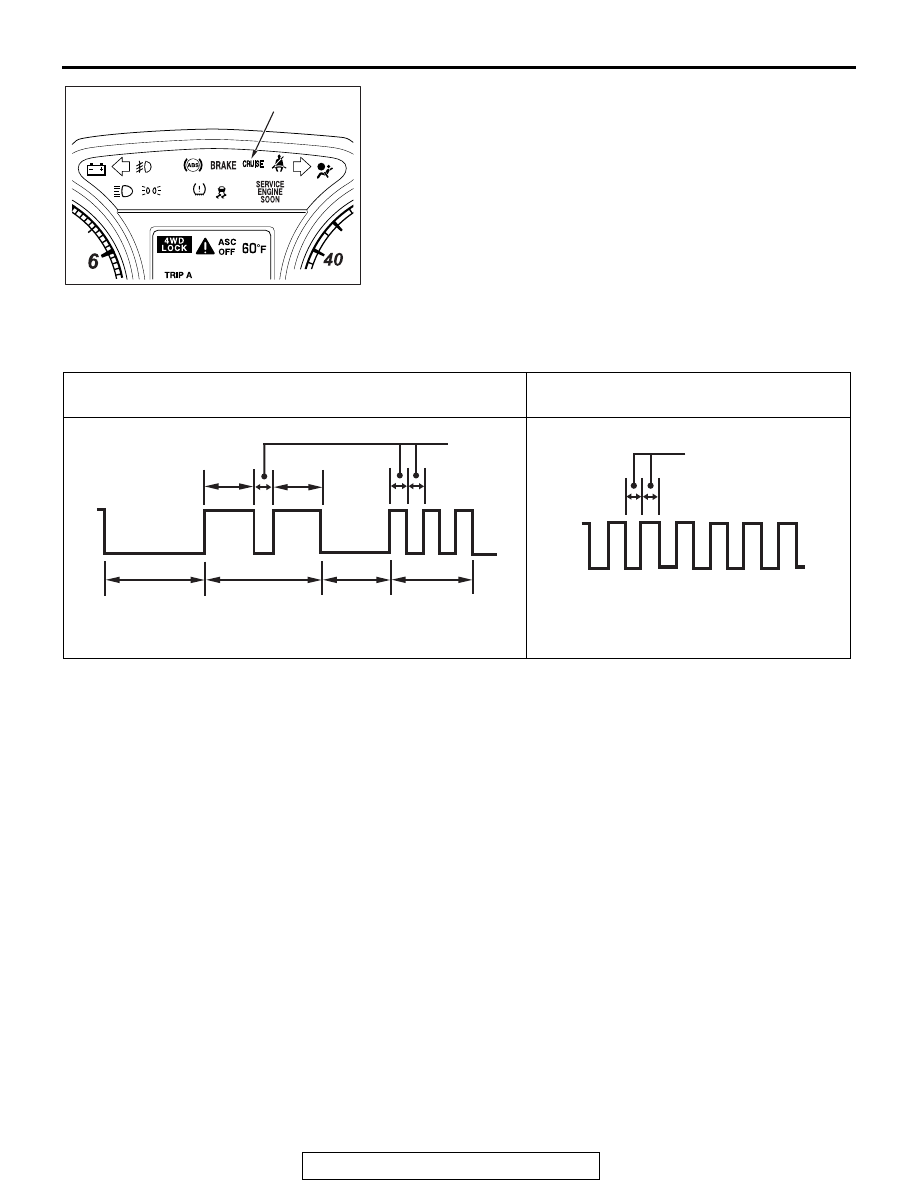

2. Read a DTC by observing the flash display pattern of the

"CRUISE" indicator light in the combination meter.

DIAGNOSTIC RESULT DISPLAY METHOD WHEN USING THE "CRUISE" INDICATOR
LIGHT

NOTE: Other on-board diagnostic items are also out-
put as voltage waveforms corresponding to diagnos-
tic trouble code numbers.

HOW TO ERASE DIAGNOSTIC TROUBLE CODES

Disconnect the negative (

−) battery cable.

HOW TO CONNECT THE SCAN TOOL (M.U.T.-III).

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

ACA03397

AB

"CRUISE" indicator light

 When the diagnostic trouble code number 23 is output

When no diagnostic trouble code is
output

AC703915

12V

0V

Pause
time: 3 s

Ten digit

Digit
division:
2 s

First digit

0.5 s

1 s

AB

1 s

AC703916AB

12V

0V

0.25 s

Continuous ON and OFF signals
at intervals of 0.25 s

CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-14

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

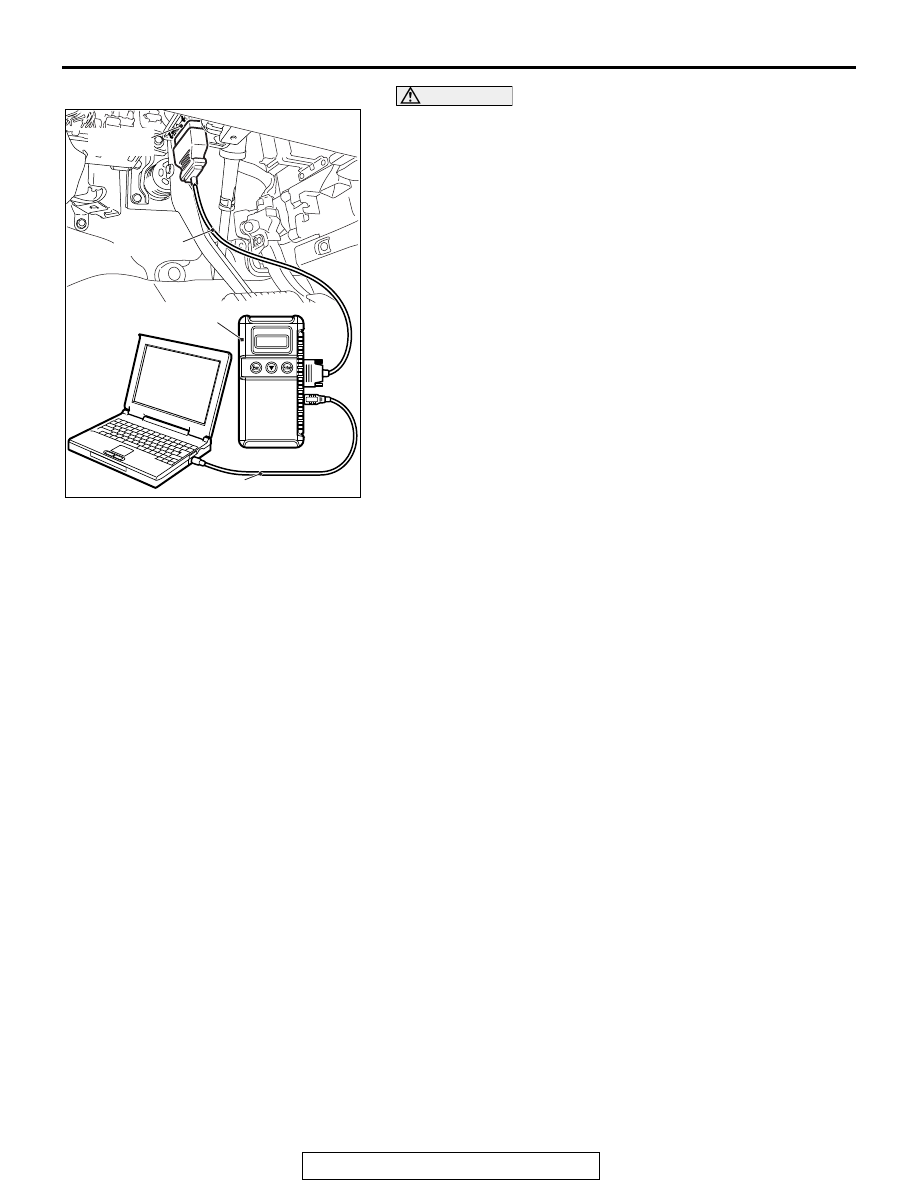

1. Start up the personal computer.
2. Connect special tool MB991827 to special tool MB991824

and the personal computer.

3. Connect special tool MB991910 to special tool MB991824.
4. Connect special tool MB991910 to the data link connector.
5. Turn the power switch of special tool MB991824 to the "ON"

position.
NOTE: When special tool MB991824 is energized, special
tool MB991824 indicator light will be illuminated in green
color.

6. Start the M.U.T.-III system on the personal computer.

NOTE: Disconnecting scan tool MB991958 is the reverse of
the connecting sequence, making sure that the ignition
switch is at the "LOCK" (OFF) position.

HOW TO READ DATA LIST

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "System Select" from the start-up screen.
4. Select "From 2006 MY" of "Model Year." When the "Vehicle

Information" is displayed, check the contents.

5. Select "AUTO CRUISE" from "System List", and press the

"OK" button.
NOTE: When the "Loading Option Setup" list is displayed,
check the applicable item.

6. Select the "MITSUBISHI."
7. Select the "Data List."

NOTE: When the "Data List Reference Table" button is
selected, the service data reference table is displayed, and
the normal values can be checked.

8. Choose an appropriate item.

ZC501967

AC404789

AC703911AB

MB991824

MB991827

MB991910

Data link

connector

CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-15

HOW TO DIAGNOSE THE CAN BUS LINE

Required Special Tools:

•  MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select the "CAN Bus Diagnosis" from the start-up screen.
4. When the vehicle information is displayed, confirm that it

matches the vehicle whose CAN bus lines will be
diagnosed.

• If they match, go to step 8.

• If not, go to step 5.

5. Select the "view vehicle information" button.
6. Enter the vehicle information and select the "OK" button.
7. When the vehicle information is displayed, confirm again

that it matches the vehicle which whose CAN bus lines will
be diagnosed.

• If they match, go to step 8.

• If not, go to step 5.

8. Press the "OK" button.
9. When the optional equipment screen is displayed, choose

the one which the vehicle is fitted with, and then select the
"OK" button.

DIAGNOSTIC TROUBLE CODE CHART

M1172002200950

Check according to the inspection chart that is
appropriate for the diagnostic trouble code.

Diagnostic trouble code
number

Inspection item

Reference page

15

Cruise control switch system

P.17-16

22

Stoplight switch system

P.17-29

23

ECM and its related components

P.17-36

CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-16

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC 15: Cruise Control Switch System.

AC709996 AB

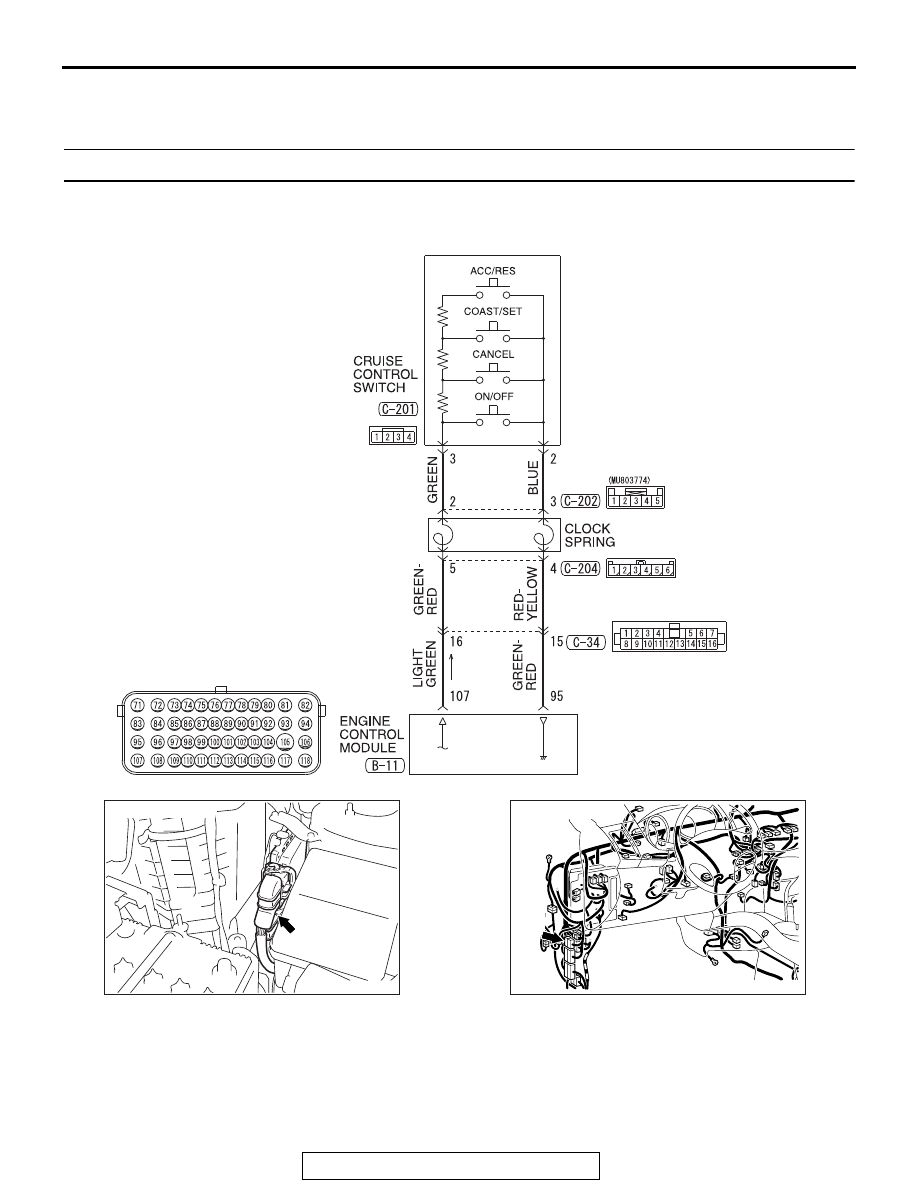

Cruise Control Switch Circuit

AC703918AB

B-11 (GR)

Connector: B-11

ACA03170

Connector: C-34

AB

C-34
(BR)
