SPECIAL TOOLS

TSB Revision

ENGINE COOLING

14-23

SPECIAL TOOLS

M1141000601700

Tool

Tool number and name Supersession

Application

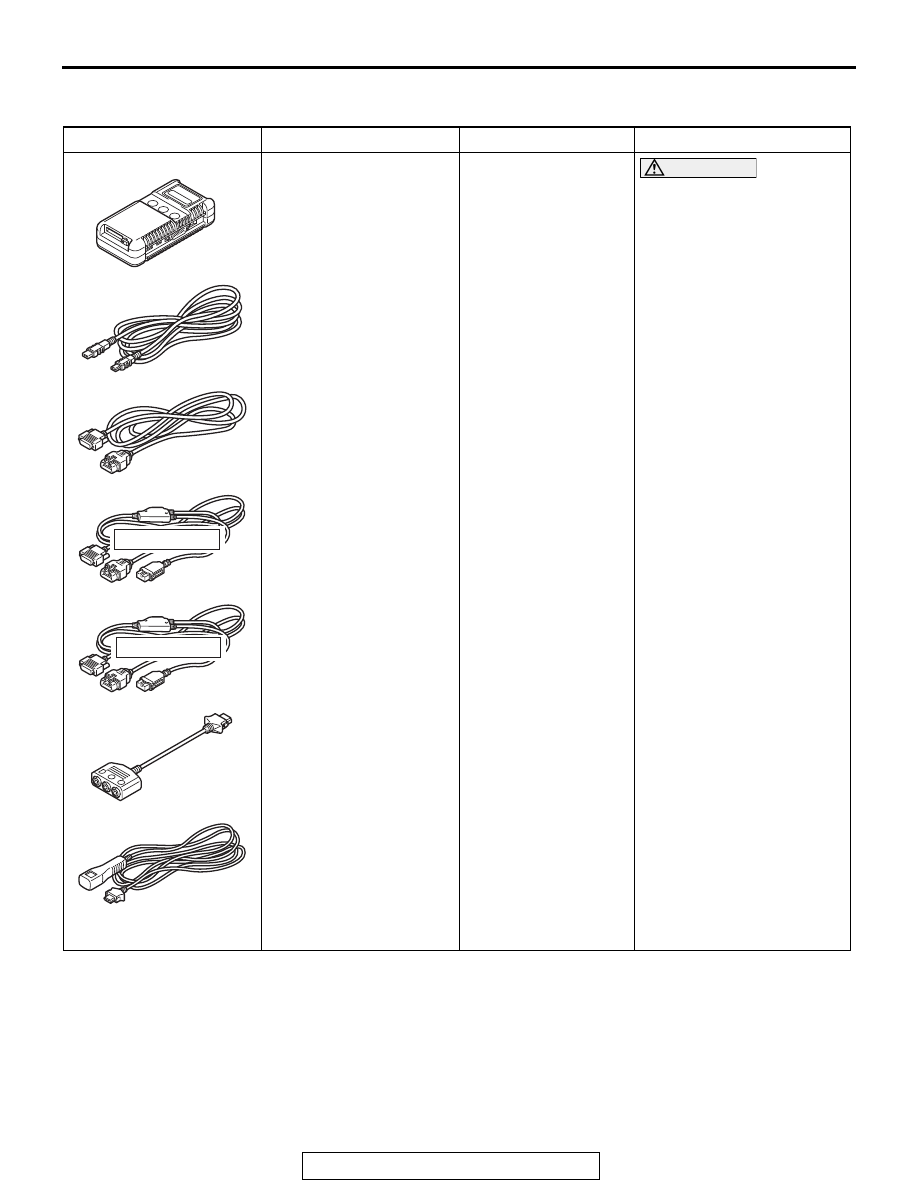

MB991958
Scan tool (M.U.T.-III sub
assembly)

a: MB991824

Vehicle
communication
interface (V.C.I.)

b: MB991827

M.U.T.-III USB cable

c: MB991910

M.U.T.-III main
harness A (Vehicles
with CAN
communication
system)

d: MB991911

M.U.T.-III main
harness B (Vehicles
without CAN
communication
system)

e: MB991914

M.U.T.-III main
harness C (for
Chrysler models only)

f: MB991825

M.U.T.-III adapter
harness

g: MB991826

M.U.T.-III trigger
harness

MB991824-KIT
NOTE: MB991826
M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I. ENTER
key.

CAUTION

For vehicles with CAN
communication, use
M.U.T.-III main harness A
to send simulated vehicle
speed. If you connect
M.U.T.-III main harness B
or C instead, the CAN
communication does not
function correctly.
Reading diagnostic trouble
codes

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

a

b

c

d

e

f

g

DO NOT USE

SPECIAL TOOLS

TSB Revision

ENGINE COOLING

14-24

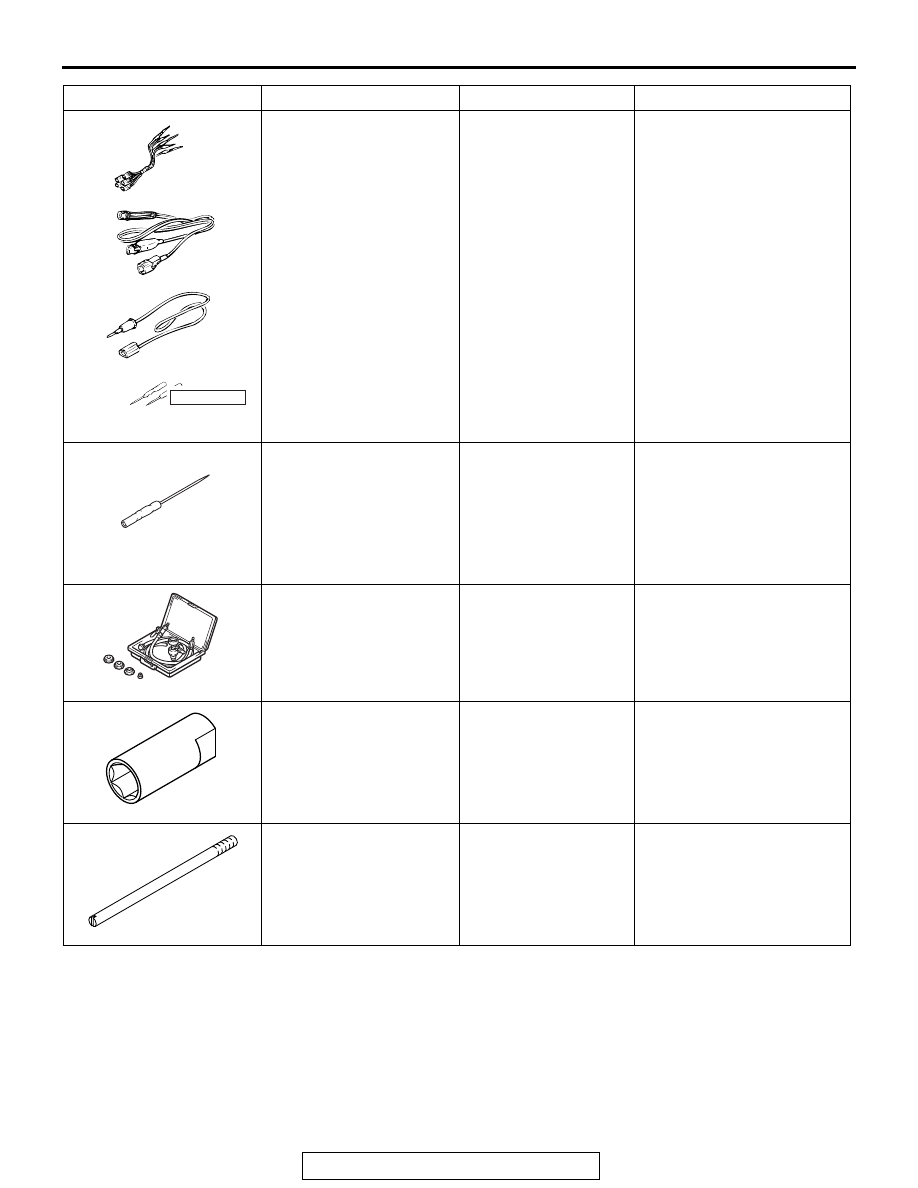

MB991223

a: MB991219
b: MB991220
c: MB991221
d: MB991222

Harness set

a: Test harness
b: LED harness
c: LED harness adaptor
d: Probe

General service tools

Checking the continuity and
measuring the voltage at the
harness connector

MB992006
Extra fine probe

General service tool

Continuity check and
voltage measurement at
harness wire or connector
for loose, corroded or
damaged terminals, or
terminals pushed back in
the connector.

MB991871
LLC changer

General service tool

Coolant refilling

MB992042
Water temperature
sensor wrench

MB992042-01

Engine coolant temperature
sensor removal and
installation

MD998412
Guide

-

Thermostat housing and
gasket installation

Tool

Tool number and name Supersession

Application

MB991223

a

d

c

b

DO NOT USE

BF

MB992006

AB

MB991871

MB992042

ON-VEHICLE SERVICE

TSB Revision

ENGINE COOLING

14-25

ON-VEHICLE SERVICE

ENGINE COOLANT LEAK CHECK

M1141001000786

WARNING

When pressure testing the cooling system, slowly
release cooling system pressure to avoid getting
burned by hot coolant.

CAUTION

• Be sure to completely clean away any moisture from

the places checked.

• When the tester is taken out, be careful not to spill any

coolant.

• Be careful when installing and removing the tester and

when testing not to deform the filler neck of the radia-
tor.

1. Check that the coolant level is up to the filler neck. Install a

radiator tester and apply 160 kPa (23 psi) pressure, and
then check for leakage from the radiator hose or
connections.

2. If there is leakage, repair or replace the appropriate part.

RADIATOR CAP OPENING PRESSURE CHECK

M1141001301069

NOTE: Be sure that the cap is clean before testing. Rust or
other foreign material on the cap seal will cause an improper
reading.

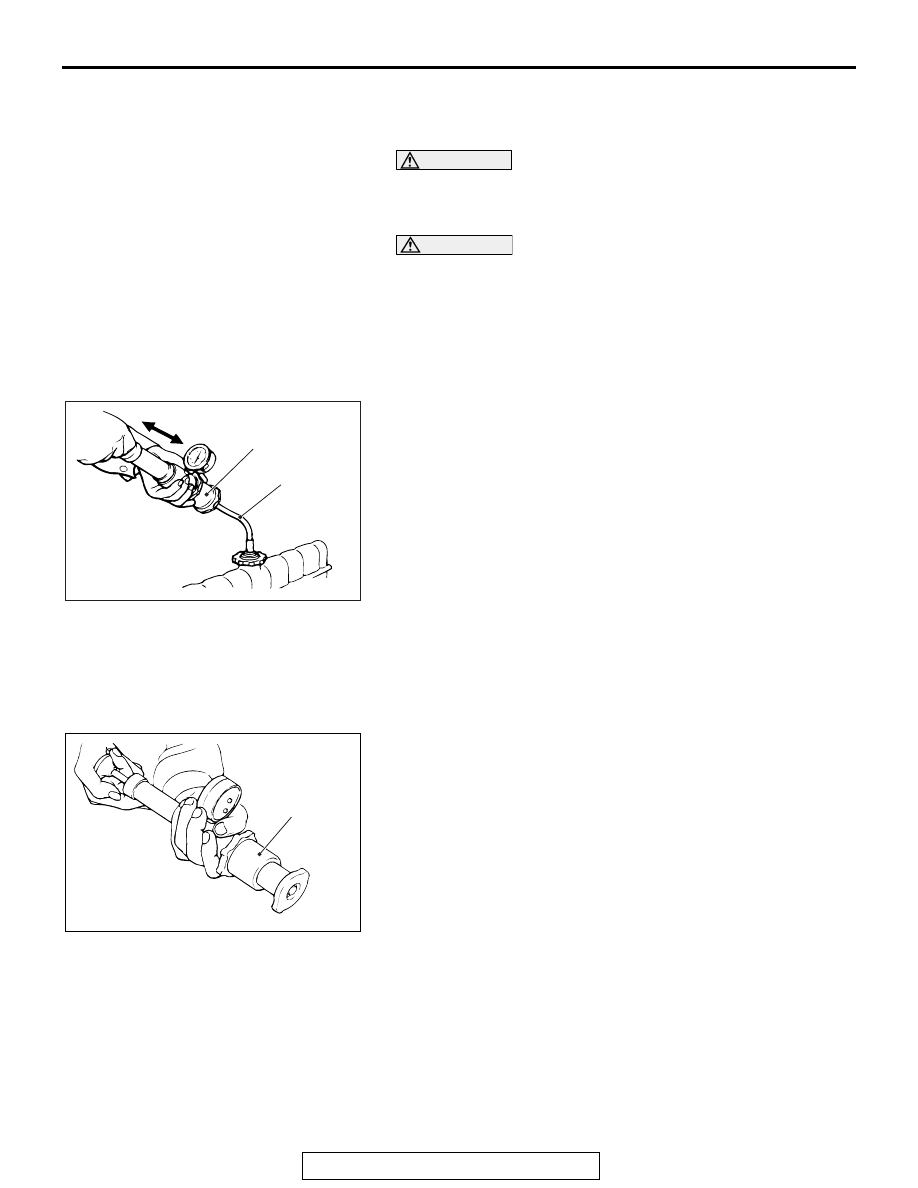

1. Use a cap adapter to attach the cap to the tester.
2. Increase the pressure until the indicator of the gauge stops

moving.

Minimum limit: 83 kPa (12 psi)
Standard value: 93

− 123 kPa (14 − 18 psi)

3. Replace the radiator cap if the reading does not remain at or

above the limit.

AC702800

Cap adapter

Adapter

AB

AC703098

Cap adapter

AB

ON-VEHICLE SERVICE

TSB Revision

ENGINE COOLING

14-26

ENGINE COOLANT CHANGE

M1141001202883

Required Special Tool:

• MB991871: LLC Changer

WARNING

When removing the radiator cap, use care to avoid
contact with hot coolant or steam. Place a shop towel
over the cap and turn the cap counterclockwise a lit-
tle to let the pressure escape through the vinyl tube.
After relieving the steam pressure, remove the cap by
slowly turning it counterclockwise.

1. Drain the water from the radiator, heater core and engine

after unplugging the radiator drain plug and removing the
radiator cap.

2. Disconnect the cooling water line hose and drain the coolant

in the water jacket. <2.4L ENGINE>

3. Disconnect the water feed hose B and drain the coolant in

the water jacket. <3.0L ENGINE>

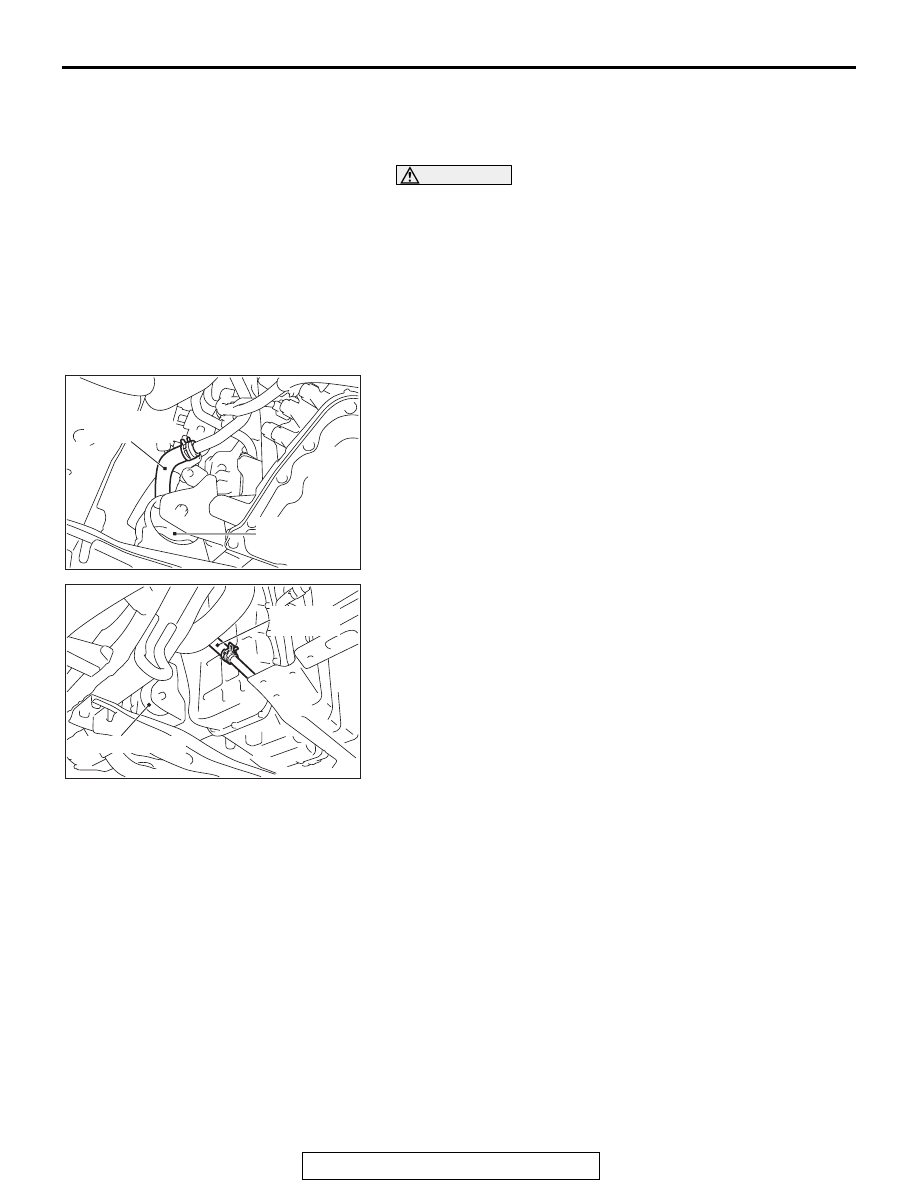

AC506619 AD

Cooling water
line hose

Engine front roll
stopper bracket

AC703107

Water feed
hose B

Front roll stopper

AB
