STRUT ASSEMBLY

TSB Revision

FRONT SUSPENSION

33-15

CAUTION

Be careful that the hand is not pinched by the coil spring
when aligning the piston rod with the hole of upper insula-
tor while compressing the coil spring.

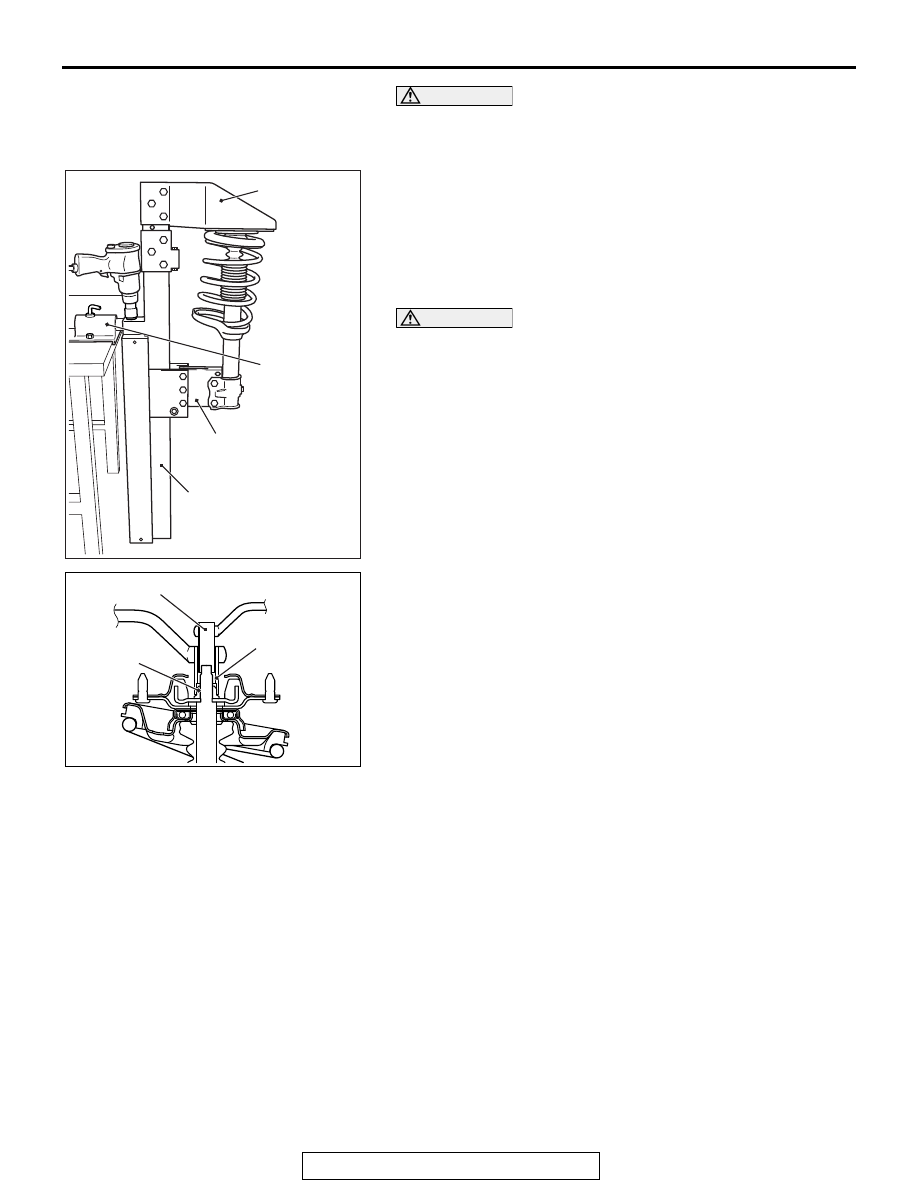

3. While passing the strut piston rod through the hole of upper

insulator by hand, slowly compress the coil spring by the
following special tool:

• Spring compressor (MB991793)

• Attachment A (MB991795)

• Upper plate (MB991794)

• Fixture (MB991830)

CAUTION

The locking nut for the piston rod inside the strut may be
loose. Do not use the impact wrench to loosen the strut
nut (jam nut).

4. Use the following special tools to tighten the strut nut (jam

nut) to the specified torque:

• Wrench (MB991681)

• Socket (MB991682)

Tightening torque: 60

± 9 N⋅m (45 ± 6 ft-lb)

INSPECTION

M1332001400315

• Check the bearing for wear or rust.

• Check the rubber parts for damage or deterioration.

• Check the spring for deformation, deterioration or damage.

• Check the shock absorber for deformation.

AC704227AB

MB991794

MB991830

MB991795

MB991793

AC704228

AC

MB991681

MB991682

Strut nut
(jam nut)

LOWER ARM

TSB Revision

FRONT SUSPENSION

33-16

LOWER ARM

REMOVAL AND INSTALLATION

M1332001601679

CAUTION

• The part indicated by

*1

 indicates parts which should be temporarily tightened, and then fully tight-

ened with the vehicle standing on the ground and the curb weight condition.

• The parts indicated by

*2

 are the bolts/nuts with friction coefficient stabilizer. In removal, ensure

there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them
to the specified torque.

Post-installation operation
• Using your fingers, press the dust cover to check for a

crack or damage.

• Wheel alignment check and adjustment (Refer to

P.33-8

).

• Headlight aiming adjustment (Refer to GROUP 54A −

Headlight

− On-vehicle Service

P.54A-205

).

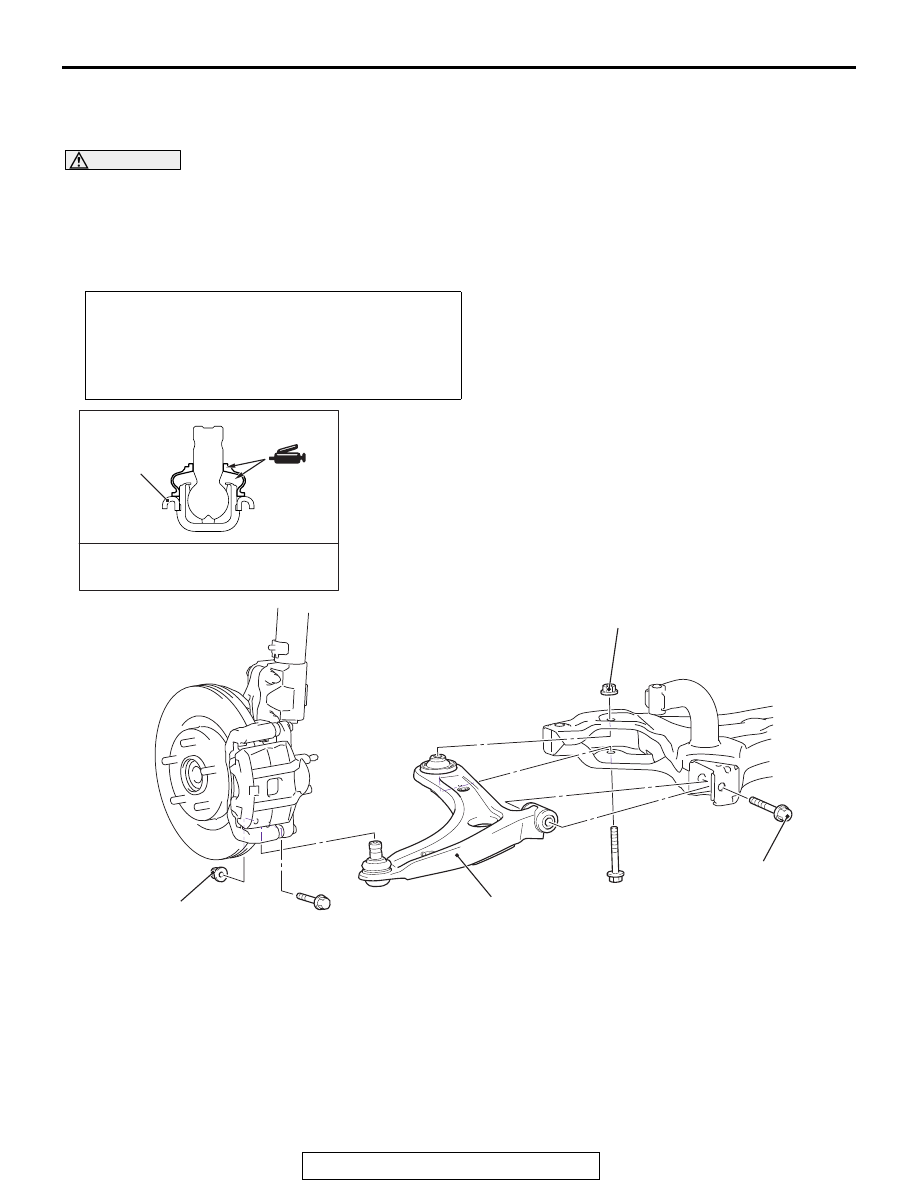

AC710831AC

71 ± 10 N·m
52 ± 7 ft-lb

1

110 ± 11 N·m
81 ± 8 ft-lb

110 ± 11 N·m
81 ± 8 ft-lb

1

Specified grease: Multipurpose grease
SAE J310, NLGI No.2 or equivalent

*1,2

*2

*2

*2

*2

*1,2

Removal steps

•

Stabilizer link and stabilizer bar
connection at both sides (Refer
to

P.33-8

).

<<A>>

1.

Lower arm assembly

LOWER ARM

TSB Revision

FRONT SUSPENSION

33-17

REMOVAL SERVICE POINT

.

<<A>> LOWER ARM ASSEMBLY REMOVAL

Rotate upward the stabilizer bar so as not to interfere the lower
arm removal.

LOWER ARM CHECK

M1332001700930

• Check the bushing for wear and deterioration.

• Check the lower arm for bend or breakage.

• Check all bolts for condition and straightness.

.

LOWER ARM BALL JOINT ROTATION STARTING
TORQUE

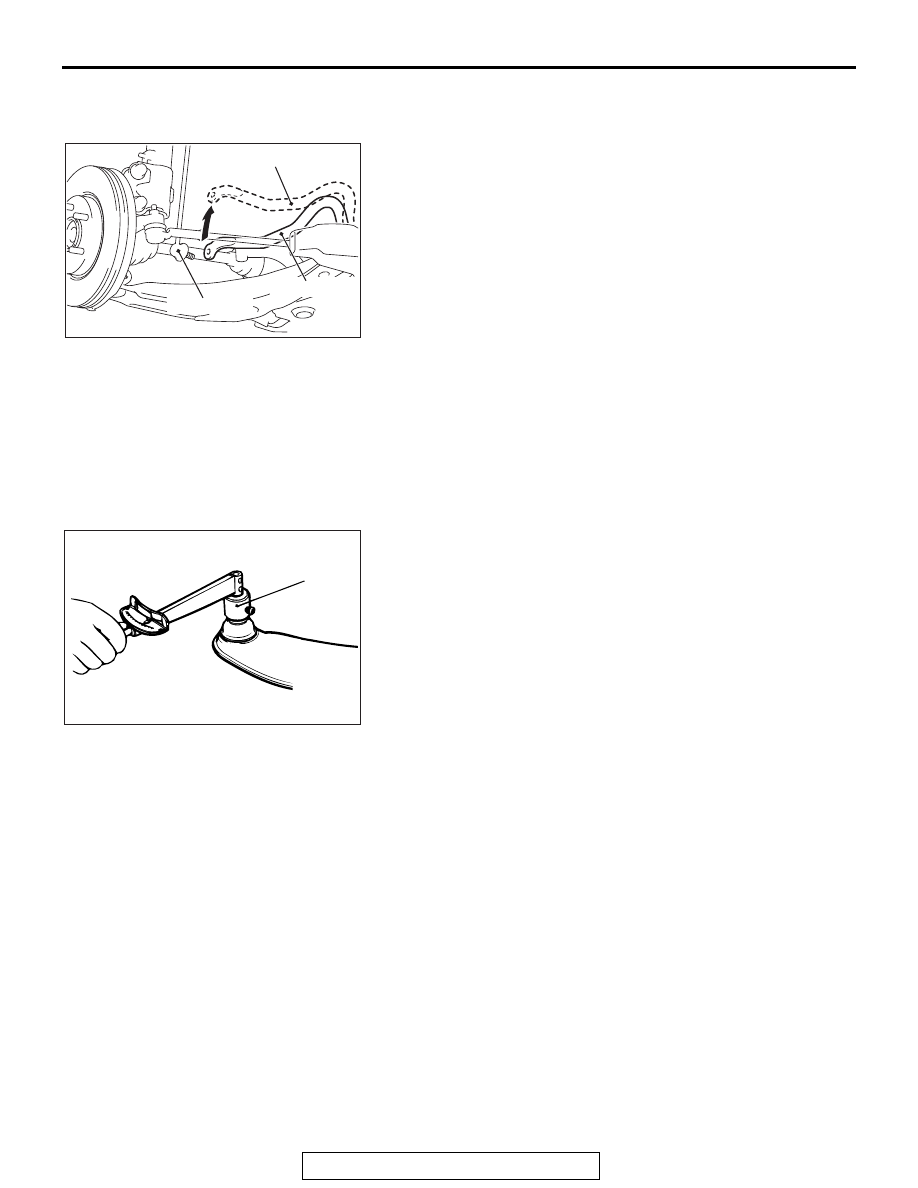

1. Move the lower arm ball joint stud back and forth for several

times, and measure the lower arm ball joint rotation starting
torque using the special tool preload socket (MB991006).

Standard value: 2.2

− 4.1 N⋅m (19 − 36 in-lb)

2. If the measured value exceeds the standard range, replace

the lower arm assembly.

3. Even if the measured value is within the standard range,

check the lower arm ball joint that there is no looseness or
gritty feeling. If there is no looseness or gritty feeling, it is
judged as usable.

.

LOWER ARM BALL JOINT DUST COVER CHECK

1. Using your fingers, press the dust cover to check for a crack

or damage.

2. If the dust cover has any crack or damage, replace the lower

arm assembly (Refer to

P.33-16

).

NOTE: If the dust cover has a crack or damage, the ball joint
could be damaged.
If the dust cover is damaged during the maintenance,
replace it.

AC611142 AB

Stabilizer bar

Stabilizer link

Stabilizer bar

AC704219AB

MB991006

LOWER ARM

TSB Revision

FRONT SUSPENSION

33-18

LOWER ARM BALL JOINT DUST COVER
REPLACEMENT

M1332008200527

Only when the dust cover is damaged accidentally during main-
tenance, replace the dust cover as follows:
1. Remove the dust cover.

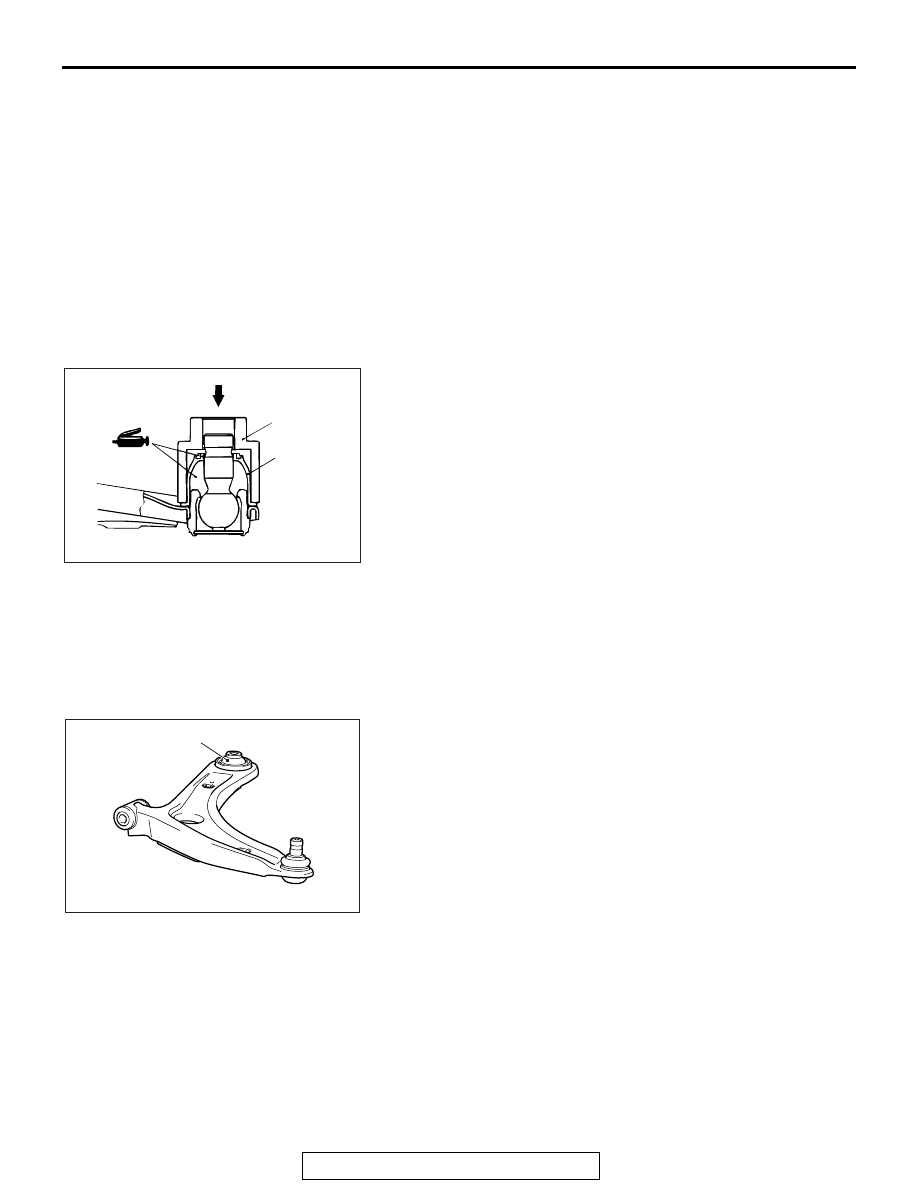

2. Fill and apply the specified grease into the inside and lip of

the dust cover.

Specified grease



Multipurpose grease SAE J310, NLGI No.2 or equiva-
lent
Usage:



Inside of dust cover: 9.0

± 1.0 g (0.32 ± 0.04 oz), Lip: As

required

3. Use the special tool ball joint remover & installer

(MB990800) to drive in the dust cover to the point where it
contact with the lower arm assembly.

4. Using your fingers, press the dust cover to check for a crack

or damage.

LOWER ARM BUSHING REPLACEMENT

M1332008100906

Required Special Tools:

• MB992119: Arm bushing remover and installer

• MB990979: Ring

• MB990890: Rear suspension bushing base

Replace the back side bushing according to the following pro-
cedure.

AC704220AB

MB990800

Dust cover

AC704233AB

Bushing
