SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-259

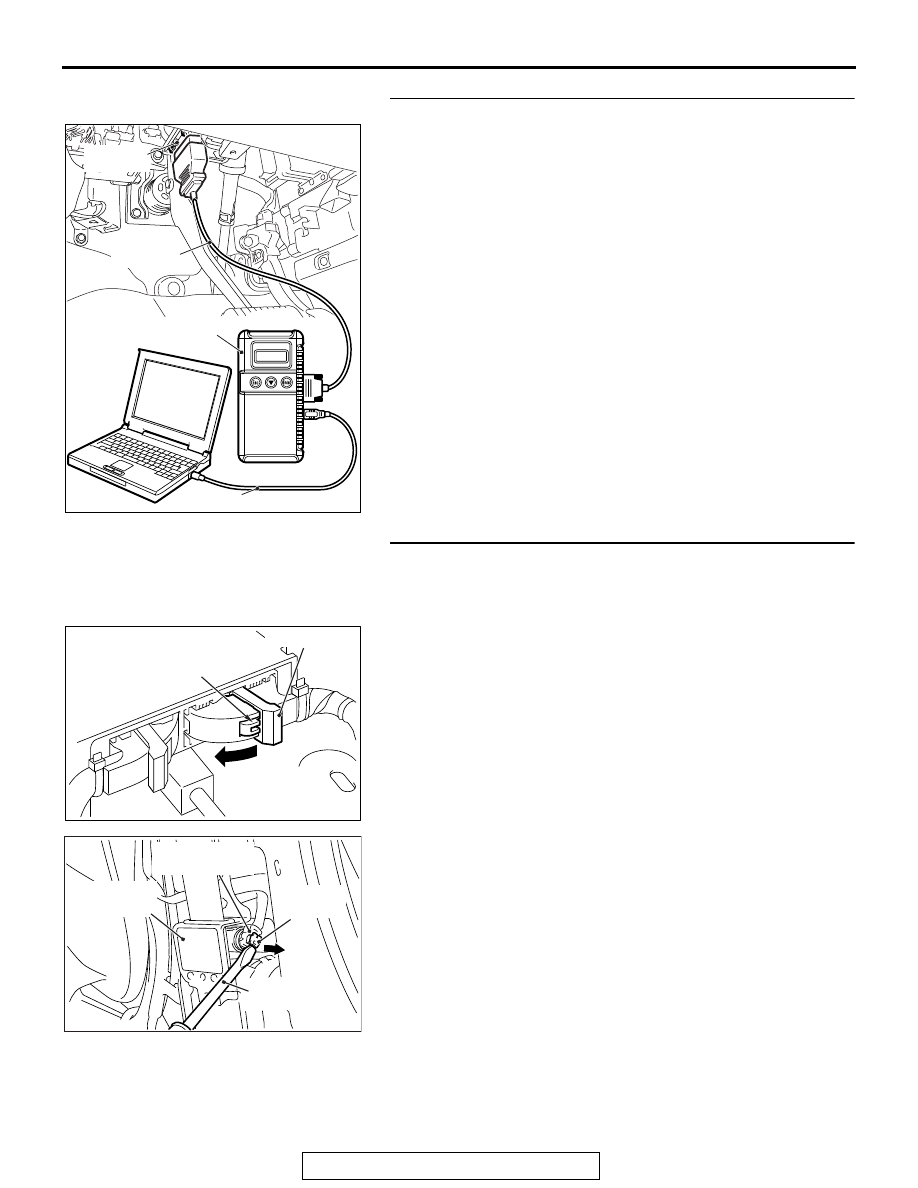

STEP 2. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Go to Step 3 .
NO :  There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to
GROUP 00, How to Cope with Intermittent
Malfunction

P.00-15

).

STEP 3. Check SRS-ECU connector C-27 and driver’s seat
belt pre-tensioner connector D-121. (Using scan tool
MB991958, read the diagnostic trouble code.)
(1) Disconnect the negative battery terminal.
(2) While pushing the part "A" indicated in the figure of the

harness side connector, turn the lock lever to the direction
of the arrow to release the lock lever, and disconnect the
C-27 SRS-ECU connector. Then connect the connector.

(3) After disconnecting the D-121 harness side connectors,

connect the connectors again. For the D-121 connector
disconnection, use a flat-tipped screwdriver to unlock the
locking button at the harness side connector by withdrawing
it toward you in two stages, and then disconnect the
connector.

(4) Connector the negative battery terminal.
(5) Erase the diagnostic trouble code memory, and check the

diagnostic trouble code.

Q: Is DTC B1C3B set?

YES : Go to Step 4.
NO :  The procedure is complete. It is assumed that DTC

B1C3B set because connector C-27 or D-121 was
engaged improperly.

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

AC507645

A

AC

Lock lever

AC507550AE

Seat belt
pre-tensioner

Harness side
connector

Locking
button

Flat-tipped
screwdriver

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-260

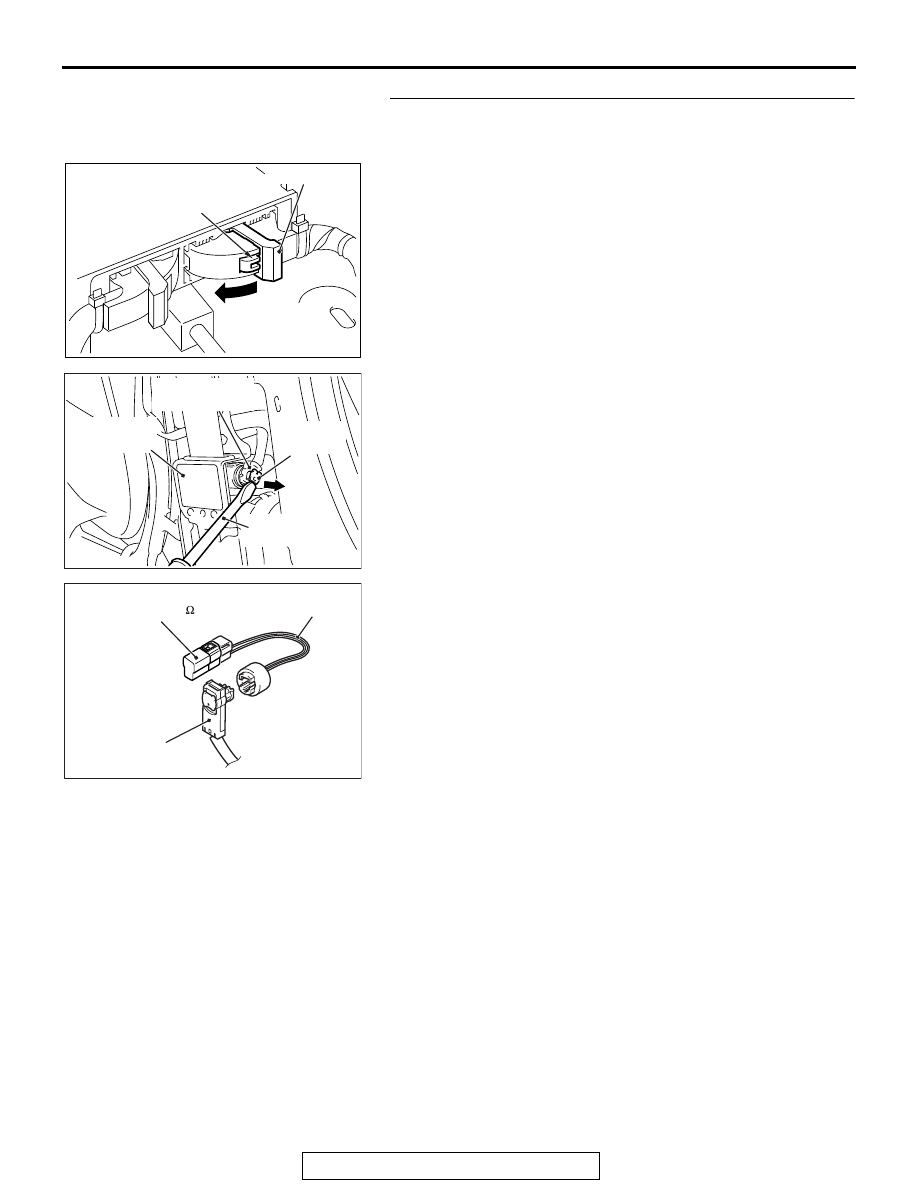

STEP 4. Check the driver's seat belt pre-tensioner. (Using
scan tool MB991958, read the diagnostic trouble code.)
(1) Disconnect the negative battery terminal.
(2) While pushing the part "A" indicated in the figure of the

harness side connector, turn the lock lever to the direction
of the arrow to release the lock lever, and disconnect the
C-27 SRS-ECU connector.

(3) Disconnect driver's seat belt pre-tensioner connector

D-121. Use a flat-tipped screwdriver to unlock the locking
button at the harness side connector by withdrawing it
toward you in two stages, and then disconnect the
connector.

(4) Connect special tool MB991865 to special tool MB991884.
(5) Connect special tool MB991884 to the D-121 harness side

connector.

(6) Connect the negative battery terminal.
(7) Erase diagnostic trouble code memory, and then check the

diagnostic trouble code.

Q: Is DTC B1C3B set?

YES : Go to Step 5.
NO :  Replace the driver's seat with belt pre-tensioner.

(Refer to

P.52B-457

). Then go to Step 7.

AC507645

A

AC

Lock lever

AC507550AE

Seat belt
pre-tensioner

Harness side
connector

Locking
button

Flat-tipped
screwdriver

AC301553 BE

Harness side
connector

MB991865

(Dummy resistor: 3    )

MB991884

(Resistor harness)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-261

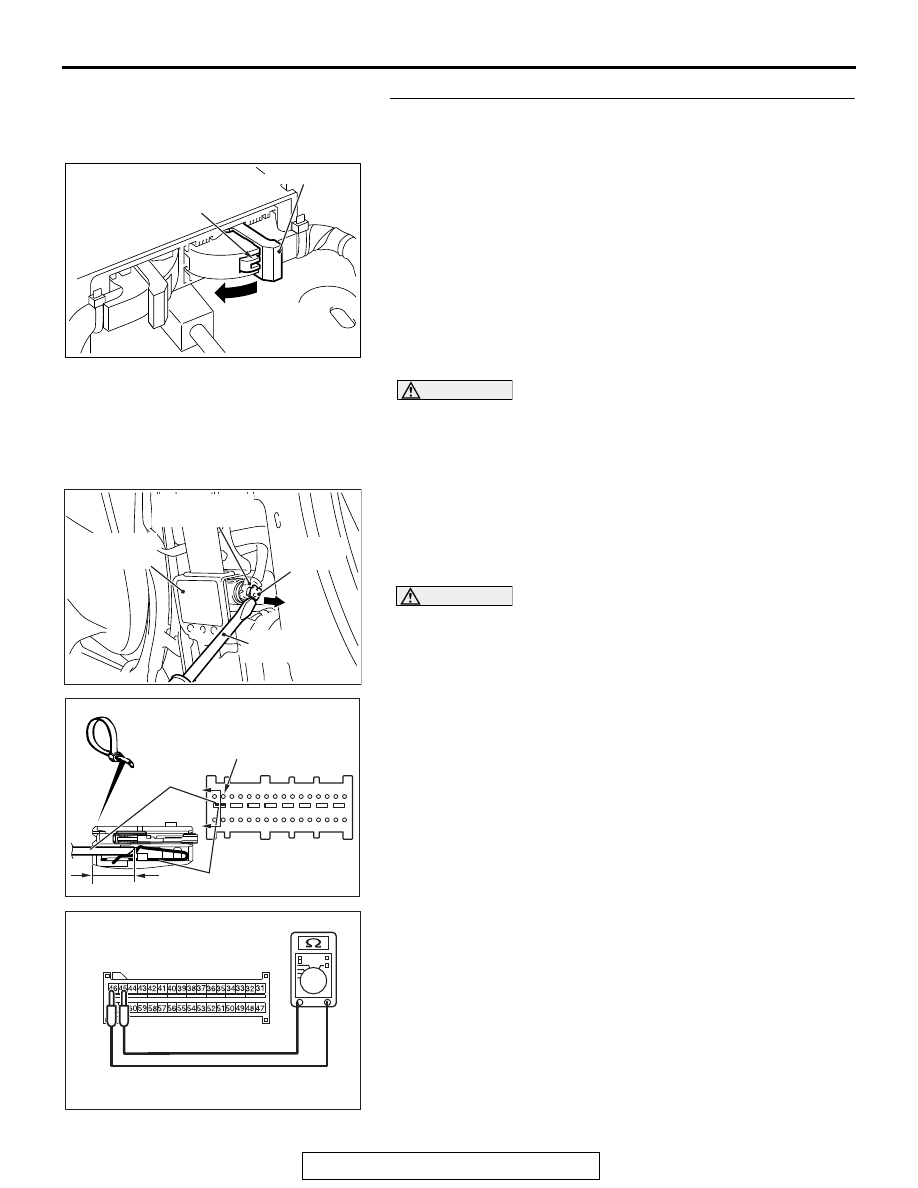

STEP 5. Check the driver’s seat belt pre-tensioner circuit.
Measure the resistance at the SRS-ECU connector C-27.
(1) Disconnect the negative battery terminal.
(2) While pushing the part "A" indicated in the figure of the

harness side connector, turn the lock lever to the direction
of the arrow to release the lock lever, and disconnect the
C-27 SRS-ECU connector.

DANGER

To prevent the seat belt pre-tensioner from deploying
unintentionally, disconnect the driver’s seat belt
pre-tensioner connector D-121 to short the squib cir-
cuit.

(3) Disconnect driver's seat belt pre-tensioner connector

D-121. Use a flat-tipped screwdriver to unlock the locking
button at the harness side connector by withdrawing it
toward you in two stages, and then disconnect the
connector.

CAUTION

Insert an insulator such as a cable tie to a depth of 4mm
(0.16 inch) or more, otherwise the short spring will not be
released.

(4) Insert a cable tie [3 mm (0.12 inch) wide, 0.5 mm (0.02 inch)

thick] between terminals 45, 46 and the short spring to
release the short spring.

(5) Check for continuity between C-27 harness side connector

terminals 45 and 46.
It should be an open circuit.

Q: Is it open circuit?

YES : Erase the diagnostic trouble code memory, and check

the diagnostic trouble code. If DTC B1C3B sets,
replace the SRS-ECU (Refer to

P.52B-436

). Then go

to Step 7.

NO :  Go to Step 6.

AC507645

A

AC

Lock lever

AC507550AE

Seat belt
pre-tensioner

Harness side
connector

Locking
button

Flat-tipped
screwdriver

AC507303AN

A

A

C-27 Harness side
connector (front view)

Section
A - A

Cable tie

Short spring

4 mm or more

Terminal

AC608812DG

C-27 Harness side
connector (front view)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-262

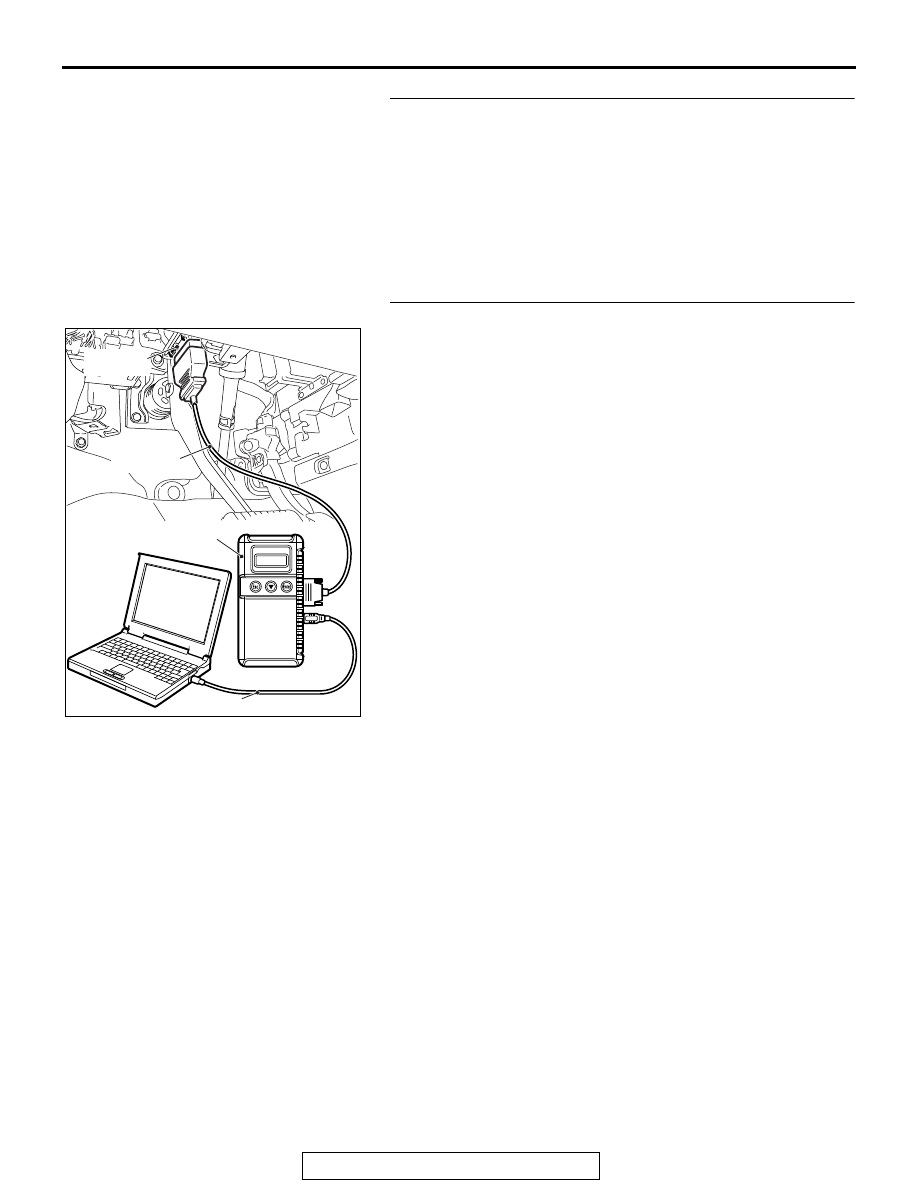

STEP 6. Check the harness for short circuit between
SRS-ECU connector C-27 (terminal No.45 and 46) and
driver’s seat belt pre-tensioner connector D-121 (terminal
No.1 and 2).
Q: Is the check result normal?

YES : Go to Step 7.
NO :  Repair the harness wires between SRS-ECU

connector C-27 and driver’s seat belt pre-tensioner
connector D-121. Then go to Step 7.

STEP 7. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC B1C3B set?

YES : Return to Step 1.
NO :  The procedure is complete.

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector
