SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-63

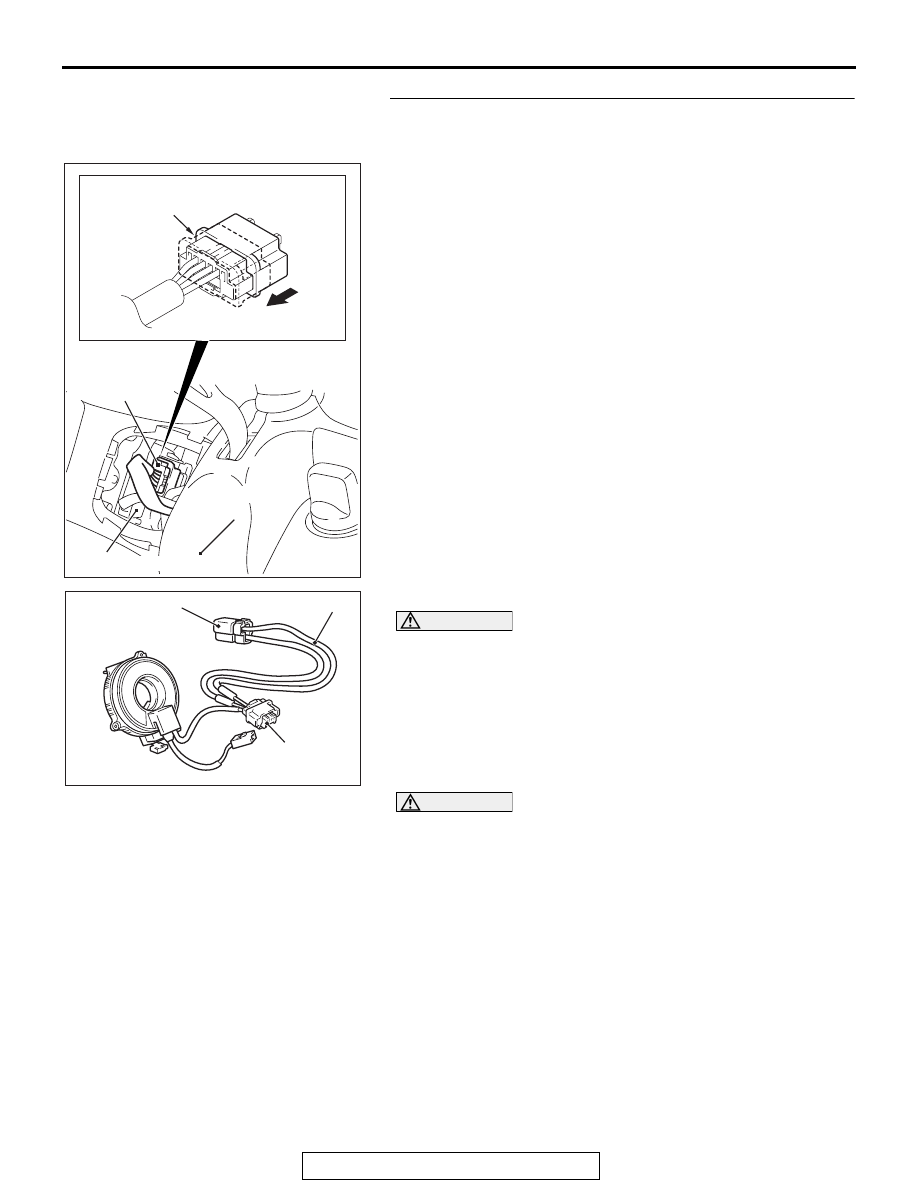

STEP 3. Check the driver's air bag module. (Using scan
tool MB991958, read the diagnostic trouble code.)
(1) Disconnect the negative battery terminal.
(2) Slide the outer housing of the clock spring side of the driver’

s air bag module connector C-205 in the arrow direction
shown, and disconnect the connector.

(3) Connect special tool MB991865 to special tool MB991866.

CAUTION

Do not insert a test probe into the terminal from its front
side directly, as the connector contact pressure may be
weakened.
(4) Insert special tool MB991866 into clock spring side of

driver’s air bag module connector C-205 (terminal No.1 and
2 <1st squib> or terminal No.3 and 4 <2nd squib>) by
backprobing.

(5) Connect the negative battery terminal.

CAUTION

Always DTC B1B06 is set when checking DTC B1B02. This
is because the second side terminal is isolated when
checking it. DTC B1B06 is set but this is not a fault. In
addition, always DTC B1B02 is set when checking DTC
B1B06 because the first side terminal is isolated.
(6) Erase the diagnostic trouble code memory, and check the

diagnostic trouble code.

Q: Is the checked DTC set?

YES : Go to Step 4.
NO :  Replace the driver's air bag module. (Refer to

P.52B-439

). Then go to Step 6.

AC607302

AC600868

Outer housing of the driver's air bag
module connector

Horn connector

Lower column
cover

Driver's air bag
module connector
(4-pin, yellow)

AB

AC701512

C-205 Air bag
module connector

MB991866 (Resistor
harness

MB991865 (Dummy
resistor: 3

Ω

AB

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-64

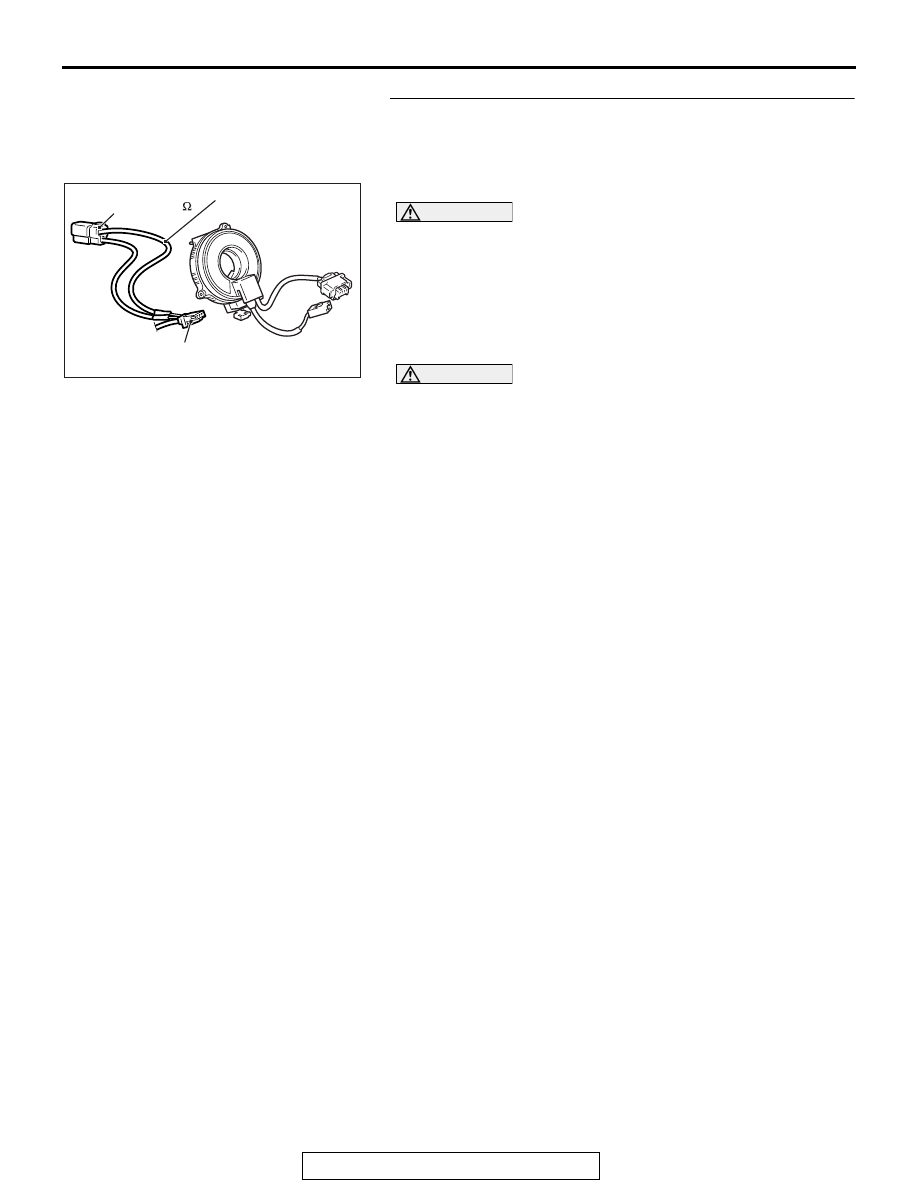

STEP 4. Check the clock spring. (Using scan tool
MB991958, read the diagnostic trouble code.)
(1) Disconnect the negative battery terminal.
(2) Disconnect the clock spring connector C-207.
(3) Connect special tool MB991865 to special tool MB991866.

CAUTION

Do not insert a probe into the terminal from its front side
directly, as the connector contact pressure may be weak-
ened.
(4) Insert special tool MB991866 into harness side of clock

spring connector C-207 (terminal No.3 and 4 <1st squib> or
terminal No.1 and 2 <2nd squib>) by backprobing.

(5) Connect the negative battery terminal.

CAUTION

Always DTC B1B06 is set when checking DTC B1B02. This
is because the second side terminal is isolated when
checking it. DTC B1B06 is set but this is not a fault. In
addition, always DTC B1B02 is set when checking DTC
B1B06 because the first side terminal is isolated.
(6) Erase the diagnostic trouble code memory, and check the

diagnostic trouble code.

Q: Is the checked DTC set?

YES : Go to Step 5.
NO :  Replace the clock spring. (Refer to

P.52B-439

). Then

go to Step 6.

AC306767

C-207 Clock spring
connector

AO

MB991865
(Dummy resistor: 3   )

MB991866
(Resistor harness)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-65

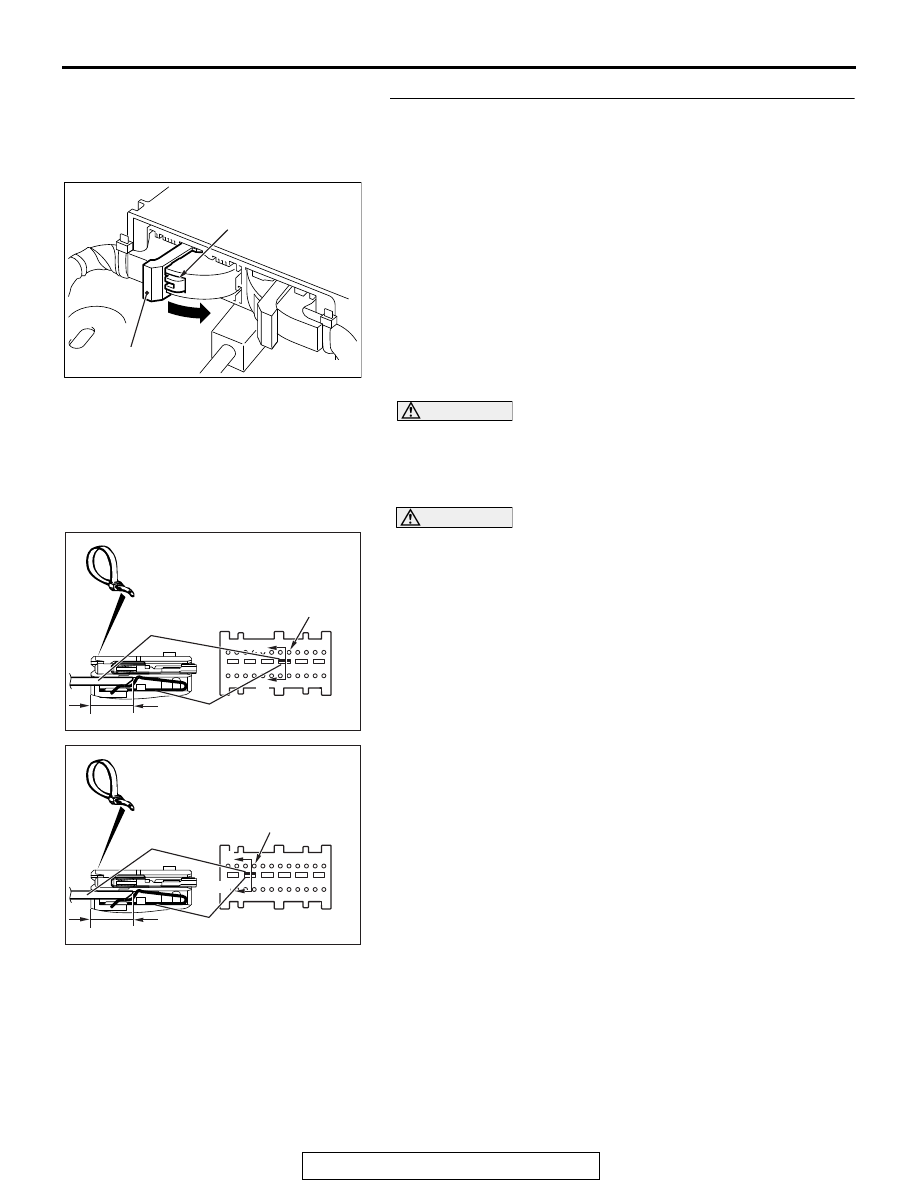

STEP 5. Check the harness for open circuit between the
SRS-ECU connector C-28 and the clock spring connector
C-207.
(1) Disconnect the negative battery terminal.
(2) While pushing the part "A" indicated in the figure of the

harness side connector, turn the lock lever to the direction
of the arrow to release the lock lever, and disconnect the
C-28 SRS-ECU connector.

DANGER

To prevent the air bag from deploying unintentionally,
disconnect the clock spring connector C-207 to short
the squib circuit.

(3) Disconnect the clock spring connector C-207.

CAUTION

Insert an insulator such as a cable tie to a depth of 4mm
(0.16 inch) or more, otherwise the short spring will not be
released.
(4) Insert a cable tie [3 mm (0.12 inch) wide, 0.5 mm (0.02 inch)

thick] between terminals 5, 6 <1st squib> or 9, 10 <2nd
squib> and the short spring to release the short spring.

AC506734

A

AB

Lock lever

AC701517AB

A

A

Section
A - A

4 mm or more

<1st Squib>

C-28 Harness side
connector (front view)

Terminal

Short spring

Cable tie

AC701517AB

A

A

<2nd Squib>

C-28 Harness side
connector (front view)

Section
A - A

4 mm or more

Terminal

Cable tie

Short spring

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-66

CAUTION

Do not insert a probe into the terminal from C-207 harness
side connector front side directly, as the connector contact
pressure may be weakened.

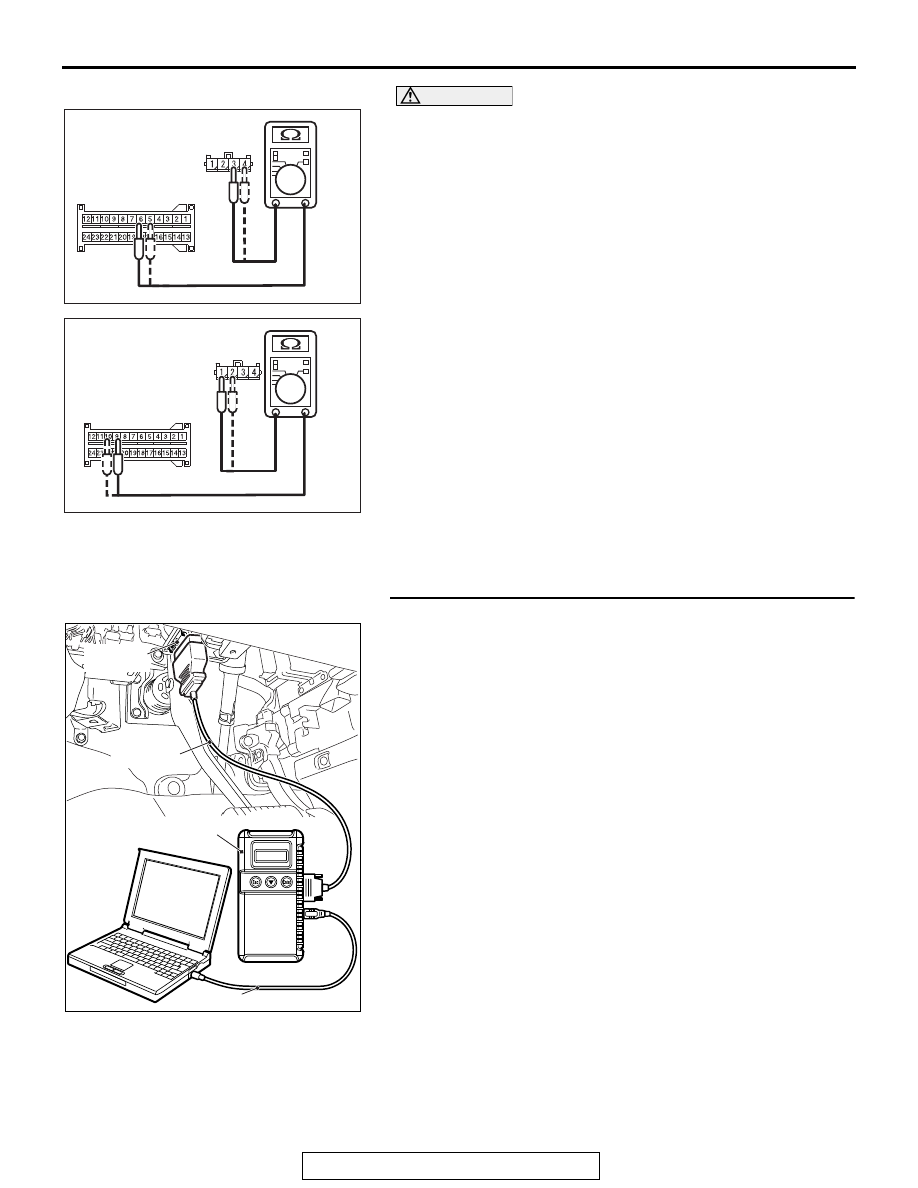

(5) Check for continuity between the following terminals. It

should be less than 2 ohms.

<1st squib>

• SRS-ECU connector C-28 (terminal No.5) and the clock

spring connector C-207 (terminal No.4)

• SRS-ECU connector C-28 (terminal No.6) and the clock

spring connector C-207 (terminal No.3)

<2nd squib>

• SRS-ECU connector C-28 (terminal No.9) and the clock

spring connector C-207 (terminal No.1)

• SRS-ECU connector C-28 (terminal No.10) and the

clock spring connector C-207 (terminal No.2)

Q: Does continuity exist?

YES : Erase the diagnostic trouble code memory, and check

the diagnostic trouble code. If DTC B1B02 <1st
squib> or B1B06 <2nd squib> set, replace the
SRS-ECU. (Refer to

P.52B-436

). Then go to Step 6.

NO :  Repair the harness wires between SRS-ECU

connector C-28 and clock spring connector C-207.
Then go to Step 6.

STEP 6. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC B1B02 <1st squib> or B1B06 <2nd squib> set?

YES : Return to Step 1.
NO :  The procedure is complete.

AC701515

<1st squib>

C-207 Harness side
connector (rear view)

C-28 Harness side
connector (front view)

AB

AC701516

<2nd squib>

C-207 Harness side
connector (rear view)

C-28 Harness side
connector (front view)

AB

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector
