OUTSIDE MIRROR

TSB Revision

EXTERIOR

51-119

STEP 12. Check rear window defogger relay connector
C-306 for loose, corroded or damaged terminal, or
terminals pushed back in the connector.
Q:  Is rear window defogger relay connector C-306 in good

condition?
YES : Go to Step 13.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. And then check to see that the heater

function of the door mirror (RH) operates normally.

STEP 13. Check the wiring harness between door mirror
(RH) connector E-28 door mirror assembly (terminal 9) and
rear window defogger relay connector C-306 (terminal 3).
NOTE: Also check intermediate connector C-113 for loose, cor-
roded or damaged terminals, or terminals pushed back in the
connector. If intermediate connector C-113 is damaged, repair
or replace the damaged component(s) as described in GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between door mirror (RH)

connector E-28 door mirror assembly (terminal 9) and
rear window defogger relay connector C-306 (terminal
3) in good condition?
YES : No action is necessary and testing is complete.
NO :  Repair the wiring harness as necessary. And then

check to see that the heater function of the door
mirror (RH) operates normally.

OUTSIDE MIRROR

TSB Revision

EXTERIOR

51-120

OUTSIDE MIRROR

REMOVAL AND INSTALLATION

M1511006401215

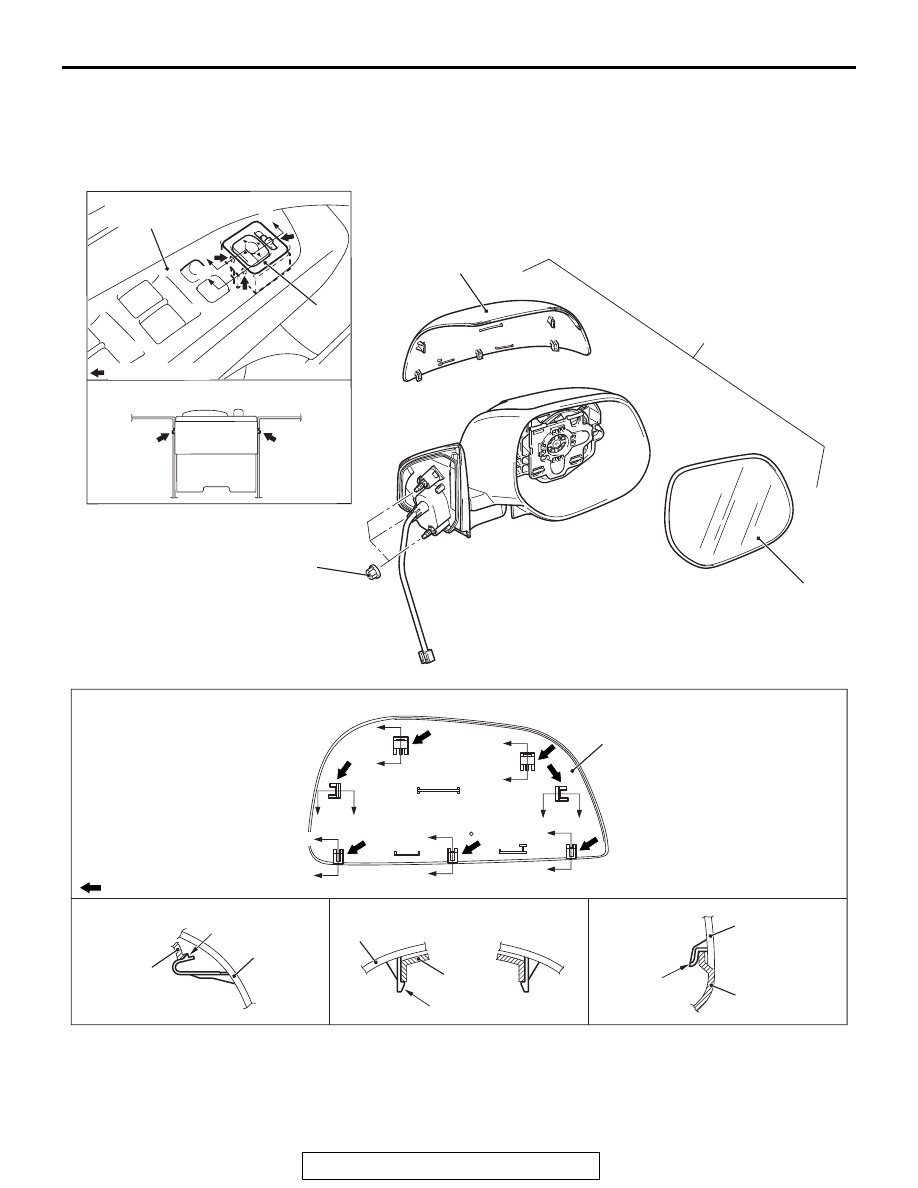

TYPE 1 (WITHOUT SIDE TURN-SIGNAL LIGHT)

AC900218

3

2

1

4

AB

A

A

Section A – A

Power window
switch panel

: Claw positions

A

5.0 ± 2.0 N·m
45 ± 17 in-lb

AC900155

C

C

C

C

C

A

A

A

A

B

B

B

B

3

1

3

AB

3

1

3

1

C

Section A – A

Section C – C

Section B – B

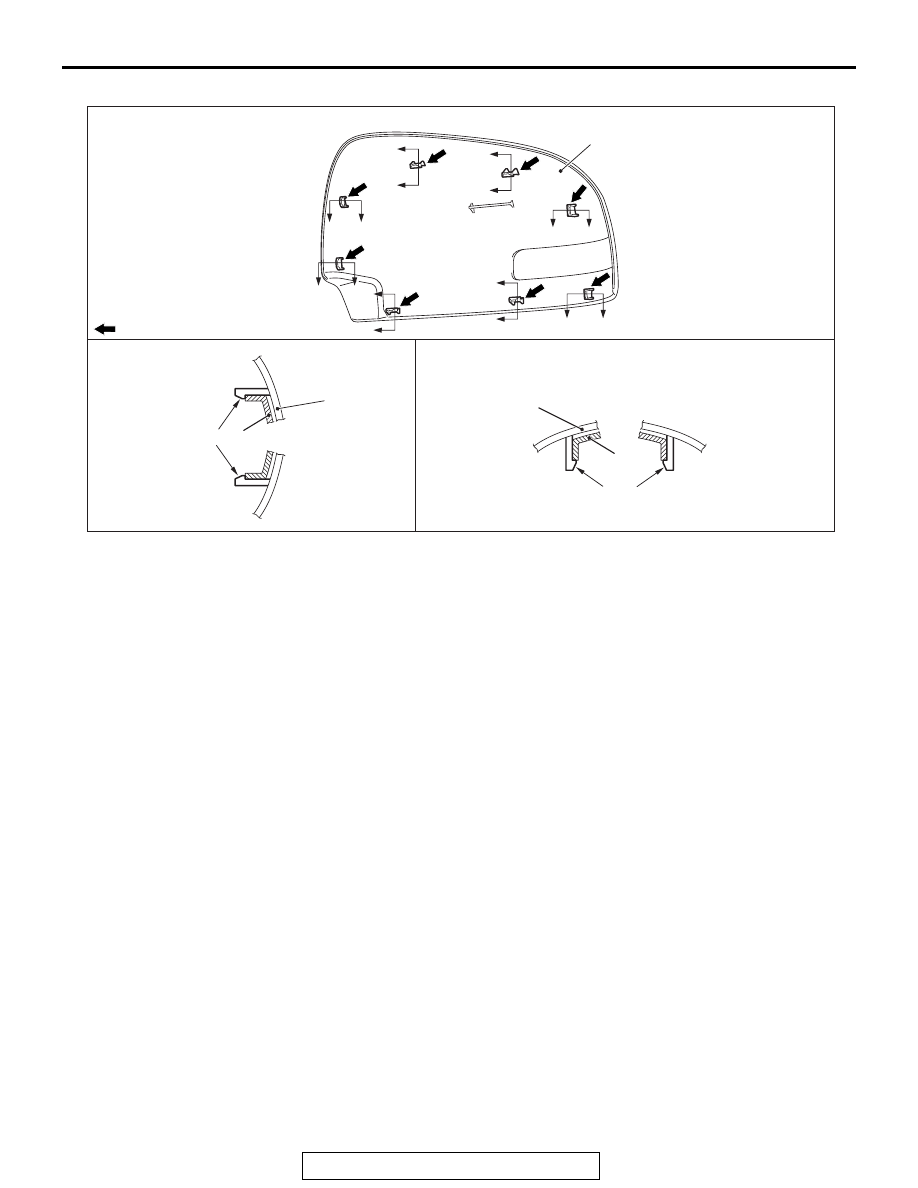

Door mirror outer cover claw positions

: Claw positions

Claw

Claw

Claw

Door mirror assembly removal
steps

•

Front door trim (Refer to GROUP
52A, Door Trim

P.52A-11

.)

1.

Door mirror assembly

Mirror removal

<<A>>

2.

Mirror

OUTSIDE MIRROR

TSB Revision

EXTERIOR

51-121

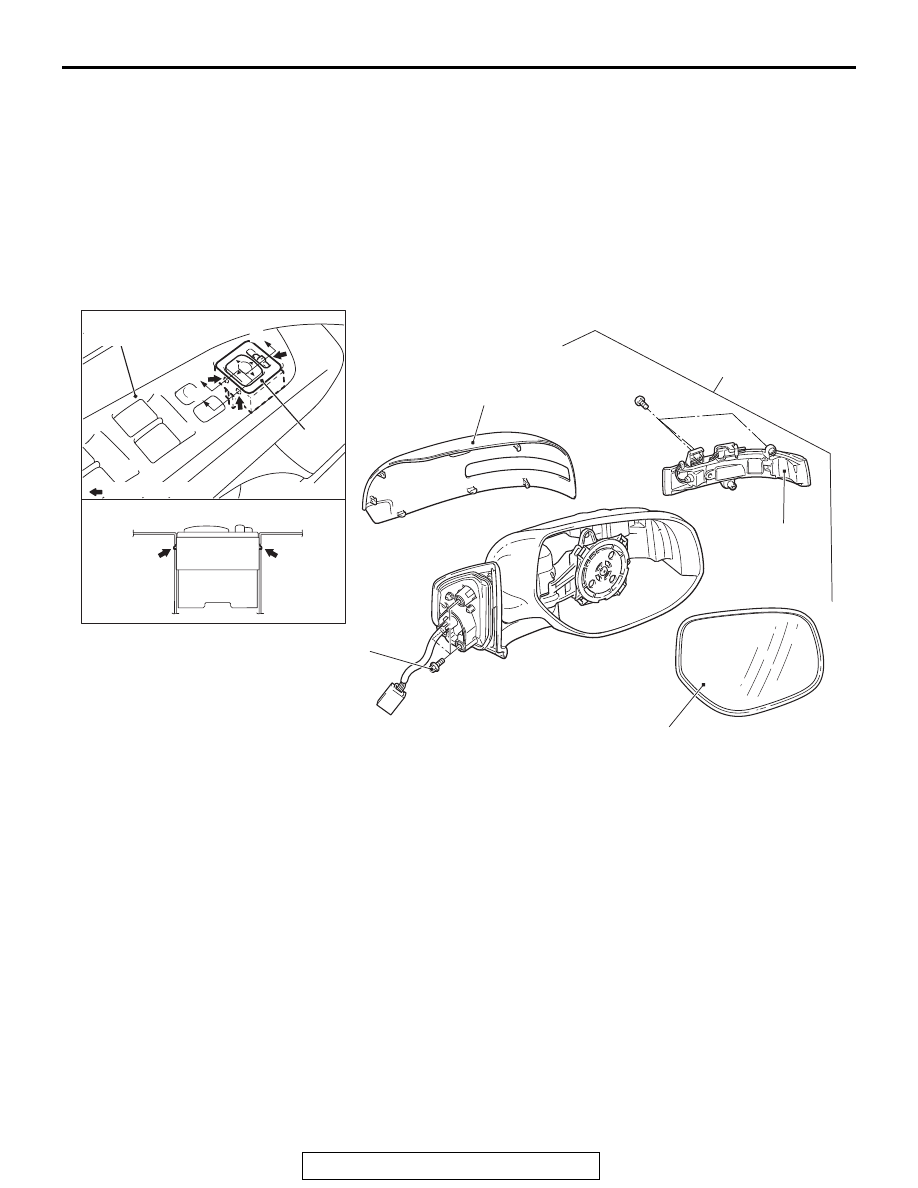

TYPE 2 (WITH SIDE TURN-SIGNAL LIGHT)

Door mirror outer cover removal
steps

<<A>>

2.

Mirror

<<B>>

>>A<<

3.

Door mirror outer cover
Remote controlled mirror switch
removal steps

•

Front door trim (Refer to GROUP
52A, Door Trim

P.52A-11

.)

4.

Remote controlled mirror switch

AC809035

3

4

2

1

5

AB

A

A

Section A – A

Power window
switch panel

: Claw positions

A

5.0 ± 2.0 N·m
45 ± 17 in-lb

OUTSIDE MIRROR

TSB Revision

EXTERIOR

51-122

AC708704

AC808606

3

AB

3

Section A – A

Section B – B

Door mirror outer cover claw positions

: Claw positions

3

Claw

Claw

A

A

A

A

A

A

A

A

B

B

B

B

B

B

B

B

1

1

Door mirror assembly removal
steps

•

Front door trim (Refer to GROUP
52A, Door Trim

P.52A-11

.)

1.

Door mirror assembly
Mirror removal

•

Connection of heated mirror
connector

<<A>>

2.

Mirror
Door mirror outer cover removal
steps

<<A>>

2.

Mirror

>>A<<

3.

Door mirror outer cover

Side turn-signal light assembly
removal steps

•

Connection of heated mirror
connector

<<A>>

2.

Mirror

<<C>>

>>A<<

3.

Door mirror outer cover

•

Connection of side turn-signal light
connector

4.

Side turn-signal light assembly
Remote controlled mirror switch
removal steps

•

Front door trim (Refer to GROUP
52A, Door Trim

P.52A-11

.)

5.

Remote controlled mirror switch
