GARNISHES

TSB Revision

EXTERIOR

51-15

Required Special Tool:

• MB990784: Ornament remover

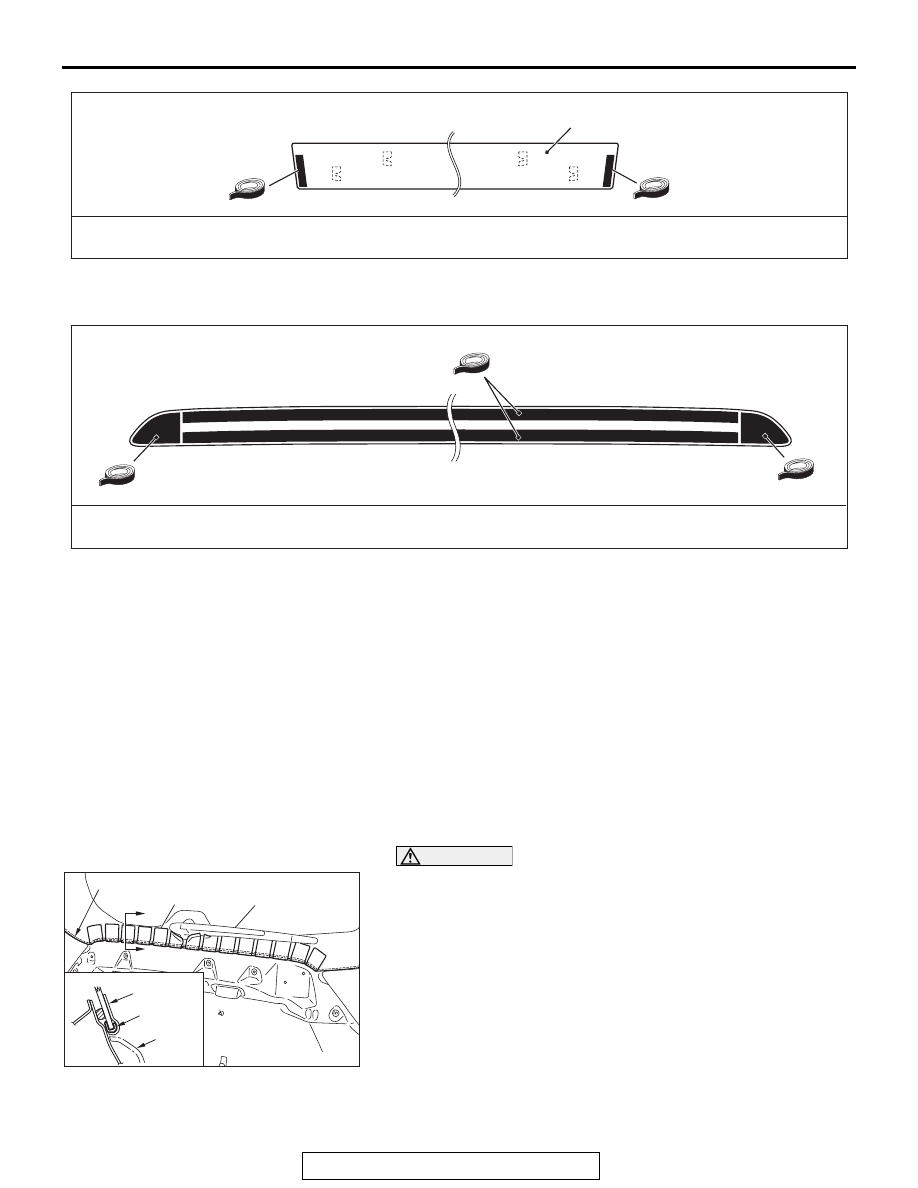

INSTALLATION SERVICE POINT

.

>>A<< LIFTGATE GARNISH INSTALLATION

CAUTION

When installing the Liftgate garnish, roll up the weather-
strip and secure it by a tape as shown to avoid trapping it.

AC900211

A

A

1

AB

Double-sided tape affixed locations

<Rear roof garnish>

Double-sided tape: Generic products, 10 mm (0.39 in) width and  1.2 mm (0.05 in) thickness



AC803566

B

A

C

AD

Double-sided tape affixed locations

<Liftgate molding (Some models)>

Double-sided tape: Generic products, A : 10 mm (0.39 in) width and  1.2 mm (0.05 in) thickness,
                                                                 B, C : 1.2 mm (0.05 in)  thickness

Rear roof garnish removal
• Roof rail (Refer to

P.51-23

)

• Headlining (Refer to GROUP 52A,

Headlining

P.52A-15

)

1. Rear roof garnish
Liftgate garnish removal
• Rear wiper motor (Refer to

P.51-102

)

• Liftgate trim (Refer to GROUP 52A,

Liftgate trim

P.52A-14

)

>>

A

<< 2. Liftgate garnish

Liftgate lower garnish removal
• Liftgate lower trim (Refer to GROUP

52A, Liftgate lower trim

P.52A-14

)

3. Liftgate garnish cover
4. Liftgate lower garnish

AC508055AB

Weatherstrip

Tape

Tape

Rear wiper

A

A

Section A – A

Liftgate
garnish

Weather-
strip

DOOR SASH TAPE

TSB Revision

EXTERIOR

51-16

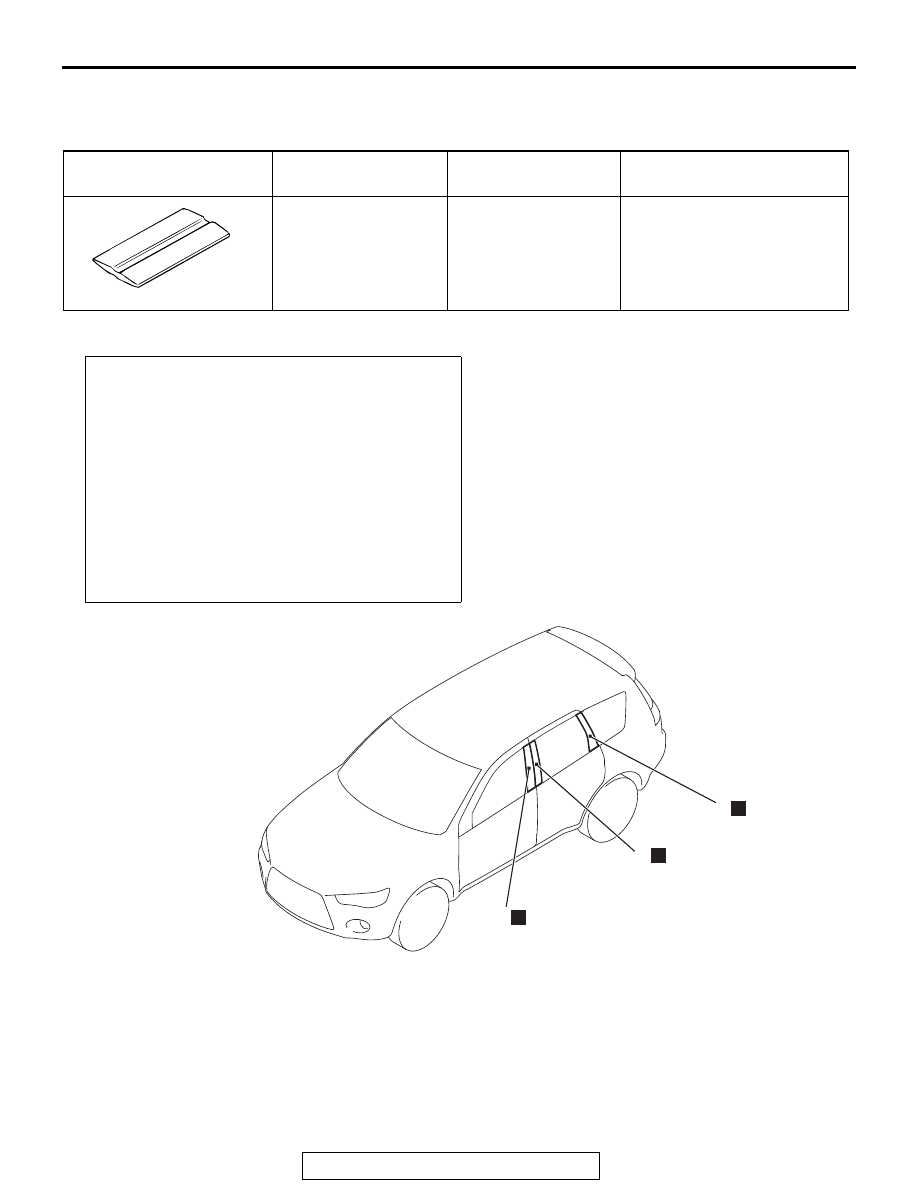

DOOR SASH TAPE

SPECIAL TOOL

M1511000602203

REMOVAL AND INSTALLATION

M1511024100875

Required Special Tool:

• MB990528: Stripe Tape Spatula

Tool

Tool number and
name

Supersession

Application

MB990528
Stripe tape spatula

General service tool

Installation of door sash tape

MB990528

Pre-removal and post-installation operation
• Door Trim Assembly Removal and Installation (Refer to

GROUP 52A

− Door Trim,

P.52A-11

).

• Door Beltline Weatherstrip Inner Removal and Installation

(Refer to GROUP 42A

− Window Glass Runchannel and

Door Opening Weatherstrip

P.42A-159

).

• Door Opening Weatherstrip Outer Removal and Installa-

tion (Refer to GROUP 42A

− Window Glass Runchannel

and Door Opening Weatherstrip

P.42A-159

).

• Door Window Glass Runchannel Removal and Installation

(Refer to GROUP 42A

− Window Glass Runchannel and

Door Opening Weatherstrip

P.42A-159

).

• Door Beltline Molding Removal and Installation (Refer to

GROUP 42A

− Window Glass Runchannel and Door

Opening Weatherstrip

P.42A-159

).

AC808574

1

2

3

N

N

N

AD

Removal steps

<<A>>

>>A<<

1.

Front door sash tape, rear

<<A>>

>>A<<

2.

Rear door sash tape, front

<<A>>

>>A<<

3.

Rear door sash tape, rear

DOOR SASH TAPE

TSB Revision

EXTERIOR

51-17

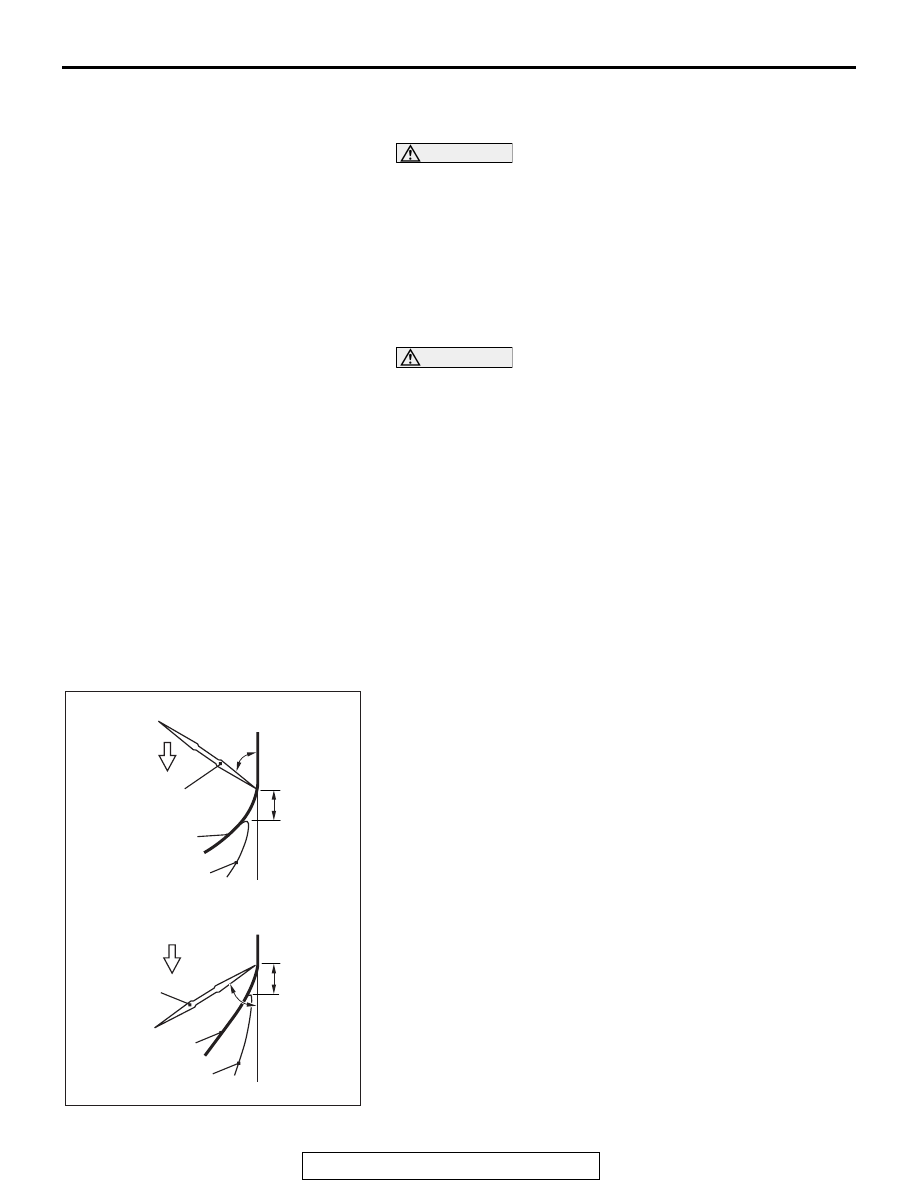

REMOVAL SERVICE POINT

.

<<A>> DOOR SASH TAPES REMOVAL

CAUTION

Pay attention to keep from getting burned by hot door
panel or tapes.
1. Use a hair drier to warm the tape.
2. Peel the tip of the tape with your finger, and then peel off the

tape in parallel with the application surface.

INSTALLATION SERVICE POINT

.

>>A<< DOOR SASH TAPES INSTALLATION

CAUTION

• The ambient temperature should be 20 − 30 °C(68 −

86

°F). Ensure that the working area is clean. Ideally, the

tape application should be done at ambient tempera-
ture of 25

°C(77°F).

• If ambient temperature is less than 15°C(59°F, heat the

tape and application surface to a temperature of 20

− 30

°C(68 − 86°F). Alternatively, allow it to cool if it is

35

°C(95°F) or higher. The adhesive property of the tape

is deteriorated at low temperature, so the tape may
come adrift easily. Meanwhile, the tape will be softened
excessively at high temperature.

• When beginning to apply the tape, pay particular atten-

tion. If the end of the tape cannot be applied to the
specified position with an accuracy of less than 1
mm(0.04 in), it may cause the poor appearance or adhe-
sion.

• When using the special tool, stripe tape spatula

(MB990528) to apply the tape, be sure to move it
steadily, evenly and without interruption. If you fail to
do so, a groove (usually known as shock line) may be
left on the tape surface. Meanwhile, if you move it too
slowly, air bubble may be left inside the tape. Keep
even pressure, constant speed and steady application
angle when moving the special tool.

1. Wrap a soft cloth (synthetic fiber) around the tip of the

special tool.

2. Use 3M

™ AAD Part number 8906 or equivalent to clean the

tape application surfaces.

3. Wipe away dirt from the tape.

AC702433

AB

MB990528

Unit: mm(in)

MB990528

40 to 50˚

30 to 45˚

10 to 20
(0.39 to 0.79)

10 to 20
(0.39 to 0.79)

Door sash tape

Door sash tape

<Pushing direction>

<Pulling direction>

3 to 7 cm/sec.

3 to 7 cm/sec.

Backing paper

Backing paper

DOOR SASH TAPE

TSB Revision

EXTERIOR

51-18

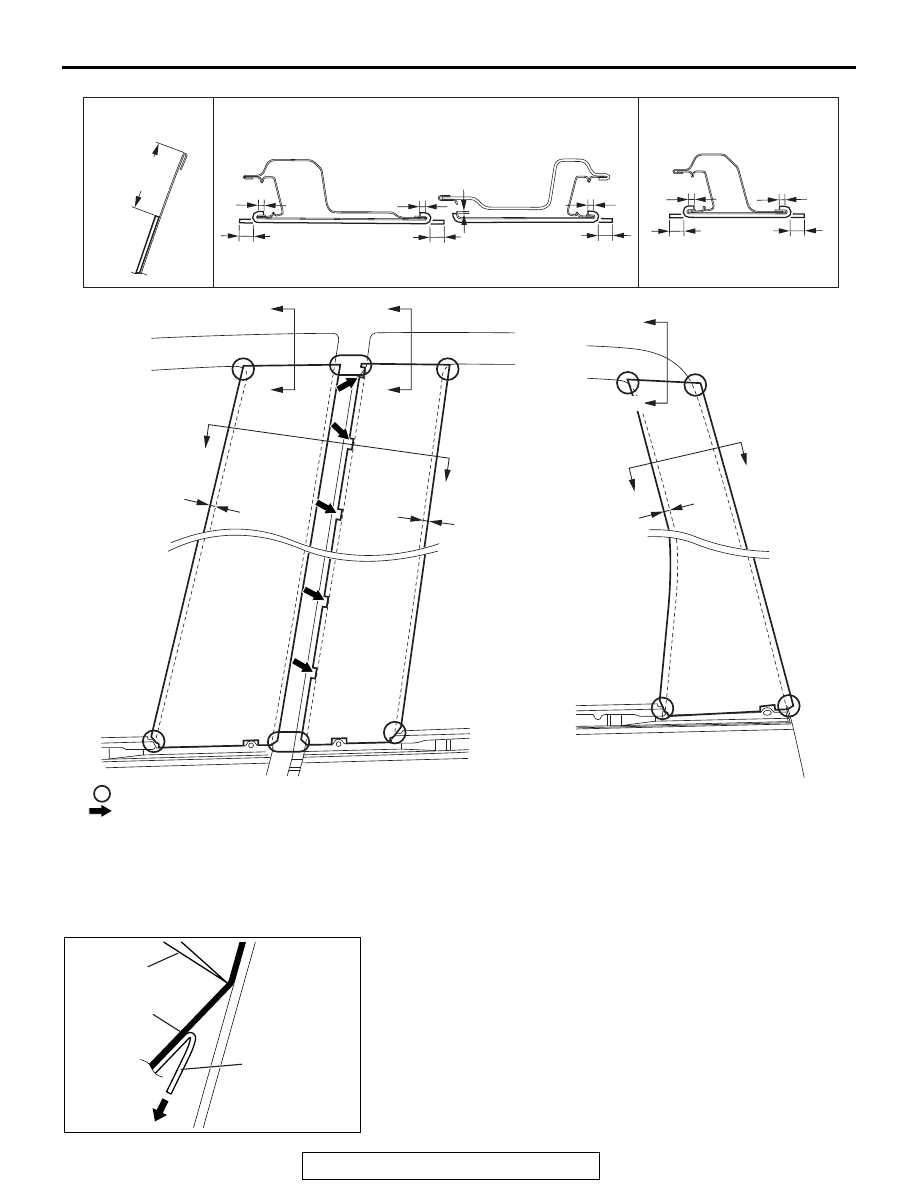

4. Apply the door sash tape according to the procedure below.

(1) Position the tape at the upper and lower locating points.
(2) Peel of backing strip from the top of the tape and attach it

temporarily.

(3) Peel off the backing strip to the half length of the tape.
(4) Apply the tape using the special tool while peeling off the

remaining backing strip.

AC702432

4(0.16)

4(0.16)

4(0.16)

4(0.16)

4(0.16)

4(0.16)

4(0.16)

4(0.16)

1(0.04)

3(0.12)

3(0.12)

3(0.12)

3(0.12)

3(0.12)

: Tape locating points

Section A – A
Section D – D (*)

B

C

C

B

A

A

A

A

D

D

Section B – B

Section C – C

Unit: mm (in)

   37(1.46)
30.9(1.22)(*)

AC

: T-stud for door opening weatherstrip attaching locations (5 points in total)

AC402197

AG

MB990528

Backing paper

Door sash
tape
