DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-197

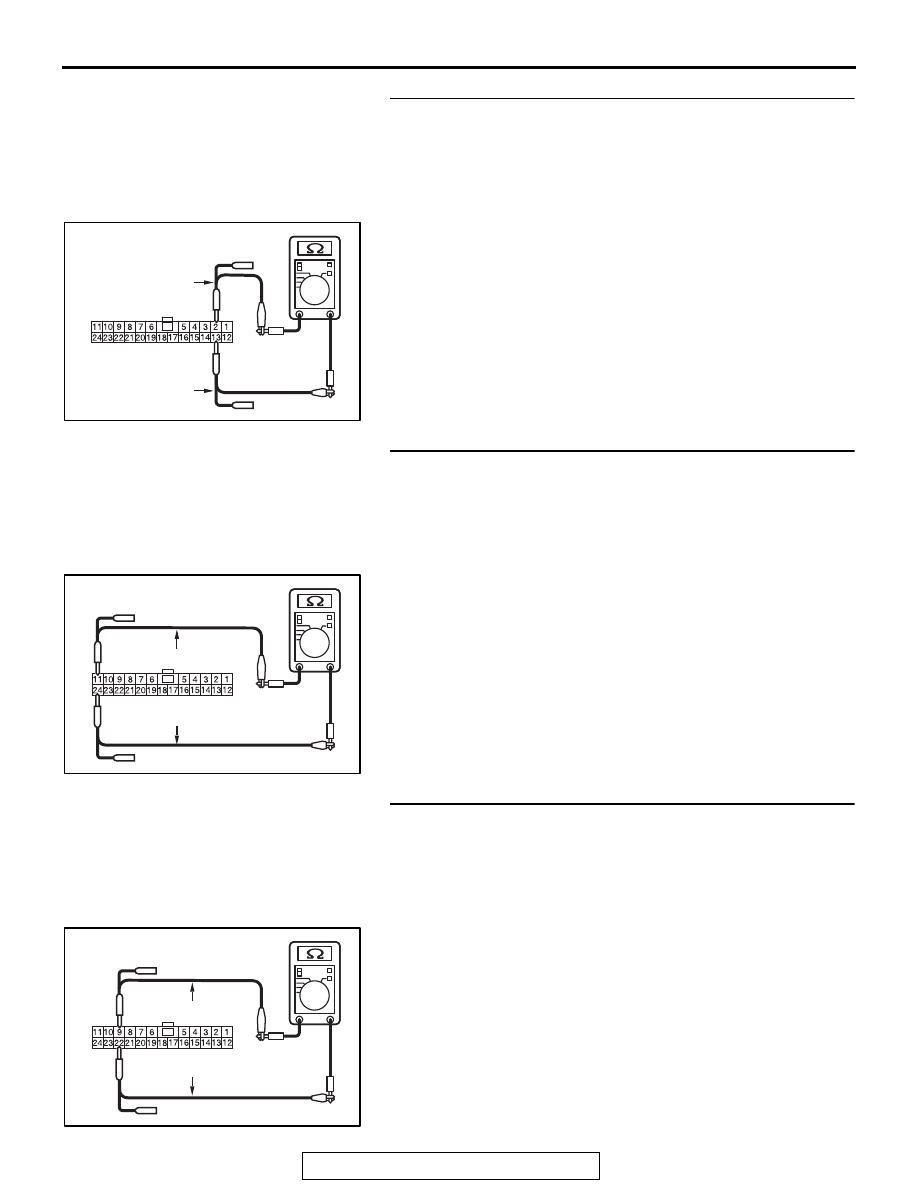

STEP 27. Check the wiring harness between joint
connector (CAN1) C-103 and SRS-ECU connector C-28 for
line-to-line short. Measure the resistance at joint
connector (CAN1) C-103.
(1) Disconnect joint connector (CAN1), and check that there is

continuity at the harness side of joint connector (CAN1).

(2) Check that there is continuity between joint connector

(CAN1) terminals 2 and 13.

OK: No continuity

Q: Is the check result normal?

YES : Go to Step 28.
NO :  Go to Step 47.

STEP 28. Check the wiring harness between joint
connector (CAN1) C-103 and occupant classification-ECU
connector D-34-2 for line-to-line short. Measure the
resistance at joint connector (CAN1) C-103.
(1) Disconnect joint connector (CAN1), and check that there is

continuity at the harness side of joint connector (CAN1).

(2) Check that there is continuity between joint connector

(CAN1) terminals 11 and 24.

OK: No continuity

Q: Is the check result normal?

YES : Go to Step 29.
NO  :  Go to Step 48.

STEP 29. Check the wiring harness between joint
connector (CAN1) C-103 and A/C-ECU connector C-109 for
line-to-line short. Measure the resistance at joint
connector (CAN1) C-103.
(1) Disconnect joint connector (CAN1), and check that there is

continuity at the harness side of joint connector (CAN1).

(2) Check that there is continuity between joint connector

(CAN1) terminals 9 and 22.

OK: No continuity

Q: Is the check result normal?

YES (vehicles without MMCS) : Go to Step 30.
YES (vehicles with MMCS) : Go to Step 31.
NO  :  Go to Step 49.

AC703868AQ

Test harness

Harness side: C-103

Test harness

AC703868 AM

Test harness

Harness side: C-103

Test harness

AC703868AO

Test harness

Harness side: C-103

Test harness

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-198

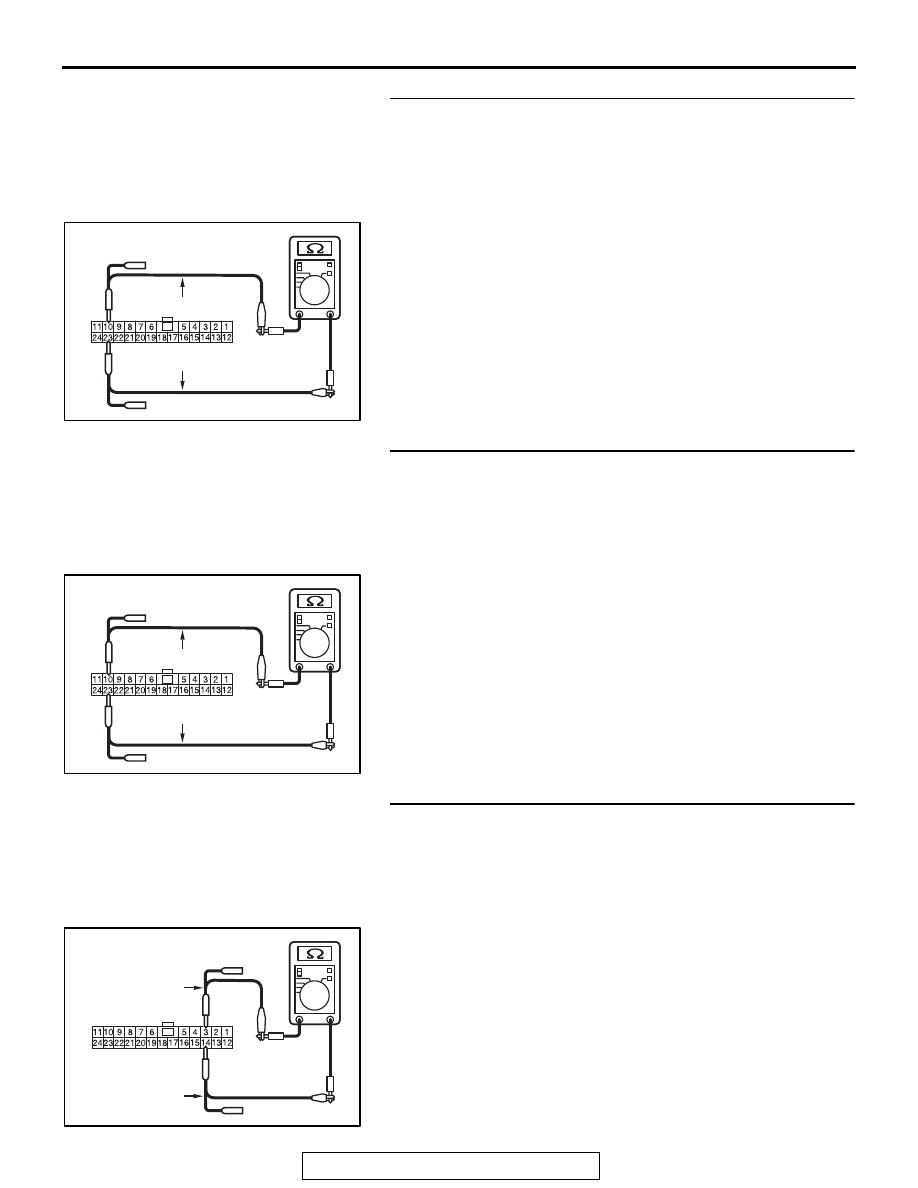

STEP 30. Check the wiring harness between joint
connector (CAN1) C-103 and radio and CD player or radio
and CD changer connector C-16 for line-to-line short.
Measure the resistance at joint connector (CAN1) C-103.
(1) Disconnect joint connector (CAN1), and check that there is

continuity at the harness side of joint connector (CAN1).

(2) Check that there is continuity between joint connector

(CAN1) terminals 10 and 23.

OK: No continuity

Q: Is the check result normal?

YES (vehicles without satellite radio) : Go to Step 33.
YES (vehicles with satellite radio) : Go to Step 32.
NO  :  Go to Step 50.

STEP 31. Check the wiring harness between joint
connector (CAN1) C-103 and CAN box unit connector C-13
for line-to-line short. Measure the resistance at joint
connector (CAN1) C-103.
(1) Disconnect joint connector (CAN1), and check that there is

continuity at the harness side of joint connector (CAN1).

(2) Check that there is continuity between joint connector

(CAN1) terminals 10 and 23.

OK: No continuity

Q: Is the check result normal?

YES (vehicles without satellite radio) : Go to Step 33.
YES (vehicles with satellite radio) : Go to Step 32.
NO  :  Go to Step 51.

STEP 32. Check the wiring harness between joint
connector (CAN1) C-103 and satellite radio tuner
connector C-111 for line-to-line short. Measure the
resistance at joint connector (CAN1) C-103.
(1) Disconnect joint connector (CAN1), and check that there is

continuity at the harness side of joint connector (CAN1).

(2) Check that there is continuity between joint connector

(CAN1) terminals 3 and 14.

OK: No continuity

Q: Is the check result normal?

YES : Go to Step 33.
NO :  Go to Step 52.

AC703868AP

Test harness

Harness side: C-103

Test harness

AC703868AP

Test harness

Harness side: C-103

Test harness

AC703868 AI

Test harness

Harness side: C-103

Test harness

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-199

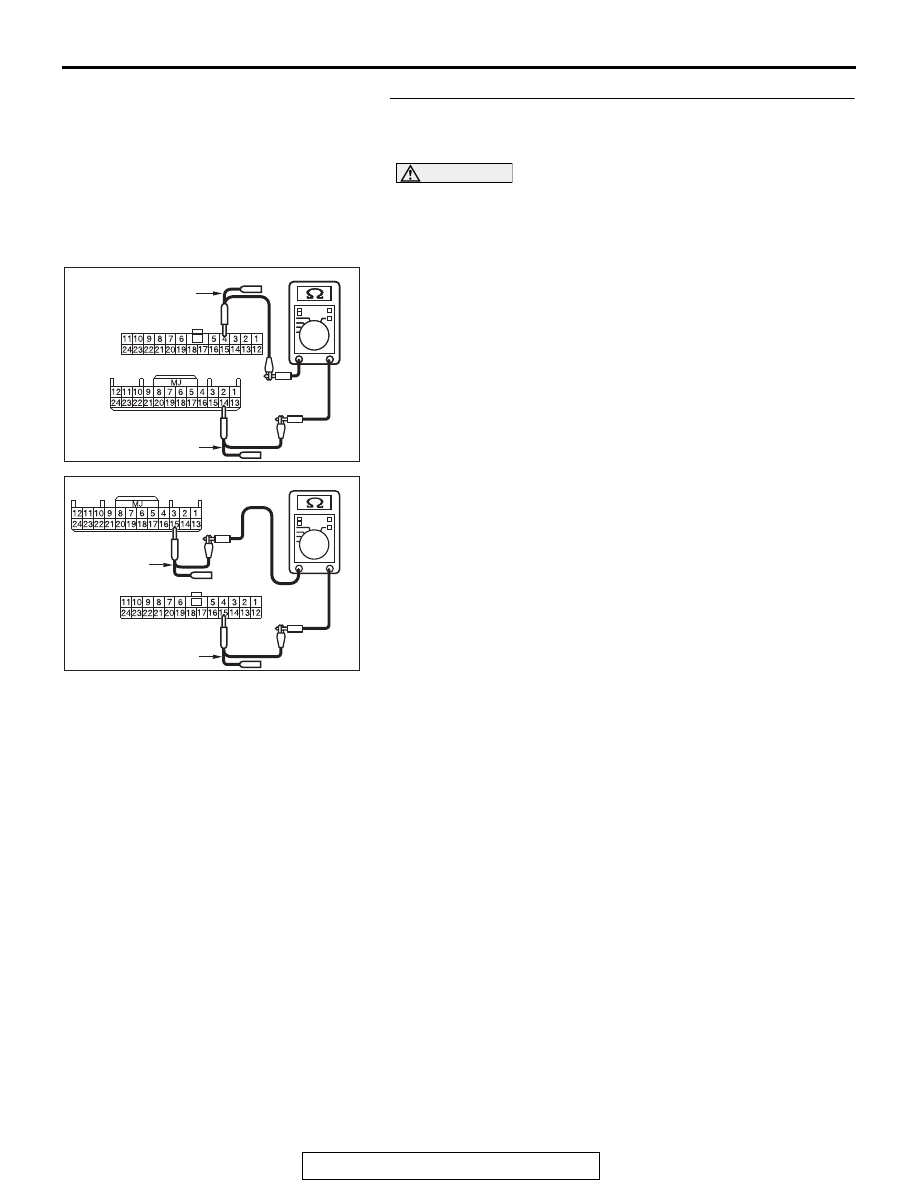

STEP 33. Check the wiring harness between joint
connector (CAN1) C-103 and EATCS-ECU connector C-301
for line-to-line short. Measure the resistance at joint
connector (CAN1) C-103.

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-7

.

(1) Disconnect joint connector (CAN1) and ETACS-ECU

connector C-301, and check that there is continuity at the
harness side of joint connector (CAN1).

(2) Check that there is continuity between joint connector

(CAN1) terminals 6 and 19.

OK: No continuity

Q: Is the check result normal?

YES : Go to Step 53.
NO :  Repair the wiring harness between joint connector

(CAN1) C-103 and ETACS-ECU connector C-301.

AC703868 AR

Test
harness

Harness side: C-103

Test
harness

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-200

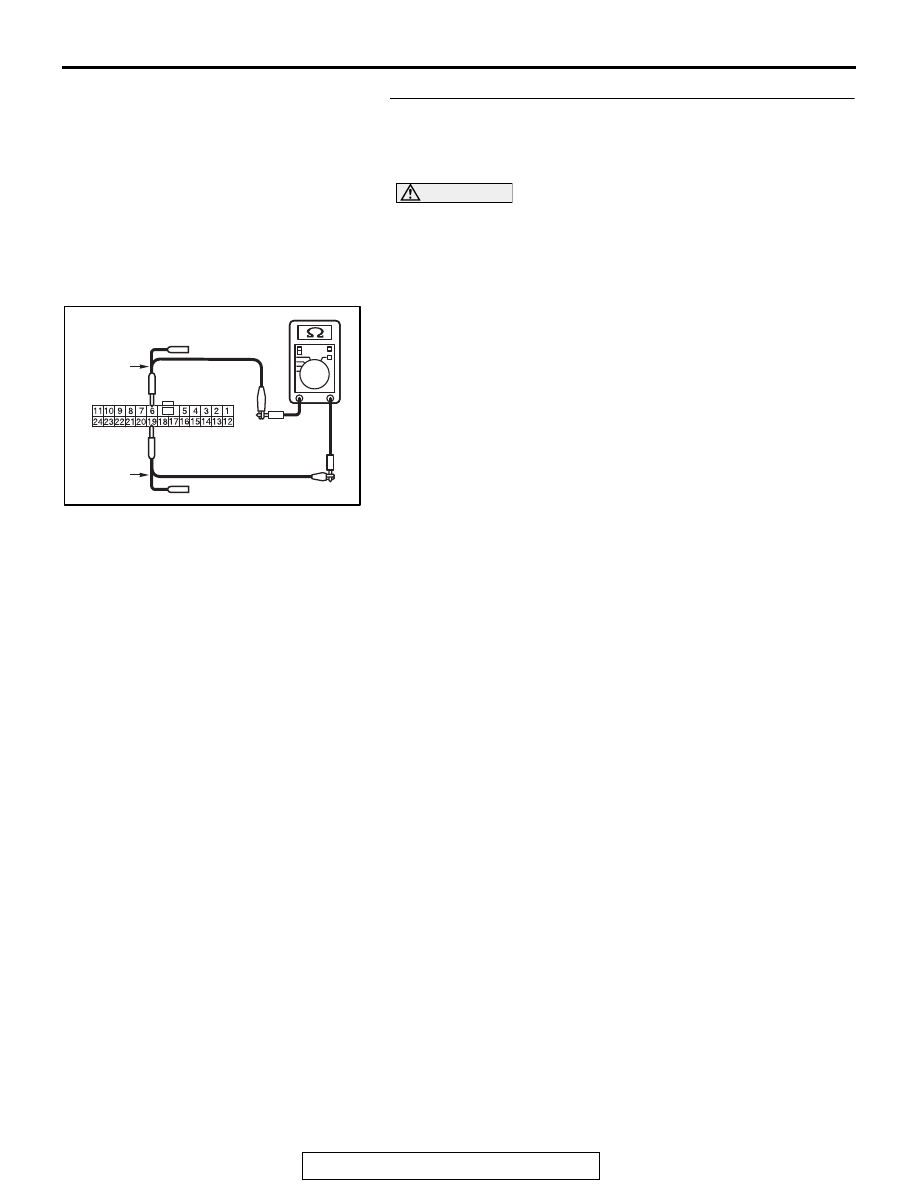

STEP 34. Check the wiring harness between joint
connector (CAN1) C-103 and combination meter connector
C-03 for open circuit.

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-7

.

(1) Disconnect joint connector (CAN1) C-103 and combination

meter connector C-03, and check the wiring harness.

(2) Check the wiring harness between joint connector (CAN1)

C-103 (terminal No.4) and combination meter connector
C-03 (terminal No.14)

OK: Continuity exists (2 ohms or less)

(3) Check the wiring harness between joint connector (CAN1)

C-103 (terminal No.15) and combination meter connector
C-03 (terminal No.15)

OK: Continuity exists (2 ohms or less)

Q: Is the wiring harness between joint connector (CAN1)

C-103 and combination meter connector C-03 in good
condition?
YES (vehicles with KOS) : Go to Step 35.
YES (vehicles with WCM) : Go to Step 36.
NO (vehicles with KOS or WCM) : Repair the wiring

harness between joint connector (CAN1) C-103 and
combination meter connector C-03.

AC709707

AC709707 NU

Harness side: C-103

Harness side: C-03

Test harness

Test harness

AC709707NV

Harness side: C-103

Harness side: C-03

Test harness

Test
harness
