DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-65

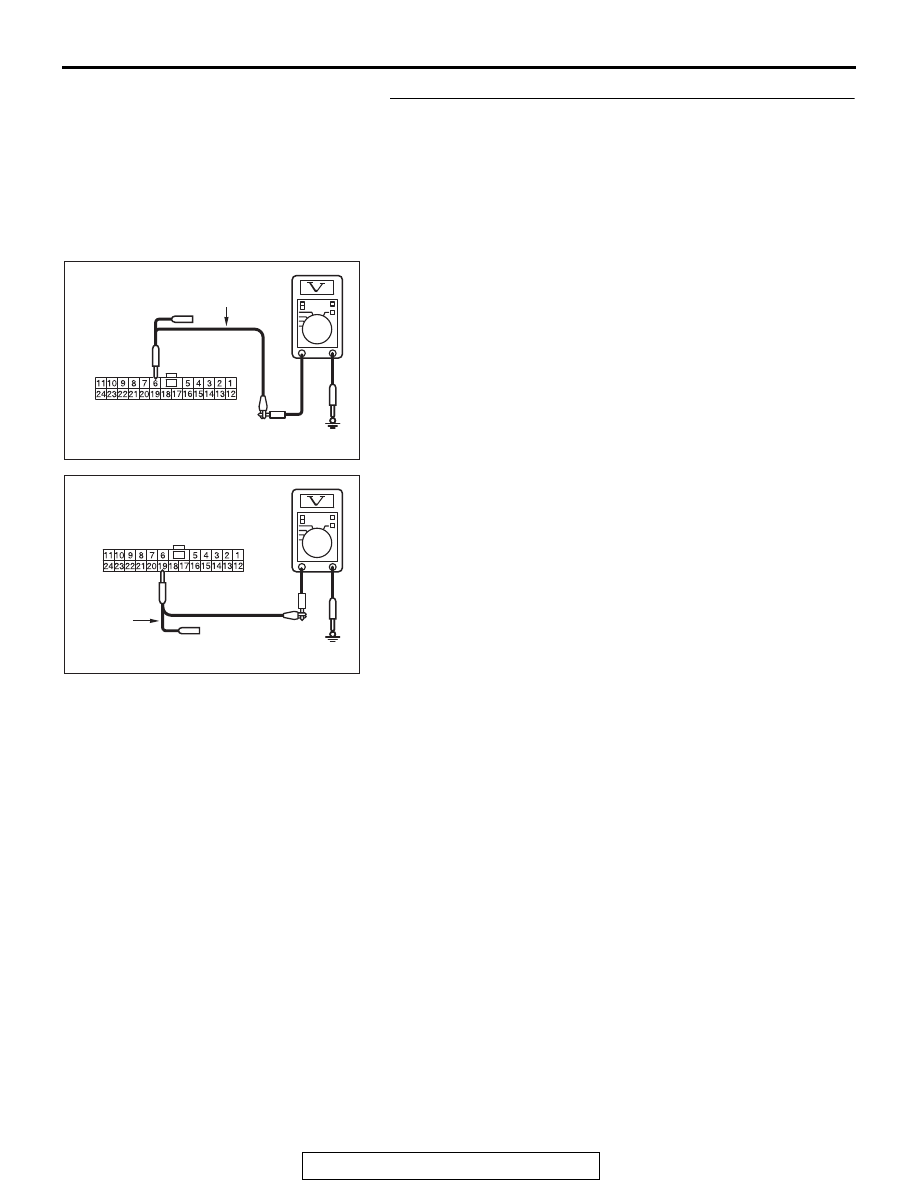

STEP 1. Check the wiring harness between joint connector
(CAN2) C-04 and ETACS-ECU connector C-301 for a short
to power supply. Measure the voltage at joint connector
(CAN2) C-04.
(1) Disconnect joint connector (CAN2), and measure the

voltage at the wiring harness side of joint connector
(CAN2).

(2) Turn the ignition switch to the ON position.
(3) Measure the voltage between joint connector (CAN2)

terminal 6 and body ground.

OK: 4.7 volts or less

(4) Measure the voltage between joint connector (CAN2)

terminal 19 and body ground.

OK: 4.7 volts or less

Q: Do all the voltages measure 4.7 volts or less?

YES <vehicles with ASC> : Go to Step 2.
YES <vehicles without ASC (FWD)> : Go to Step 5.
YES <vehicles without ASC (Electric controlled AWD)> :

Go to Step 3.

NO  :  Go to Step 11.

AC702831BG

Harness side: C-04

Test harness

AC702831 BH

Harness side: C-04

Test
harness

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-66

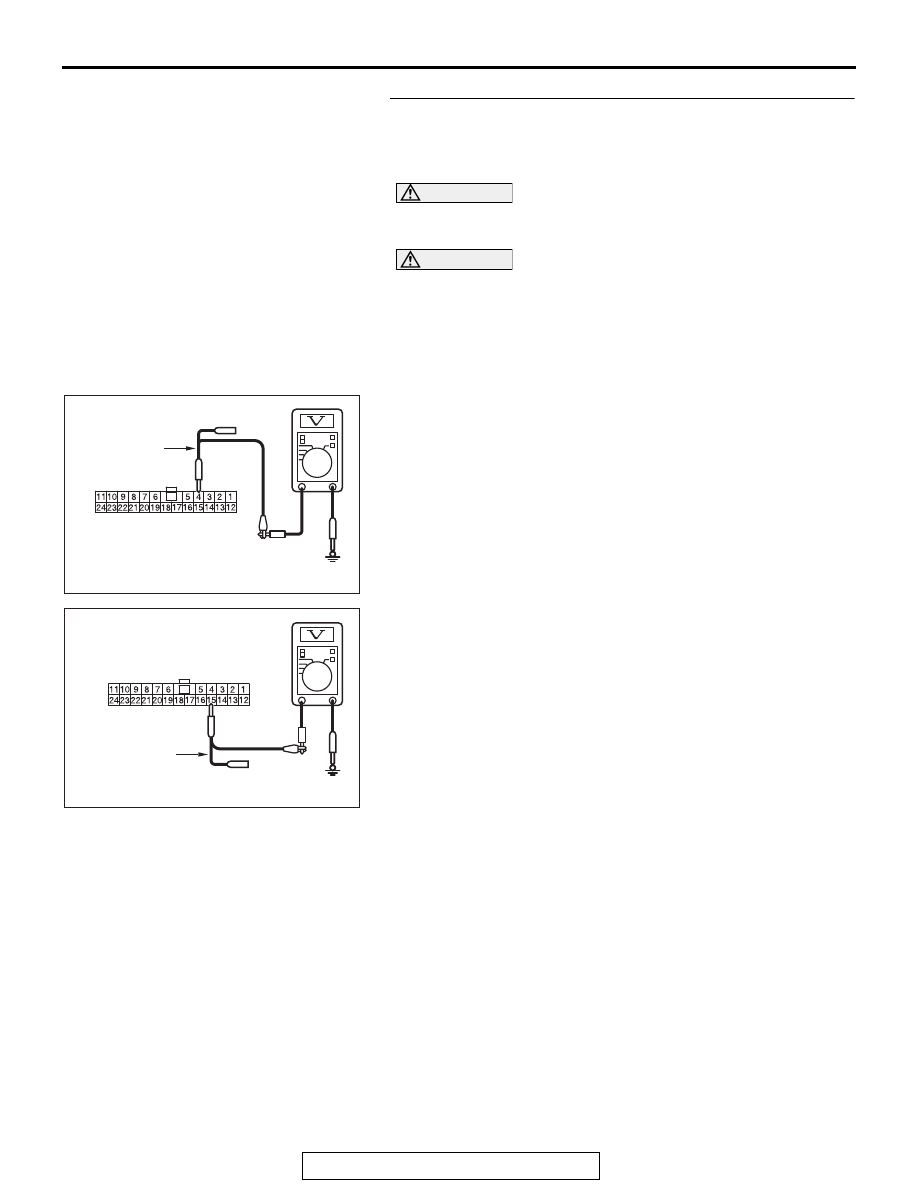

STEP 2. Check the wiring harness between joint connector
(CAN2) C-04 and steering wheel sensor connector C-209
for a short to power supply. Measure the voltage at joint
connector (CAN2) C-04.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-7

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-7

.

(1) Disconnect joint connector (CAN2), and measure the

voltage at the wiring harness side of joint connector
(CAN2).

(2) Turn the ignition switch to the ON position.
(3) Measure the voltage between joint connector (CAN2)

terminal 4 and body ground.

OK: 4.7 volts or less

(4) Measure the voltage between joint connector (CAN2)

terminal 15 and body ground.

OK: 4.7 volts or less

Q: Do all the voltages measure 4.7 volts or less?

YES <FWD> : Go to Step 5.
YES <Electric controlled AWD> : Go to Step 3.
YES <S-AWC> : Go to Step 4.
NO  :  Go to Step 8.

AC702831BC

Harness side: C-04

Test
harness

AC702831 BD

Harness side: C-04

Test
harness

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-67

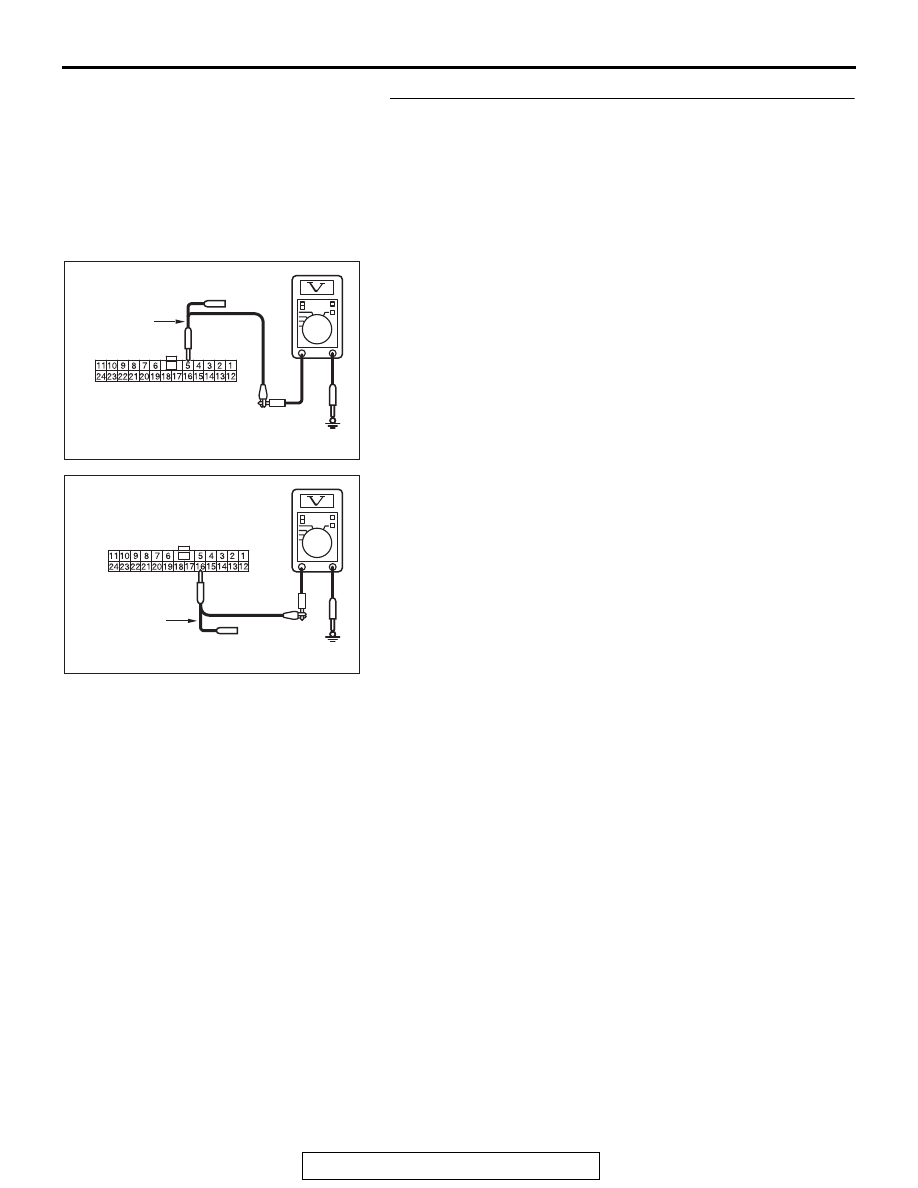

STEP 3. Check the wiring harness between joint connector
(CAN2) C-04 and AWD-ECU connector C-128 for a short to
power supply. Measure the voltage at joint connector
(CAN2) C-04.
(1) Disconnect joint connector (CAN2), and measure the

voltage at the wiring harness side of joint connector
(CAN2).

(2) Turn the ignition switch to the ON position.
(3) Measure the voltage between joint connector (CAN2)

terminal 5 and body ground.

OK: 4.7 volts or less

(4) Measure the voltage between joint connector (CAN2)

terminal 16 and body ground.

OK: 4.7 volts or less

Q: Do all the voltages measure 4.7 volts or less?

YES : Go to Step 5.
NO :  Go to Step 9.

AC702831 BE

Harness side: C-04

Test
harness

AC702831BF

Harness side: C-04

Test
harness

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-68

STEP 4. Check the wiring harness between joint connector
(CAN2) C-04 and AWC-ECU connector C-139 for a short to
power supply. Measure the voltage at joint connector
(CAN2) C-04.
(1) Disconnect joint connector (CAN2), and measure the

voltage at the wiring harness side of joint connector
(CAN2).

(2) Turn the ignition switch to the ON position.
(3) Measure the voltage between joint connector (CAN2)

terminal 5 and body ground.

OK: 4.7 volts or less

(4) Measure the voltage between joint connector (CAN2)

terminal 16 and body ground.

OK: 4.7 volts or less

Q: Do all the voltages measure 4.7 volts or less?

YES : Go to Step 5.
NO :  Go to Step 10.

AC702831 BE

Harness side: C-04

Test
harness

AC702831BF

Harness side: C-04

Test
harness
