PRECAUTIONS BEFORE SERVICE

TSB Revision

GENERAL

00-55

INITIALIZATION PROCEDURE FOR THROTTLE
ACTUATOR CONTROL MOTOR

When the battery cable is disconnected and reconnected, throt-
tle actuator control motor valve (Fully closed position) is elimi-
nated, so that the throttle valve opening angle control would not
be performed correctly. When the battery cable is disconnected
and reconnected, initialize the throttle actuator control motor
using the following procedure.
1. Turn the ignition switch to the "ON" position and then, place

the ignition switch in "LOCK" (OFF) position.

2. For 10 seconds or more, keep the ignition switch in "LOCK"

(OFF) position.

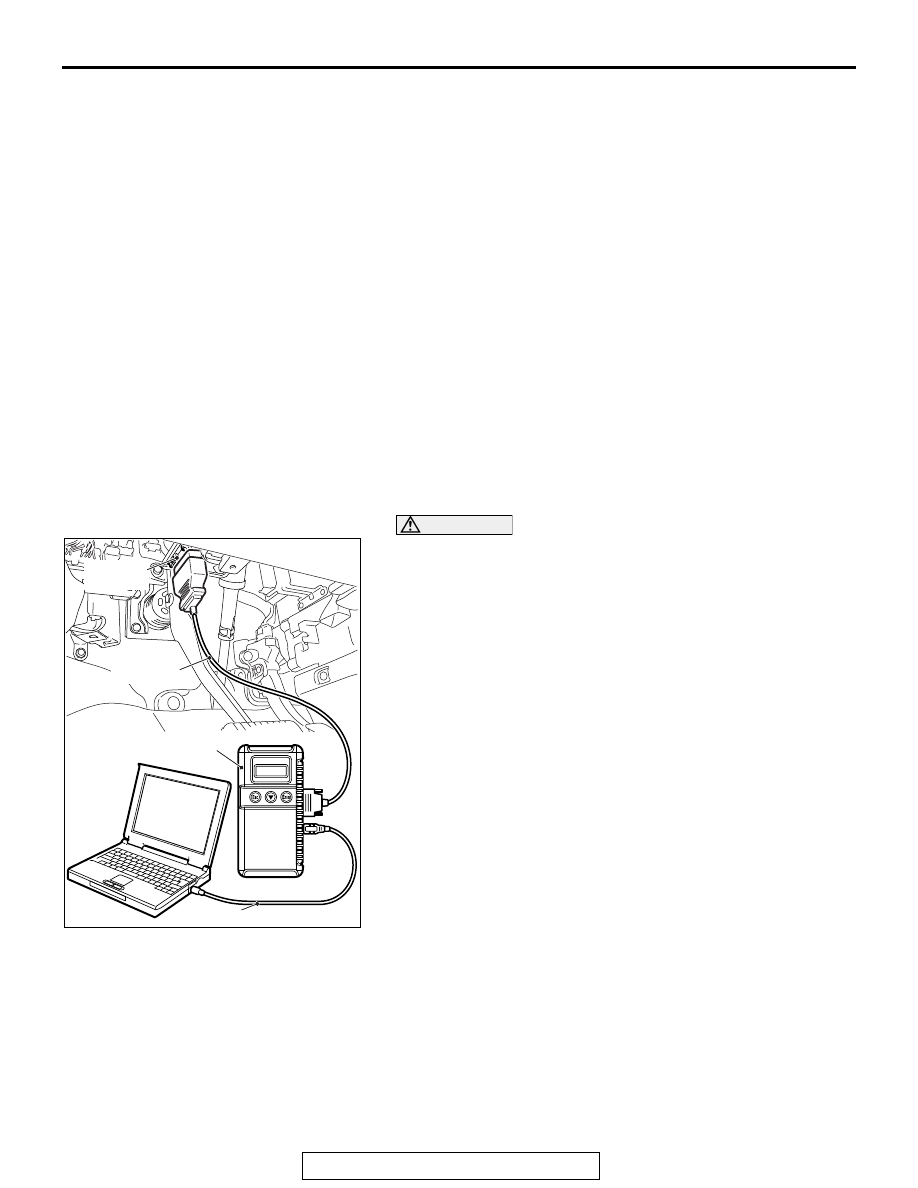

TIMING CHAIN LEARNED VALUE RESET



<2.4L ENGINE>

M1001020600054

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. After the ignition switch is in "LOCK" (OFF) position, connect

scan tool MB991958 to the data link connector.

2. Turn the ignition switch to the "ON" position.
3. Select "MFI" form System select Screen of scan tool

MB991958.

4. Select "Special Function" form MFI Screen.
5. Select "Timing chain maintenance" from Special Function

Screen.

6. Select "Learned value reset" form Timing chain

maintenance Screen.

7. Press "ON" to reset the learning value.

AK700568AB

MB991824

MB991827

MB991910

Data link
connector

PRECAUTIONS BEFORE SERVICE

TSB Revision

GENERAL

00-56

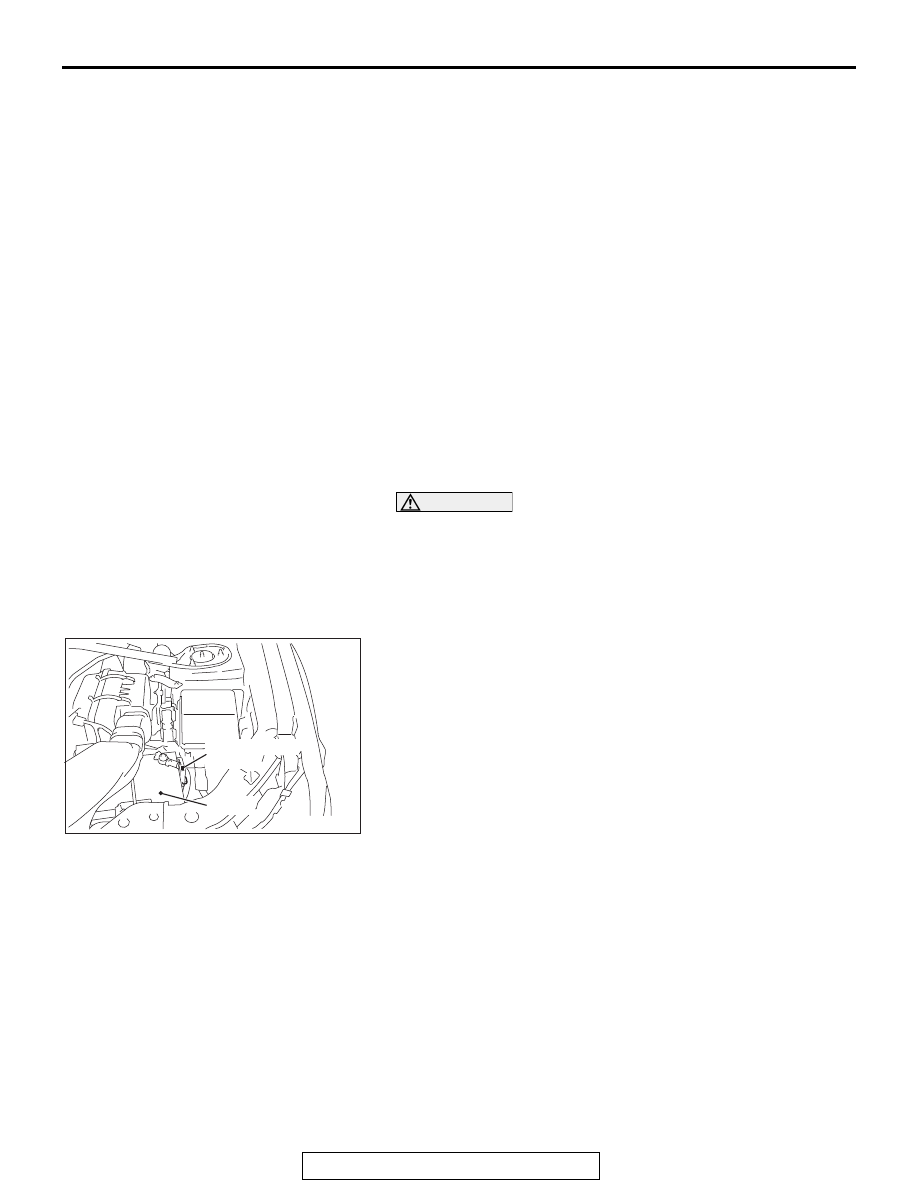

BATTERY CURRENT SENSOR CALIBRATION
<2.4L ENGINE>

M1001018600154

PURPOSE

The ECM carries out the electrical generation control according
to the charge level of the battery, based on the battery current
sensor signal. To improve the effect of reducing the fuel con-
sumption by the electrical generation control, it is necessary to
accurately detect the charge level of the battery. For this, if the
following services are performed, carry out the battery current
sensor calibration.

• Replacing the battery current sensor

• Replacing the ECM

LEARNING PROCEDURE

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. After the ignition switch is in "LOCK" (OFF) position,

disconnect the battery cable from the negative battery
terminal.

2. Remove the battery current sensor from the battery cable

(Do not disconnect the battery current sensor connector).

3. Connect the battery cable without the battery current sensor

to the negative battery terminal.

AKA00841

Battery

Battery current
sensor

AC

PRECAUTIONS BEFORE SERVICE

TSB Revision

GENERAL

00-57

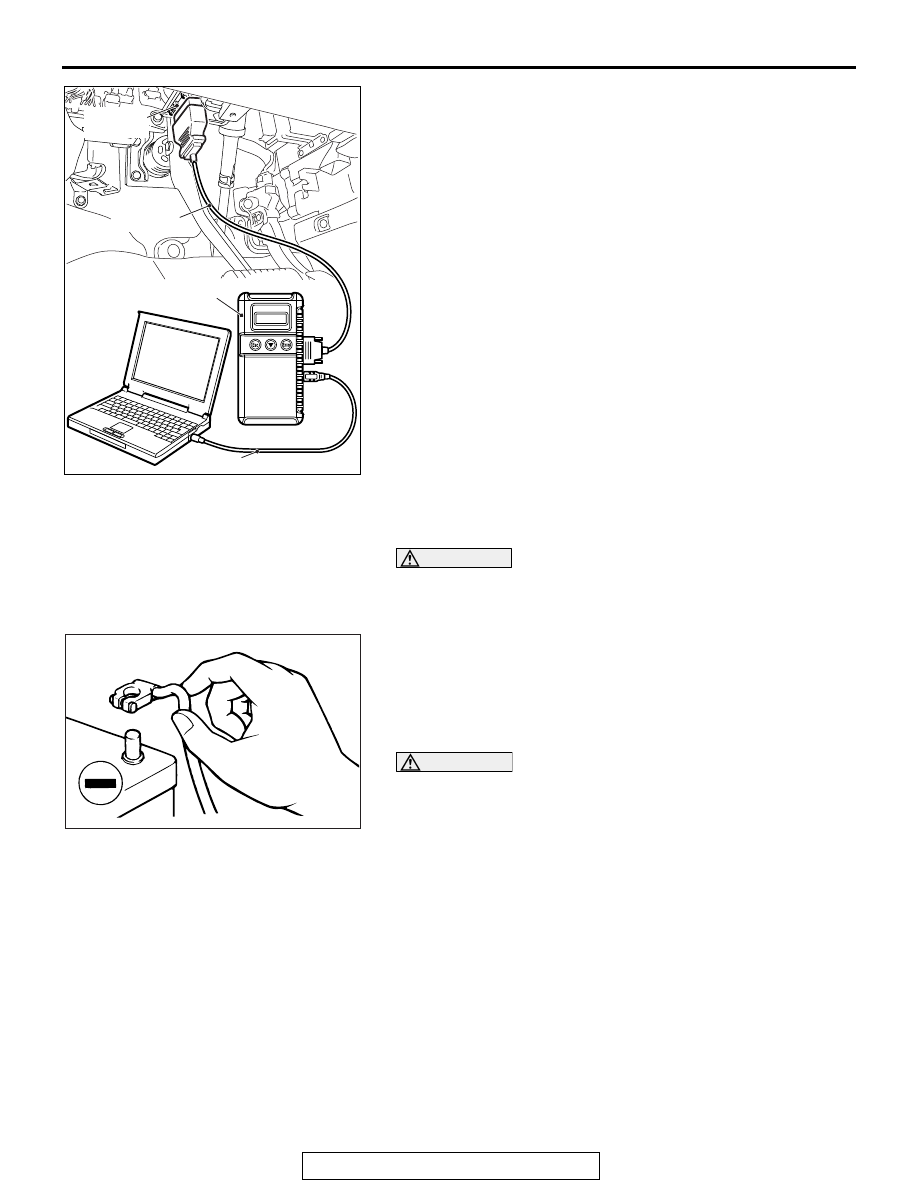

4. Connect scan tool MB991958 to the data link connector (But

do not start the engine).

5. Turn the ignition switch to the ON position.
6. Select "MFI" from System select Screen of scan tool

MB991958.

7. Select "Special Function" from MFI Screen.
8. Select "Learning" from Special Function Screen.
9. Select "Battery current SNSR.calibration" from Learning

Screen.

10.Start the calibration by pressing the "OK" button.
11.Confirm that the scan tool MB991958 data list item No. 119

Battery current sensor calibration is "Completed".

12.After the ignition switch is in "LOCK" (OFF) position,

disconnect scan tool MB991958.

13.Install the battery current sensor.

SERVICING ELECTRICAL SYSTEM

M1001011900433

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

1. Note the following before proceeding with working on the

electrical system.
Never perform unauthorized modifications to any electrical
device or wiring. Such modifications might lead to a vehicle
malfunction, over-capacity or short-circuit that could result in
a fire in the vehicle.

CAUTION

• Before connecting or disconnecting the negative bat-

tery cable, be sure to turn the ignition switch to the
"LOCK" (OFF) position and turn off the lights (If this is
not done, there is the possibility of semiconductor
parts being damaged).

• After completion of the work (and the negative battery

terminals is connected), warm up the engine and allow
it to idle for approximately 10 minutes under the condi-
tions described below in order to stabilize engine con-
trol conditions, and then check to be sure that the idle
is satisfactory.

• Engine coolant temperature: 85 − 95°C (185 − 203°F)
• Lights and all accessories: OFF
• Transaxle: "P" position
• Steering wheel: straight-forward position

2. When servicing the electrical system, disconnect the

negative cable terminal from the battery.

AK700568AB

MB991824

MB991827

MB991910

Data link
connector

ACX00880AB

PRECAUTIONS BEFORE SERVICE

TSB Revision

GENERAL

00-58

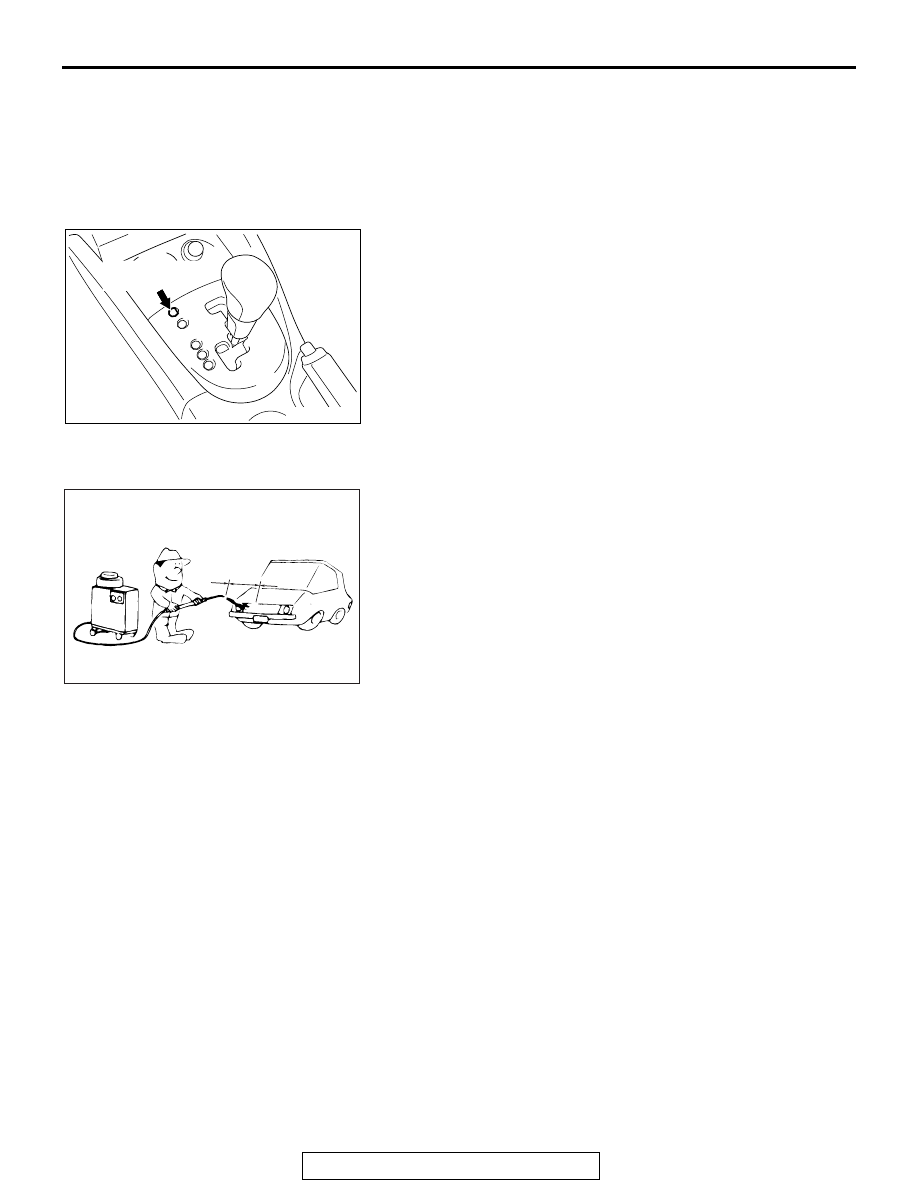

HOW TO SHIFT LOCK FORCED RELEASE

M1001018100171

If the shift lever cannot be moved from the P position due to
discharged battery or similar reasons, release the shift lock by
observing the procedure below.

.

1. Turn the ignition switch to the position other than the LOCK

(OFF) position.

2. Remove the shift lock forced release switch cover shown in

the figure. While pressing the shift lock forced release switch
with a screwdriver or a similar tool, move the selector lever.

VEHICLE WASHING

M1001012000682

1. If high-pressure car-washing equipment or steam car-wash-

ing equipment is used to wash the vehicle, be sure to main-
tain the spray nozzle at a distance of at least approximately
40cm (16 in.) from any plastic parts and all opening parts
(doors, luggage compartment, etc.).

2. If high-pressure car-washing equipment or steam car-wash-

ing equipment is used to wash the vehicle, be sure to
observe the following instructions to prevent damages to
the plastic parts.

• Spray nozzle distance: Approximately 40 cm (16 in.) or

more

• Spray pressure: 3,900 kPa or less

• Spray temperature: 82 °C (180°F) or less

• Time of intensive spraying to one point: Within 30 sec-

onds

APPLICATION OF ANTI-CORROSION AGENTS
AND UNDERCOATS

M1001011000117

Be careful not to apply oil or grease to the heated oxygen sen-
sor. If applied, the sensor may malfunction. Protect the heated
oxygen sensor with a cover before applying anti-corrosion
agent, etc.

AC808420

Shift lock release
button cover

AB

ACX00881AK

Approximately
40 cm (16 in.) or more
