COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-117

7. While the current schedule is displayed, press the

meter information switch for less than 1.2 seconds
and 3 times consecutively.

8. The multi information display is shifted to the

schedule selection mode.

9. When the meter information switch is pressed for

less than 1.2 seconds, the schedule is shifted,
and when the meter information switch is pressed
for 1.2 seconds or longer, the displayed schedule
is set.

NOTE: For schedule, "JPN", "GCC", "EU" and
"AUS" can also be selected. However, the setting
shall be for "NAS" only.

10.The schedule set in Step 9 is displayed for 3

seconds, and the warning period to the next time
is displayed.

.

SCHEDULE TABLE

NOTE: For schedule, "JPN", "GCC/EXP", "EU" and
"AUS" can also be selected. However, the setting
shall be for "NAS" only.

HOW TO INACTIVATE THE SERVICE
REMINDER FUNCTION

By setting to "OFF Display" or "Function OFF" when
the schedule is set, the service reminder function can
be inactivated.

When "OFF Display" is selected

• Even if the service reminder screen is displayed

by operating the meter information switch, "OFF"
is displayed.

When "Function OFF" is selected

• Even when the check warning period is reached,

the service reminder display is not displayed.

• Even with the meter information switch operation,

the service reminder screen is not displayed.

Schedule

Contents of schedule

NAS 10 (initial
setting)

Elapsed time (month)

Every 6 elapsed months

Driving distance (miles)

Every 7,500 miles of driving distance

Driving distance (km)

Every 12,000 km of driving distance

NAS 11

Elapsed time (month)

Every 3 elapsed months

Driving distance (miles)

Every 3,750 miles of driving distance

Driving distance (km)

Every 6,000 km of driving distance

NAS 20

Elapsed time (month)

Every 5 elapsed months

Driving distance (miles)

Every 5,000 miles of driving distance

Driving distance (km)

Every 8,000 km of driving distance

NAS 21

Elapsed time (month)

Every 4 elapsed months

Driving distance (miles)

Every 3,750 miles of driving distance

Driving distance (km)

Every 6,000 km of driving distance

Optional INT

The optional schedule can be set. (Only scan tool can be set.)

OFF Display

Without function. "OFF" is displayed on the multi information display.

Function OFF

Without function (Only scan tool can be set.)

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-118

COMBINATION METER

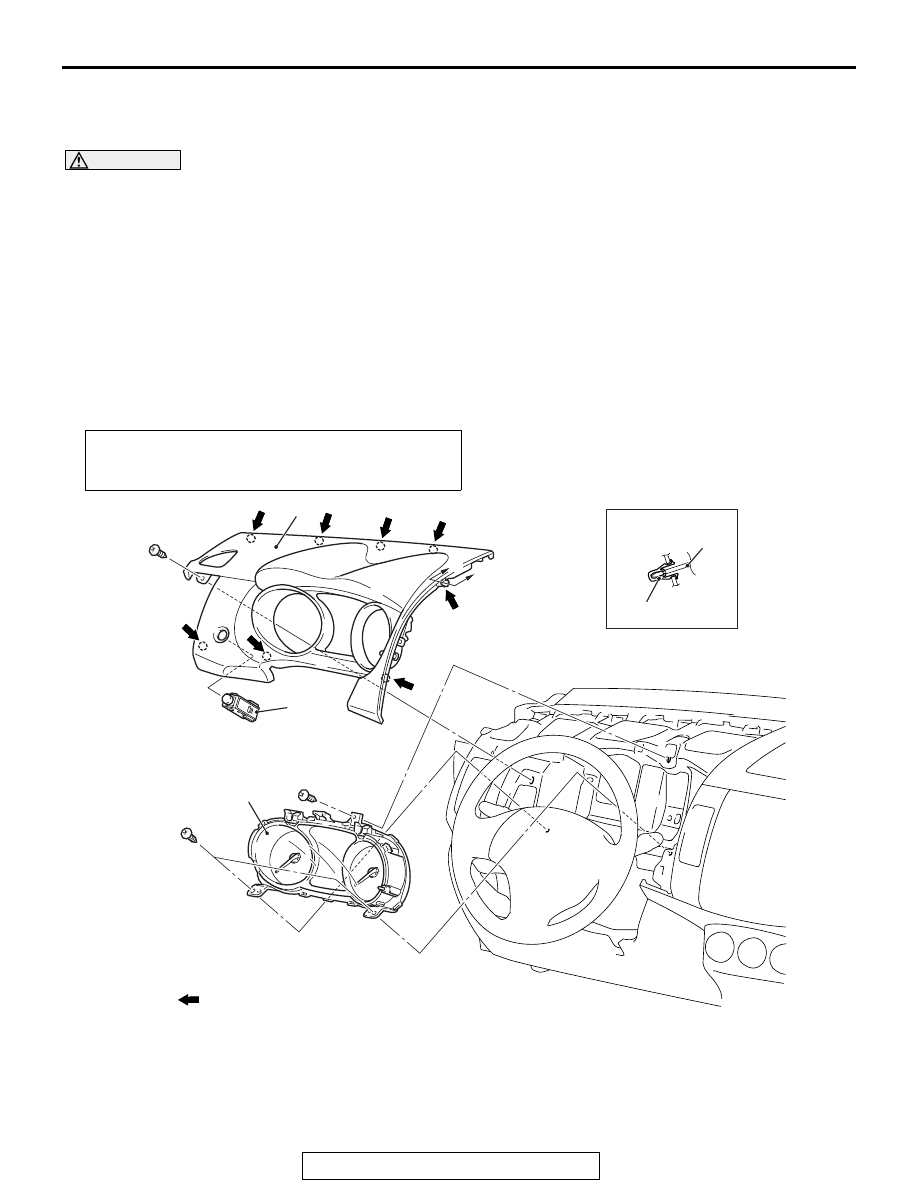

REMOVAL AND INSTALLATION

M1540201700212

CAUTION

When the combination meter is required to be replaced, the current driving distance and number of
elapsed days must be entered into the meter after the replacement in order to be used for service
reminder function. Therefore, read "Integrated mileage for reminder," "Integrated days for reminder,"
"Mileage until Extra reminder," "Months until Extra reminder," and "Current Schedule" from the meter
before the replacement using the special function of scan tool MB991958, and note them. For the
operation method of scan tool MB991958, refer to

P.54A-110

. If "Integrated mileage for reminder" or

"Integrated days for reminder" cannot be read by the scan tool MB991958, follow the method
described below.

• For the driving distance for check warning, use the driving distance displayed on the multi infor-

mation display.

• For the elapsed days for check warning, calculate the number of elapsed days from the delivery

date to the customer (service remainder function start date) and current date.

Pre-removal and Post-installation Operation
• Side air outlet (Refer to GROUP 52A, Instrument Panel

Assembly

P.52A-2

.)

AC702877AB

1

Section A – A

Clip

1

3

A

A

2

NOTE:

Clip positions

Removal Steps

1.

Meter hood assembly

2.

Combination meter

3.

Meter information switch

Removal Steps (Continued)

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-119

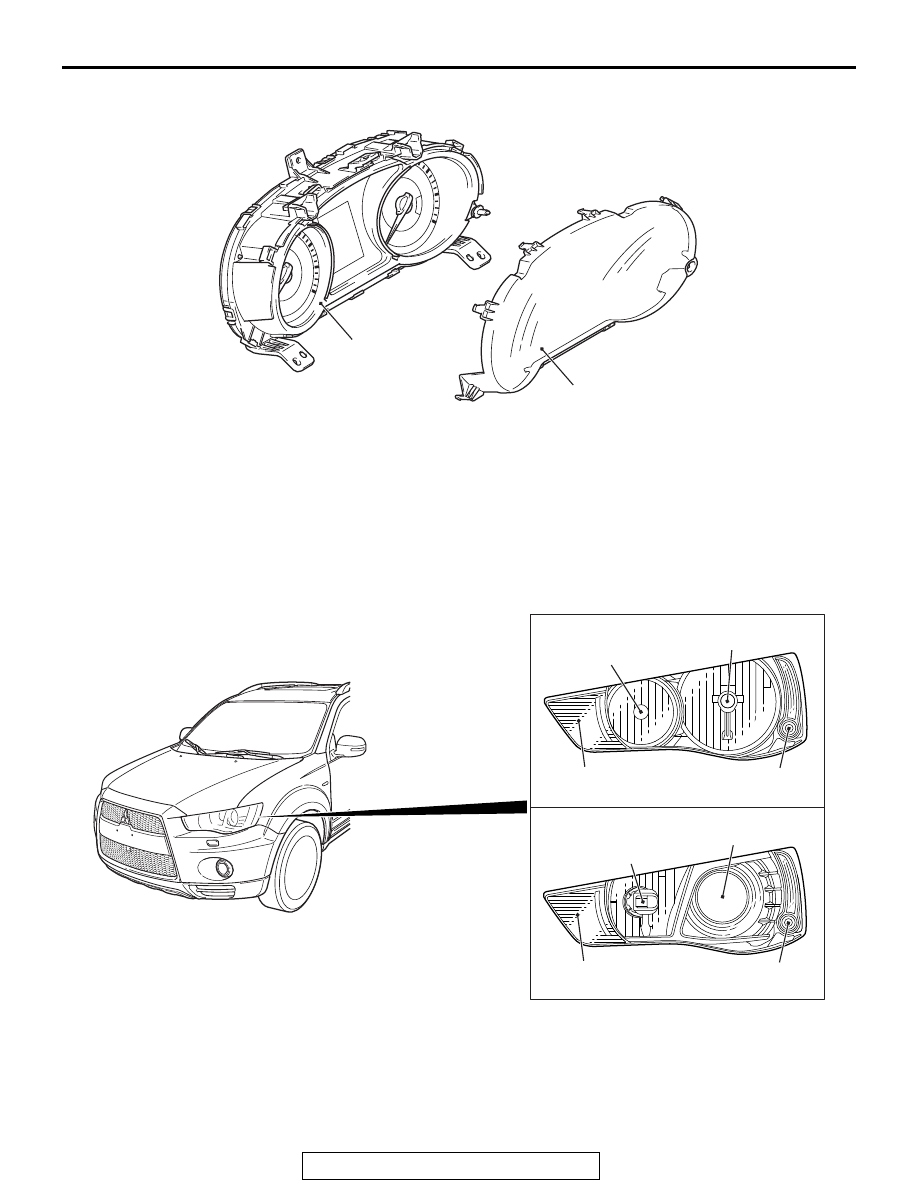

DISASSEMBLY AND ASSEMBLY

M1540201800178

HEADLIGHT

GENERAL INFORMATION

M1542000100662

• As for headlight assembly, a type with halogen

bulbs for the high-beam and low-beam and a type
with a discharge bulb for both high-beam and
low-beam are established.

• The halogen bulb type headlight assembly

employs the four-light type integrated with the
headlight (low-beam), headlight (high-beam),
front turn-signal light, and position light. The
dimmed headlight (low-beam) is also used as a
daytime running light.

AC506448 AB

1

2

Disassembly steps

1.

Combination meter glass

2.

Combination meter

AC809368

Low-beam

High-beam / low-beam

High-beam

AE

<Halogen bulb type headlight assembly>

<Discharge bulb type headlight assembly>

Position light

Daytime running light

Front turn-signal light

Position light

Front turn-signal light

HEADLIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-120

• For the discharge bulb type headlight assembly,

the headlight assembly with two headlights has
been adopted which incorporates the projector
type headlight (low-beam/high-beam), daytime
running light, front turn-signal light, and position

light. Also, the headlight manual leveling system
has been adopted. The switching of headlight
(low-beam/high-beam) is performed by the driv-
ing of light-shield in the projector unit using the
signal from lighting switch.

SERVICE SPECIFICATIONS

M1540100200370

PRECAUTIONS ON HOW TO USE THE
HEADLIGHT ASSEMBLY

Be careful with the following items as resin lenses
are used in the headlight assembly.

• Don't illuminate the headlight for three minutes or

more when the headlight is covered with scratch
protector.

• Don't tape the outer lens.

• Don't scratch the outer lens surface with a sharp

edged special tool.

• Use the specified genuine bulb.

Item

Standard value

Limit

Headlight aiming
[at 7.62 m (25.0 ft)]

Low-beam
<Vehicles
without
discharge
headlight>

Vertical
direction

Horizontal line (H)

± 50.5

mm (

± 2.0 inches) (± 0.38

degrees angle)

−

Horizontal
direction

± 126.4 mm (± 5.0 inches)

(

± 0.95 degrees angle)

from the axis, which is
266.1 mm (10.5 inches) (2
degrees angle) rightward
from the vertical line (V)

−

Low-beam
<Vehicles
with
discharge
headlight>

Vertical
direction

53.2 mm (2.1 inches) (0.4
degrees) below horizontal
line (H).

± 50.5 mm (± 2.0

inches) (

± 0.38 degrees

angle)

−

Horizontal
direction

Elbow point intersects the
vertical line (V).

± 126.4

mm (

± 5.0 inches) (± 0.95

degrees angle)

−

Headlight intensity cd (at high-beam)

−

40,000 or more {when a screen
is set 18.3m(60 ft) ahead of the
vehicle}
