COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-85

STEP 5. Using scan tool MB991958, check actuator test.
(1) Turn the ignition switch to the "ON" position.
(2) Conduct the actuator test of the combination meter.

• Item 7: Indicator1

• Item 8: Indicator2

• Item 9: Indicator3

• Item 10: Indicator4

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the check result normal?

YES : Go to Step 6.
NO :  Replace the combination meter.

STEP 6. Check by scan tool MB991958 "Special Function"
Using scan tool MB991958, select "Test" from the special func-
tion of the combination meter. Execute the following item to
check the liquid crystal display.

• Item 2: LCD(AUTO)

Q: Is the check result normal?

YES : Go to Step 7.
NO :  Replace the combination meter.

STEP 7. Retest the system.
Check that display lights or warning lights are illuminated nor-
mally, or multi information display is displayed normally.
Q: Is the check result normal?

YES : The trouble can be an intermittent malfunction (Refer

to GROUP 00

− How to use

Troubleshooting/inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-15

).

NO :  Replace the combination meter.

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-86

Inspection Procedure 6: The multi information display screen cannot be changed with the operation
of the meter information switch.

CAUTION

Before replacing the combination meter, be sure
to check that the power supply circuit, ground
circuit, and communication circuit are normal.

.

TECHNICAL DESCRIPTION (COMMENT)

When the signal from the meter information switch is
received, the combination meter switches the multi
information display screen. If the multi information
display screen does not switch normally, the meter
information switch, wiring harness, connector(s), or
combination meter may have a problem.

.

TROUBLESHOOTING HINTS

• The meter information switch may be defective

• The combination meter may be defective

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB992006: Extra Fine Probe

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

AC702819

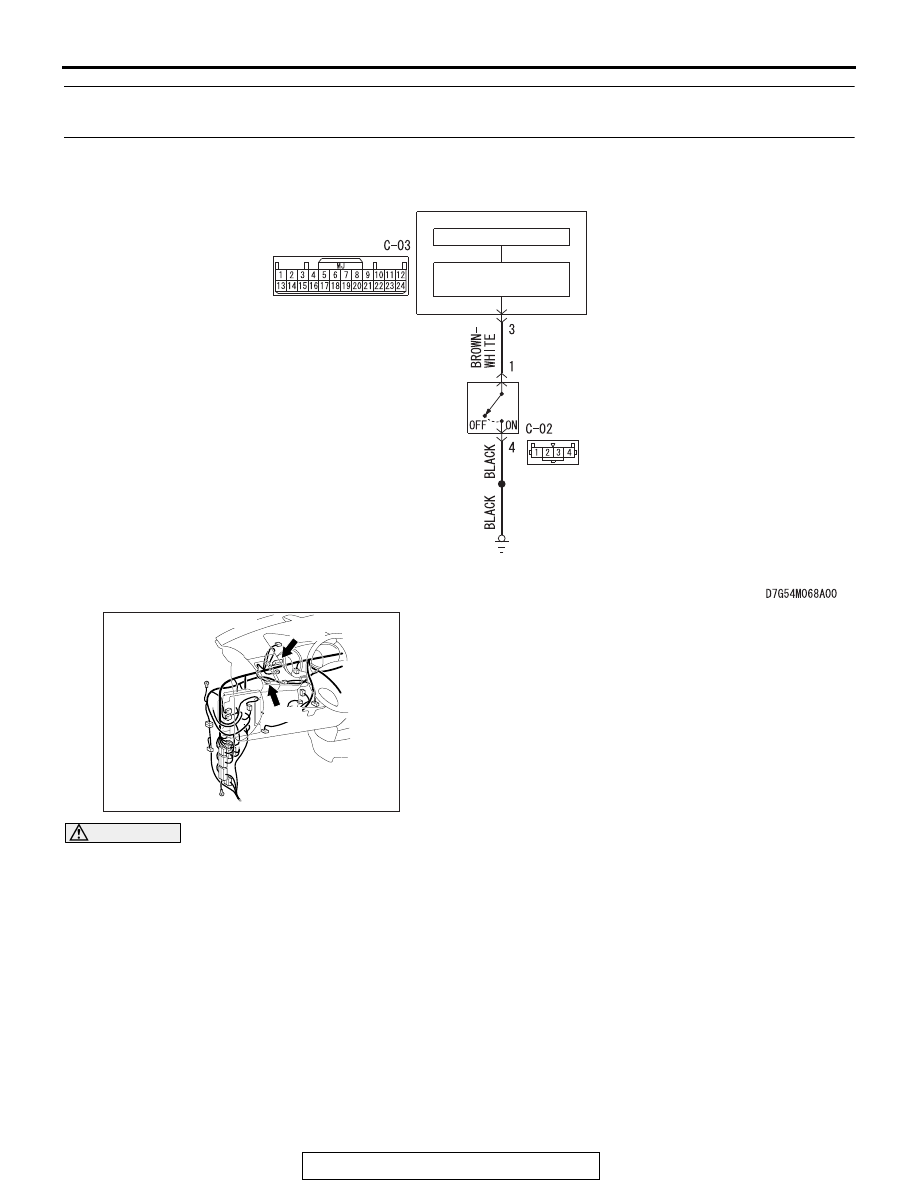

Meter Information Switch Circuit

INTERFACE
CIRCUIT

COMBINATION
METER

CPU

METER
INFORMATION
SWITCH

AC

AC702815AC

Connectors: C-02, C-03

C-03

C-02

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-87

STEP 1. Using scan tool MB991958, read the combination
meter diagnostic trouble code.
Check if DTC is set to the combination meter.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

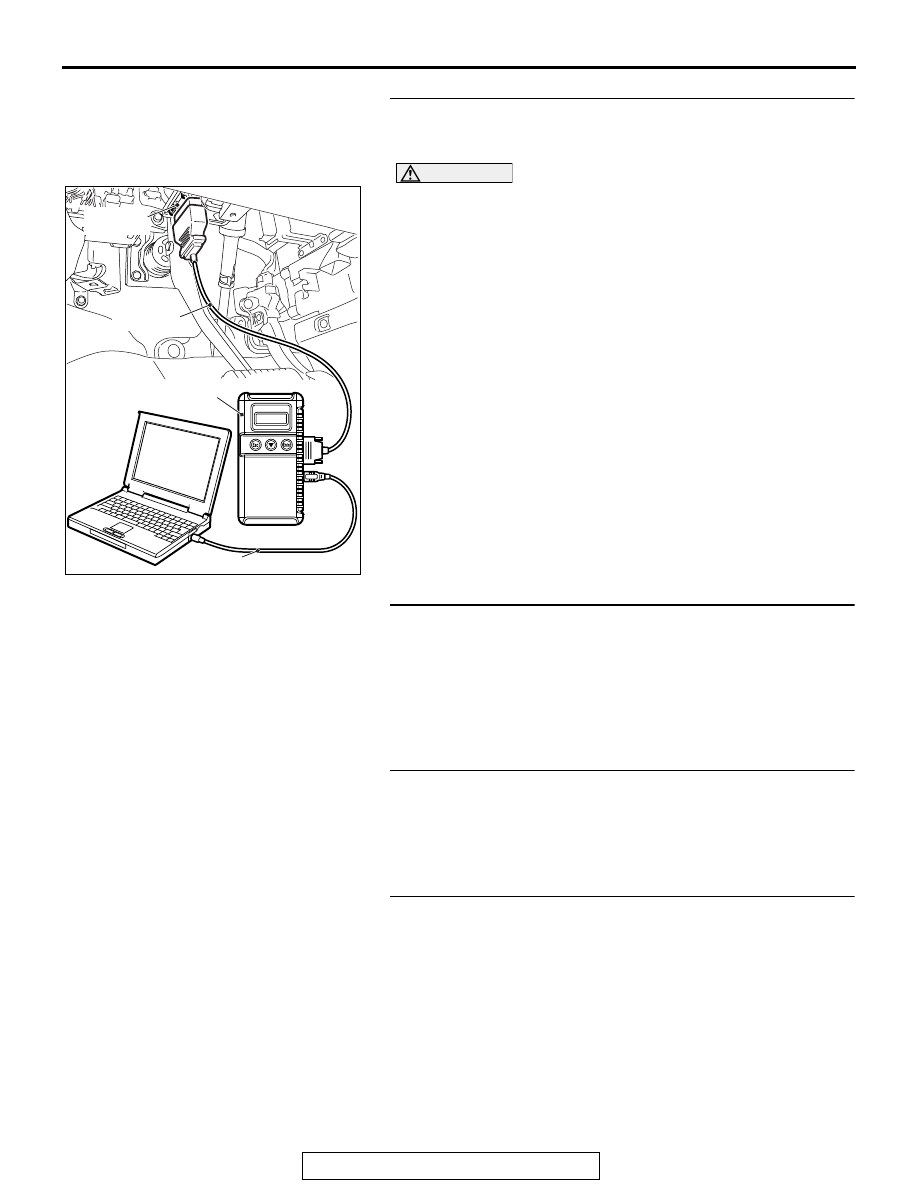

(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54A-31

."

(2) Turn the ignition switch to the "ON" position.
(3) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(4) Check if DTC is set.
Q: Is the DTC set?

YES : Refer to

P.54A-34

.

NO :  Go to Step 2.

STEP 2. Check meter information switch connector C-02
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is meter information switch connector C-02 in good

condition?
YES : Go to Step 3.
NO :  Repair the defective connector.

STEP 3. Check the meter information switch.
Check the meter information switch. Refer to

P.54A-109

.

Q: Is the check result normal?

YES : Go to Step 4.
NO :  Replace the meter information switch.

STEP 4. Check the wiring harness between meter
information switch connector C-02 (terminal 4) and
ground.

• Check the ground wire for open circuit.

Q: Is the wiring harness between fuel meter information

switch connector C-02 (terminal 4) and ground in good
condition?
YES : Go to Step 5.
NO :  Repair the wiring harness.

ZC501967

AC404789

AC702802

MB991824

MB991827

MB991910

Data link

connector

AB

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-88

STEP 5. Check combination meter connector C-03 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is combination meter connector C-03 in good

condition?
YES : Go to Step 6.
NO :  Repair the defective connector.

STEP 6. Check the wiring harness between meter
information switch connector C-02 (terminal 1) and
combination meter connector C-03 (terminal 3).

• Check the output line for open circuit.

Q: Are the wiring harness between meter information

switch connector C-02 (terminal 1) and combination
meter connector C-03 (terminal 3) in good condition?
YES : Go to Step 7.
NO :  Repair the wiring harness.

STEP 7. Retest the system.
Check that the multi information display screen switches nor-
mally when the meter information switch is operated.
Q: Is the check result normal?

YES : The trouble can be an intermittent malfunction (Refer

to GROUP 00

− How to use

Troubleshooting/inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-15

).

NO :  Replace the combination meter.
