DTC B1201: Abnormal fuel information

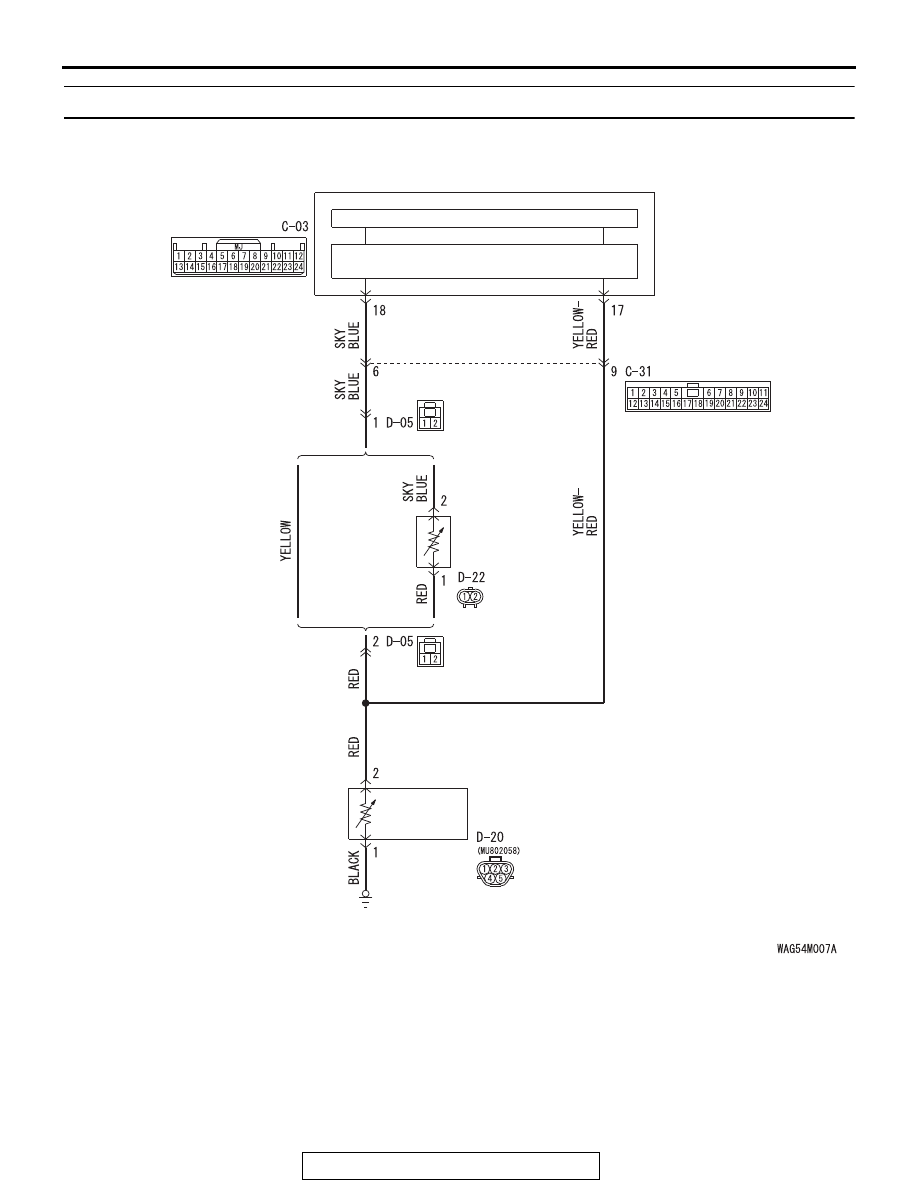

Fuel Gauge Unit Circuit

INTERFACE
CIRCUIT

COMBINATION
METER

CPU

<FWD>

<AWD>

FUEL
LEVEL
SENSOR
(SUB)

FUEL
PUMP
MODULE

FUEL LEVEL
SENSOR
(MAIN)

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-38

CAUTION

Whenever the ECU is replaced, ensure that the communication circuit is normal.

.

TROUBLE JUDGMENT

With the ignition switch at the ON position and the
system voltage at 10

−16 volts (data from

ETACS-ECU), if the combination meter detects the
abnormal resistance of fuel level sensor circuit for 64
seconds continuously, DTC B1201 is stored.

.

TROUBLESHOOTING HINTS

• The fuel pump module [fuel level sensor (main)]

may be defective. <FWD, AWD>

• The fuel level sensor (sub) may be defective.

<AWD>

• The combination meter may be defective.

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB992006: Extra Fine Probe

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

STEP 1. Check the malfunctioning vehicle.
Q: Is the malfunctioning vehicle a FWD?

YES <FWD> : Go to Step 2.
NO <AWD> : Go to Step 8.

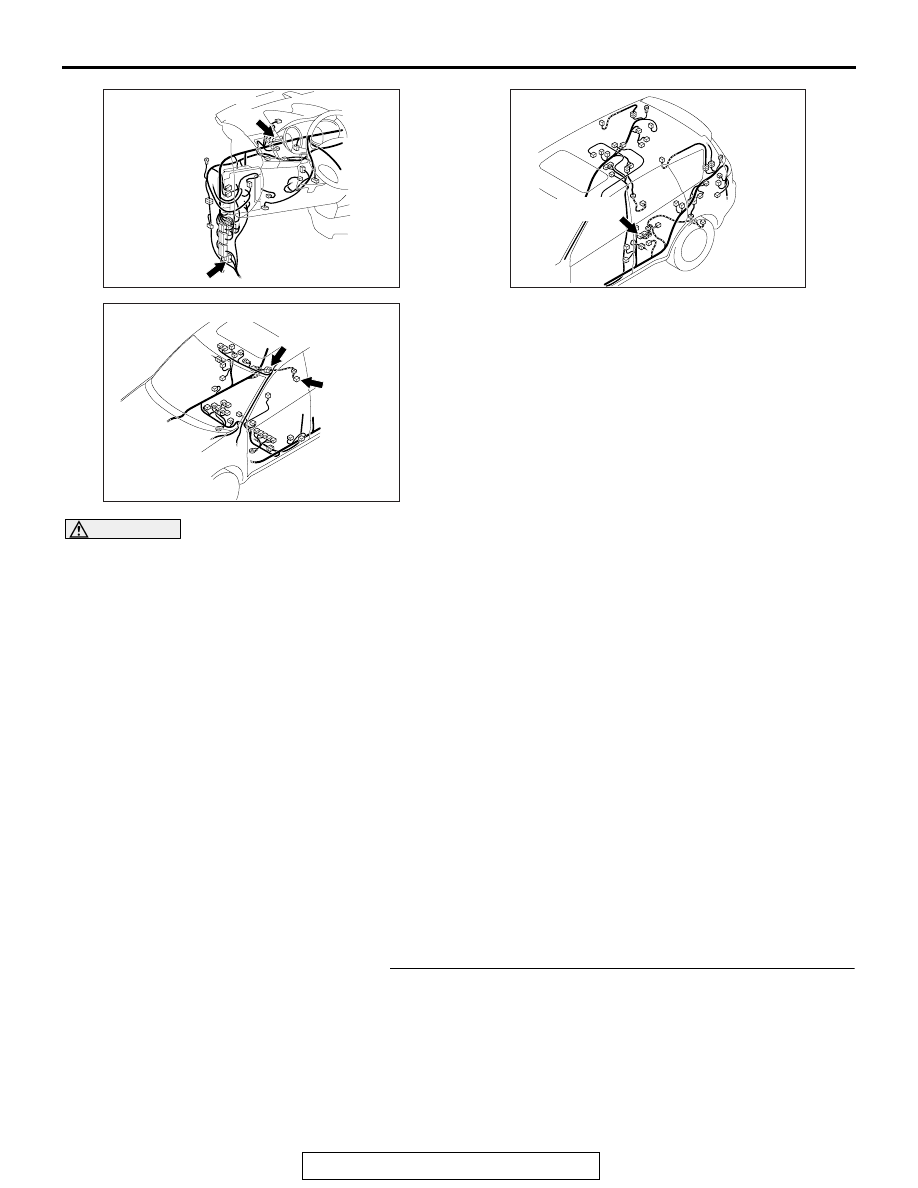

AC702815AB

Connectors: C-03, C-31

C-03

C-31

AC702816 AC

Connectors: D-05, D-22

D-05

D-22

AC702817AB

Connector: D-20

D-20 (GR)

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-39

STEP 2. Check fuel pump module connector D-20 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is fuel pump module connector D-20 in good condition?

YES : Go to Step 3.
NO :  Repair the connector.

STEP 3. Check the fuel level sensor (main).
Check to see if the fuel level sensor (main) is normal. Refer to

P.54A-107

.

Q: Is the check result normal?

YES : Go to Step 4.
NO :  Replace the fuel level sensor (main).

STEP 4. Measure the resistance at fuel pump module
connector D-20.
(1) Disconnect pump module connector D-20, and measure at

the wiring harness side.

(2) Measure the resistance value between terminal 1 and

ground.

• The measured value should be 2 ohm or less.

Q: Does the measured resistance value correspond with

this range?
YES : Go to Step 6.
NO :  Go to Step 5.

STEP 5. Check the wiring harness between fuel pump
module connector D-20 (terminal 1) and ground.

• Check the ground wire for open circuit.

Q: Is the wiring harness between fuel pump module

connector D-20 (terminal 1) and ground in good
condition?
YES : There is no action to be taken.
NO :  Repair the wiring harness.

STEP 6. Check combination meter connector C-03 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is combination meter connector C-03 in good

condition?
YES : Go to Step 7.
NO :  Repair the connector.

AC702818AB

Harness side: D-20

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-40

STEP 7. Check the wiring harness between fuel pump
module connector D-20 (terminal 2) and combination
meter connector C-03 (terminal 17 or 18).

• Check the communication lines for open circuit and short

circuit.

NOTE: Also check intermediate connectors C-31 and D-05. If
intermediate connectors C-31 and D-05 are damaged, repair or
replace the connector as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

.

Q: Are the wiring harness between fuel pump module

connector D-20 (terminal 2) and combination meter
connector C-03 (terminal 17 or 18) in good condition?
YES : Go to Step 14.
NO :  Repair the wiring harness. The fuel gauge should

work normally.

STEP 8. Check fuel pump module connector D-20 and fuel
level sensor (sub) connector D-22 <AWD> for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is fuel pump module connector D-20 and fuel level

sensor (sub) connector D-22 <AWD> in good condition?
YES : Go to Step 9.
NO :  Repair the connector.

STEP 9. Check the fuel level sensor (main) and (sub)
Check to see if the fuel level sensor (main) and (sub) is normal.
Refer to

P.54A-107

.

Q: Is the check result normal?

YES : Go to Step 10.
NO :  Replace the fuel level sensor (main) or (sub).

STEP 10. Measure the resistance at fuel pump module
connector D-20.
(1) Disconnect fuel pump module connector D-20, and

measure at the wiring harness side.

(2) Measure the resistance value between terminal 1 and

ground.

• The measured value should be 2 ohm or less.

Q: Does the measured resistance value correspond with

this range?
YES : Go to Step 12.
NO :  Go to Step 11.

AC702818AB

Harness side: D-20
