COLUMN SWITCH

CHASSIS ELECTRICAL

54A-205

COLUMN SWITCH BODY

CAUTION

• Before removing the steering wheel and driver’s air bag module assembly, refer to GROUP 52B −

Service Precautions  and Driver’s Air Bag Module and Clock Spring .

• After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor

neutral point. (Refer to GROUP 35C

− On-vehicle Service, Steering Wheel Sensor Calibration )

<Vehicles with ASC>.

Pre-removal Operation
• Steering Wheel Assembly Removal (Refer to GROUP 37

− Steering ).

• Steering Column Lower Cover and Steering Column

Upper Cover Removal (Refer to GROUP 37

− Steering

Shaft ).

Post-installation Operation
• Steering Column Lower Cover and Steering Column

Upper Cover Installation (Refer to GROUP 37

− Steering

Shaft ).

• Steering Wheel Assembly Installation (Refer to GROUP

37

− Steering ).

ACB05749

AB

1

4

3

2

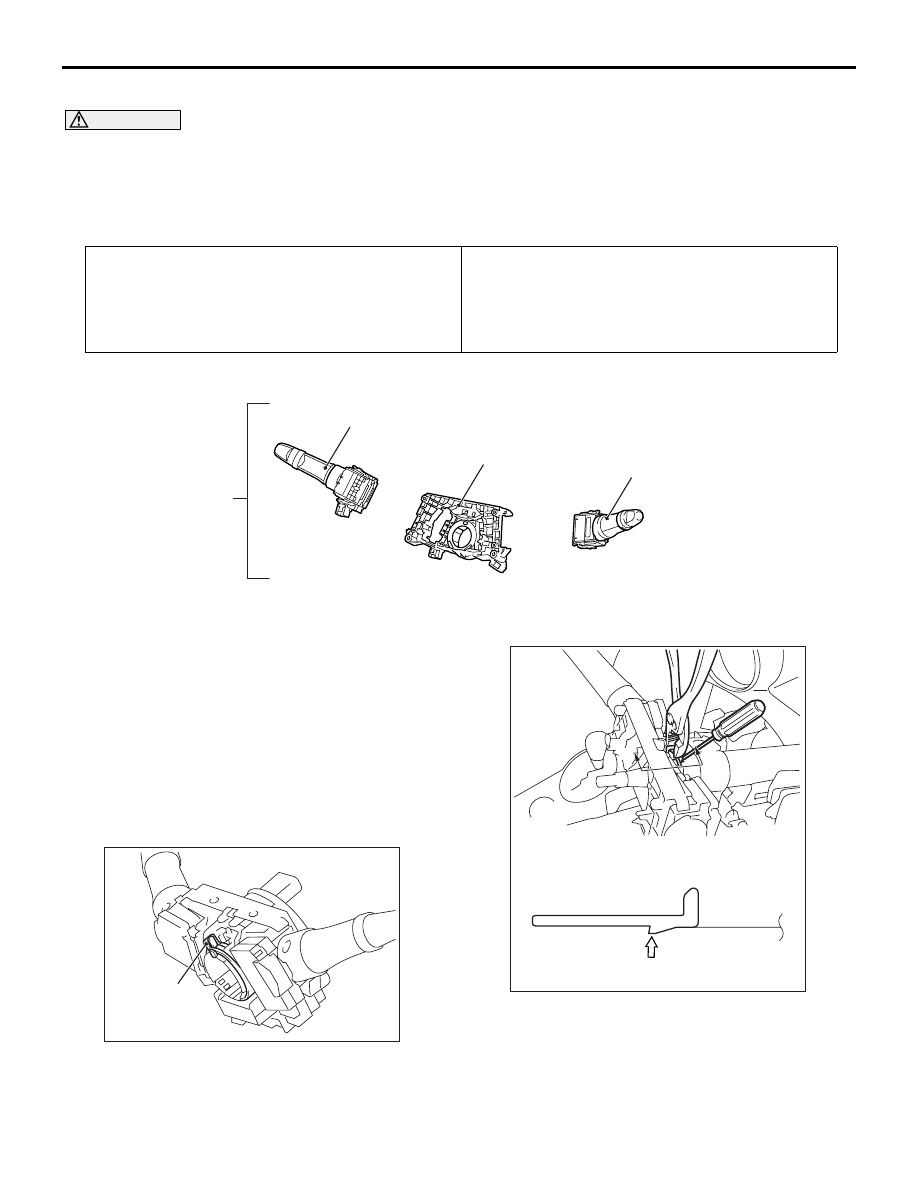

Removal steps

<<

A

>> >>

A

<< 1.

Column switch assembly

2.

Lighting switch (with built-in
column-ECU)

3.

Wiper/washer switch

4.

Column switch body

REMOVAL SERVICE POINT

<<A>> COLUMN SWITCH ASSEMBLY
REMOVAL

AC904931

Band clump pin

AC

1. Using a pliers or similar tool, pinch and lift the

band clump pin shown in the figure.

ACB06019

Section A – A

Claw

AB

A

A

2. With the flat-tipped screwdriver inserted into the

column shaft groove shown in the figure, lift the
claw shown in Section A

− A, and then remove the

column switch assembly by pulling out the column
switch assembly.

COLUMN SWITCH

CHASSIS ELECTRICAL

54A-206

INSTALLATION SERVICE POINT

>>A<< COLUMN SWITCH ASSEMBLY
INSTALLATION

AC905485AC

A

3

2

1 Band clump pin

Groove

1. Using a pliers or similar tool, pinch and lift the

band clump pin shown in the figure.

2. Align the part "A" position in the figure with the

steering lock side rib, and then insert the column
switch assembly into the column shaft.

3. After mounting the column switch assembly by

securely fitting the column switch assembly claw
with the column shaft groove, release the band
clump pin.

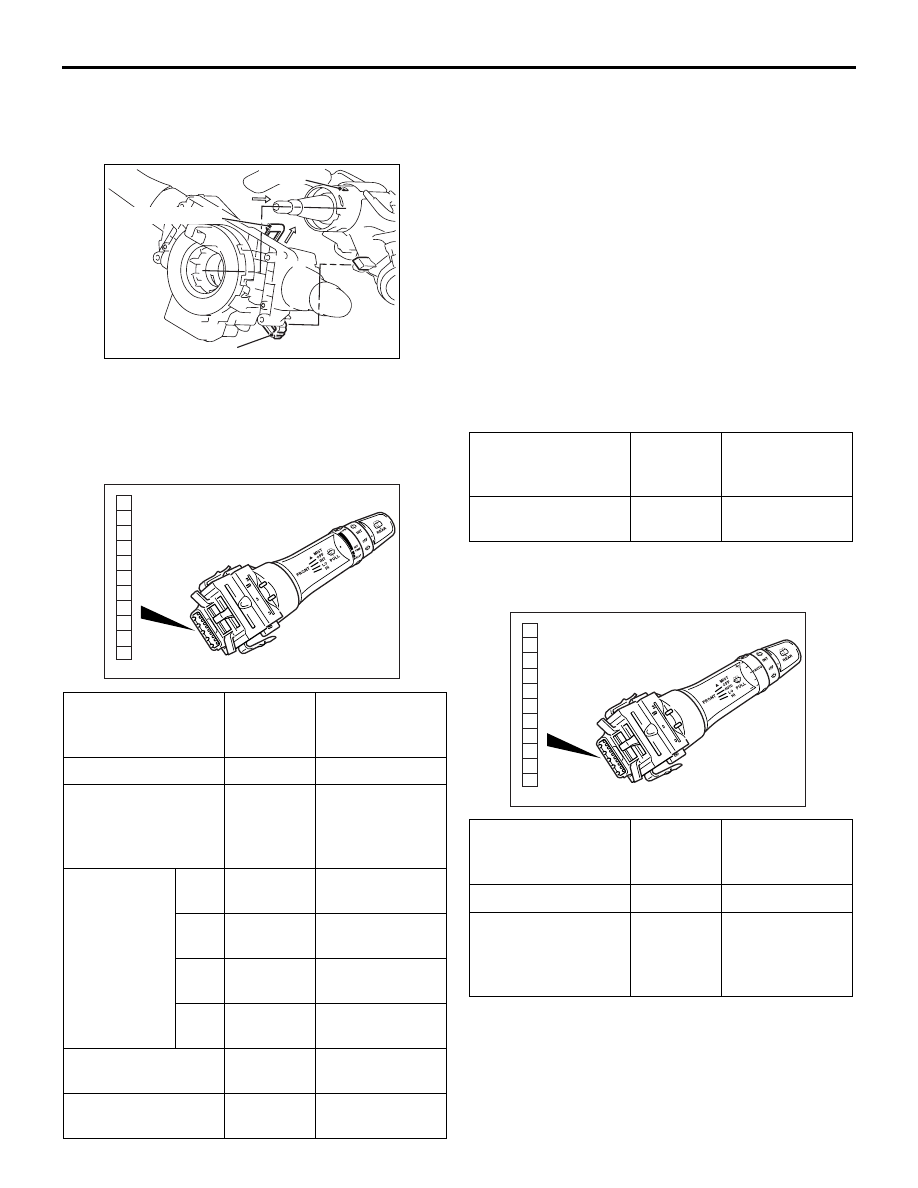

WIPER/WASHER SWITCH CONTINUITY CHECK

M1543101700292

<VEHICLES WITHOUT RAIN SENSITIVE
AUTO WIPER>

AC605524

1

6

8

11

10

9

7

5

4

3

2

AC

Switch position

Tester
connectio
n

Specified
condition

OFF

−

Open circuit

Windshield
intermittent wiper
interval adjusting
knob

8

− 3

Operating the
adjusting knob
changes the
resistance.

Windshield
wiper switch

HI

8

− 4

Continuity exists
(2

Ω or less)

INT

8

− 5

Continuity exists
(2

Ω or less)

LO

8

− 6

Continuity exists
(2

Ω or less)

MIST 8

− 10

Continuity exists
(2

Ω or less)

Windshield washer
switch

8

− 7

Continuity exists
(2

Ω or less)

Rear washer switch

8

− 9

Continuity exists
(2

Ω or less)

Rear wiper switch

8

− 11

Continuity exists
(2

Ω or less)

<VEHICLES WITH RAIN SENSITIVE AUTO
WIPER>

AC702391

1

6

8

11

10

9

7

5

4

3

2

AB

Switch position

Tester
connectio
n

Specified
condition

OFF

−

Open circuit

 Windshield rain
sensitive wiper
function adjusting
knob

8

− 3

Operating the
adjusting knob
changes the
resistance.

Switch position

Tester
connectio
n

Specified
condition

COLUMN SWITCH

CHASSIS ELECTRICAL

54A-207

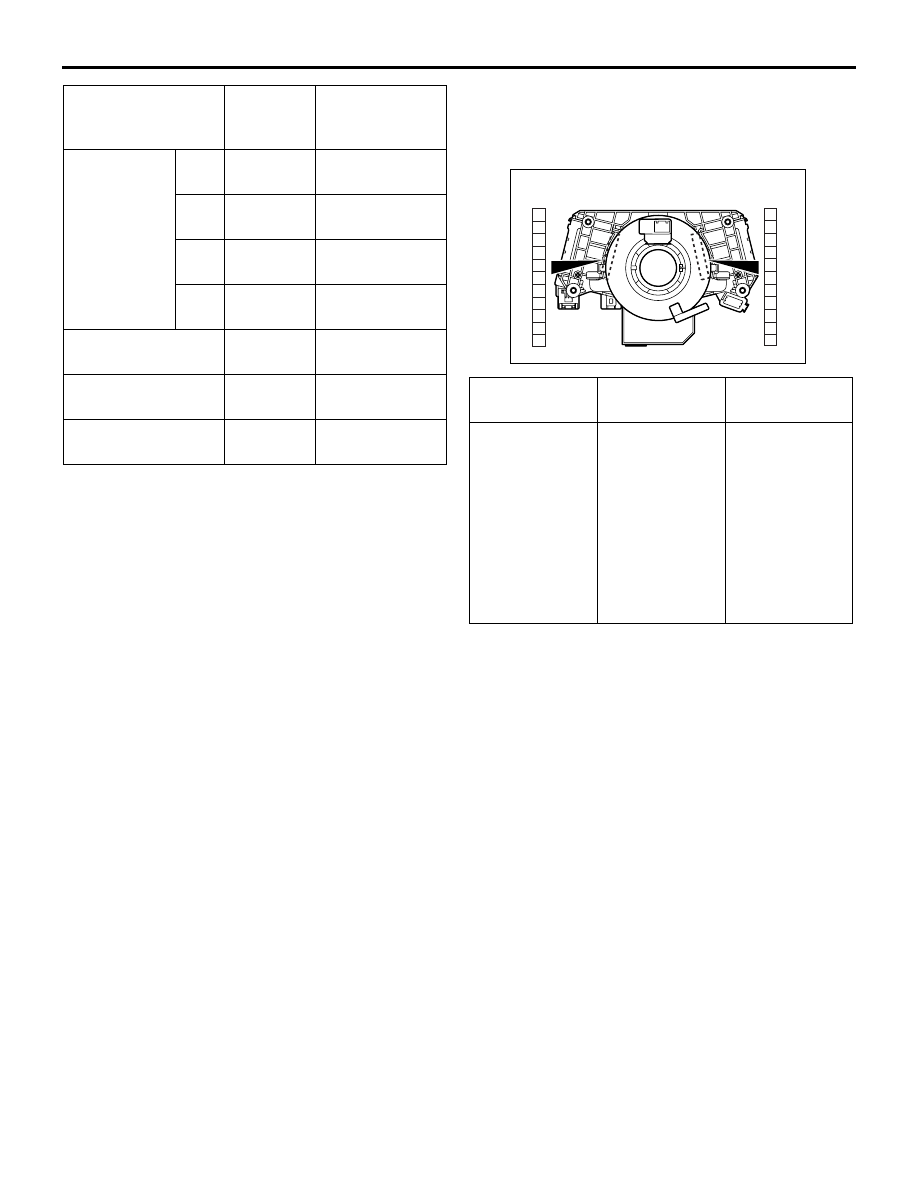

COLUMN SWITCH BODY CONTINUITY
CHECK

M1543101000475

1. Remove the lighting switch and wiper/washer

switch (Refer to

P.54A-204

).

2. Check that the continuity is present for the same

terminal numbers (No. 2

−11) of the column switch

body connectors that remain on the steering col-
umn.

AC904763AC

1

6

8

11

10

9

7

5

4

3

2

1

6

8

11

10

9

7

5

4

3

2

Lighting
switch side

Wiper/washer
switch side

Column switch
body

Terminal
number

Normal
condition

Lighting switch
side connector
Wiper/washer
switch side
connector

2

− 2

3

− 3

4

− 4

5

− 5

6

− 6

7

− 7

8

− 8

9

− 9

10

− 10

11

− 11

Continuity
exists (2

Ω or

less)

Windshield
wiper switch

HI

8

− 4

Continuity exists
(2

Ω or less)

AUT
O

8

− 5

Continuity exists
(2

Ω or less)

LO

8

− 6

Continuity exists
(2

Ω or less)

MIST 8

− 10

Continuity exists
(2

Ω or less)

Windshield washer
switch

8

− 7

Continuity exists
(2

Ω or less)

Rear washer switch

8

− 9

Continuity exists
(2

Ω or less)

Rear wiper switch

8

− 11

Continuity exists
(2

Ω or less)

Switch position

Tester
connectio
n

Specified
condition

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-208

RADIO AND CD PLAYER

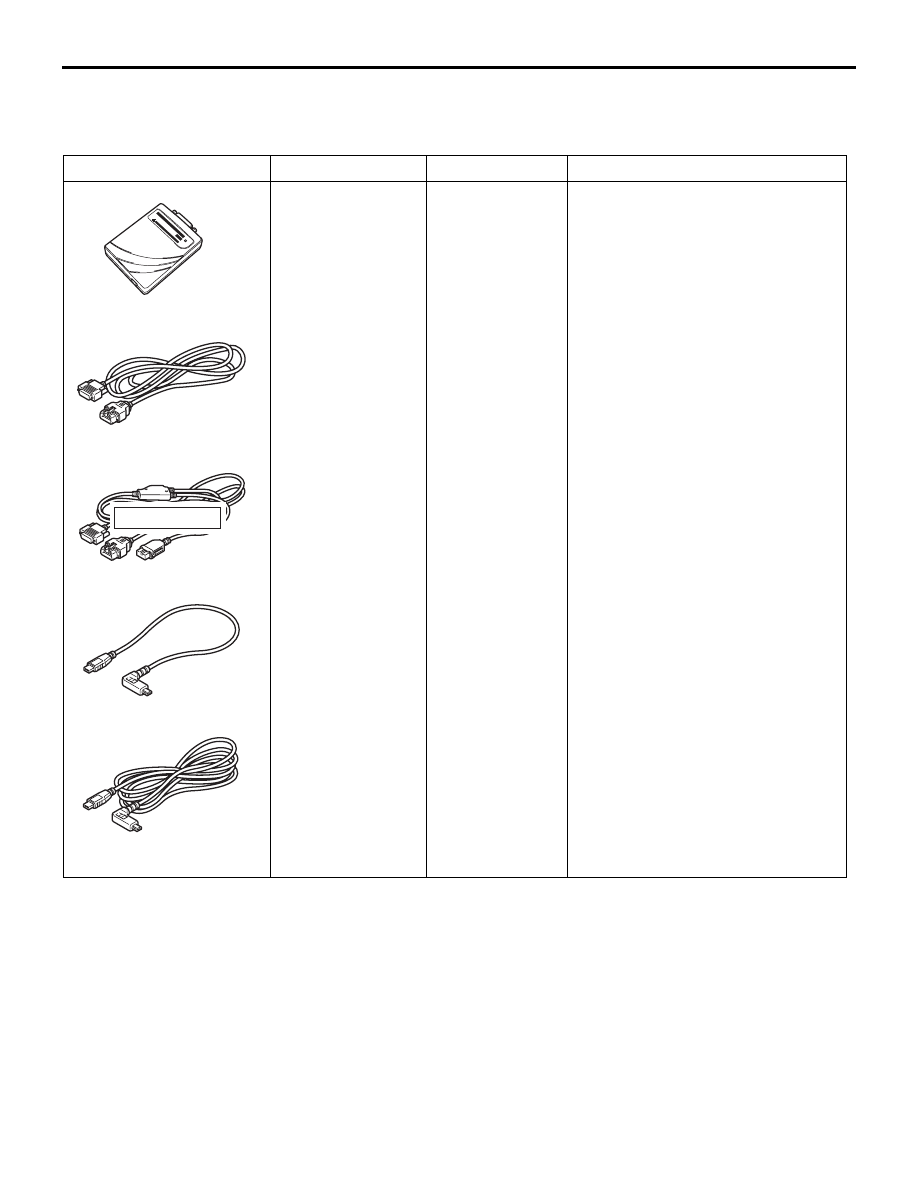

SPECIAL TOOLS

M1542000602845

Tool

Number

Name

Use

ACB05421

MB992745

MB992746

MB992744

MB992747

MB992748

a

b

c

d

e

DO NOT USE

AB

a. MB992744
b. MB992745
c. MB992746
d. MB992747
e. MB992748

a. Vehicle

communication
interface-Lite
(V.C.I.-Lite)

b. V.C.I.-Lite

main harness
A (for vehicles
with CAN
communication
)

c. V.C.I.-Lite

main harness
B (for vehicles
without CAN
communication
)

d. V.C.I.-Lite USB

cable short

e. V.C.I.-Lite USB

cable long

Diagnosis code check.
